Vicarb V8 Vicarb Gaskets Heat Exchanger Seal
Gasket Model
Vicarb V8
Place of Origin
China
Payment Method
T/T, L/C, Western Union, MoneyGram, PayPal, Credit Card
Minimum Order Quantity
5 pieces
Price
Negotiation
Packaging Details
Carton Packaging
Vicarb V8 gaskets details
PHE Model
Vicarb V8 Plate And Frame Heat Exchanger Gasket
Keyword
Vicarb Gasket
Temperature
-40°C~+200°C
warranty
1 Year
Gasket Material
NBR,EPDM,SILICONE,FKM,AFLAS,FFKM
Compatible Vicarb Models
V2, V4, V8, V13, V20, V28, V45, V60, V100, V110, V130 and V170
DESCRIPTION

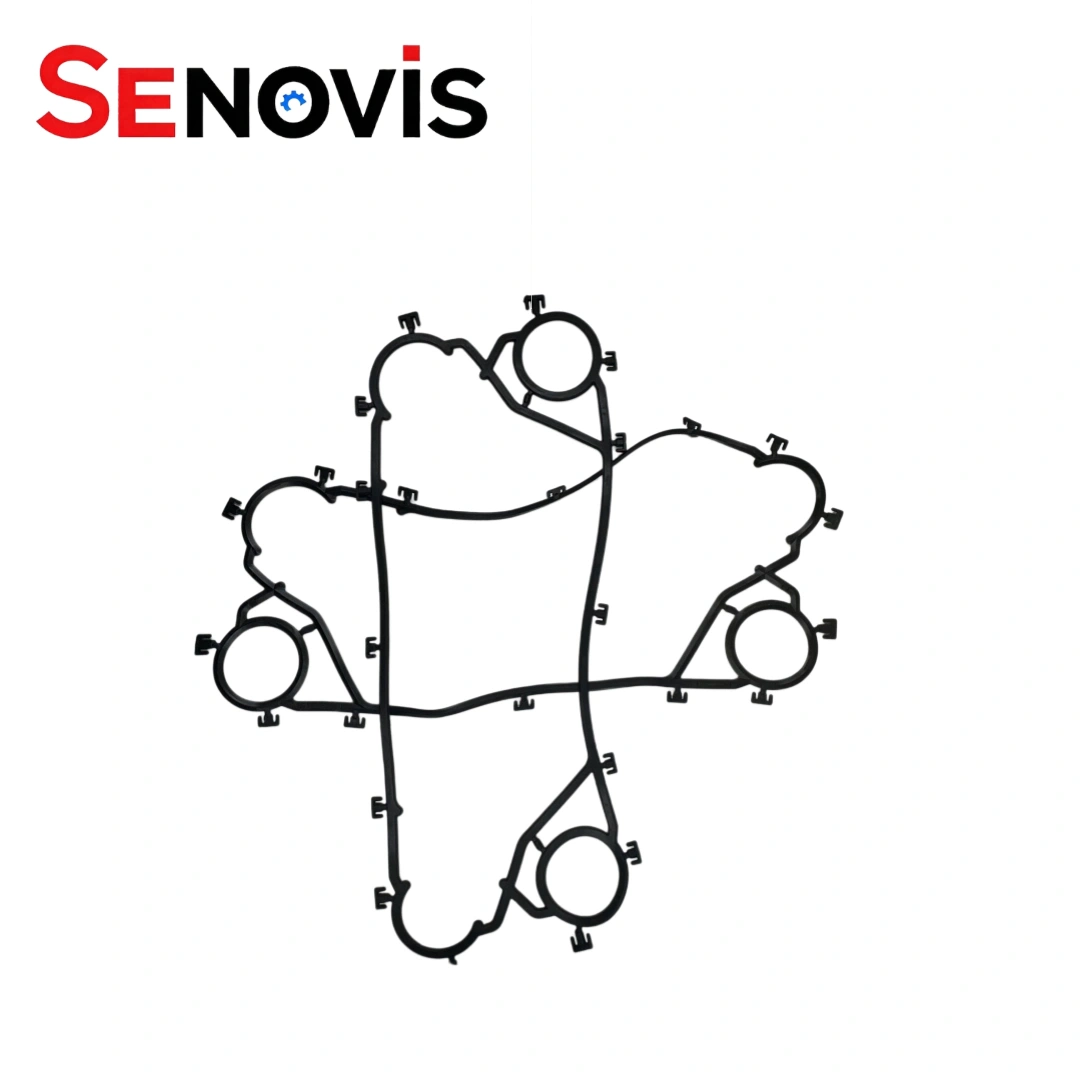

The Vicarb V8 gasket is PHE spare parts for Vicarb plate heat exchangers and aftermarket maintenance. Manufactured from NBR, EPDM, HNBR and HT EPDM, the gasket is designed to provide dependable sealing performance, excellent chemical resistance and long operational life under a wide range of working conditions.
As an important part of Vicarb plate heat exchanger service spare parts, the V8 gasket helps maintain efficient thermal performance while reducing the risk of leakage and unplanned shutdowns, it is widely used in HVAC systems, marine engineering, food processing, industrial cooling, energy and process industries.
SENOVIS PHE supplies replacement Vicarb plate heat exchanger gaskets and plates for various models including V4, V7, V8 and other Vicarb series.
Vicarb V8 Plate heat exchanger specification
Vicarb PHE Plate Heat Exchanger Replacemnet | Vicarb V8 |
| Corrugation Depth(mm) | 3 |
| Port Diameter(mm) | φ49 |
| Chevron Angle | 52°120° |
| Corrugation Pitch(mm) | 9.32 |
| Equivalent Diameter | 6 |
| Flow Area(m²) | 0.00047 |
| One Plate (m²) | 0.08 |
| Port Distance (mm) | 554*100 |
| Dimensions (mm) | 640*188 |

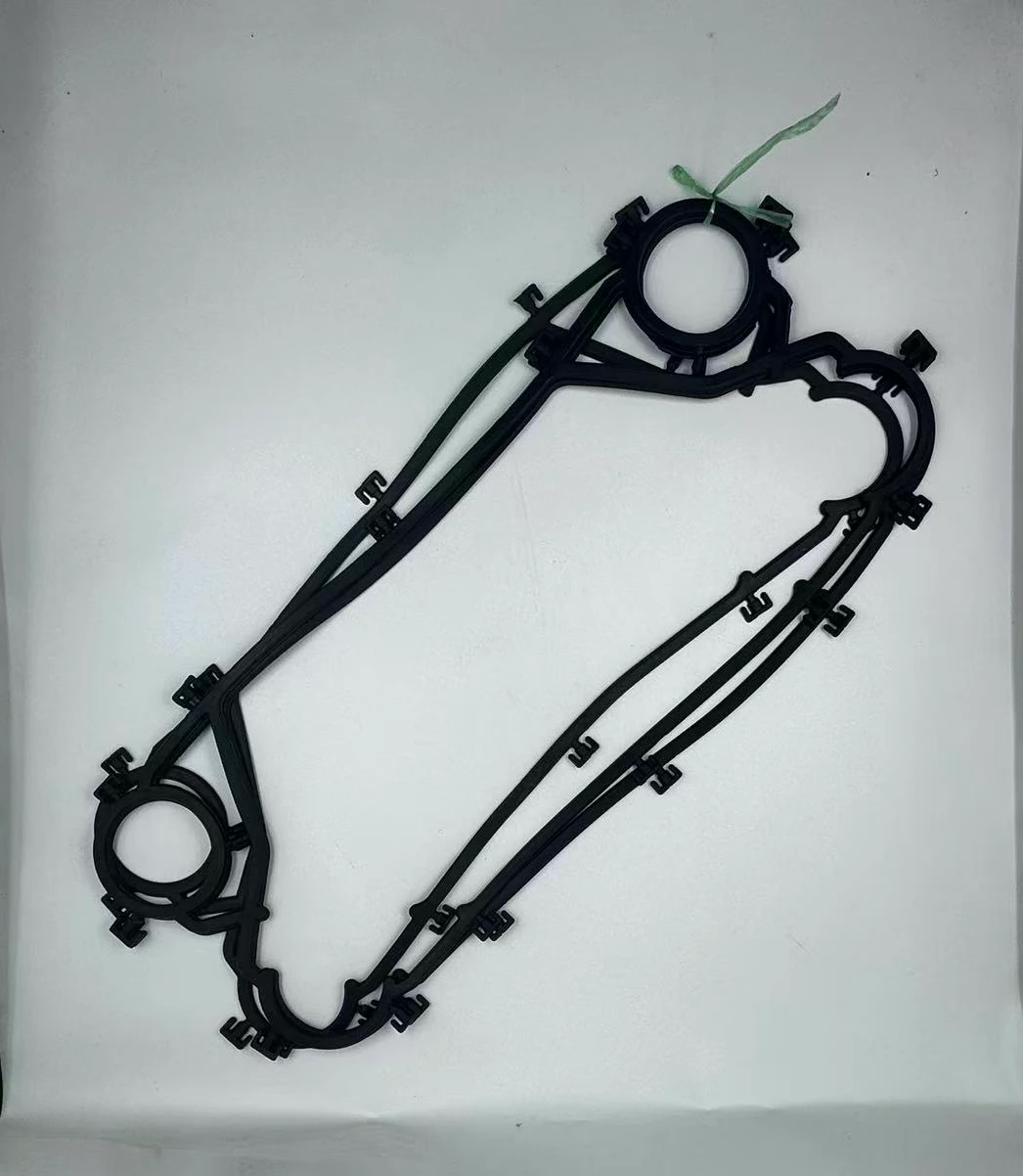

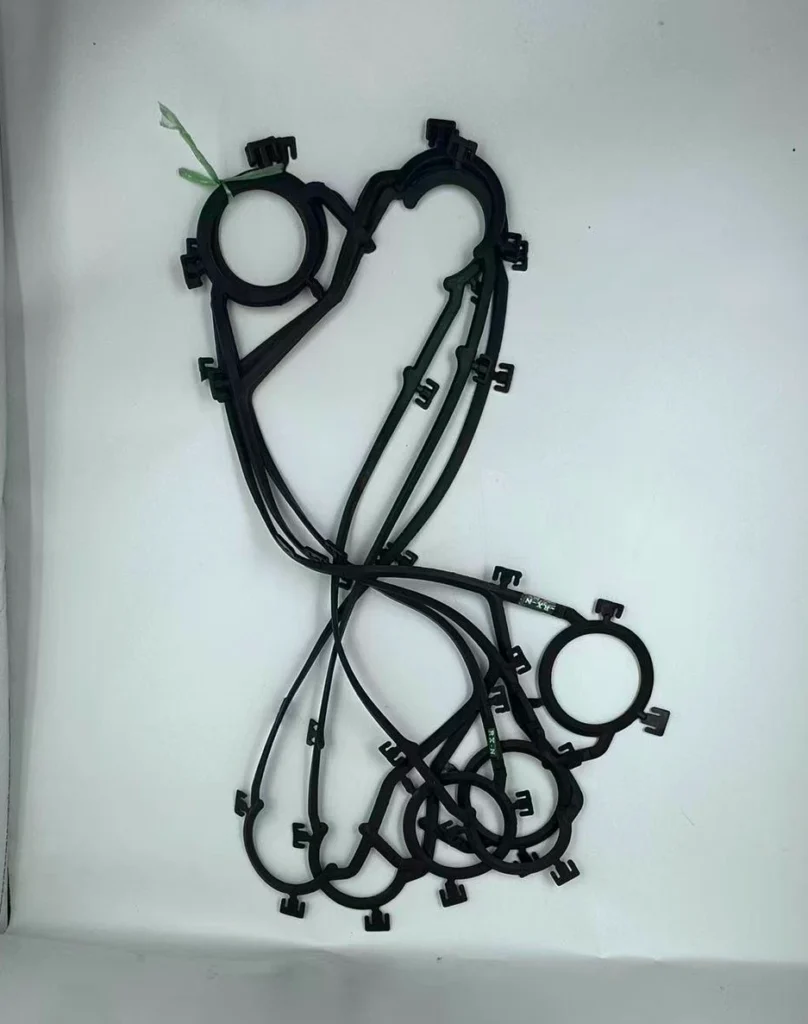

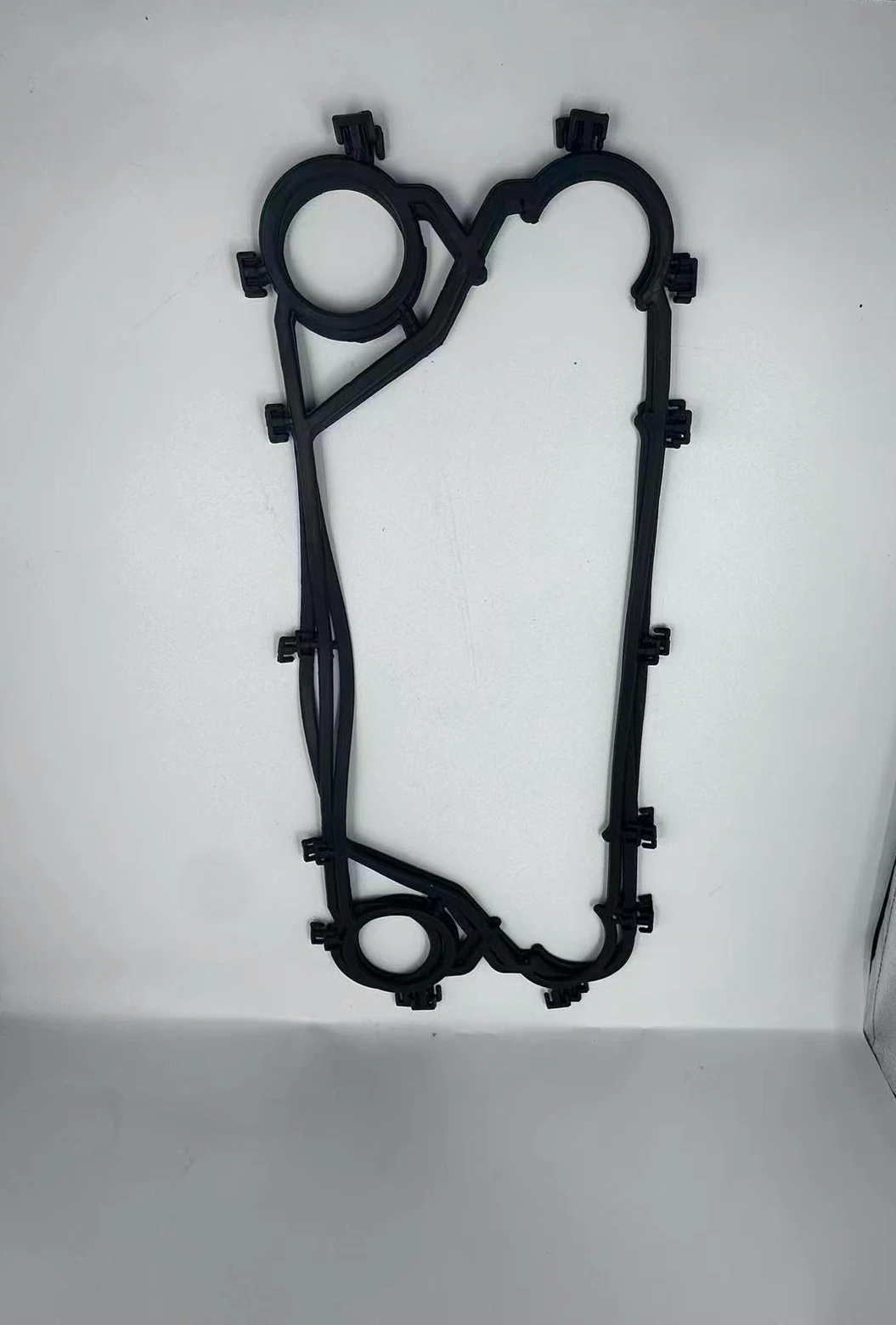

Actual Product Details
Suitable for HVAC, Marine, Food and Industrial Applications
The Vicarb V2 heat exchanger gasket is widely used in plate heat exchanger maintenance, refurbishment, and replacement projects across various industries.
HVAC Industry
Used in heating, ventilation, and air conditioning systems for heat transfer in chillers, district cooling networks, boilers, and building services.
Marine Industry
Applied in marine cooling, central cooling units, freshwater generators, lubricating oil coolers, and engine heat exchangers operating in demanding offshore and shipboard environments.
Food Industry
Suitable for plate heat exchangers used in dairy processing, beverage production, brewing, pasteurization, and other hygienic heat transfer applications requiring dependable sealing performance.
Oil and Gas Industry
Used in upstream, midstream, and downstream operations, including process cooling, lubrication systems, hydraulic oil cooling, and heat recovery within oil and gas facilities.
The Vicarb V2 gasket helps maintain operation of PHE systems while supporting routine maintenance and spare parts replacement.
