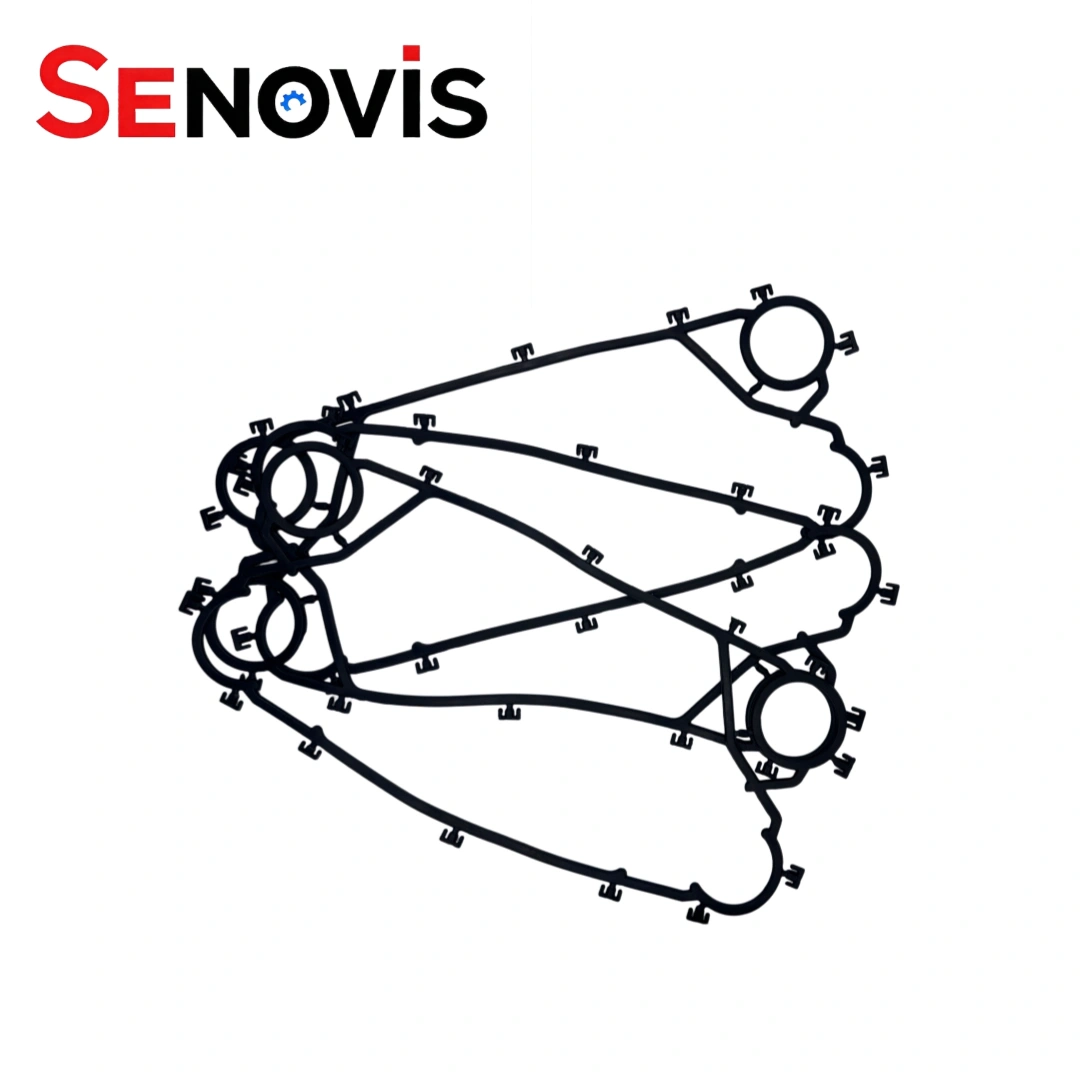

Vicarb V60 Semi Welded Plate Type Heat Exchanger Gasket

DESCRIPTION

The Vicarb V60 gasket is one of the larger sealing components we supply for the Vicarb plate heat exchanger range — and it tends to come up most often in applications where the system runs hard and a gasket failure isn’t just inconvenient, it’s costly.
Material options include NBR, EPDM, HNBR and Viton, covering most of what you’ll encounter in industrial thermal transfer work. Whether the issue is temperature range, chemical compatibility or just general wear after years of service, there’s usually a compound that fits the bill without overspecifying.
Senovis stock the V60 as part of our aftermarket supply for maintenance, repair and refurbishment work. These gaskets are a direct replacement for worn or damaged originals — no modifications, no guesswork. They’re regularly used across HVAC, refrigeration, industrial cooling, marine and general heat exchanger installations where you can’t afford a slow turnaround from the OEM.
Beyond the V60, we cover the full Vicarb V Series — V2, V4, V8, V13, V20, V28 and V45 — so if you’re managing a mixed fleet of Vicarb units, you’re not going to multiple suppliers. Replacement plates in stainless steel, titanium and SMO are also available for the same models.

Vicarb V2 Plate heat exchanger specification

Vicarb PHE Plate Heat Exchanger Replacemnet	Vicarb V60
Corrugation Depth(mm)	3.9
Port Diameter(mm)	φ155
Chevron Angle	52°120°
Corrugation Pitch(mm)	13.5
Equivalent Diameter	7.8
Flow Area(m²)	0.00196
One Plate (m²)	0.6
Port Distance (mm)	1280*310
Dimensions (mm)	1510*540

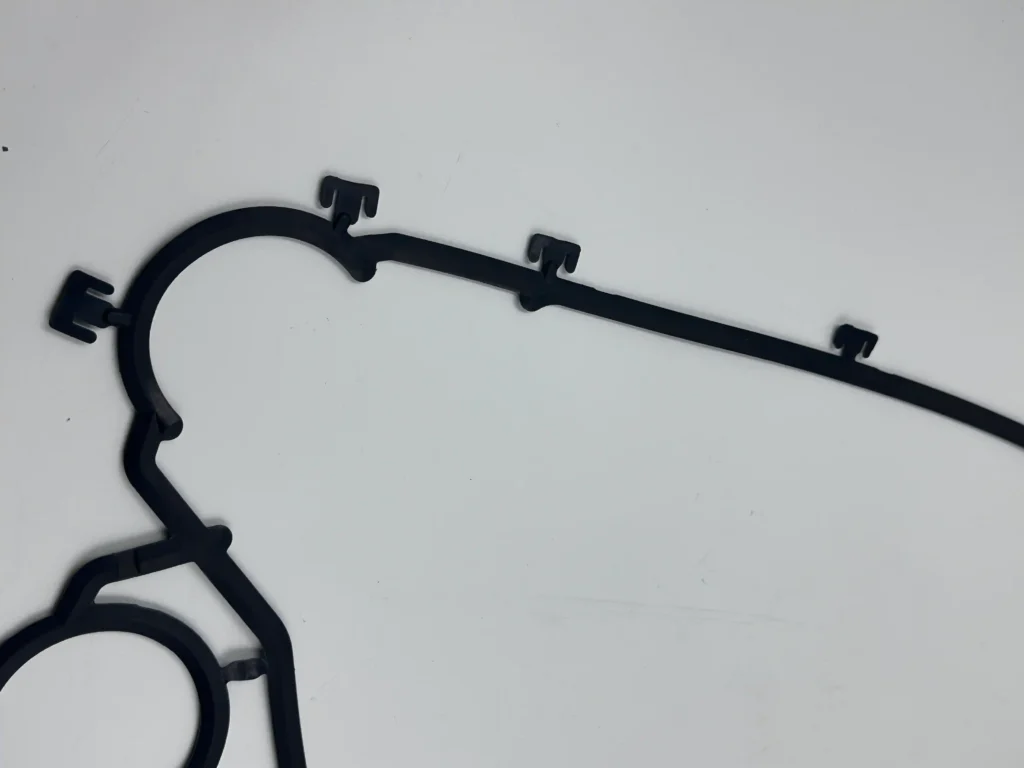

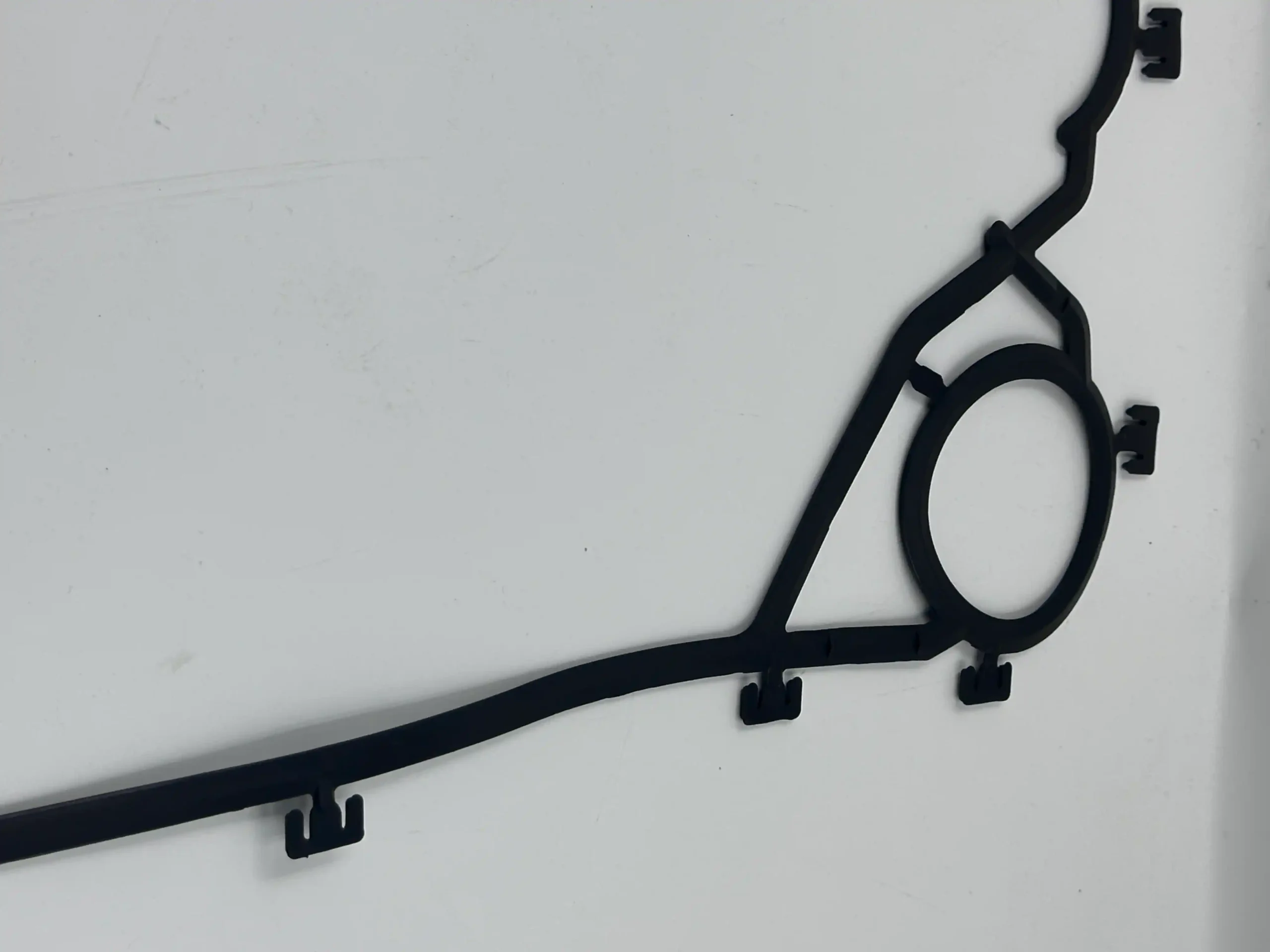

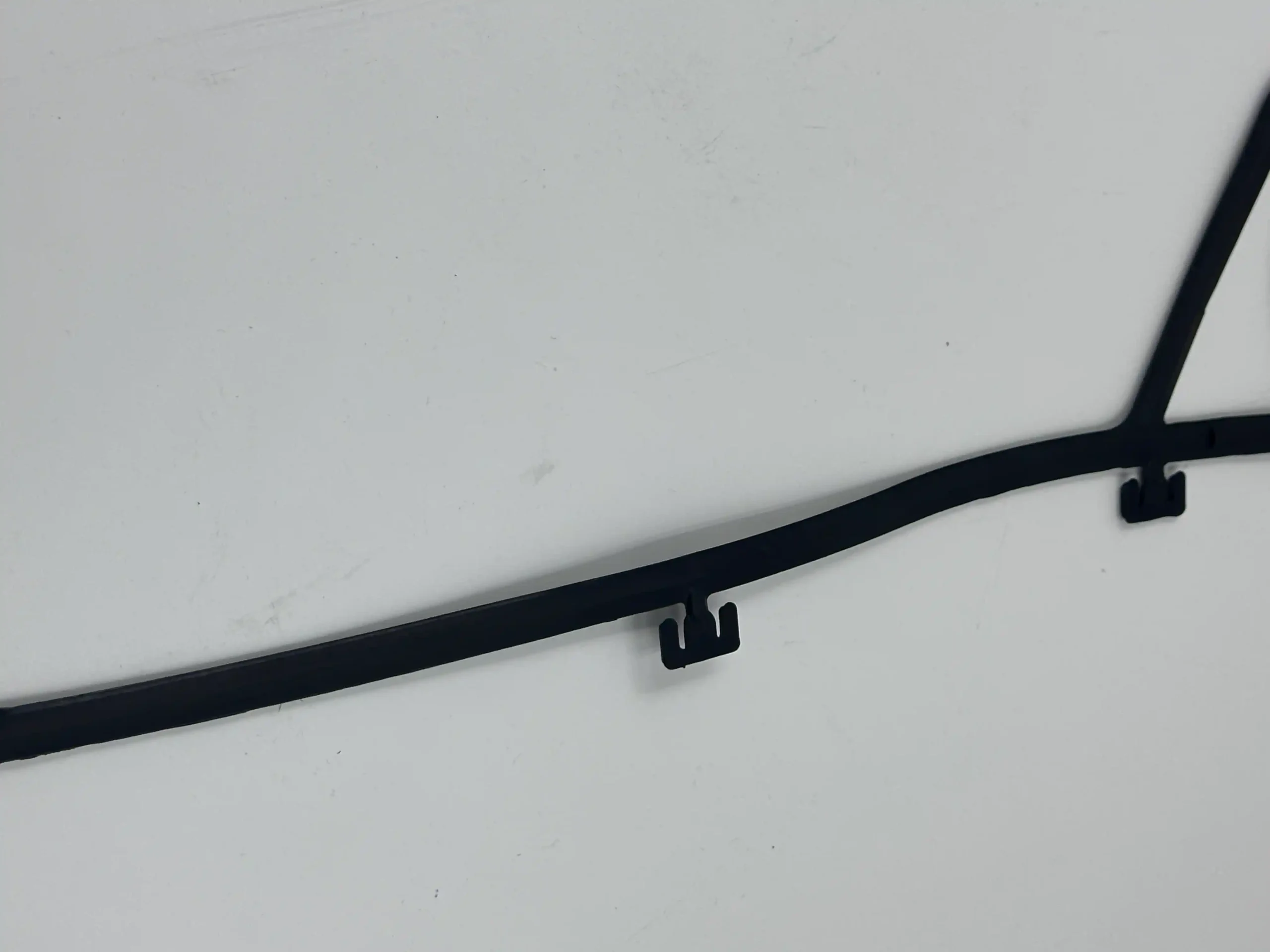

Actual Product Details

Suitable for HVAC, Marine, Food and Industrial Applications

The Vicarb V2 heat exchanger gasket is widely used in plate heat exchanger maintenance, refurbishment, and replacement projects across various industries.

HVAC Industry

Used in heating, ventilation, and air conditioning systems for heat transfer in chillers, district cooling networks, boilers, and building services.

Marine Industry

Applied in marine cooling, central cooling units, freshwater generators, lubricating oil coolers, and engine heat exchangers operating in demanding offshore and shipboard environments.

Food Industry

Suitable for plate heat exchangers used in dairy processing, beverage production, brewing, pasteurization, and other hygienic heat transfer applications requiring dependable sealing performance.

Oil and Gas Industry

Used in upstream, midstream, and downstream operations, including process cooling, lubrication systems, hydraulic oil cooling, and heat recovery within oil and gas facilities.

The Vicarb V2 gasket helps maintain operation of PHE systems while supporting routine maintenance and spare parts replacement.
