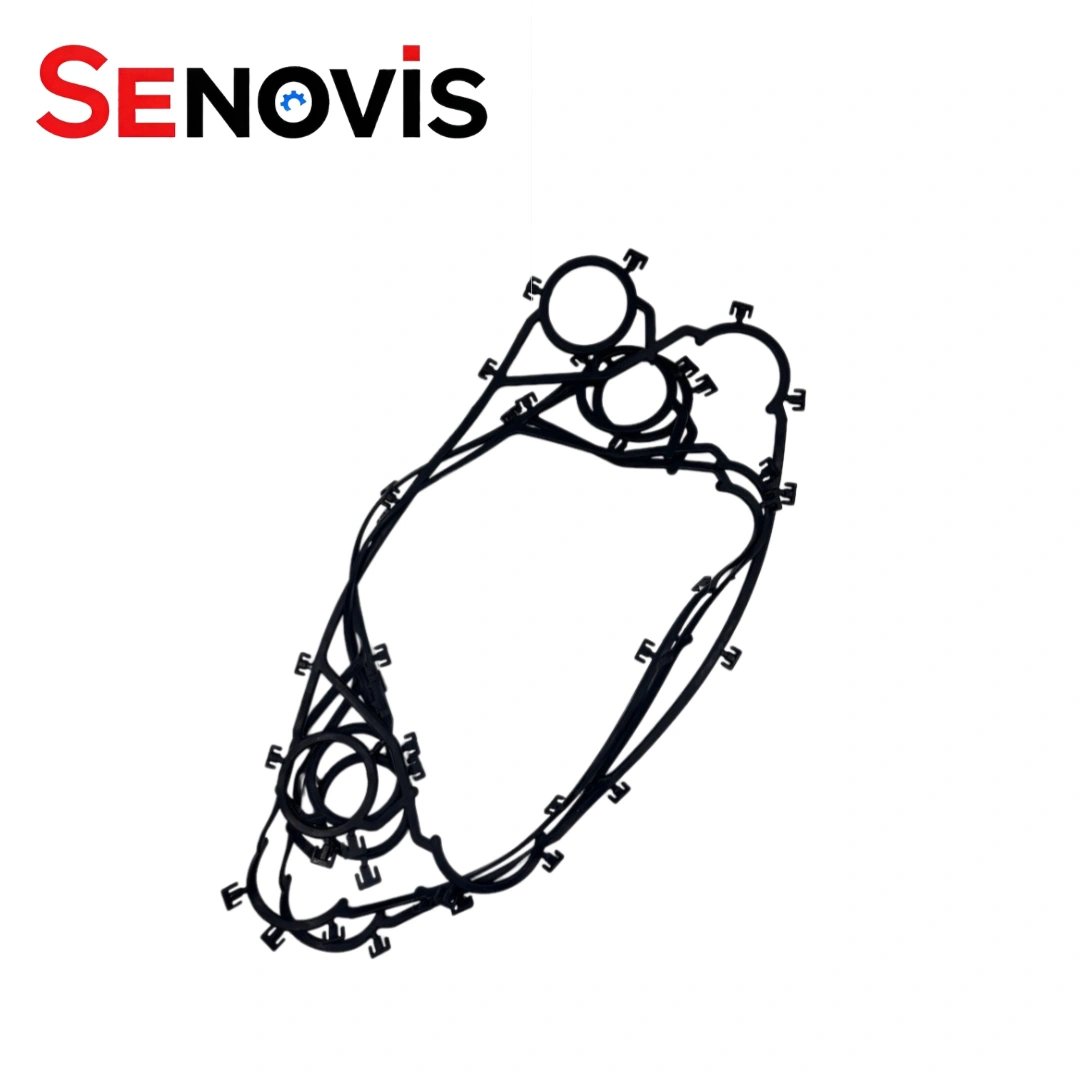

Vicarb V170 Chevron Plate Heat Exchanger Gasket Manufacturer

DESCRIPTION

The Vicarb V170 gasket is at the heavy-duty end of the V Series — the kind of component that turns up in systems where the operating conditions are genuinely tough and downtime has a real cost attached to it. District heating networks, large marine installations, continuous industrial process lines — that’s the typical territory for a unit this size.

Material options include NBR, EPDM, HNBR and HT EPDM. The HT EPDM is worth noting specifically , it handles higher temperature hot water circuits better than standard EPDM, which makes it a practical choice for district heating and similar applications where temperatures push the limits of conventional compounds. If you’re not sure which material fits your system, the operating temperature and fluid type are usually enough to narrow it down quickly.

Replacement plates in stainless steel, titanium and SMO are available for the same model when a full refurbishment makes more sense than gasket-only replacement.

We also carry gaskets and plates across the wider Vicarb V Series — V13, V28, V45, V60, V85, V100, V130 and V280 — so if you’re managing multiple Vicarb units on site, it’s usually possible to cover everything in a single order.

Have a model reference or nameplate details? Send them over and we’ll confirm what’s available and when.

Vicarb V170 Plate heat exchanger specification

Vicarb PHE Plate Heat Exchanger Replacemnet	Vicarb V170
Corrugation Depth(mm)	4
Port Diameter(mm)	φ400
Chevron Angle	52°120°
Corrugation Pitch(mm)	13.16
Equivalent Diameter	8
Flow Area(m²)	0.00327
One Plate (m²)	1.7
Port Distance (mm)	1681*700
Dimensions (mm)	2181*1200

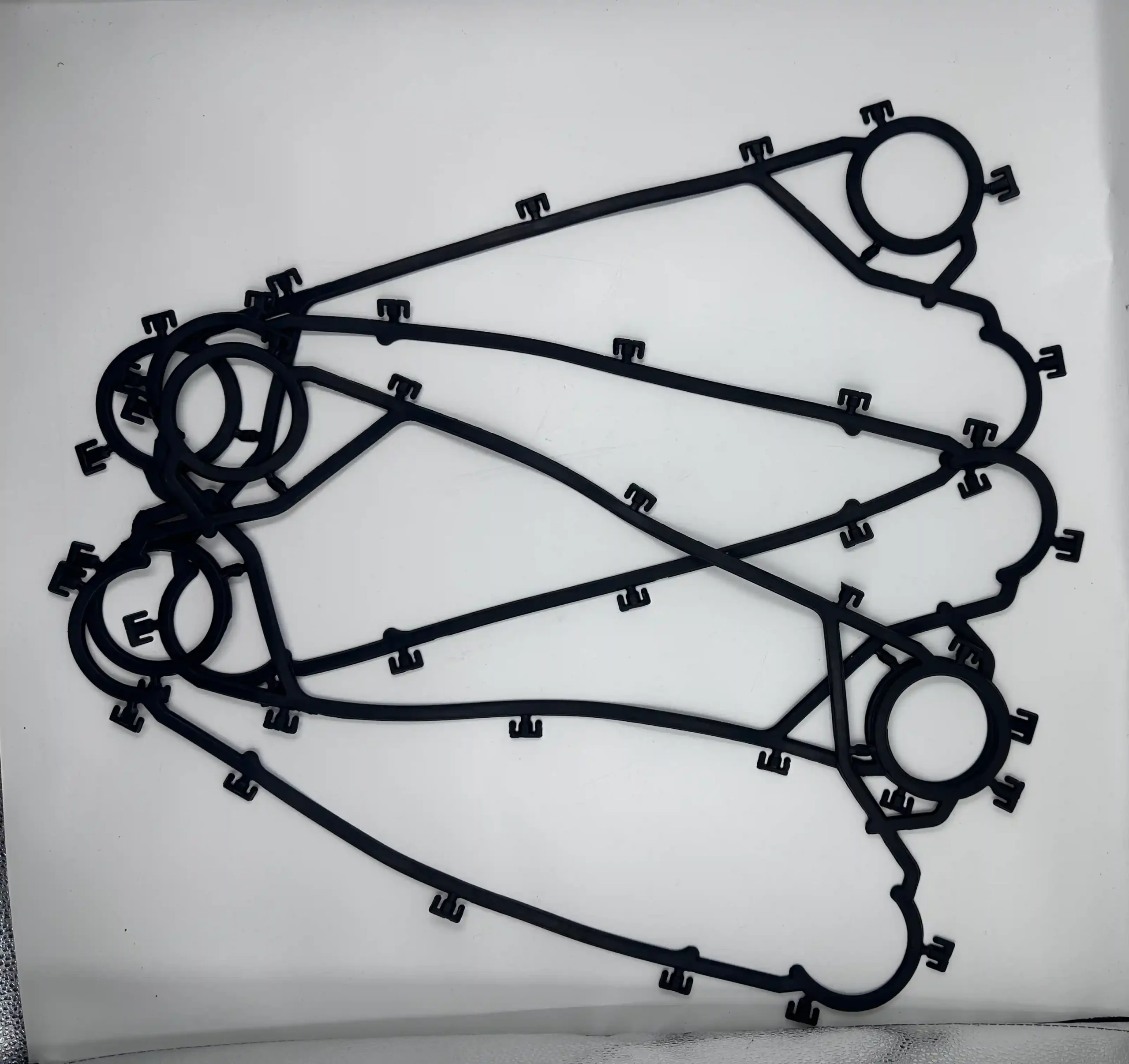

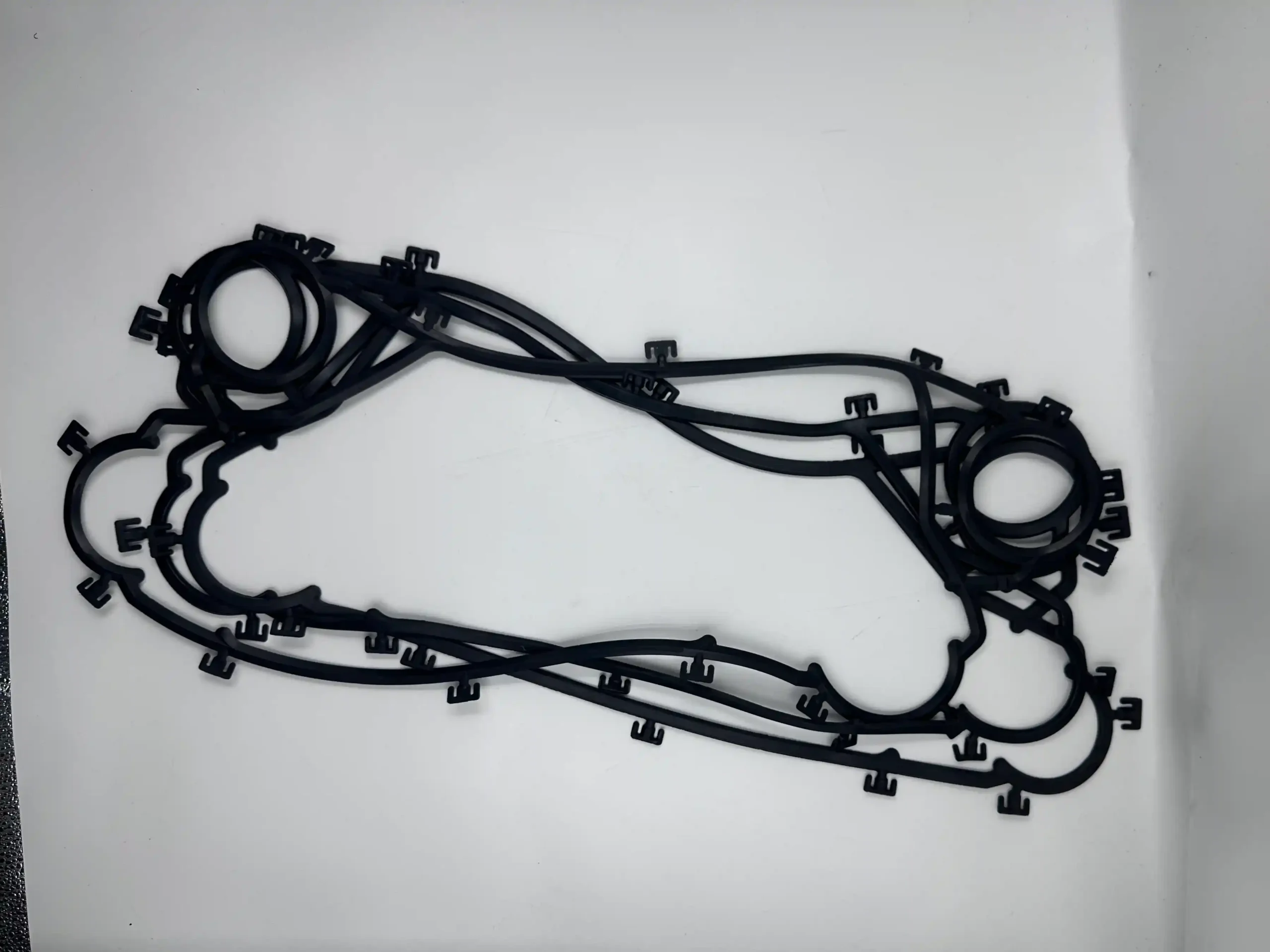

Actual Product Details

Suitable for HVAC, Marine, Food and Industrial Applications

The Vicarb V2 heat exchanger gasket is widely used in plate heat exchanger maintenance, refurbishment, and replacement projects across various industries.

HVAC Industry

Used in heating, ventilation, and air conditioning systems for heat transfer in chillers, district cooling networks, boilers, and building services.

Marine Industry

Applied in marine cooling, central cooling units, freshwater generators, lubricating oil coolers, and engine heat exchangers operating in demanding offshore and shipboard environments.

Food Industry

Suitable for plate heat exchangers used in dairy processing, beverage production, brewing, pasteurization, and other hygienic heat transfer applications requiring dependable sealing performance.

Oil and Gas Industry

Used in upstream, midstream, and downstream operations, including process cooling, lubrication systems, hydraulic oil cooling, and heat recovery within oil and gas facilities.

The Vicarb V2 gasket helps maintain operation of PHE systems while supporting routine maintenance and spare parts replacement.
