Vicarb V13 Vicarb Plate Heat Exchanger Gaskets
Gasket Model
Vicarb V13
Place of Origin
China
Payment Method
T/T, L/C, Western Union, MoneyGram, PayPal, Credit Card
Minimum Order Quantity
5 pieces
Price
Negotiation
Packaging Details
Carton Packaging
Vicarb V13 gaskets details
PHE Model
Vicarb V13 Plate And Frame Heat Exchanger Gasket
Keyword
Vicarb Gasket
Temperature
-40°C~+200°C
warranty
1 Year
Gasket Material
NBR,EPDM,SILICONE,FKM,AFLAS,FFKM
Compatible Vicarb Models
V2, V4, V8, V13, V20, V28, V45, V60, V100, V110, V130 and V170
Vicarb V13 Plate Heat Exchanger Gaskets & Spares
Welcome to your premier sourcing hub for VICARB plate heat exchanger gaskets. We specialize in providing top tier Vicarb Heat Exchanger Spares. Designed to perfectly complement the Vicarb V13 Plate for Liquid Heat Exchanger, our V13 gaskets ensure an absolute, leak free seal under the most demanding operational conditions. Aligning with elite industry service standards, such as marine Services, we offer comprehensive Service Spare Parts for Vicarb Plate Heat Exchanger maintenance.
While we maintain a robust inventory covering the entire product lineage including Vicarb V13 V20 V28 V45 V110 V130 V170 V280 Gasket selections. To meet diverse fluid profiles and temperature ranges, we supply Vicarb V20 V8 V13 V65 Plates and NBR / EPDM / Viton gasket variants. Whether your application requires standard oil-resistant NBR, high temperature EPDM, or chemically inert Viton.
Vicarb V13 Plate heat exchanger specification
Vicarb PHE Plate Heat Exchanger Replacemnet | Vicarb V13 |
| Corrugation Depth(mm) | 3.5 |
| Port Diameter(mm) | φ70 |
| Chevron Angle | 51°120° |
| Corrugation Pitch(mm) | 11 |
| Equivalent Diameter | 7 |
| Flow Area(m²) | 0.00073 |
| One Plate (m²) | 0.13 |
| Port Distance (mm) | 625*130 |
| Dimensions (mm) | 739*241 |

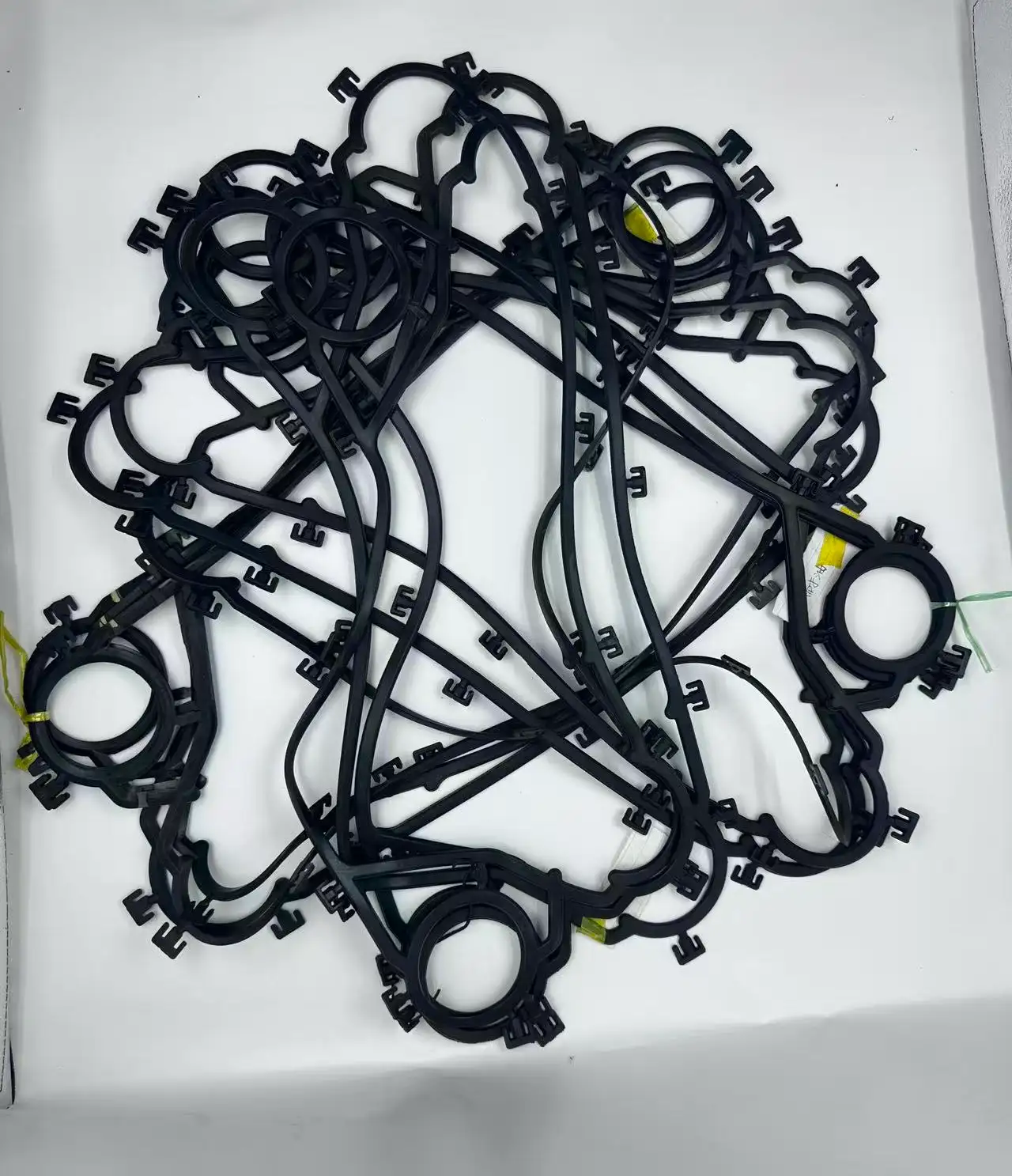

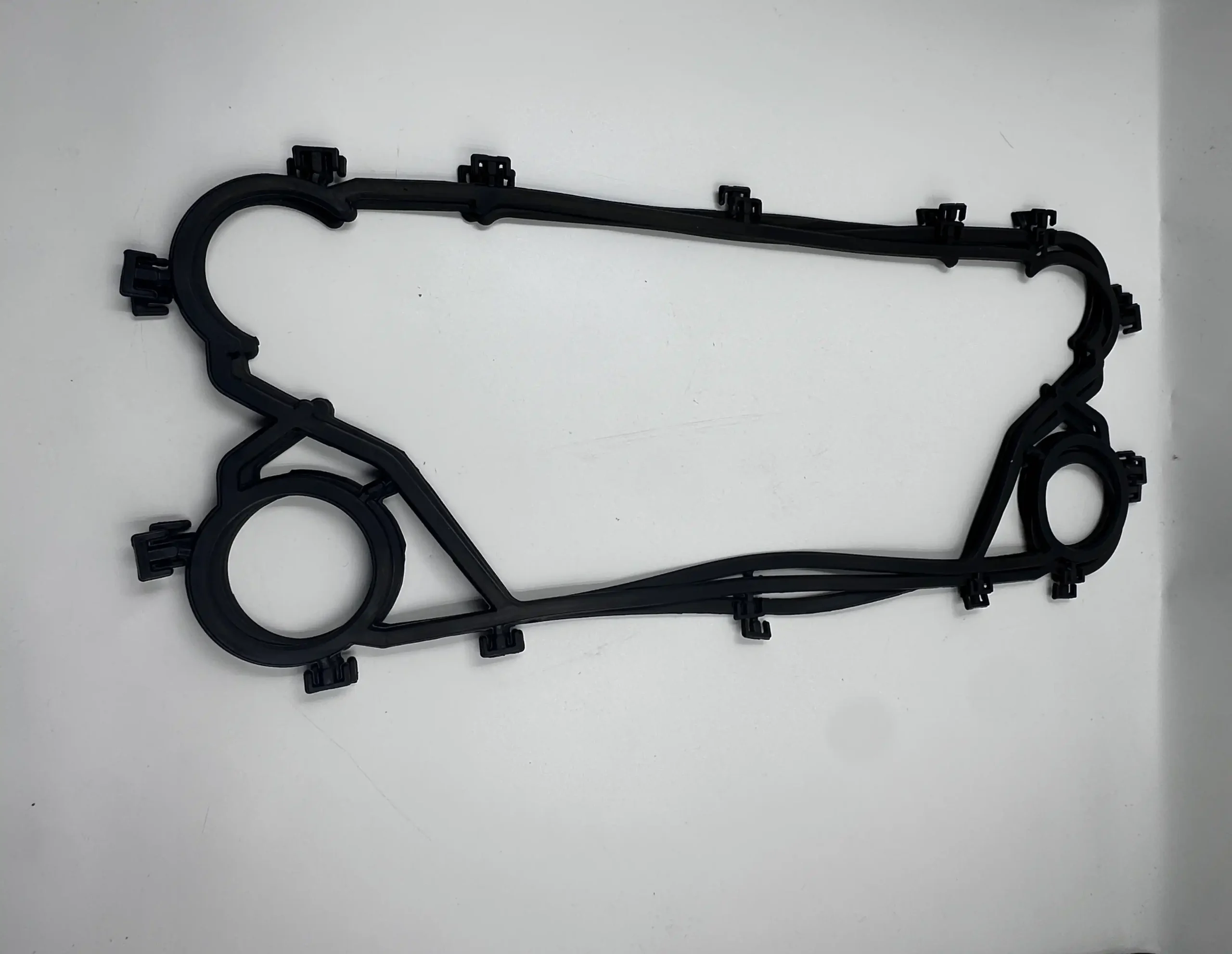

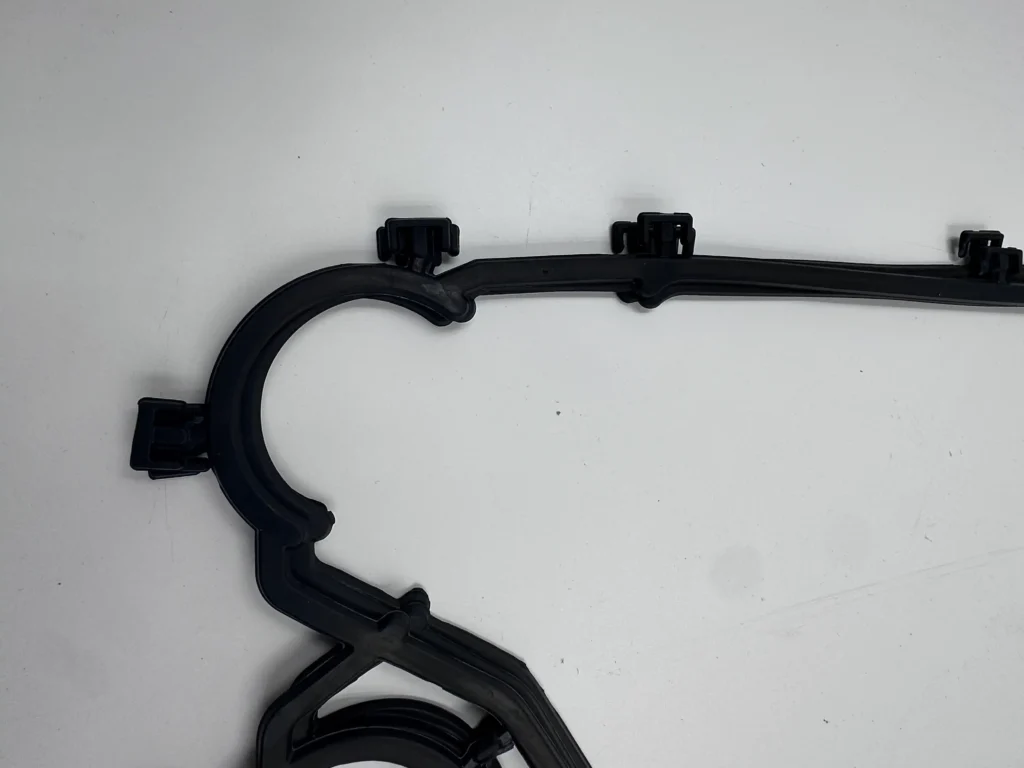

Actual Product Details
Suitable for HVAC, Marine, Food and Industrial Applications
The Vicarb V2 heat exchanger gasket is widely used in plate heat exchanger maintenance, refurbishment, and replacement projects across various industries.
HVAC Industry
Used in heating, ventilation, and air conditioning systems for heat transfer in chillers, district cooling networks, boilers, and building services.
Marine Industry
Applied in marine cooling, central cooling units, freshwater generators, lubricating oil coolers, and engine heat exchangers operating in demanding offshore and shipboard environments.
Food Industry
Suitable for plate heat exchangers used in dairy processing, beverage production, brewing, pasteurization, and other hygienic heat transfer applications requiring dependable sealing performance.
Oil and Gas Industry
Used in upstream, midstream, and downstream operations, including process cooling, lubrication systems, hydraulic oil cooling, and heat recovery within oil and gas facilities.
The Vicarb V2 gasket helps maintain operation of PHE systems while supporting routine maintenance and spare parts replacement.
