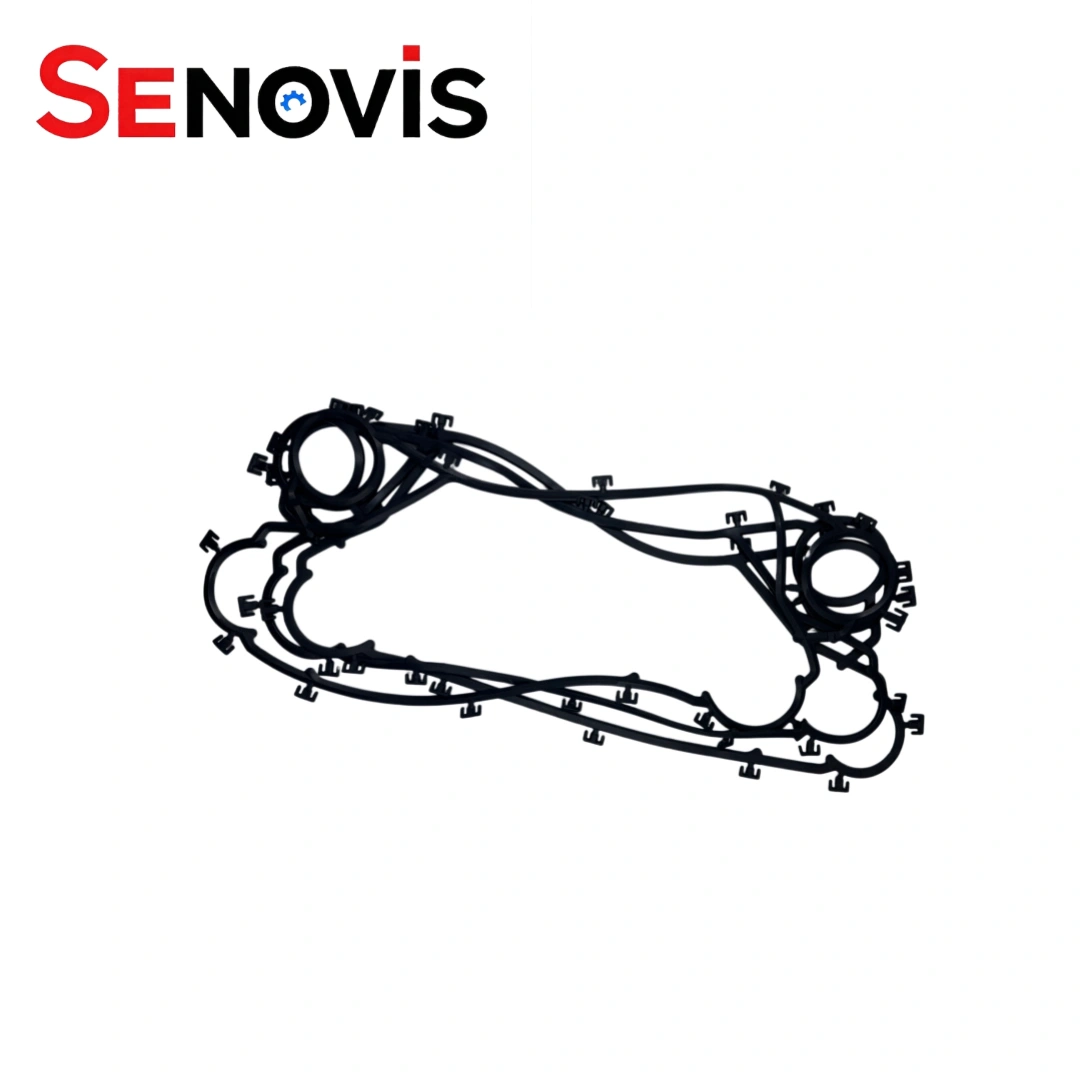

Vicarb V110 NBR Gasket Plate Heat Exchanger Supplier In UAE

DESCRIPTION

The Vicarb V110 gasket sits at the larger end of the V Series range, and it typically turns up in applications where the heat exchanger is doing serious work — high flow rates, aggressive media, or systems that simply can’t afford unplanned stops.
We supply the V110 in NBR, EPDM, HNBR and Viton, which covers the majority of what industrial and process engineers actually encounter in the field. If you’re unsure which compound suits your media and temperature range, it’s worth a quick conversation rather than guessing — the wrong material choice tends to show up at the worst possible moment.
At SENOVIS PHE, the V110 is part of our standard aftermarket stock for Vicarb plate heat exchanger maintenance and repair. These are direct replacements built to original dimensions — so fitting is straightforward and you’re not reworking connections or shimming plates to compensate for tolerances. Common applications include HVAC, marine systems, food processing, chemical processing, power generation and industrial cooling, though we see them across a pretty broad range of setups.

Beyond the V110, we stock gaskets and plates across the full Vicarb V Series — V4, V7, V8, V10, V13, V20, V28, V45, V55, V60, V85, V100, V120, V130, V170 and V280. If you’re maintaining a larger fleet of Vicarb units, that means one supplier rather than chasing parts across multiple sources.
Got a nameplate reference or a model number? Send it over and we’ll confirm availability and lead time.

Vicarb V110 Plate heat exchanger specification

Vicarb PHE Plate Heat Exchanger Replacemnet	Vicarb V110
Corrugation Depth(mm)	3.5
Port Diameter(mm)	φ300
Chevron Angle	30° / 60°
Corrugation Pitch(mm)	52°120°
Equivalent Diameter	10.9
Flow Area(m²)	7
One Plate (m²)	0.00327
Port Distance (mm)	1.1
Dimensions (mm)	1320*598

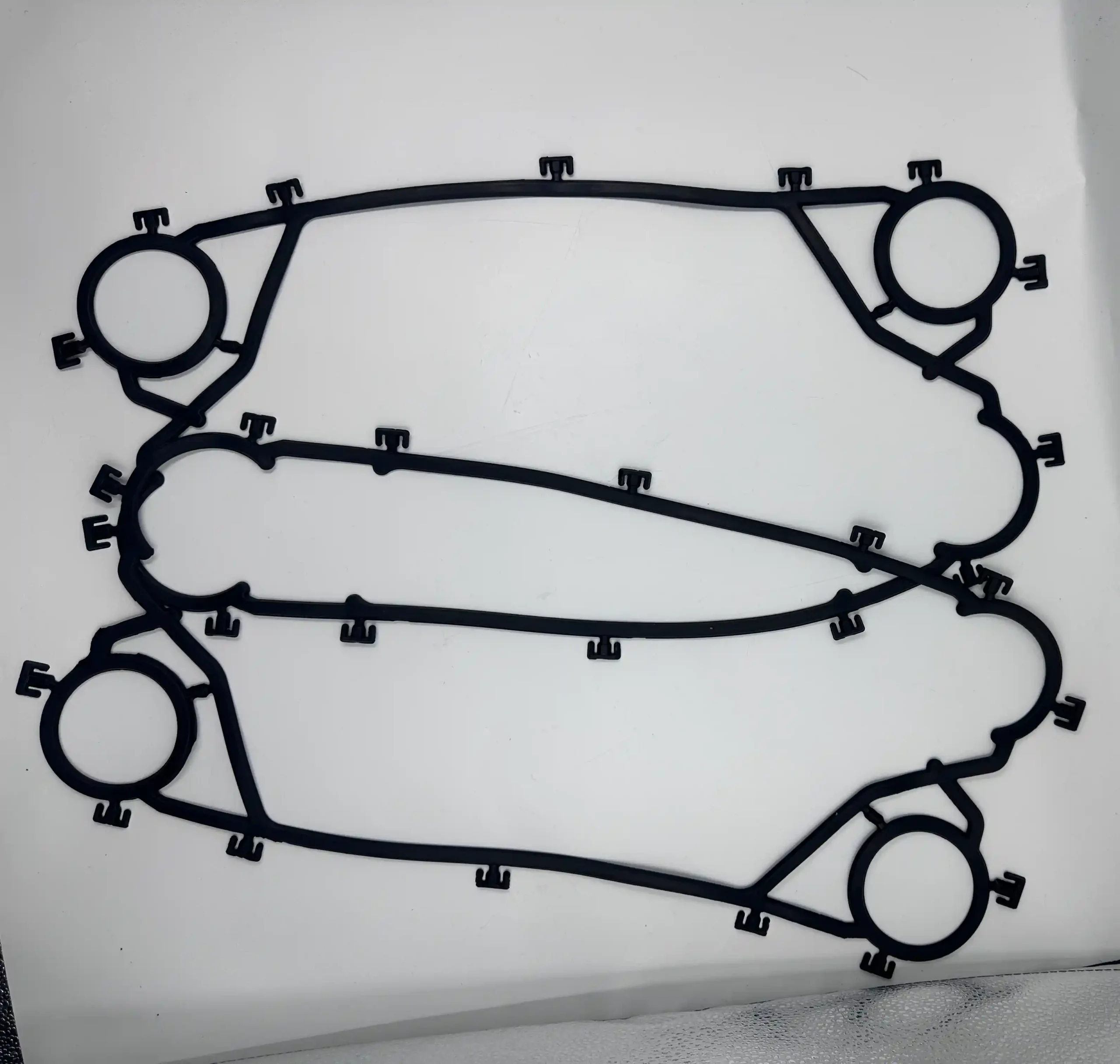

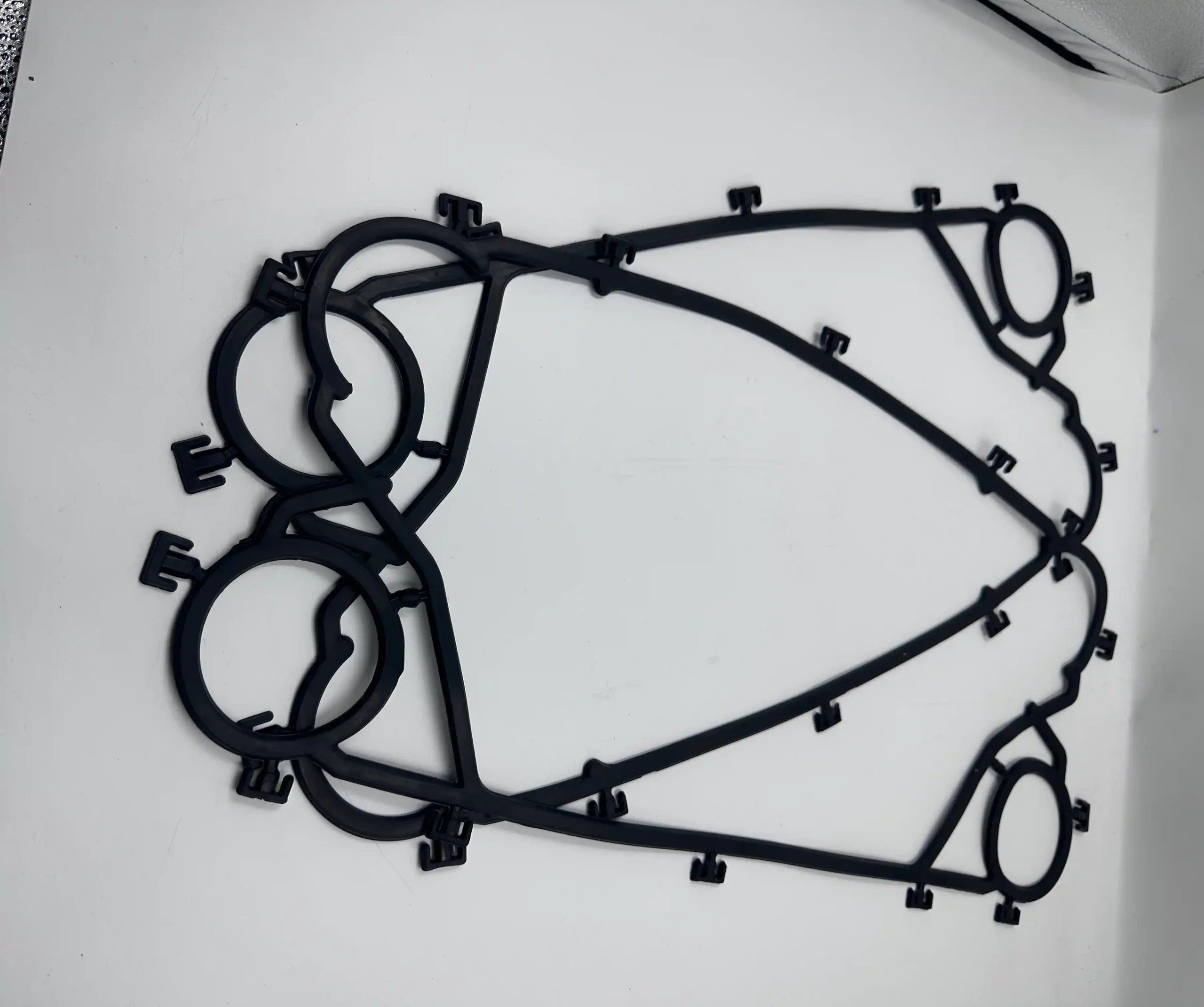

Actual Product Details

Suitable for HVAC, Marine, Food and Industrial Applications

The Vicarb V2 heat exchanger gasket is widely used in plate heat exchanger maintenance, refurbishment, and replacement projects across various industries.

HVAC Industry

Used in heating, ventilation, and air conditioning systems for heat transfer in chillers, district cooling networks, boilers, and building services.

Marine Industry

Applied in marine cooling, central cooling units, freshwater generators, lubricating oil coolers, and engine heat exchangers operating in demanding offshore and shipboard environments.

Food Industry

Suitable for plate heat exchangers used in dairy processing, beverage production, brewing, pasteurization, and other hygienic heat transfer applications requiring dependable sealing performance.

Oil and Gas Industry

Used in upstream, midstream, and downstream operations, including process cooling, lubrication systems, hydraulic oil cooling, and heat recovery within oil and gas facilities.

The Vicarb V2 gasket helps maintain operation of PHE systems while supporting routine maintenance and spare parts replacement.
