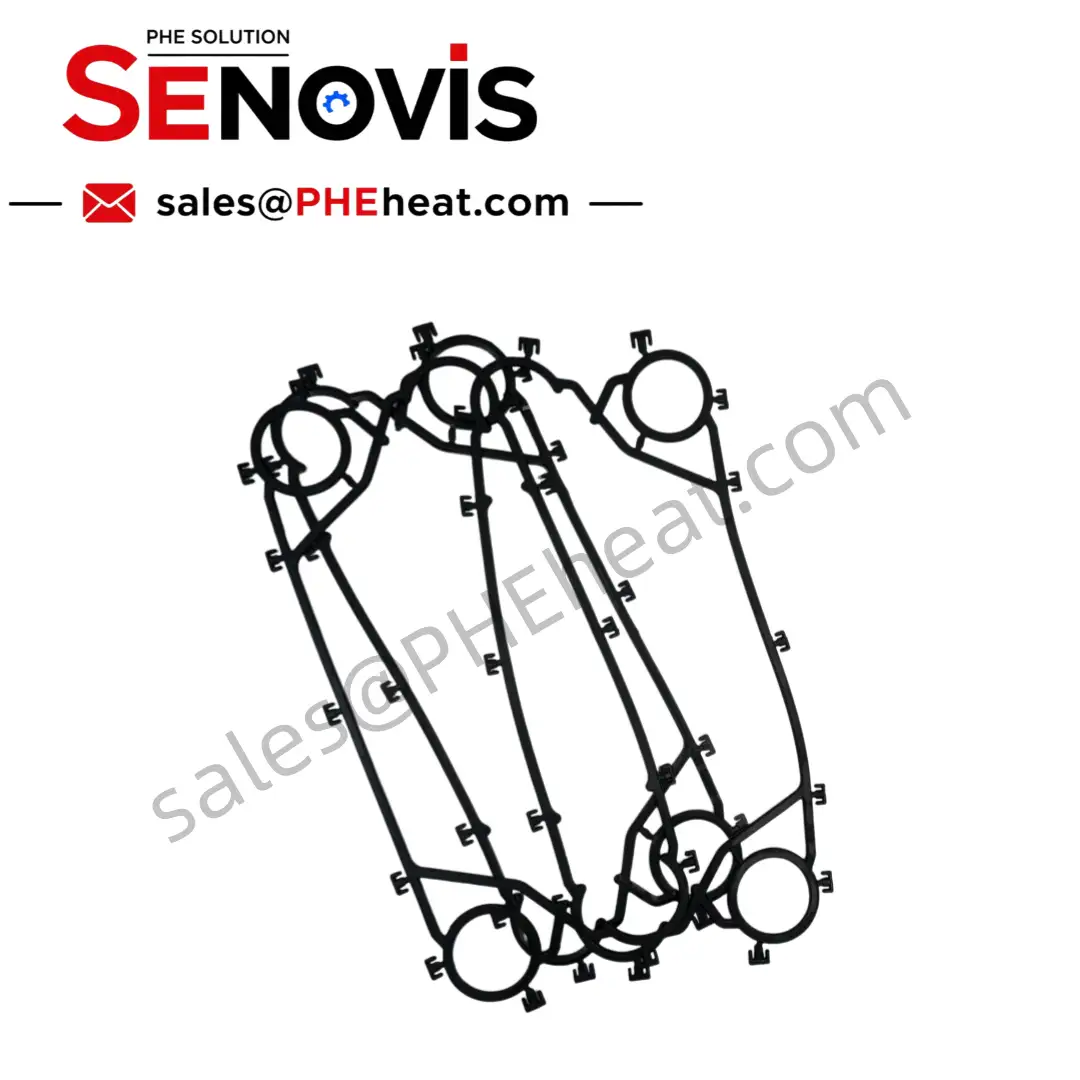

Tranter GXD-091 gasket designed for Tranter PHE equipment sealing applications. — Compatible gasket for Tranter Plate And Frame Heat Exchanger systems.

Tranter GXD-091 GX91 UFX91 GXD091 Gasket PHE Parts Oil and Gas

The Tranter GXD 091 Gaskets are direct replacements for the Tranter GXD-091 PHE — also referenced as Tranter GX091 in older service records and spare parts searches.

At the larger end of the superchanger heat exchanger series, accurate model identification matters more than on smaller frames. TRANTER Gaskets available in NBR, EPDM and FKM.

Heat Exchanger Plate for Tranter GXD-Series GXD-042 GXD042 also stocked for GXD series cross-identification. Tranter GXD-091 Gaskets and Plates supplied for repair and refurbishment.

Tranter GXD-091 Gasket details

PHE Model

Tranter GXD-091 Gasket

Keyword

Plate Heat Exchanger Frame Parts Supplier

Applicable Industries

Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper,Oil and Gas, Food Industry

Compatible Brands

Tranter Plate Type Heat Exchanger

Connection Type

Clip-on/ Glue/ Glueless

Gasket material

NBR EPDM HEPDM HNBR FKM

Function

seal

Core Components

plate heat exchanger gasketes

DESCRIPTION

The Tranter GXD 091 Gaskets are direct replacement sealing components for the Tranter GXD-091 plate heat exchanger, also identified under the Tranter GX091 reference — which tends to appear in older service records and spare parts searches for this frame.
The GXD-091 sits at the larger end of the superchanger heat exchanger series, where gasket material selection and accurate model identification carry more weight than on smaller frames — a wrong compound or a misidentified configuration on a unit this size means a service job that doesn’t hold. TRANTER Gaskets for this model are available in NBR, EPDM and FKM, selected according to operating media and temperature.
The Heat Exchanger Plate for Tranter GXD-Series GXD-042 GXD042 reference occasionally comes up alongside GXD-091 searches — part of the broader GXD series cross-identification engineers use when verifying Tranter plate heat exchanger components across a mixed fleet.
Tranter GXD-091 Gaskets and Plates are stocked for industrial heat exchanger repair, refurbishment and aftermarket maintenance. Tranter Heat Exchanger Gasket solutions are available based on accurate model identification and sealing material requirements.

Tranter GXD-091 Gasket Replacement Specification

PHE Model	Tranter GXD-091 Evaporator Gasket
Applicable Industries	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip on/ Glueless/ Glued
Gasket material	NBR,FKM, HNBR, ACM,Silicone,EPDM
Color	Black/White
Temperature Range(°C)	-15~180℃
Keyword	NBR Gasket Supplier
Certificate	ISO / CE
Service	Professional technical support for model selection and installation
Design Pressure	0.6MPa~5MPa

Tranter GXD-091 Plate heat exchanger specification

PHE Plate Heat Exchanger Replacemnet	Tranter GXD-091
Corrugation Depth(mm)	3
Port Diameter(mm)	φ152
Chevron Angle	85°115°
Corrugation Pitch(mm)	9
Equivalent Diameter	5.8
Flow Area(m²)	0.00136
One Plate (m²)	0.91
Port Distance (mm)	1800*285
Dimensions (mm)	*2032506**

Tranter phe Model Cross-Reference

Current Model	Legacy / Earlier Model Name	Common Old-System Naming	New-System / Official Naming	Hyphen-Free Naming
Tranter GC008	GC-008	GC-008 / GC008	GCD-008	GCD008
Tranter GC16	GC-16	GC-16 / GC16	GCD-016 / GCP-016	GCD016 / GCP016
Tranter GL13	GL-13	GL-13 / GL13	GLD-013 / GLP-013	GLD013 / GLP013
Tranter GX12	UFX-12	UFX-12 / GX-12 / GX12	GXD-012	GXD012
Tranter GX18	UFX-18	UFX-18 / GX-18 / GX18	GXD-018	GXD018
Tranter GX26	UFX-26	UFX-26 / GX-26 / GX26	GXD-026	GXD026
Tranter GX42	UFX-42	UFX-42 / GX-42 / GX42	GXD-042	GXD042
Tranter GC26	GC-26	GC-26 / GC26	GCP-026	GCP026
Tranter GX51	UFX-51	UFX-51 / GX-51 / GX51	GXD-051	GXD051
Tranter GC51	GC-51	GC-51 / GC51	GCP-051	GCP051
Tranter GC54	GC-54	GC-54 / GC54	GCD-054*	GCD054
Tranter GX64	UFX-64	UFX-64 / GX-64 / GX64	GXD-064	GXD064
Tranter GX91	UFX-91	UFX-91 / GX-91 / GX91	GXD-091	GXD091
Tranter GX118	UFX-118	UFX-118 / GX-118 / GX118	GXD-118	GXD118
Tranter GC60	GC-60	GC-60 / GC60	GCP-060	GCP060
Tranter GX60	UFX-60	UFX-60 / GX-60 / GX60	GXD-060	GXD060
Tranter GX100	UFX-100	UFX-100 / GX-100 / GX100	GXD-100	GXD100
Tranter GX140	UFX-140	UFX-140 / GX-140 / GX140	GXD-140	GXD140
Tranter GX85	UFX-85	UFX-85 / GX-85 / GX85	GXD-085	GXD085
Tranter GX145	UFX-145	UFX-145 / GX-145 / GX145	GXD-145	GXD145
Tranter GX205	UFX-205	UFX-205 / GX-205 / GX205	GXD-205	GXD205
Tranter GX265	UFX-265	UFX-265 / GX-265 / GX265	GXD-265	GXD265
Tranter GF187	TW-18 / GF-187	TW-18 / GF-187 / GF187	GFP-187	GFP187

faq

What are the common model names for Tranter GXD-091 Gasket?

The Tranter GXD-091 gasket is commonly referenced as:
Tranter GXD-091
Tranter GXD091
Tranter GX-91
Tranter GX91
Tranter UFX-91
Tranter UFX91
These model references are often used during spare parts searches and equipment maintenance communication.

What gasket materials are available for Tranter GXD-091?

Senovis PHE supplies Tranter GXD-091 replacement gaskets with different elastomer options:
NBR: Suitable for cooling water, glycol, mineral oil, and general industrial applications.
EPDM: Suitable for hot water, cooling water, glycol, and some water-based CIP systems.
FKM / Viton: Suitable for higher temperature, oil, solvent, and chemical applications.
Material selection depends on:
Operating media
Temperature
Pressure
Cleaning chemicals

Is Tranter GXD-091 available with different gasket installation types?

Yes.
The Tranter GXD-091 gasket may be supplied in different configurations, including:
SUPERLOCK clip-on gasket
Glued / bonded gasket
The correct type depends on the original plate groove design and equipment configuration.
Customers should provide old gasket photos or plate details to confirm the correct version.

What is the delivery time for Tranter GXD-091 Gaskets in Qatar?

The delivery time for Tranter GXD-091 Gaskets in Qatar depends on gasket material, quantity, and shipping method.
Senovis PHE recommends the most suitable logistics solution by considering both delivery efficiency and cost-effectiveness, including:
Express shipping
Air freight
Sea freight
DDP door-to-door service
If customers do not have their own forwarder in Qatar, Senovis PHE can assist with shipping arrangements.

Can Qatar customers receive technical documents for Tranter GXD-091?

Yes.
For Tranter GXD-091 Gasket and Plate projects in Qatar, Senovis PHE can provide:
Company profile PDF
Product catalog PDF
Certificate of Origin
Quality inspection report
Certificate of Conformity
Product technical documents
Senovis (Beijing) Technology Co., Ltd. (Senovis PHE) has been focusing on plate heat exchanger products for around 10 years, supplying replacement plates, gaskets, and related spare parts worldwide.
