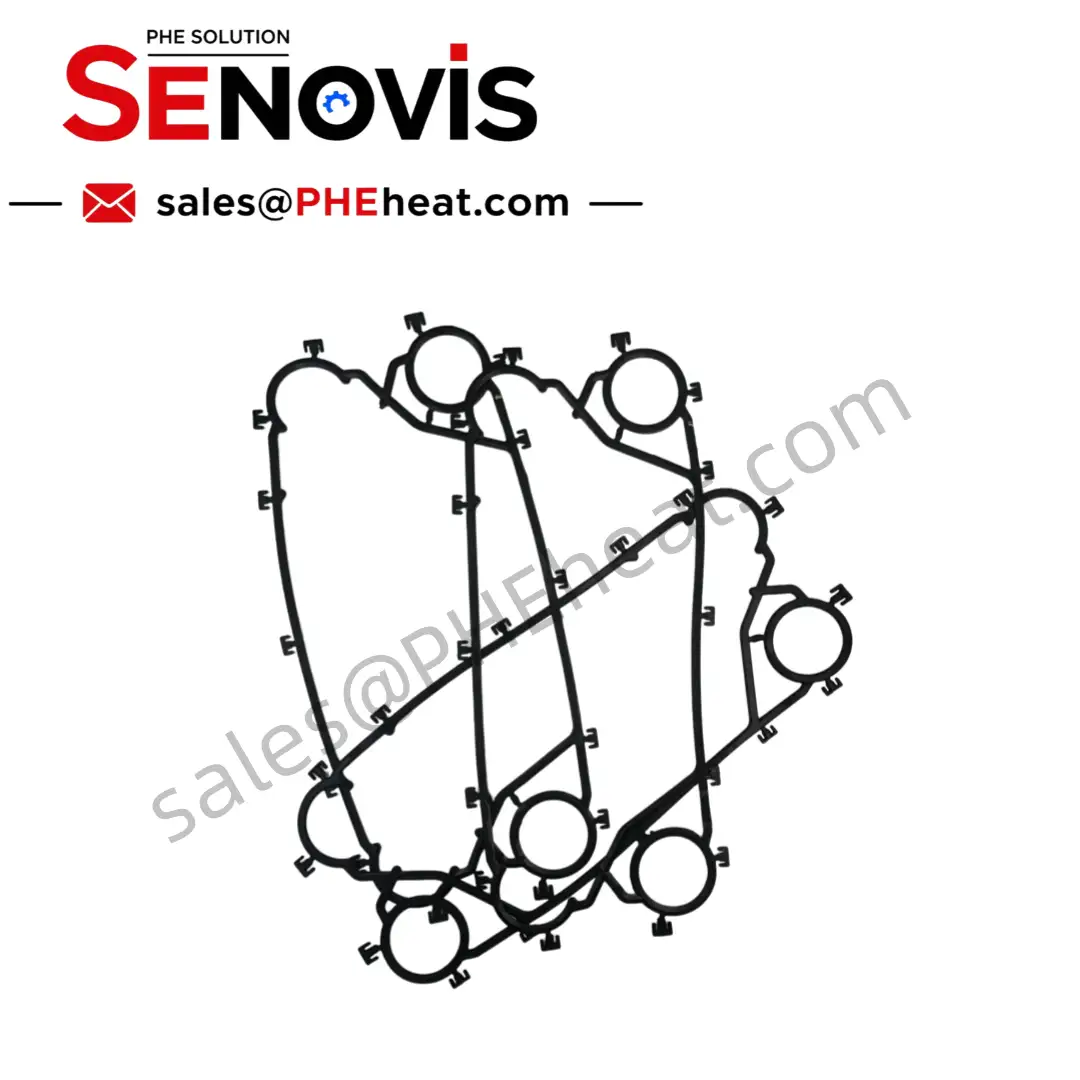

Tranter GXD-051 gasket developed for Tranter Plate Heat Exchanger sealing applications. — Precision gasket solution for Tranter heat exchanger servicing.

Tranter GXD-051 GX51 UFX51 GXD051 Gasketed PHE Gasket Material NBR EPDM

The Tranter GXD-051 Gasket is a direct replacement for the Tranter GXD-051 PHE — referenced as GXD051 / UFX51 / GXD-051N across service documentation.

Part of the Tranter GXD series and tranter superchanger platform. Tranter / Swep Heat Exchanger Plates references occasionally appear in cross-identification searches for this frame.

Tranter GXD-051 Gasket details

PHE Model

Tranter GXD-051 Gasket

Keyword

Industrial Heat Exchanger Parts

Applicable Industries

Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper,Oil and Gas, Food Industry

Compatible Brands

GXD051 / UFX51 / GXD-051N

Connection Type

Clip-on/ Glue/ Glueless

Gasket material

NBR, HNBR, EPDM , HEPDM, FKM

Standard or Nonstandard

Standard

Application

Sealing industry

DESCRIPTION

The Tranter GXD-051 Gasket is a direct replacement sealing component for the Tranter GXD-051 plate heat exchanger, identified across service documentation as GXD051 / UFX51 / GXD-051N. The Tranter GXD-051N plate heat exchanger reference comes up most often when engineers are cross-checking plate and gasket configurations against older service records or mixed-format documentation.
Part of the wider Tranter GXD series covering multiple industrial heat exchanger models, the GXD-051 sits in the mid-to-large range of the tranter superchanger platform. Tranter / Swep Heat Exchanger Plates references occasionally appear in cross-identification searches for this frame — worth knowing if you’re sourcing from multiple documentation sources.
The Heat Exchanger Plate for Tranter GXD-Series GXD-051 GXD051 is built to original dimensions for accurate plate and gasket matching. Tranter GXD-051 UFX51 Heat Exchanger Plate and related gasket components are available for industrial cooling, heating and process heat exchanger applications.
For sites also running GXD-042 frames, the Heat Exchanger Plate for Tranter GXD-Series GXD-042 GXD042 is stocked alongside the GXD-051 range. Tranter GXD-051 Gaskets and Plates are supplied for repair, refurbishment and aftermarket spare parts requirements.

Tranter GXD 051 Gasket Replacement Specification

PHE Model	Tranter GXD-051 Evaporator Gasket
Applicable Industries	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip on/ Glueless/ Glued
Gasket material	NBR,FKM, HNBR, ACM,Silicone,EPDM
Color	Black/White
Temperature Range(°C)	-15~180℃
Keyword	NBR Gasket Supplier
Certificate	ISO / CE
Service	Professional technical support for model selection and installation
Design Pressure	0.6MPa~5MPa

Tranter GXD-051 Plate heat exchanger specification

PHE Plate Heat Exchanger Replacemnet	Tranter GXD-051
Corrugation Depth(mm)	3.25
Port Diameter(mm)	φ145
Chevron Angle	85°115°
Corrugation Pitch(mm)	12
Equivalent Diameter	6.5
Flow Area(m²)	0.00152
One Plate (m²)	0.51
Port Distance (mm)	*1143300**
Dimensions (mm)	*1354507**

Tranter phe Model Cross-Reference

Current Model	Legacy / Earlier Model Name	Common Old-System Naming	New-System / Official Naming	Hyphen-Free Naming
Tranter GC008	GC-008	GC-008 / GC008	GCD-008	GCD008
Tranter GC16	GC-16	GC-16 / GC16	GCD-016 / GCP-016	GCD016 / GCP016
Tranter GL13	GL-13	GL-13 / GL13	GLD-013 / GLP-013	GLD013 / GLP013
Tranter GX12	UFX-12	UFX-12 / GX-12 / GX12	GXD-012	GXD012
Tranter GX18	UFX-18	UFX-18 / GX-18 / GX18	GXD-018	GXD018
Tranter GX26	UFX-26	UFX-26 / GX-26 / GX26	GXD-026	GXD026
Tranter GX42	UFX-42	UFX-42 / GX-42 / GX42	GXD-042	GXD042
Tranter GC26	GC-26	GC-26 / GC26	GCP-026	GCP026
Tranter GX51	UFX-51	UFX-51 / GX-51 / GX51	GXD-051	GXD051
Tranter GC51	GC-51	GC-51 / GC51	GCP-051	GCP051
Tranter GC54	GC-54	GC-54 / GC54	GCD-054*	GCD054
Tranter GX64	UFX-64	UFX-64 / GX-64 / GX64	GXD-064	GXD064
Tranter GX91	UFX-91	UFX-91 / GX-91 / GX91	GXD-091	GXD091
Tranter GX118	UFX-118	UFX-118 / GX-118 / GX118	GXD-118	GXD118
Tranter GC60	GC-60	GC-60 / GC60	GCP-060	GCP060
Tranter GX60	UFX-60	UFX-60 / GX-60 / GX60	GXD-060	GXD060
Tranter GX100	UFX-100	UFX-100 / GX-100 / GX100	GXD-100	GXD100
Tranter GX140	UFX-140	UFX-140 / GX-140 / GX140	GXD-140	GXD140
Tranter GX85	UFX-85	UFX-85 / GX-85 / GX85	GXD-085	GXD085
Tranter GX145	UFX-145	UFX-145 / GX-145 / GX145	GXD-145	GXD145
Tranter GX205	UFX-205	UFX-205 / GX-205 / GX205	GXD-205	GXD205
Tranter GX265	UFX-265	UFX-265 / GX-265 / GX265	GXD-265	GXD265
Tranter GF187	TW-18 / GF-187	TW-18 / GF-187 / GF187	GFP-187	GFP187

faq

What are the common model names for Tranter GXD-051 Gasket?

The Tranter GXD-051 gasket may also be identified as:
Tranter GXD-051
Tranter GXD051
Tranter GX-51
Tranter GX51
Tranter UFX-51
Tranter UFX51
Tranter GXD-051N
These model references are commonly used during replacement searches and technical communication.

Is Tranter GXD-051 the same as GX-51 and UFX-51?

Yes, GX-51 and UFX-51 are commonly used cross-reference names for Tranter GXD-051.
However, customers should confirm the complete plate information before ordering because different variants may have different gasket structures, such as:
Bonded gasket
Clip-on gasket
Different port and groove configurations
Senovis PHE recommends checking the original plate photos and gasket structure before replacement.

Can Senovis PHE provide certificates and company documents?

Yes.
Senovis PHE can provide supporting documents including:
Company profile PDF
Product catalog PDF
Quality inspection report
Certificate of Conformity
Certificate of Origin
Material-related documents when required
Senovis (Beijing) Technology Co., Ltd. (Senovis PHE) has been focusing on plate heat exchanger products for around 10 years, supplying replacement plates, gaskets, and related components for global customers.

Does Senovis PHE supply Tranter GXD-051 Gaskets and Plates in Russia?

Yes. Senovis PHE (Senovis (Beijing) Technology Co., Ltd.) supplies Tranter GXD-051 Gaskets and Plates for customers in Russia, supporting industrial maintenance companies, distributors, and heat exchanger service providers.
We provide replacement solutions for Tranter GXD-051 / GXD051 / GX-51 / GX51 / UFX51 models with suitable gasket materials including NBR, EPDM, and FKM/Viton according to operating conditions.

What is the delivery time for Tranter GXD-051 Gaskets to Russia?

The delivery time for Tranter GXD-051 Gaskets in Russia depends on gasket material, quantity, and shipping method.
Senovis PHE will recommend the most suitable transportation solution by balancing delivery efficiency and cost-effectiveness, including express, air freight, sea freight, and DDP options.
If customers do not have their own forwarder in Russia, Senovis PHE can assist with international shipping arrangements.
