Sondex S65 1S Sondex Plate And Frame Heat Exchanger Parts

DESCRIPTION

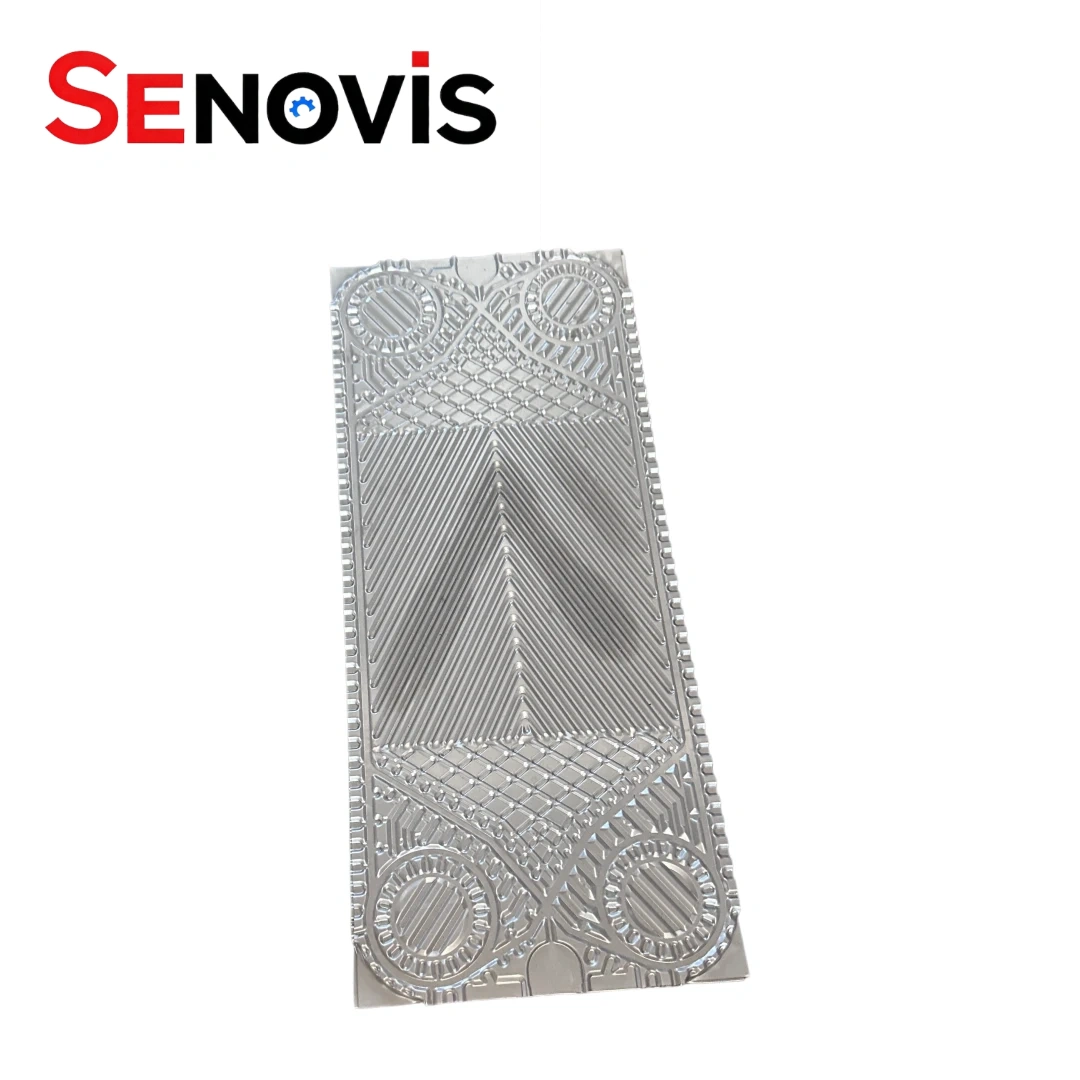

The Sondex S65 Plate is a Gasketed Plate Heat Exchanger heat transfer plate designed for the Sondex Plate Heat Exchanger S65, serving industrial heating, cooling, energy recovery, and process applications . As a Heat Exchanger Gaskets Supplier, Senovis PHE supplies Sondex S65 Gaskets and Plates for maintenance, refurbishment, and spare parts inventory programs across chemical processing, food and beverage, HVAC, marine, and district heating systems. Available in materials such as SS304, SS316, Titanium, SMO 254, and other corrosion-resistant alloys, the Sondex S65 Stainless Steel Plate Heat Exchanger plate can be selected. Matching gasket options are also available to support a wide range of service conditions. This Sondex / Danfoss Heat Exchanger Plate model is commonly specified by maintenance engineers.

Sondex s65 Plate heat exchanger specification

Vicarb PHE Plate Heat Exchanger Replacemnet	Sondex s65
Corrugation Depth(mm)	2.6
Port Diameter(mm)	φ202
Chevron Angle	61°121°
Corrugation Pitch(mm)	9.6 9.91
Equivalent Diameter	5.2
Flow Area(m²)	0.0016
One Plate (m²)	0.65
Port Distance (mm)	1091*395
Dimensions (mm)	1358*656

Actual Product Details

faq

What industries commonly use Sondex S16B plates?

Sondex S16B plates are widely used across a variety of industrial heat transfer applications.u003cbru003eTypical industries include:u003cbru003eHVAC systemsu003cbru003eDistrict heatingu003cbru003eFood u0026amp; beverage processingu003cbru003eChemical plantsu003cbru003eMarine engineeringu003cbru003eOil u0026amp; gas facilitiesu003cbru003eIndustrial cooling systemsu003cbru003eThe Sondex S16B model is frequently used in facilities throughout the UAE, Southeast Asia, and Europe.

How long does delivery to the UAE usually take?

Delivery to major UAE ports is typically completed within a few weeks, depending on stock availability and the selected shipping method.u003cbru003eCommon destinations include:u003cbru003eJebel Ali Port, Dubaiu003cbru003eAbu Dhabi Portu003cbru003eSharjah Portu003cbru003eAvailable shipping methods include:u003cbru003eAir freightu003cbru003eSea freightu003cbru003eExpress courieru003cbru003eCommercial Invoice, Packing List, and Certificate of Origin (CO) can be provided upon request to support customs clearance and import procedures.

Can you provide material certificates for Sondex S16B plates?

Yes. Material traceability documents can be provided upon request.u003cbru003eAvailable documentation may include:u003cbru003eMaterial Test Certificate (MTC)u003cbru003eInspection Reportsu003cbru003ePacking Listu003cbru003eCommercial Invoiceu003cbru003eCertificate of Origin (CO)u003cbru003eThese documents are commonly requested by engineering contractors, EPC companies, and industrial end users throughout the Middle East.

Are titanium Sondex S16B plates available?

Yes. Titanium Sondex S16B plates are available for corrosive service environments.u003cbru003eTypical applications include:u003cbru003eSeawater coolingu003cbru003eDesalination systemsu003cbru003eMarine cooling circuitsu003cbru003eHigh-chloride process fluidsu003cbru003eTitanium plates are commonly specified for offshore and coastal projects throughout the Gulf region due to their excellent corrosion resistance and long service life.

Can Sondex S16B plates be supplied together with gaskets?

Yes. Complete plate-and-gasket replacement packages are available.u003cbru003eSupply options include:u003cbru003ePlates onlyu003cbru003eGaskets onlyu003cbru003eComplete plate and gasket setsu003cbru003eThis flexible supply option simplifies maintenance planning, reduces procurement time, and helps minimize downtime during planned plant shutdowns.

Can Senovis PHE support urgent maintenance projects?

Yes. Priority production and expedited shipping options are available for urgent shutdown requirements.u003cbru003eSupport includes:u003cbru003eFast quotation responseu003cbru003eTechnical verificationu003cbru003eExpedited manufacturingu003cbru003eAir freight arrangementsu003cbru003eThis service is particularly valuable for industrial facilities facing unexpected heat exchanger downtime, helping restore operations as quickly as possible.
