Sondex S63 Plate Heat Exchanger Parts
Plates Model
sondex s63
Place of Origin
China
Payment Method
T/T, L/C, Western Union, MoneyGram, PayPal, Credit Card
Minimum Order Quantity
5 pieces
Price
Negotiation
Packaging Details
Carton Packaging
Sondex S63 details
PHE Model
Sondex S63 PHE Plates
Keyword
Sondex Plate Replacement
Plate Type
H channel M channel L channel
Compatible Brands
Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Product tolerance
Acid, alkali, high temperature
Plate Material
SUS304/SUS316L/Ti/20Cr/18Ni/SMO/Ni
Plate Hole
0 hole, 1 hole, 2 holes, 3 holes, 4holes
Thinckness
0.5mm 0.6mm 0.7mm 0.8mm
Medium
water, drinks,oil, milk
DESCRIPTION

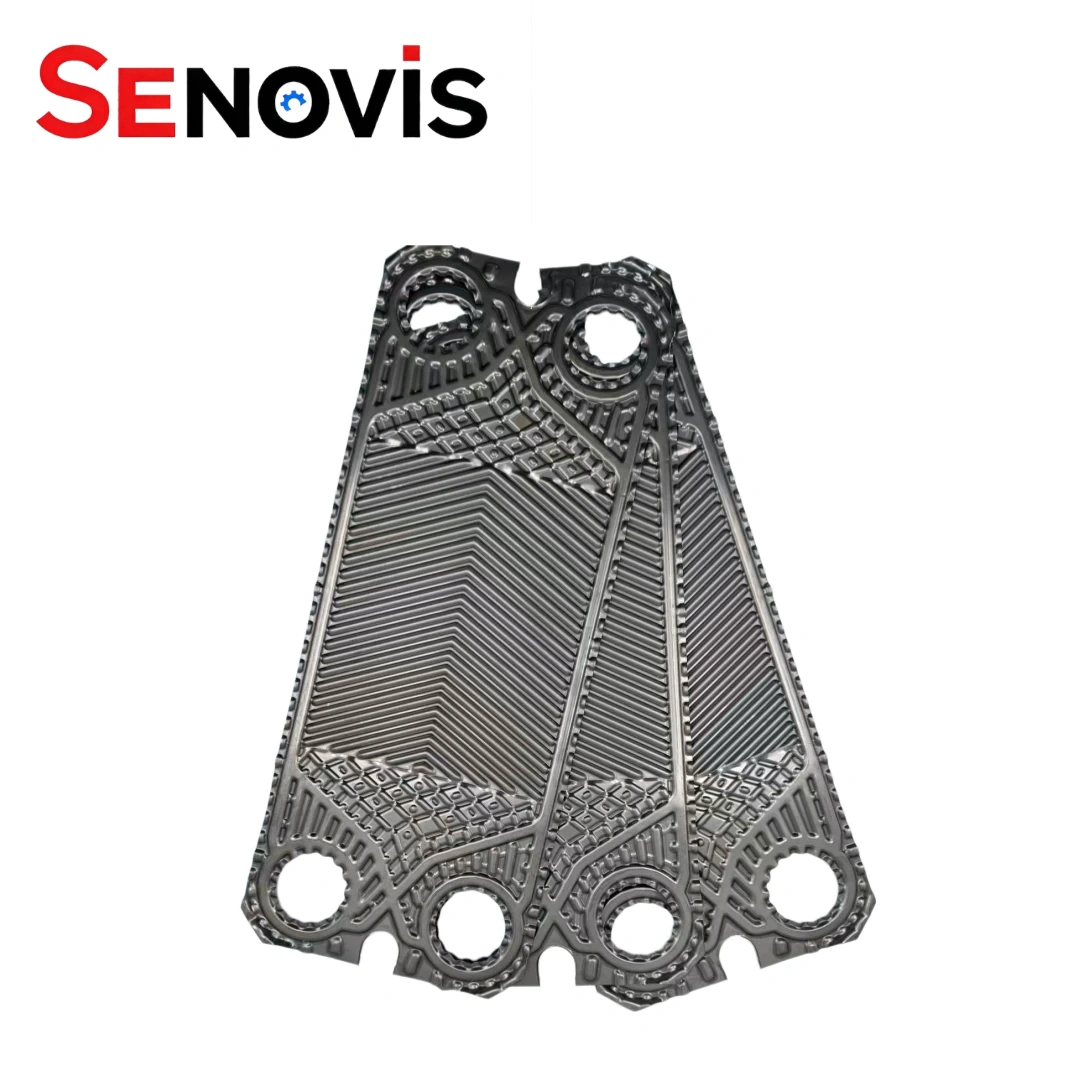

The Sondex S63 plate is a direct replacement heat transfer plate for Sondex plate and frame heat exchangers — primarily the S63, with cross-compatibility covering the S64 and S65 frames as well. Built to original dimensions, these drop straight in without modification or adjustment.
Material options are broader than most V Series equivalents SS304, SS316 and titanium are all available. SS304 covers general-purpose applications where budget matters and corrosion risk is low. SS316 is the more common industrial specification, handling chlorides and mild chemical exposure better than 304. Titanium is the right call for seawater cooling, aggressive process streams or anywhere that standard stainless has shown corrosion in service.
At SENOVIS PHE, we supply the S63 as an aftermarket replacement for scheduled maintenance, unplanned repairs and full refurbishment projects. The S63 frame tends to appear across a wide spread of applications — HVAC, refrigeration, oil cooling, marine, food processing, chemical processing and industrial heat recovery — which reflects its positioning as a mid-to-large capacity workhorse in the Sondex range.
Matching Sondex S63 gaskets are available alongside the plates. If you’re already pulling the unit apart for a plate replacement, it usually makes sense to change the gaskets at the same time rather than scheduling a second service shortly after.
If you have a unit reference, nameplate details or existing plate markings, send them over and we’ll confirm the right material grade and spec before you order.
Sondex S63 Plate heat exchanger specification
Vicarb PHE Plate Heat Exchanger Replacemnet | Sondex S63 |
| Corrugation Depth(mm) | 3.8 |
| Port Diameter(mm) | φ148 |
| Chevron Angle | 131°55° |
| Corrugation Pitch(mm) | 13 |
| Equivalent Diameter | 7.6 |
| Flow Area(m²) | 0.0017 |
| One Plate (m²) | 0.63 |
| Port Distance (mm) | 1292*296 |
| Dimensions (mm) | 1502*500 |

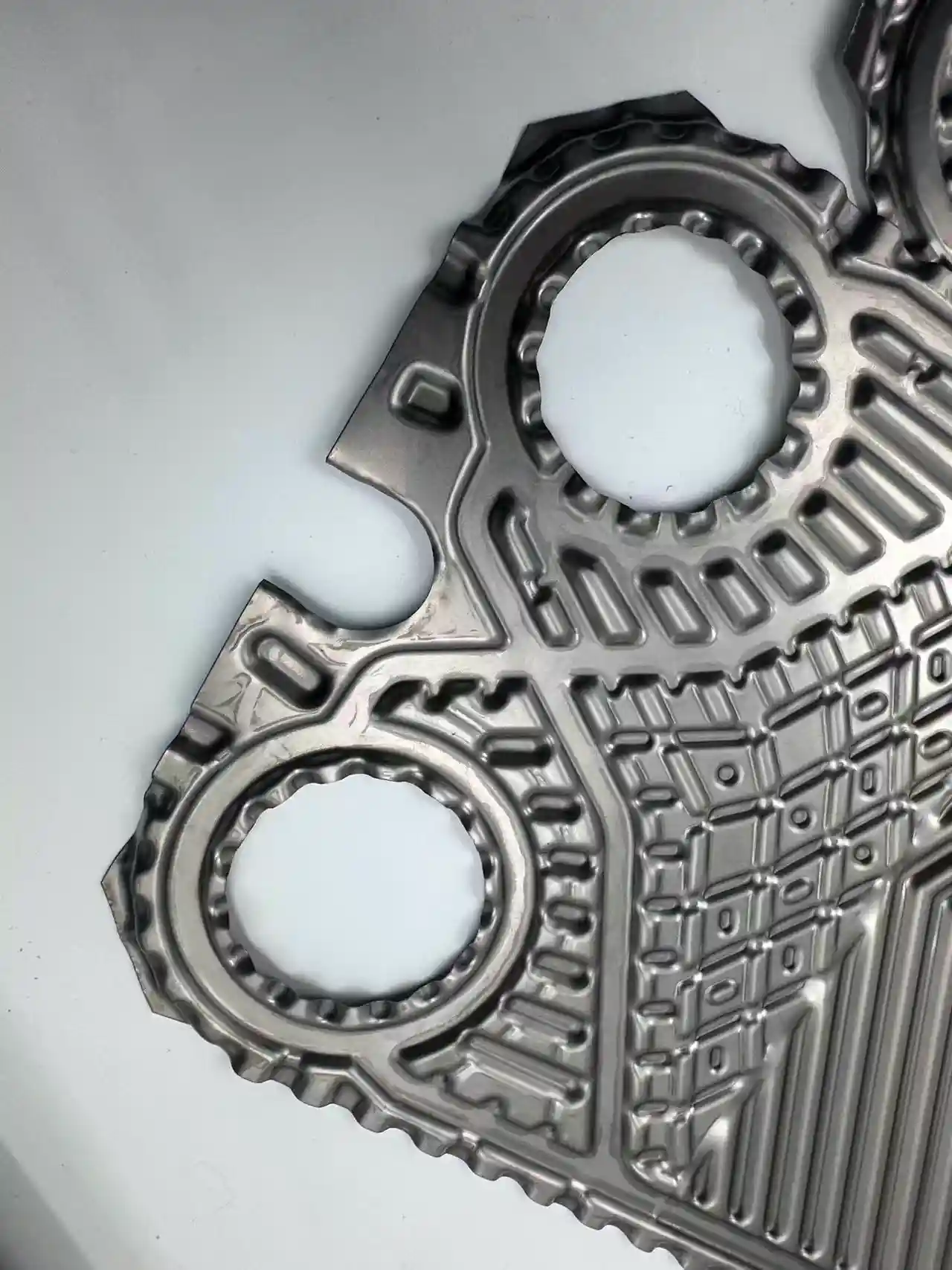

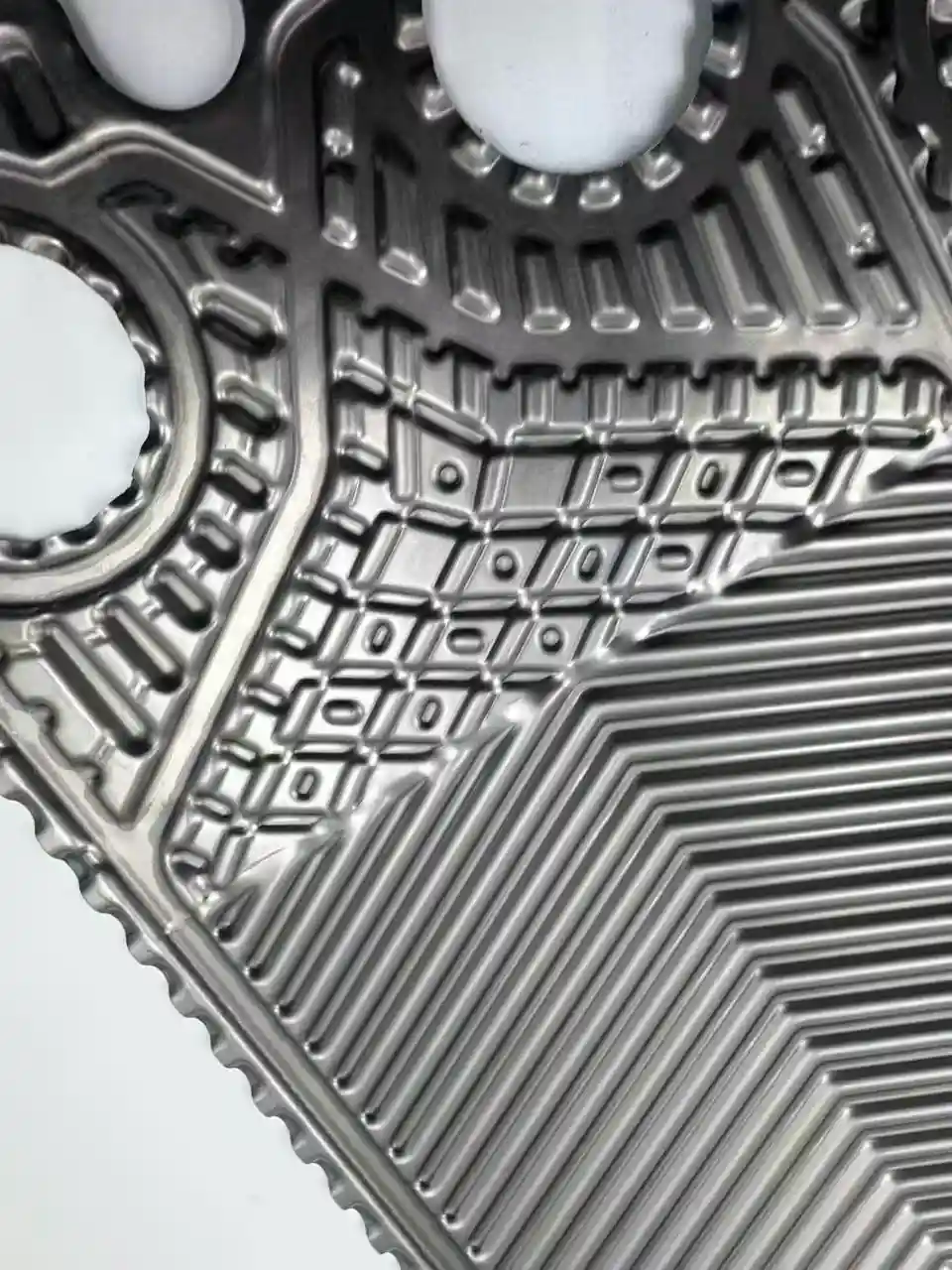

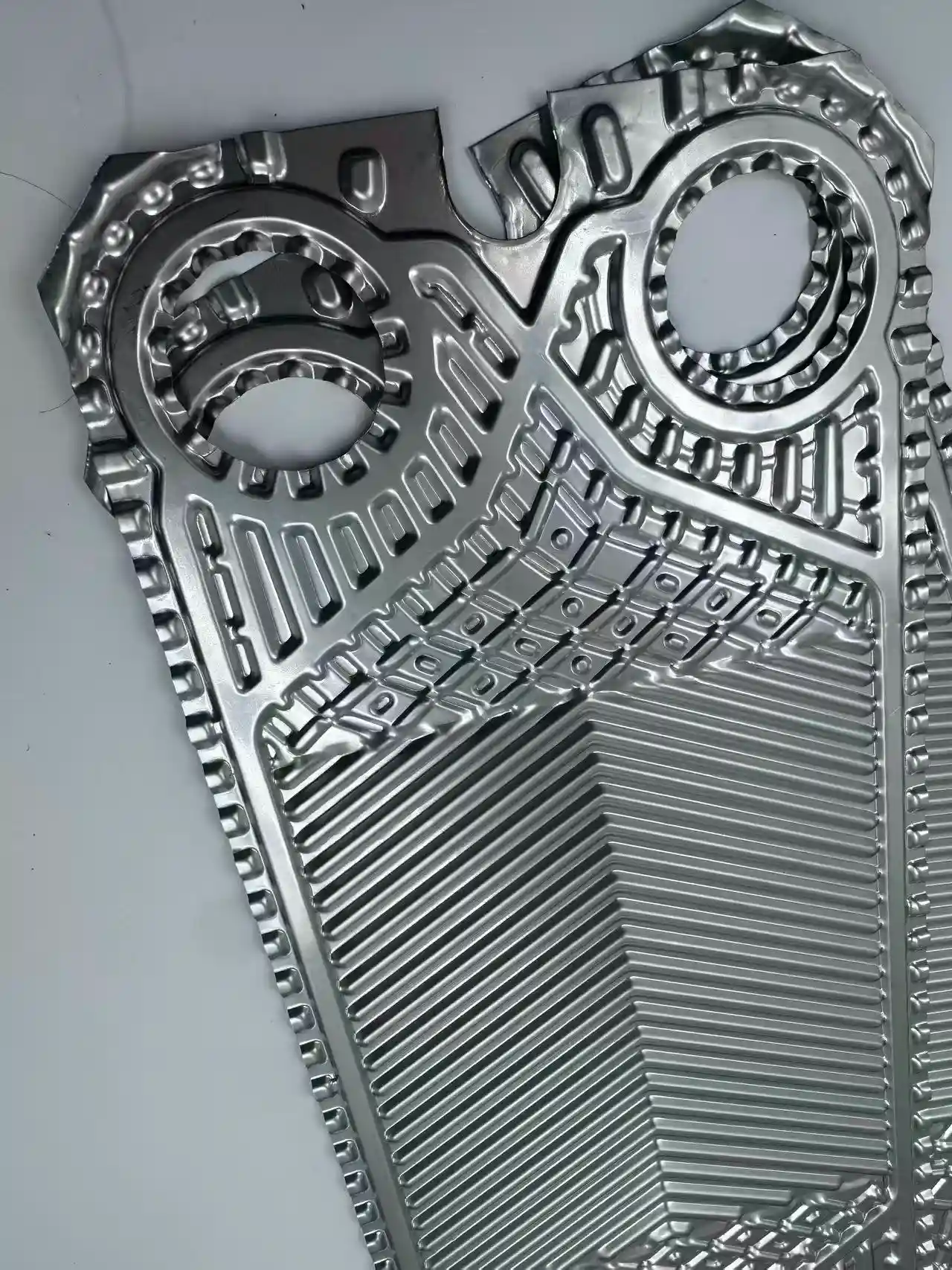

Actual Product Details
sondex s63 Applications
HVAC & District Heating
Refrigeration & Chiller Systems
Oil Cooler Applications
Food & Beverage Processing
Marine & Offshore Cooling
Chemical & Industrial Processing
Energy Recovery Systems
