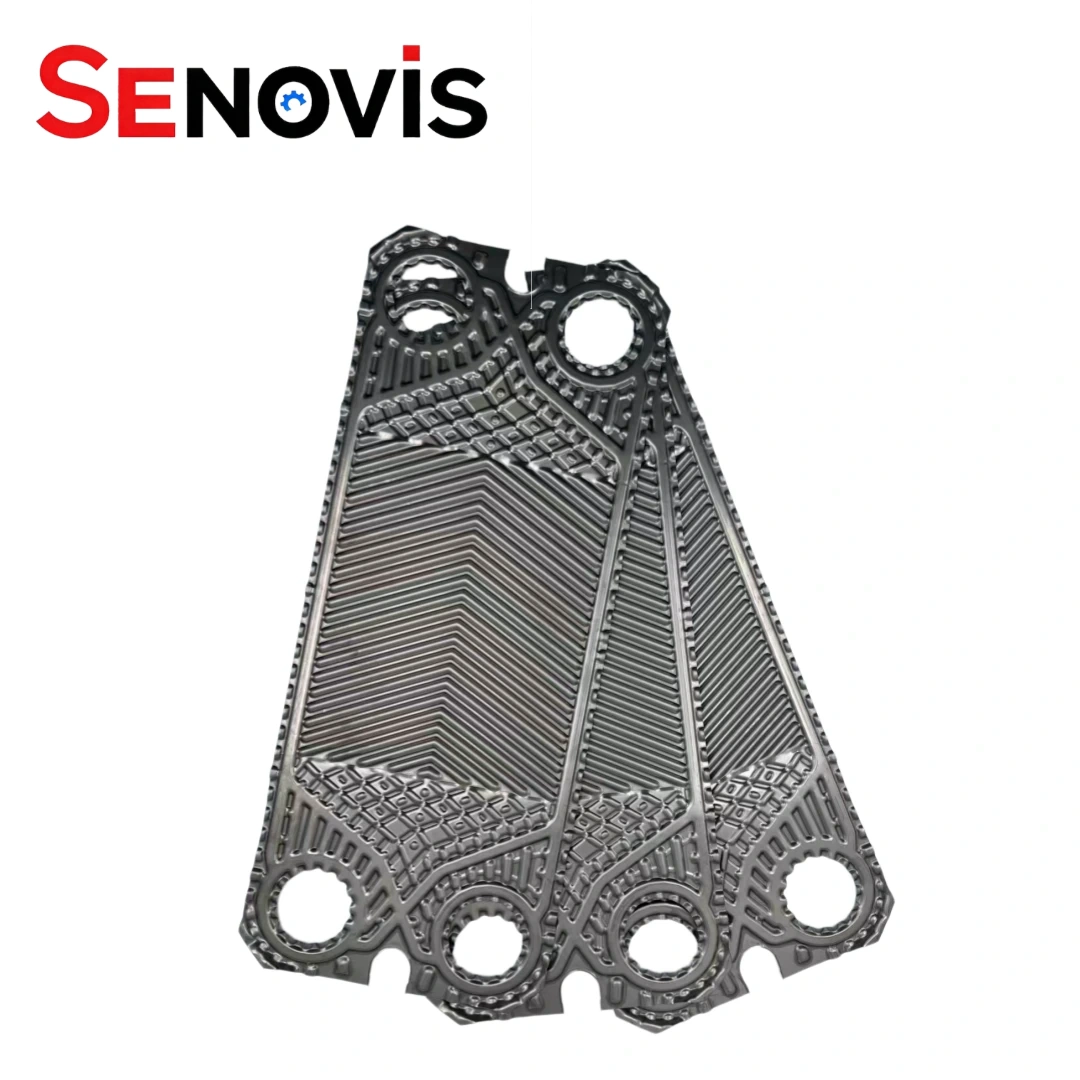

Sondex S62 Plate Sondex Heat Exchanger Plates
Plates Model
sondex s62 、sondex s62-is10
Place of Origin
China
Payment Method
T/T, L/C, Western Union, MoneyGram, PayPal, Credit Card
Minimum Order Quantity
5 pieces
Price
Negotiation
Packaging Details
Carton Packaging
Sondex S62 details
PHE Model
Sondex S62 PHE Plates
Keyword
Sondex Plate Replacement
Plate Type
H channel M channel L channel
Compatible Brands
Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Product tolerance
Acid, alkali, high temperature
Plate Material
SUS304/SUS316L/Ti/20Cr/18Ni/SMO/Ni
Plate Hole
0 hole, 1 hole, 2 holes, 3 holes, 4holes
Thinckness
0.5mm 0.6mm 0.7mm 0.8mm
Medium
water, drinks,oil, milk
DESCRIPTION
The Sondex S62 plate is a direct replacement heat transfer plate for S62, S62-IS10 and related Sondex plate heat exchanger frames. Built to original dimensions, these go in without modification useful when you’re working to a maintenance schedule or dealing with an unplanned shutdown.
Material options cover SS304, SS316 and titanium. SS316 is the more practical choice for most industrial environments better chloride resistance and more forgiving when process conditions aren’t always consistent. Titanium is worth specifying for seawater cooling, aggressive chemical streams or any application where standard stainless has caused problems before.
At SENOVIS PHE, we supply the S62 for maintenance, repair and refurbishment work across a broad range of industries HVAC, food and beverage processing, refrigeration, marine cooling, chemical processing, oil and gas and energy recovery. The S62 frame is well established across mid to large industrial installations, so replacement demand tends to be steady.
On compatibility, the S62 plates fit a wider range of Sondex frames than just the S62 variants S41, S41A, S42, S62AE, S62TY, S63 and S79 are all covered. If you’re running multiple Sondex units on the same site, that cross compatibility is worth factoring into your spare parts planning.
Matching Sondex S62 gaskets are available alongside the plates. If the unit is already open for a plate change, replacing the gaskets at the same time is generally the more practical call it avoids a second service interval sooner than necessary.
Sondex S62 Plate heat exchanger specification
Vicarb PHE Plate Heat Exchanger Replacemnet | Sondex S62 |
| Corrugation Depth(mm) | 2.6 |
| Port Diameter(mm) | φ147 |
| Chevron Angle | 55°135° |
| Corrugation Pitch(mm) | 9 8.5 |
| Equivalent Diameter | 5.2 |
| Flow Area(m²) | 0.00118 |
| One Plate (m²) | 0.62 |
| Port Distance (mm) | 1292*296 |
| Dimensions (mm) | 1502*500 |

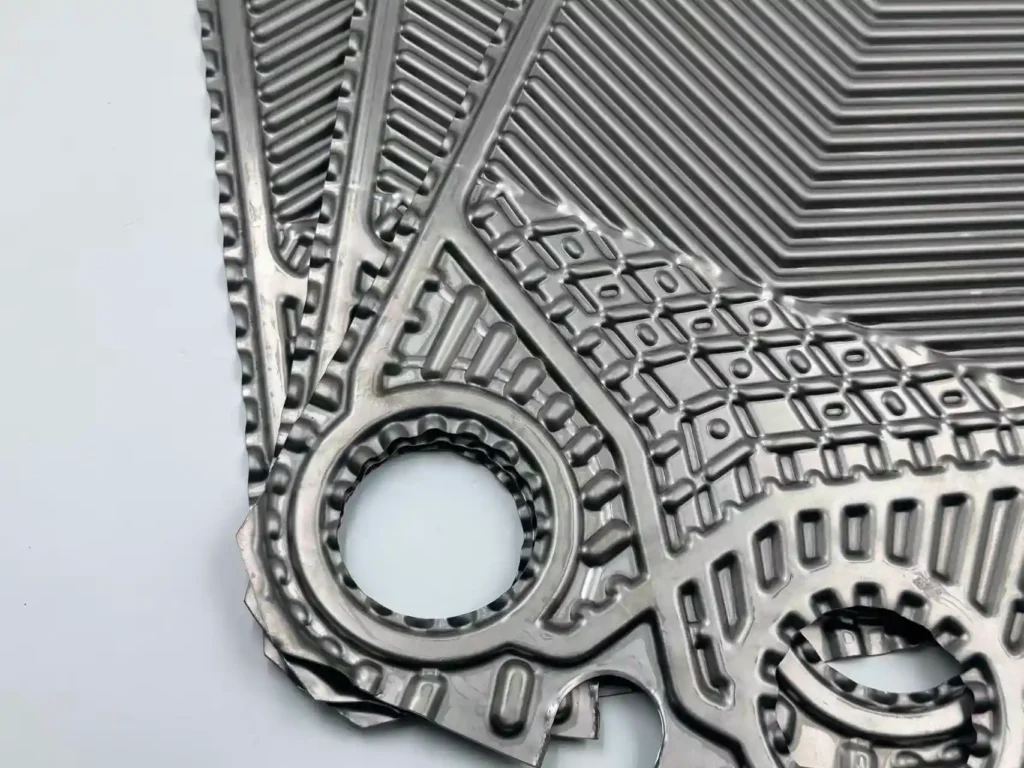

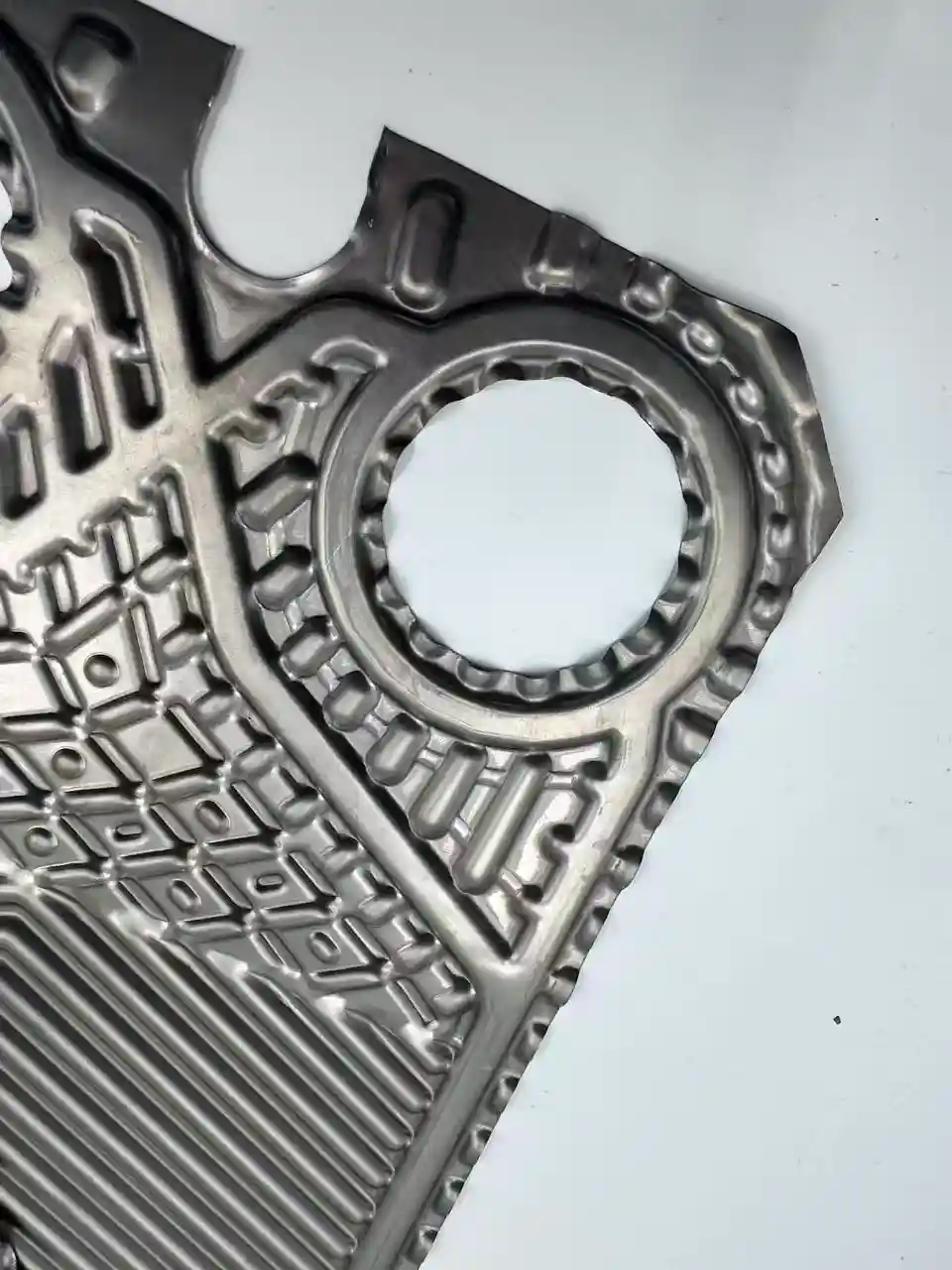

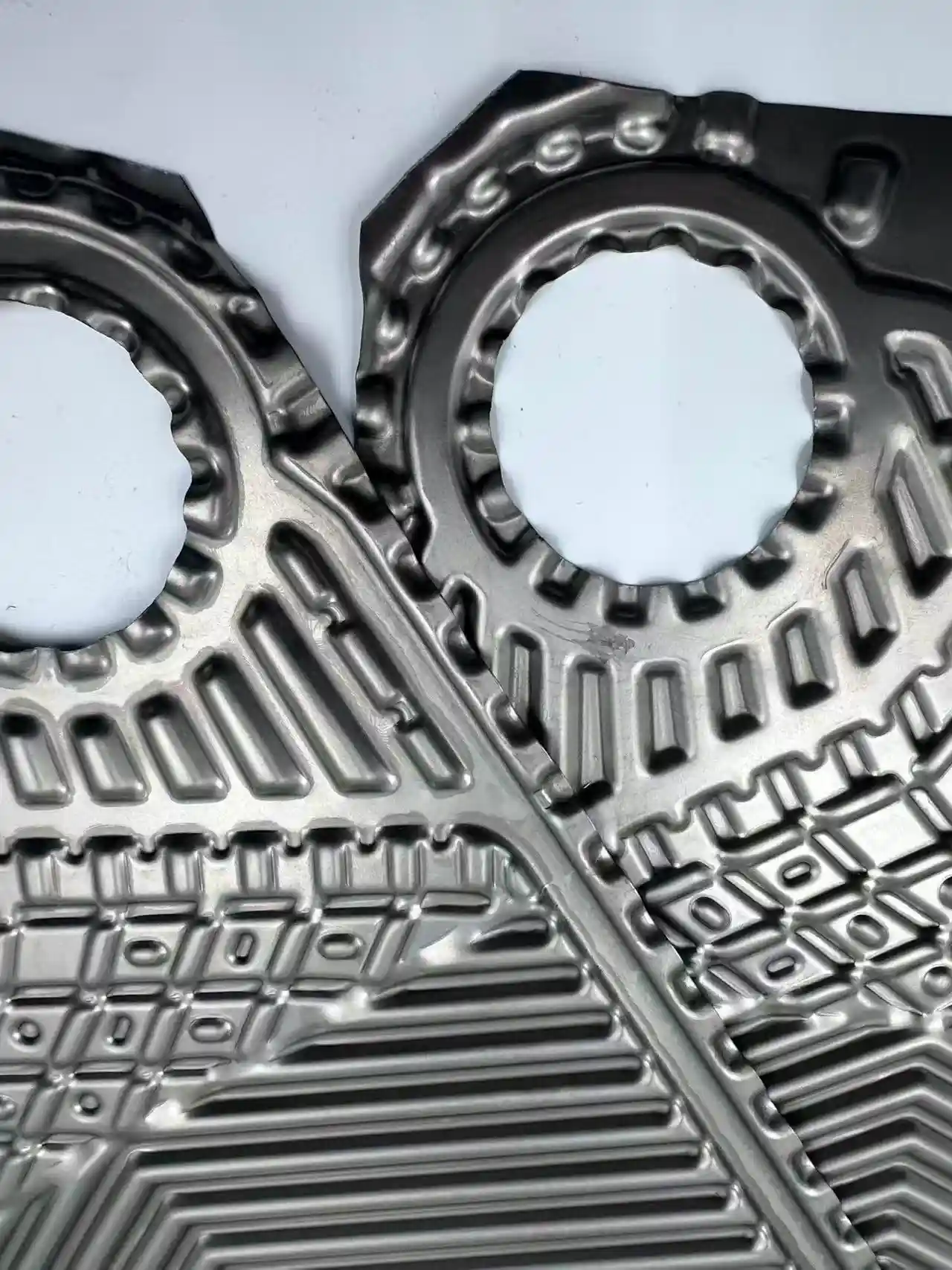

Actual Product Details
Sondex S62 Plates Applications
HVAC Systems
Sondex S62 plates are widely used in central air conditioning systems, district heating networks, heat pumps, chillers, and commercial building temperature control applications requiring efficient heat transfer performance.
Food & Beverage Processing
Suitable for milk pasteurization, dairy processing, juice production, brewery systems, beverage manufacturing, edible oil processing, and other hygienic heat exchange applications.
Refrigeration & Cooling Systems
Applied in industrial refrigeration equipment, compressor cooling systems, condensers, evaporators, cold storage facilities, and process cooling operations.
Oil & Gas Industry
Used for lubricating oil cooling, hydraulic oil cooling, refinery process heat exchange, offshore platform cooling systems, and energy transfer applications.
Marine & Offshore Applications
Ideal for seawater cooling, freshwater generation systems, engine cooling circuits, lubricating oil coolers, and onboard HVAC systems in marine environments.
Chemical Processing Industry
Widely utilized in chemical plants, petrochemical facilities, pharmaceutical manufacturing, solvent recovery systems, and industrial process heating and cooling applications.
Power Generation & Energy Recovery
Applied in cogeneration plants, district heating substations, renewable energy projects, geothermal systems, and waste heat recovery installations.
Water Treatment Systems
Suitable for industrial water treatment, wastewater recovery, desalination plants, cooling water circulation systems, and environmental engineering projects.
Pulp & Paper Industry
Used in pulp processing, paper production lines, process water heating and cooling, and energy recovery systems within paper mills.
Metallurgical & Industrial Manufacturing
Applied in steel production, metal processing plants, hydraulic systems, machinery cooling, and industrial manufacturing processes requiring stable thermal control.
