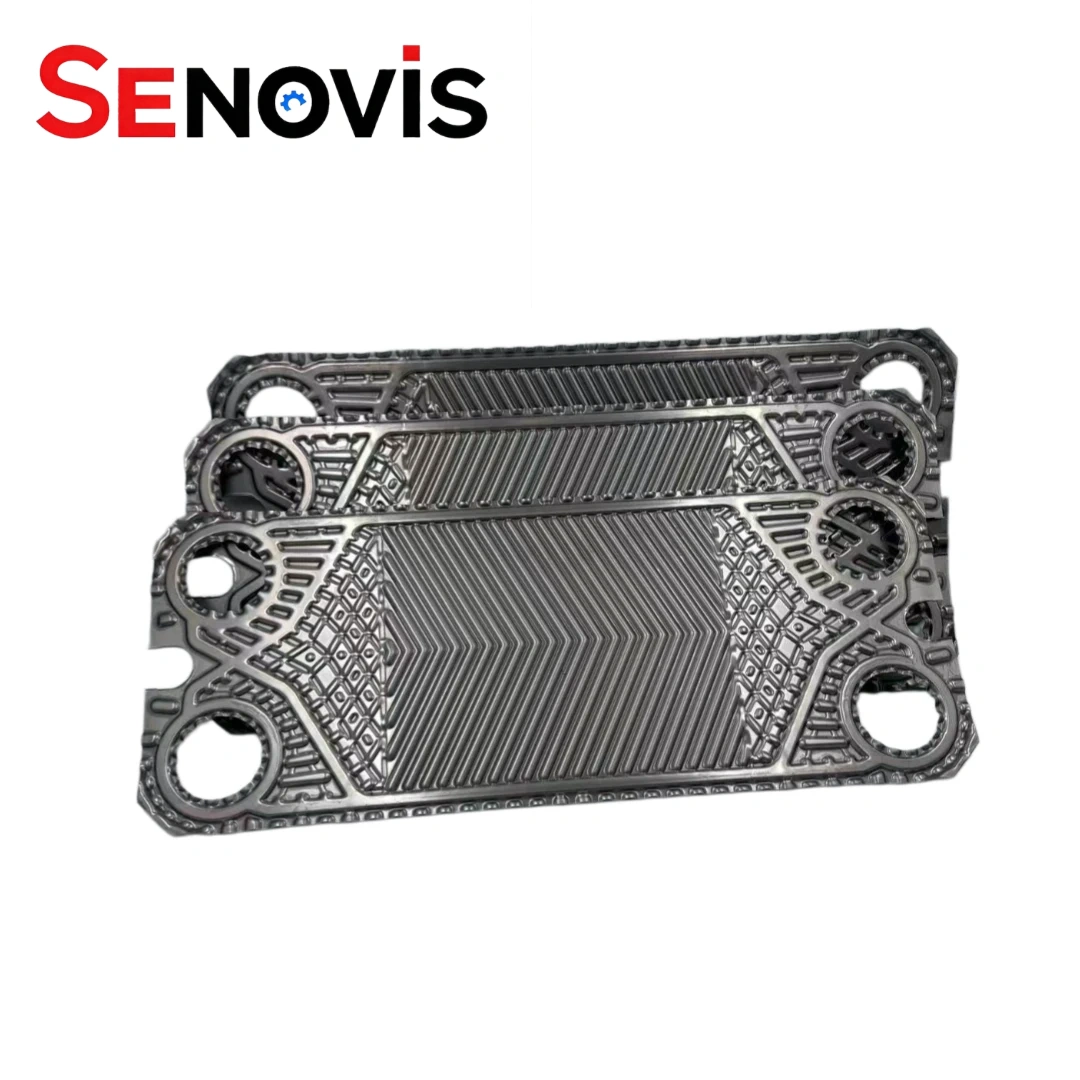

Sondex S47 Heat Exchanger Gaskets and Plates PHE Channel
Plates Model
Sondex S47
sondex s47-ig10
sondex s47 ig
Place of Origin
China
Payment Method
T/T, L/C, Western Union, MoneyGram, PayPal, Credit Card
Minimum Order Quantity
5 pieces
Price
Negotiation
Packaging Details
Carton Packaging
Sondex S47 details
PHE Model
Sondex S47 PHE Plates
Keyword
Sondex Plate Replacement
Plate Type
H channel M channel L channel
Compatible Brands
Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Product tolerance
Acid, alkali, high temperature
Plate Material
SUS304/SUS316L/Ti/20Cr/18Ni/SMO/Ni
Plate Hole
0 hole, 1 hole, 2 holes, 3 holes, 4holes
Thinckness
0.5mm 0.6mm 0.7mm 0.8mm
Medium
water, drinks,oil, milk
DESCRIPTION
The Sondex S47 plate is a direct replacement heat transfer plate for S47, S47 IG and S47-IG10 frame models. Same dimensions as the originals, goes in without modification — straightforward if you’re doing a scheduled service or working through a refurbishment.
The S47 has a decent footprint across industries , HVAC, industrial process cooling, district heating, marine and food processing all come up regularly. Where it tends to stand out is in hygienic processing: milk, juice, brewery and similar applications where the plate geometry suits CIP cleaning cycles and the surface finish meets food-grade requirements. If that’s your application, it’s worth specifying the right gasket material alongside the plates , NBR and EPDM are the usual options depending on your media and temperature range.
On compatibility, our S47 plates also fit a broader range of Sondex frames beyond the S47 variants — S21/22, S36, S47A, S58 and S64. If you’re running a mixed fleet on site, that’s worth knowing before you place an order, as it can reduce the number of part numbers you need to stock.
Matching Sondex S47 gaskets are available alongside the plates if you need both at once.
Sondex S47 Plate heat exchanger specification
Vicarb PHE Plate Heat Exchanger Replacemnet | Sondex S47 |
| Corrugation Depth(mm) | 2.6 |
| Port Diameter(mm) | φ100 |
| Chevron Angle | 135°55° |
| Corrugation Pitch(mm) | 8.5 9.1 |
| Equivalent Diameter | 5.2 |
| Flow Area(m²) | 0.00088 |
| One Plate (m²) | 0.47 |
| Port Distance (mm) | 1365*225 |
| Dimensions (mm) | 1518*380 |

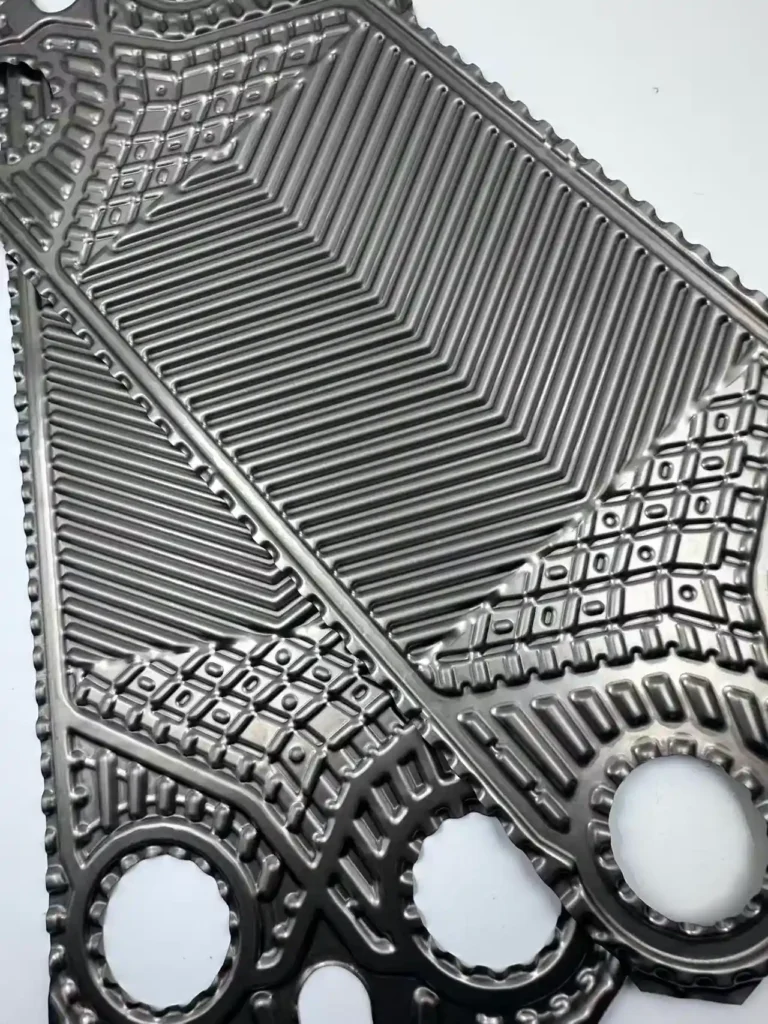

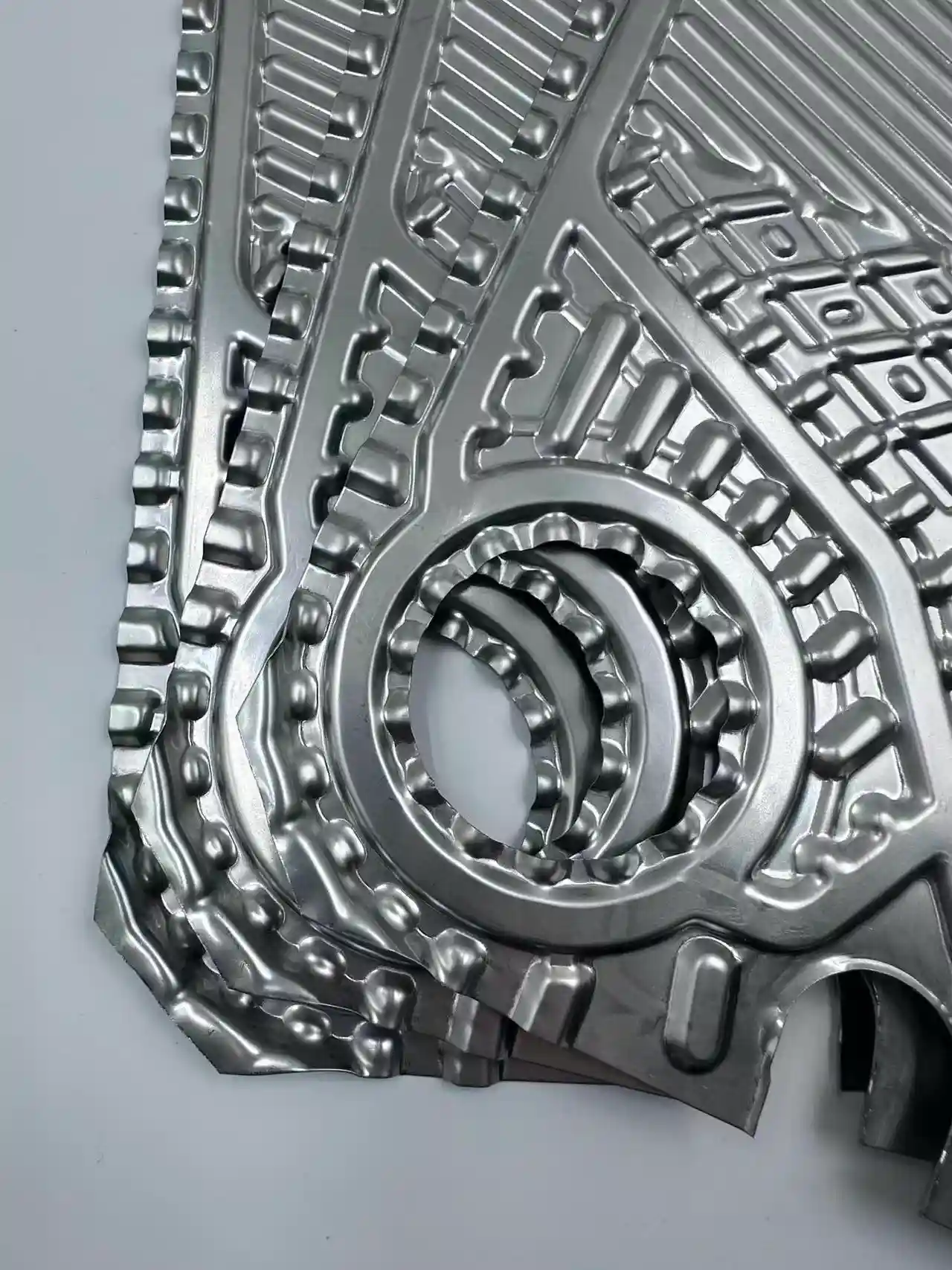

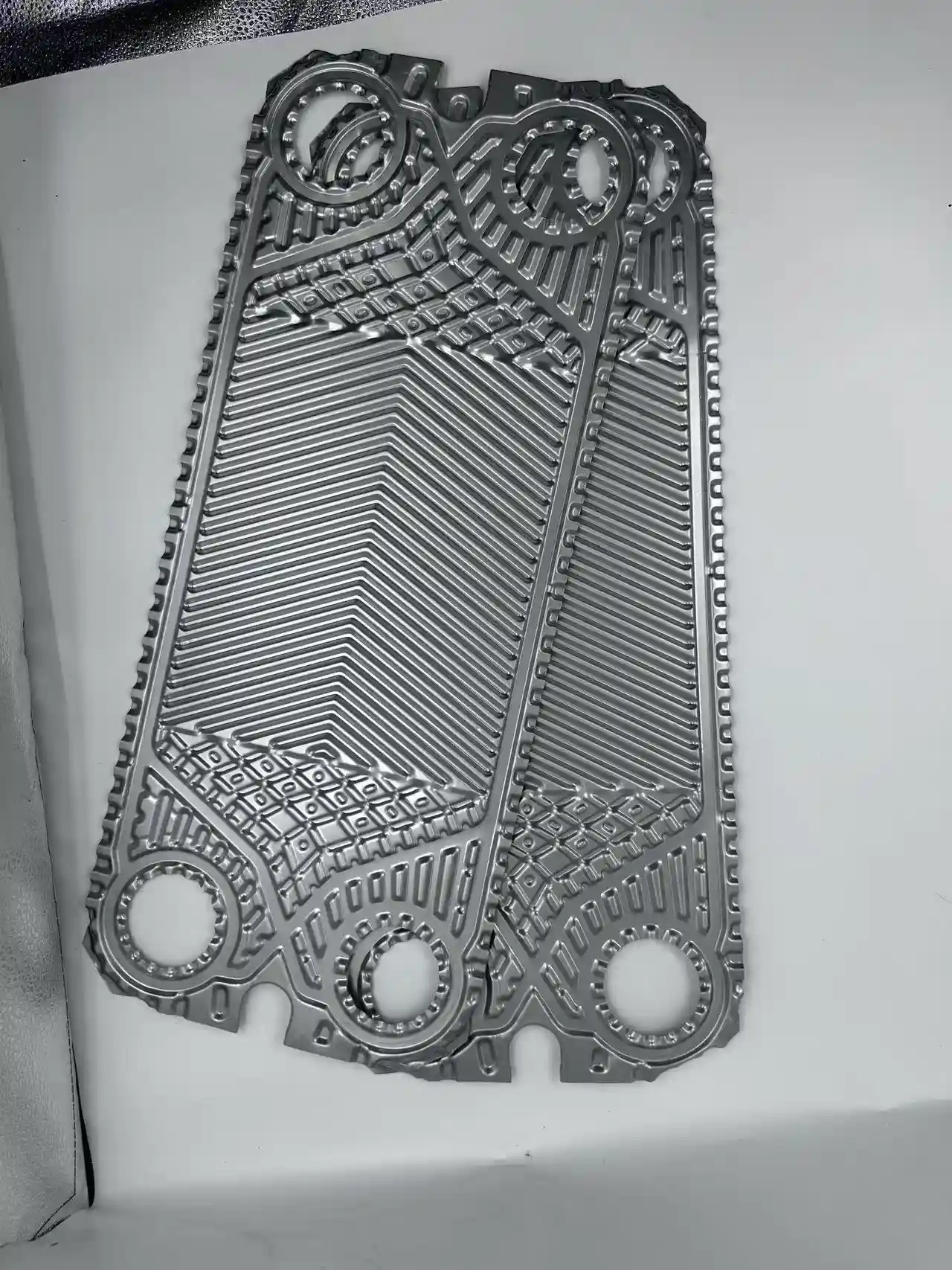

Actual Product Details
Suitable for HVAC/Marine/Food /oil and gas Applications
HVAC Systems
Sondex S47 plates are widely used in heating, ventilation, and air conditioning systems for chilled water cooling, district heating substations, heat recovery units, and building temperature control applications.
Food & Beverage Processing
Designed for hygienic heat transfer processes, Sondex S47 heat exchanger plates are commonly applied in milk pasteurization, juice processing, brewery production, dairy plants, and beverage manufacturing systems.
Marine & Offshore Industry
Suitable for seawater cooling, engine cooling, lubricating oil cooling, and onboard HVAC systems, Sondex S47 plates provide reliable performance in demanding marine environments.
Chemical & Industrial Processing
Used in chemical plants, petrochemical facilities, and industrial production lines for process heating, cooling, heat recovery, and temperature regulation applications.
Refrigeration & Cooling Systems
Sondex S47 plates are ideal for refrigeration units, chillers, compressor cooling systems, and industrial cooling circuits requiring efficient thermal exchange.
Energy & District Heating
Applied in power generation facilities, district heating networks, renewable energy systems, and waste heat recovery projects to improve overall energy efficiency and operational reliability.
