The Sondex S22 Plate is a replacement for Sondex S22 and S22 IG10 plate heat exchangers. Manufactured from premium stainless steel materials such as SS304, SS316, Titanium, and SMO254, the plate features an optimized corrugation pattern that ensures excellent heat transfer efficiency, low pressure drop, and reliable mechanical strength.
Fully compatible with original Sondex specifications, the S22 plate is widely used in HVAC systems, food and beverage processing, marine cooling, district heating, chemical plants, and industrial heat recovery applications.
Vicarb PHE Plate Heat Exchanger Replacemnet | Sondex S22 |
| Corrugation Depth(mm) | 4 |
| Port Diameter(mm) | φ100 |
| Chevron Angle | 140°55° |
| Corrugation Pitch(mm) | 13.22/13 |
| Equivalent Diameter | 8 |
| Flow Area(m²) | 0.00129 |
| One Plate (m²) | 0.22 |
| Port Distance (mm) | 719*225 |
| Dimensions (mm) | 882*378 |

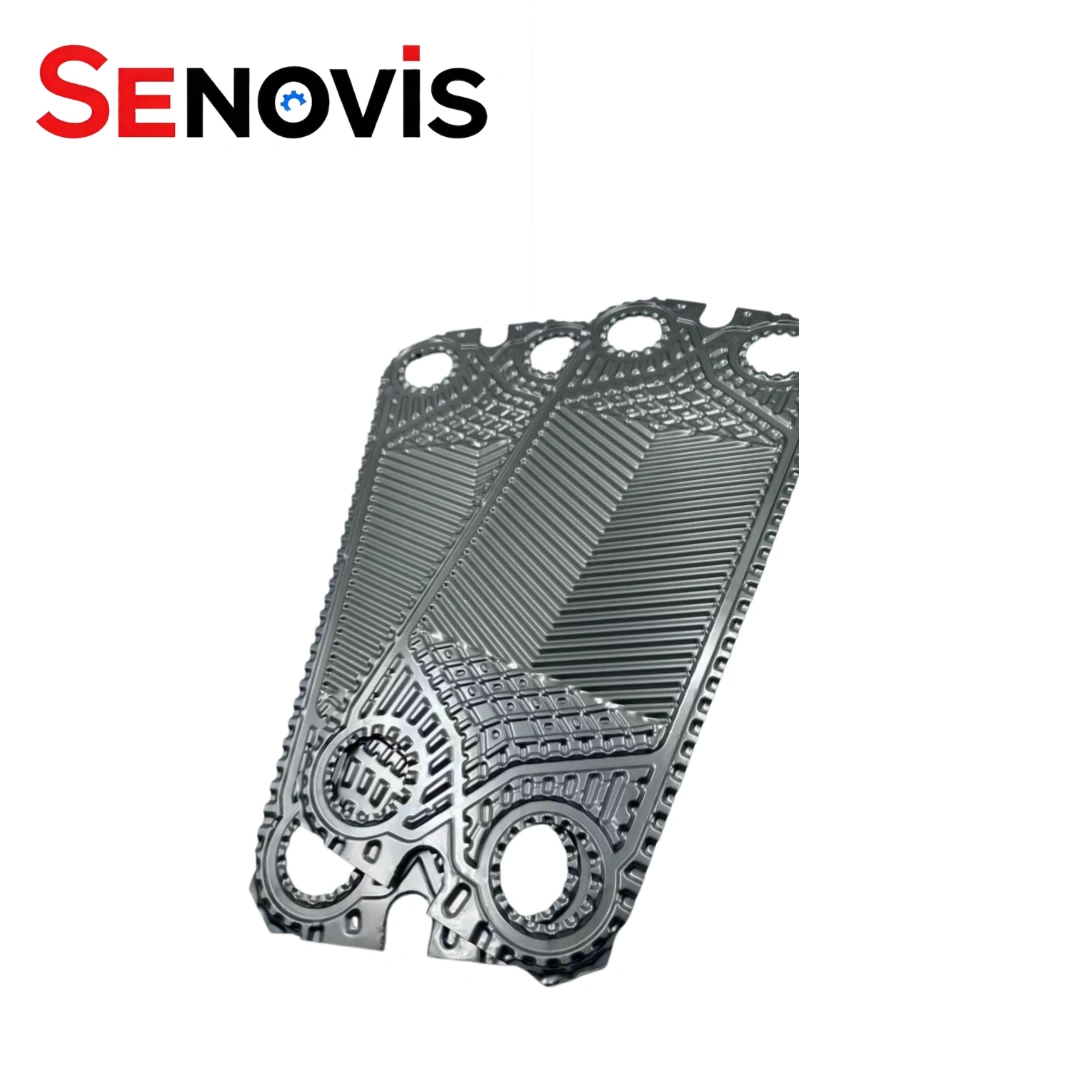

Actual Product Details

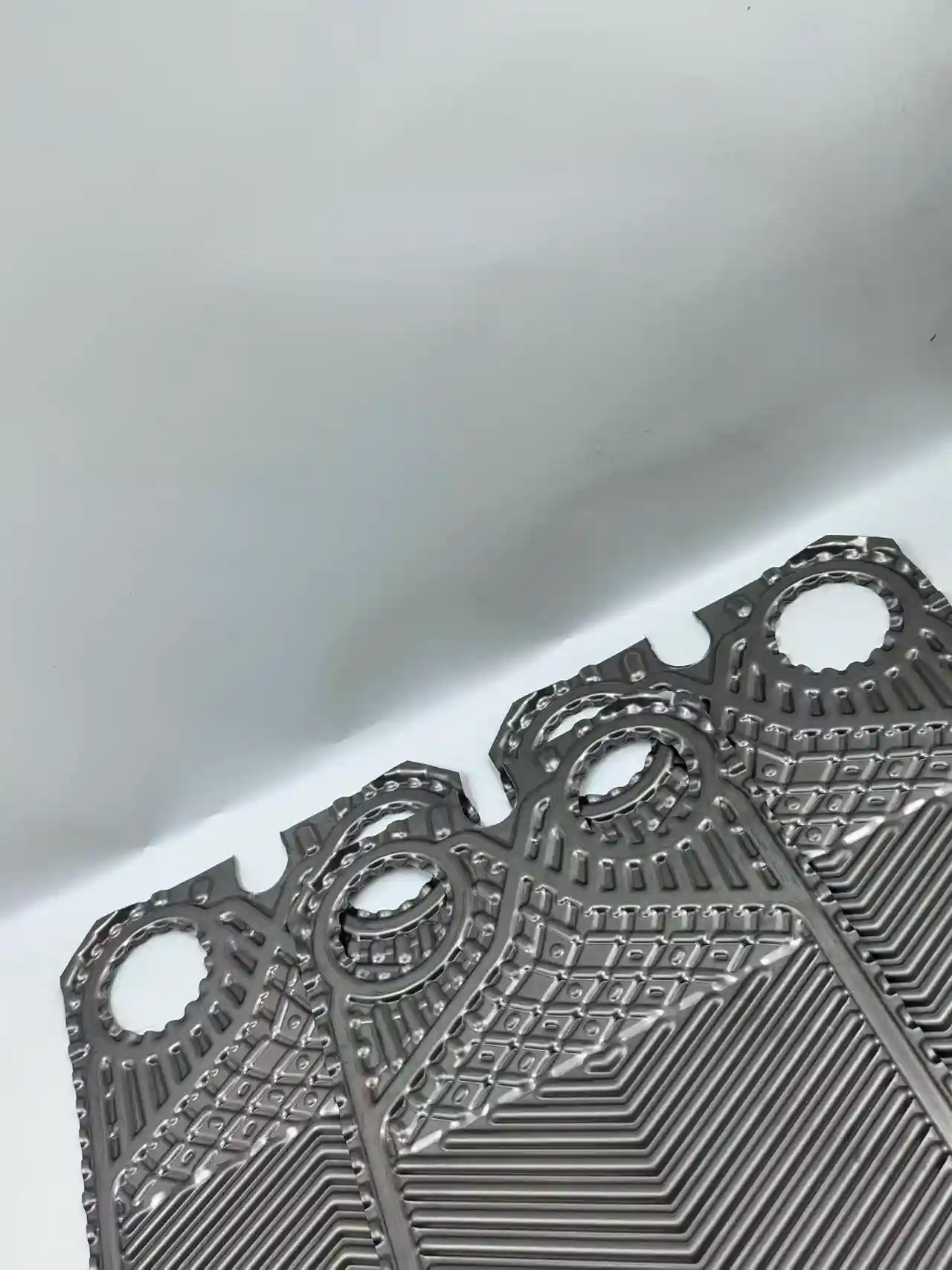

Engineered plate corrugation improves turbulence and thermal efficiency.Precision flow distribution design for stable heat exchanger operation.

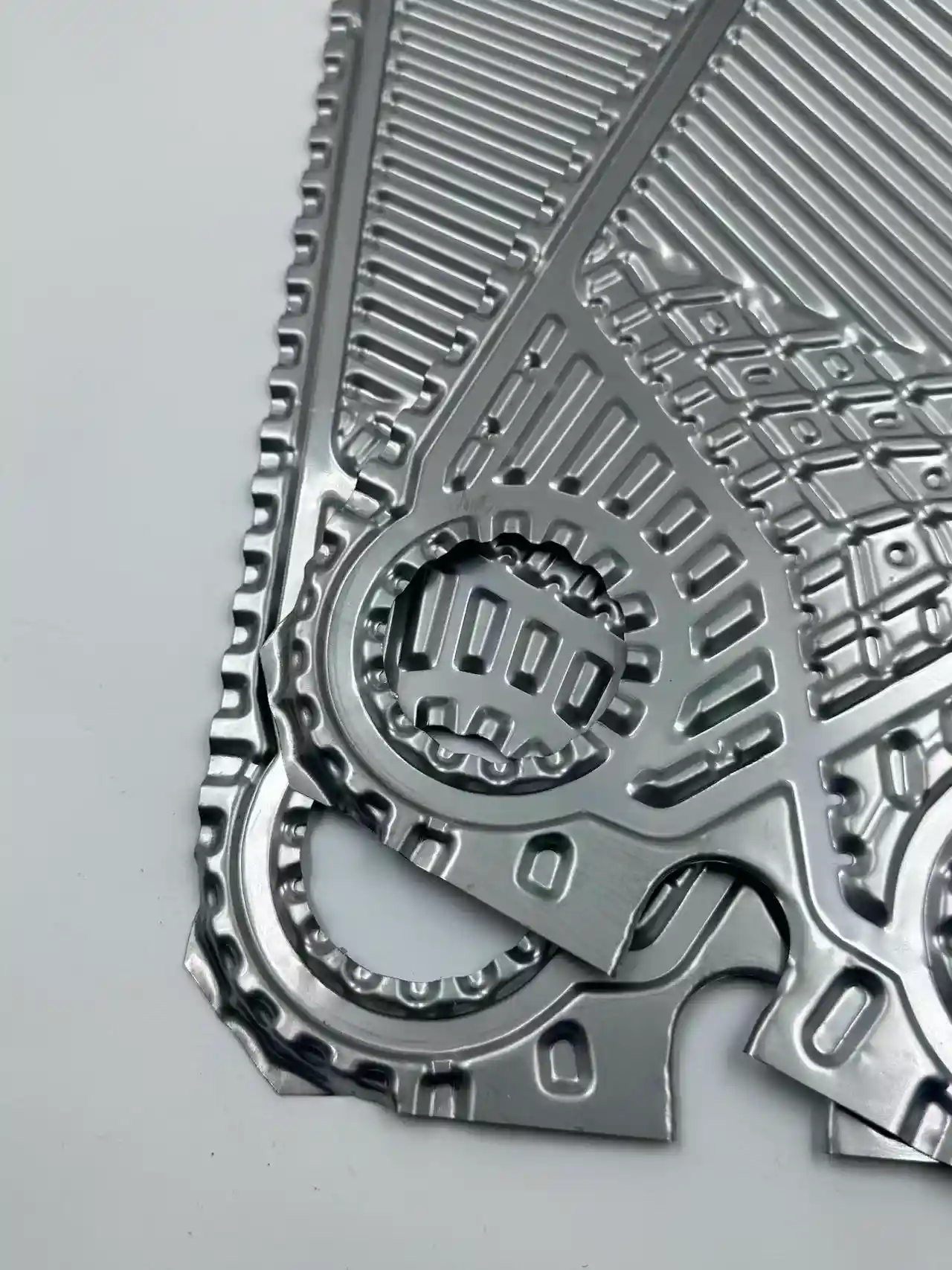

Precision-formed stainless steel plate for reliable industrial performance.Suitable for HVAC/Marine/Food /oil and gas Applications
HVAC Systems
The Sondex S22 plate is widely used in heating, ventilation, and air conditioning systems for chilled water cooling, district heating, heat recovery, heat pumps, and central air-conditioning applications. Its efficient heat transfer performance helps reduce energy consumption and improve system reliability.
Marine Industry
Designed to withstand demanding marine environments, the S22 plate is suitable for seawater cooling systems, engine jacket water coolers, lubricating oil coolers, and onboard HVAC systems. Corrosion-resistant plate materials ensure long service life and dependable operation at sea.
Food & Beverage Processing
The Sondex S22 plate is commonly used in milk pasteurization, beverage cooling, brewery processes, dairy production, and food heating applications. Smooth plate surfaces and hygienic materials support efficient heat transfer while meeting strict cleanliness requirements.
Oil & Gas Industry
In oil and gas operations, the S22 plate is applied in crude oil cooling, hydraulic oil cooling, process fluid heating, compressor cooling, and energy recovery systems. Its robust design provides reliable thermal performance under demanding industrial operating conditions.
