Sondex S110 Plate Heat Exchanger PHE Spares
Plates Model
sondex s110
Place of Origin
China
Payment Method
T/T, L/C, Western Union, MoneyGram, PayPal, Credit Card
Minimum Order Quantity
5 pieces
Price
Negotiation
Packaging Details
Carton Packaging
Sondex S110 details
PHE Model
Sondex S110 PHE Plates
Keyword
Sondex Plate Replacement
Plate Type
H channel M channel L channel
Compatible Brands
Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Product tolerance
Acid, alkali, high temperature
Plate Material
SUS304/SUS316L/Ti/20Cr/18Ni/SMO/Ni
Plate Hole
0 hole, 1 hole, 2 holes, 3 holes, 4holes
Thinckness
0.5mm 0.6mm 0.7mm 0.8mm
Medium
water, drinks,oil, milk
DESCRIPTION

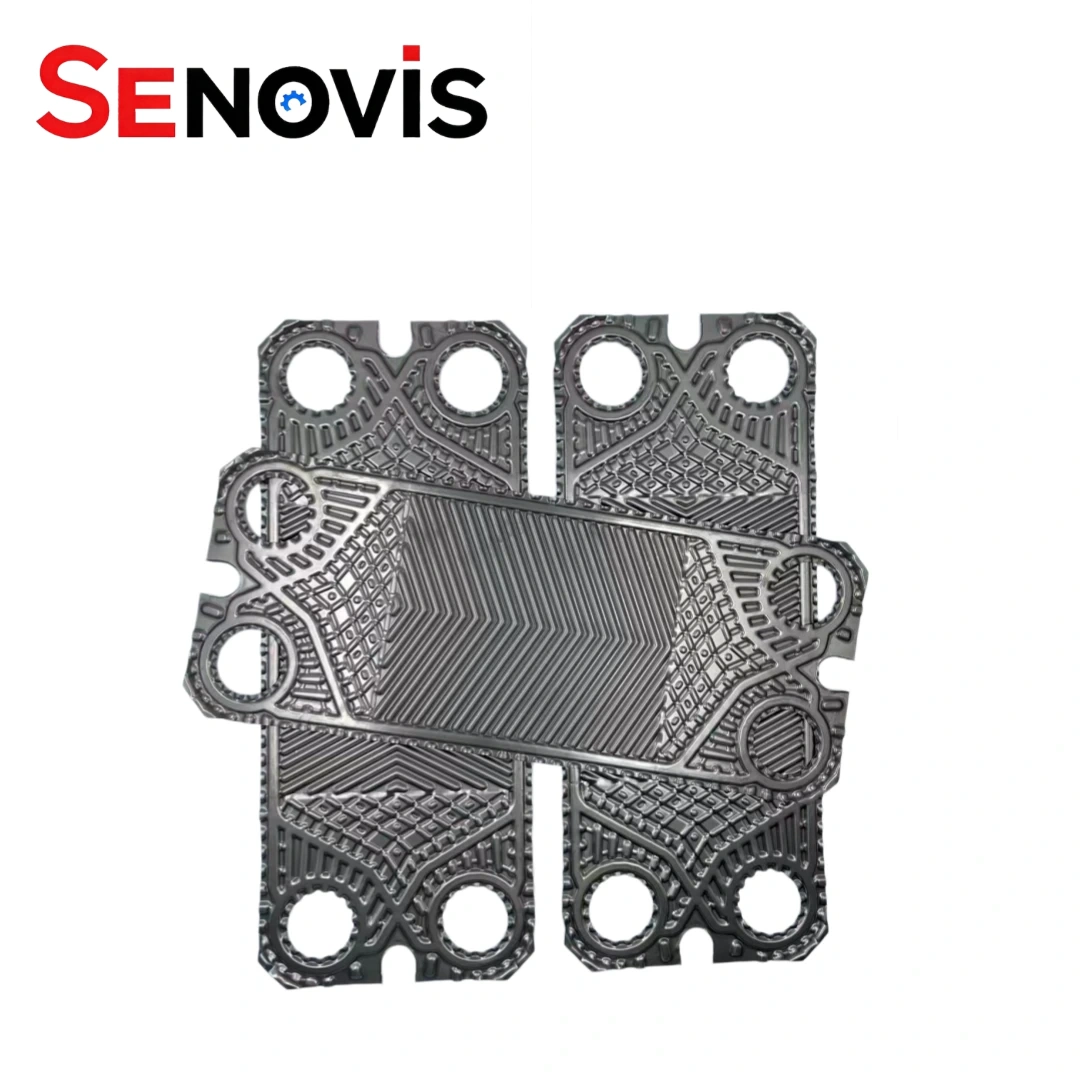

The Sondex S110 plate is a direct replacement for S110 and S110-IS frames, and one of the more technically distinctive options in the Sondex range. The fishbone plate pattern is worth noting — it’s not just a design detail. The geometry produces better flow distribution and lower pressure drop than standard corrugation patterns, which makes a practical difference in applications where pumping costs matter or where flow consistency across the plate pack is critical.
At SENOVIS PHE, we supply the S110 for maintenance, repair and refurbishment across HVAC, district heating, food and dairy processing, refrigeration, marine cooling, chemical processing, power generation and energy recovery. The S110 frame tends to appear in mid-to-large installations where thermal performance and pressure drop both matter — the fishbone pattern is part of why it gets specified in those situations.
Gasket options cover EPDM, NBR, HNBR and Viton — so whether you’re dealing with hot water circuits, refrigerants, oils or chemical media, there’s a compound that fits without overspecifying. If the frame is already open for a plate change, replacing gaskets at the same time is generally the more practical approach.
Compatibility extends to S100, S100B, S113, S121, S130 and S188 frames. If you’re managing multiple Sondex units on the same site, that cross-compatibility can reduce the number of different plate specs you need to keep on hand.
Sondex S22 Plate heat exchanger specification
Vicarb PHE Plate Heat Exchanger Replacemnet | Sondex S110 |
| Corrugation Depth(mm) | 2.6 |
| Port Diameter(mm) | φ147 |
| Chevron Angle | 55° 135° |
| Corrugation Pitch(mm) | 9 8.5 |
| Equivalent Diameter | 5.2 |
| Flow Area(m²) | 0.00118 |
| One Plate (m²) | 1.1 |
| Port Distance (mm) | 2094*296 |
| Dimensions (mm) | 2304*500 |
Actual Product Details
Suitable for HVAC/Marine/Food /oil and gas Applications
HVAC & District Heating
Widely used in large-scale air conditioning systems and district heating substations, where the fishbone plate pattern delivers consistent flow distribution and low pressure drop across high-volume water circuits.
Food & Dairy Processing
Suitable for pasteurization, sterilization and product cooling in food and dairy plants. The plate geometry supports CIP cleaning cycles, and gasket material options — particularly EPDM — meet food-grade requirements.
Refrigeration & Chiller Systems
Applied as evaporators and condensers in industrial refrigeration units and chiller systems, compatible with common refrigerants. NBR and HNBR gaskets cover most refrigerant applications.
Marine & Offshore Cooling
Used in onboard jacket water cooling, lube oil cooling and auxiliary system heat exchange. Titanium plates are recommended for seawater circuits where corrosion resistance is critical.
Chemical Processing
Handles aggressive process fluids and chemical streams where material compatibility matters. Titanium and Viton gasket combinations cover most demanding chemical applications.
Power Generation
Applied in turbine oil cooling, generator cooling and auxiliary heat recovery systems in power plants where reliable continuous operation is essential.
Energy Recovery Systems
Used in heat recovery loops where the low pressure drop of the fishbone pattern helps maintain system efficiency without adding pump load.
