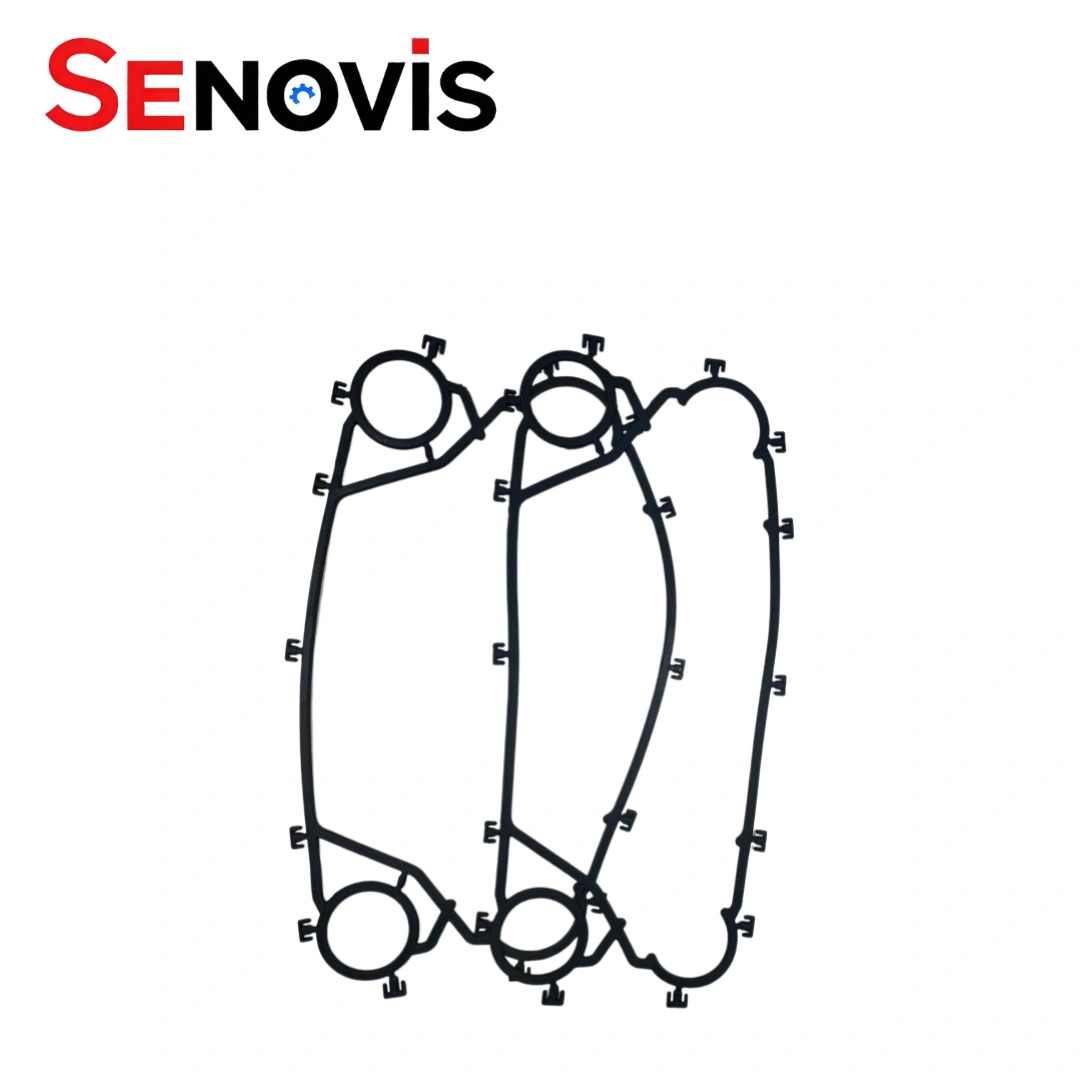

Sigma M76 sealing components can be produced through an fkmg gasket manufacturer with fkmg gasket oem production, supplied as fkmg gasket replacement parts through an fkmg gasket supplier. — Sigma M76 replacements support customers searching for gaskets for phe, gaskets heat exchanger, gaskets in plate heat exchanger and a standard heat exchanger gasket.

NBR EPDM Viton Plate Heat Exchanger Gasket Material Sigma M76

The Sigma M76 Gaskets are replacement seals for API Schmidt Sigma M76 plate heat exchangers, supporting industrial heating, cooling and process duties. Senovis (Beijing) Technology Co., Ltd. (Senovis PHE), a compatible phe spare parts factory, supplies Sigma M76 Heat Exchanger Gaskets and Plates with NBR, EPDM and FKM options. Our API Schmidt Sigma M76 Replacement Plate Heat Exchanger parts support scheduled maintenance, while Sigma M76 and M35 Gasket models should be identified separately. We provide epdm gasket for plate heat exchanger and fkmg gasket oem production for suitable media, plus heat exchanger rubber gasket solutions for api heat transfer schmidt, schmidt heat exchanger sigma and sigma heat exchanger servicing.

Sigma M76 PHE Gasket details

PHE Model

Sigma M76

Keyword

Heat Exchanger Gasket Manufacturer

Applicable Industries

Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper

Compatible Brands

Heat Exchanger API

Connection Type

Clip-on/ Glue/ Glueless

Gasket material

EPDM, NBR, HNBER, HEPDM,FKW

Oil Applications

Thermal Oil, Hydraulic Oil, Lubricating Oil, Fuel Oil

Connection size

DN25-DN500

DESCRIPTION

The Sigma M76 Gaskets are replacement sealing components for API Schmidt Sigma M76 plate heat exchangers, designed for industrial maintenance, repair, and refurbishment projects.
Senovis (Beijing) Technology Co., Ltd. (Senovis PHE), a compatible phe spare parts factory, manufactures Sigma M76 Heat Exchanger Gaskets and Plates with material options selected according to the operating medium and temperature.
The API Schmidt Sigma M76 Replacement Plate Heat Exchanger range supports replacement plate, gasket, and related spare-parts requirements for existing equipment.
A Replacement Gasket for SIGMA M76 Heat Exchanger can be supplied in NBR, EPDM, FKM and other suitable elastomers according to service conditions.
References such as Sigma M76 and M35 Gasket should be treated as separate model requirements and verified before ordering rather than assumed interchangeable.
For api heat transfer schmidt equipment maintenance, Senovis PHE can assist with gasket identification from the model, existing sample, dimensions, or operating data.
The schmidt heat exchanger sigma range is widely used for industrial heating, cooling, and process heat-transfer duties.
For sigma heat exchanger servicing, gasket material selection should consider fluid chemistry, temperature, pressure, and cleaning conditions.
An epdm gasket for plate heat exchanger is commonly selected for suitable water and process-fluid duties, while actual suitability should be confirmed against the application.
Senovis PHE also provides fkmg gasket oem production for applications requiring FKM-based sealing materials.
Each heat exchanger rubber gasket can be matched to the required Sigma M76 plate profile and operating conditions before production.

Sigma M76 Gasket Replacement Specification

PHE Model	Sigma M76 Evaporator Alfa Laval Gasket
Applicable Industries	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip on/ Glueless/ Glued
Gasket material	NBR,FKM, HNBR, ACM,Silicone,EPDM
Color	Black/White
Temperature Range(°C)	-15~180℃
Keyword	NBR Gasket Supplier
Certificate	ISO / CE
Service	Professional technical support for model selection and installation
Design Pressure	0.6MPa~5MPa

Sigma M76 Plate heat exchanger specification

PHE Plate Heat Exchanger Replacemnet	Sigma M76
Corrugation Depth(mm)	3.2
Port Diameter(mm)	φ215
Chevron Angle	125°
Corrugation Pitch(mm)	10.4/11.35
Equivalent Diameter	6.4
Flow Area(m²)	0.00193
One Plate (m²)	0.75
Port Distance (mm)	*3251423**
Dimensions (mm)	*6001708**

API Schmidt Sigma Model Cross-Reference

Current Model	Legacy / Alternative Model Names
Sigma13	Sigma 13 / Sigma M13
Sigma26	Sigma 26 / Sigma S26 / Sigma M26
Sigma36	Sigma 36 / Sigma M36
Sigma37	Sigma 37 / Sigma S37 / Sigma M37
Sigma48	Sigma 48 / Sigma S48
Sigma49X	Sigma X49 / SX49 / X49
Sigma56	Sigma 56 / Sigma M56
Sigma76	Sigma 76 / Sigma M76
Sigma96	Sigma 96 / Sigma M96
Sigma66	Sigma 66 / Sigma S66 / Sigma M66
Sigma156	Sigma 156 / Sigma S156 / Sigma M156
SigmaM55	Sigma M55 / M55
SigmaM35	Sigma M35 / M35 / M35S / M35X
SigmaM25	Sigma M25 / M25 / M25S / M25X
SigmaM136	Sigma M136 / M136X
SigmaM106	Sigma M106 / M106X
SigmaM90	Sigma M90 / M90
G33	Sigma G33 / G33

faq

What is the API Schmidt Sigma M76 gasket used for?

The API Schmidt Sigma M76 gasket is a replacement sealing component for Sigma M76 gasketed plate heat exchangers. It seals the plate perimeter and port areas, separates hot and cold media, and helps prevent external leakage. Senovis PHE supplies compatible Sigma M76 gaskets and plates for industrial maintenance, refurbishment, and spare-parts replacement.

What other names are commonly used for Sigma M76 replacement parts?

Buyers may search for this model using names such as Sigma M76, SigmaM76, Sigma M-76, API Sigma M76, API Schmidt Sigma M76, Schmidt Sigma M76, Sigma 76, and related API Heat Transfer Sigma references. Sigma M66 and Sigma M96 may also appear in the same product-family searches, but they should be identified separately before ordering.

Are Sigma M76, Sigma M66, and Sigma M96 interchangeable?

No. Sigma M76, Sigma M66, and Sigma M96 are related Sigma-series models, but their plates and gaskets should not be assumed interchangeable. Senovis PHE recommends confirming the nameplate, plate dimensions, gasket profile, fixing structure, and original Part Number before replacement.

What gasket materials are available for Sigma M76?

Senovis PHE can supply compatible Sigma M76 gaskets in NBR, EPDM, HNBR, FKM/FPM, and other suitable elastomer materials. PTFE-coated and food-contact material options can also be evaluated where required. The final material should be selected according to the process medium, operating temperature, pressure, cleaning chemicals, and application requirements.

How can Sigma M76 be used in Oman industrial and oil & gas applications?

In Oman, Sigma M76 plate heat exchanger configurations can support refinery utilities, oil and gas facilities, industrial cooling, process heat recovery, HVAC systems, marine applications, and cooling-water duties. Senovis PHE can supply compatible Sigma M76 plates and gaskets for Oman maintenance projects, with materials selected according to seawater, cooling water, oil, chemical media, operating temperature, and pressure.

How can Sigma M76 gaskets and plates be shipped to Oman?

Senovis PHE can arrange express courier, air freight, or sea freight to Muscat, Sohar, Duqm, Salalah, and other industrial locations in Oman. EXW, FCA, FOB, DAP, and DDP terms can be supported according to project requirements, with FOB Shanghai used by default when no special trade term is requested. If customers do not have their own freight forwarder, Senovis PHE can assist with logistics and recommend a suitable shipping solution that balances delivery efficiency and cost-effectiveness. After dispatch, shipment progress can be followed through the available carrier tracking information.
