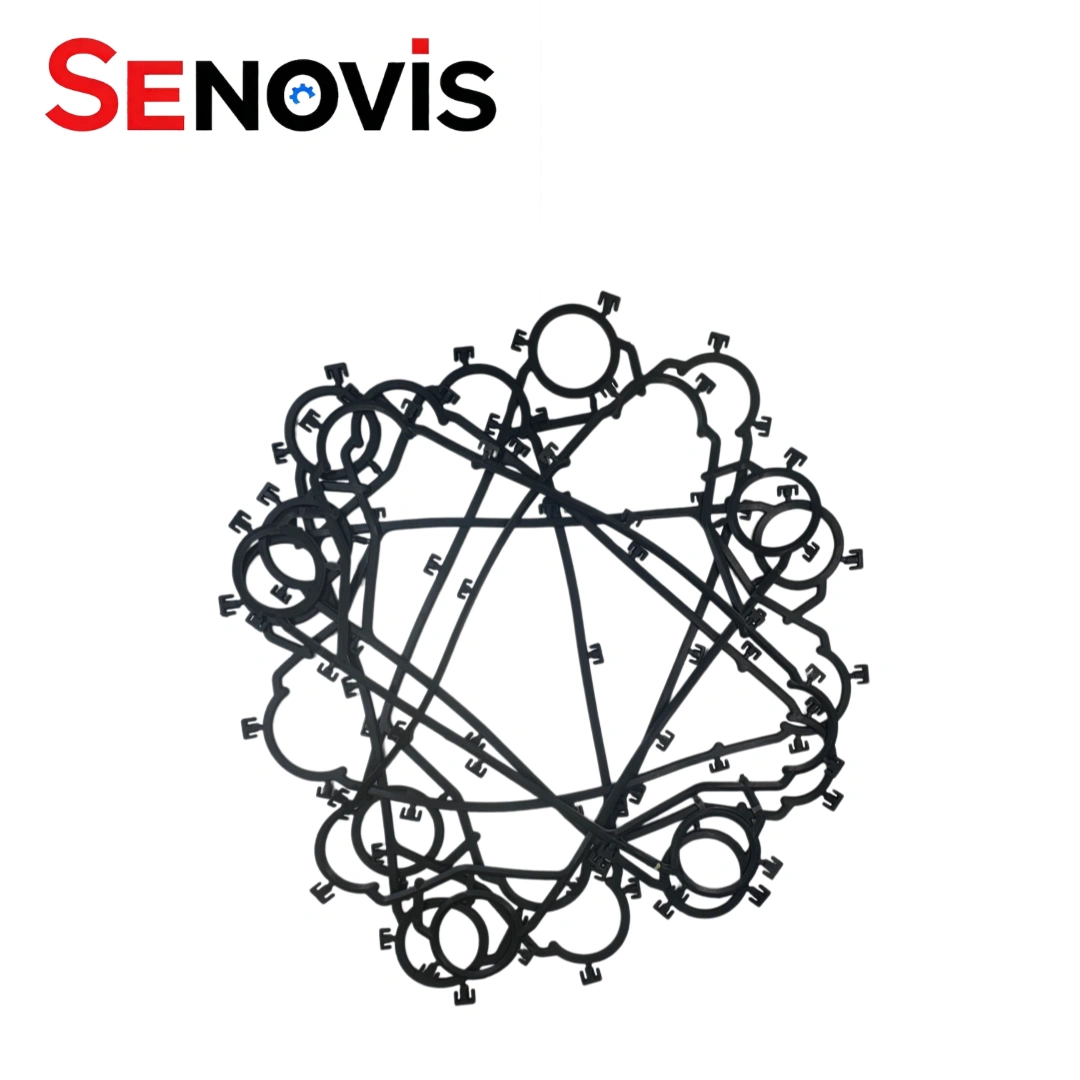

Sigma M56 replacement gasket with clip-on gasket for plate heat exchanger installation, supplied alongside compatible parts for plate heat exchanger, compatible phe spare parts factory services and other compatible plate heat exchanger parts. — Sigma M56 sealing options include epdm gasket plate heat exchanger products, epdm heat exchanger gaskets, support from an fkm heat exchanger gasket manufacturer, and fkmg gasket material selections.

API Schmidt Heat Nbrp Replacement Gaskets For PHE Factory Sigma M56

The Sigma M56 Gaskets are replacement seals for API Schmidt Sigma M56 plate heat exchangers. Senovis (Beijing) Technology Co., Ltd. (Senovis PHE), a heat exchanger gasket manufacturer, supplies NBR, EPDM and FKM options. Our API Schmidt Sigma M56 Replacement Plate Heat Exchanger parts support industrial maintenance, while API Sigma M56/Sigma M66/Sigama M96 models should be identified separately. As one of the phe gasket suppliers, we provide plates and gaskets for api schmidt plate heat exchanger and api sigma heat exchanger servicing.

Sigma M56 PHE Gasket details

PHE Model

Sigma M56

Keyword

Alfa Laval Heat Exchanger Parts

Applicable Industries

Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper

Compatible Brands

PHE Gasket Brands

Connection Type

Clip-on/ Glue/ Glueless

Gasket material

EPDM, NBR, HNBER, HEPDM,FKW

Oil Applications

Thermal Oil, Hydraulic Oil, Lubricating Oil, Fuel Oil

Connection size

DN25-DN500

DESCRIPTION

The Sigma M56 Gaskets are replacement sealing components for API Schmidt Sigma M56 plate heat exchangers, supplied by Senovis (Beijing) Technology Co., Ltd. (Senovis PHE) for industrial maintenance and spare-parts projects.
The API Schmidt Sigma M56 Replacement Plate Heat Exchanger solution covers model-specific gasket and plate replacement according to the existing unit and operating conditions.
References such as API Sigma M56/Sigma M66/Sigama M96 are commonly encountered when buyers identify different Sigma-series models, which should be verified separately before ordering.
The gasket in plate heat exchanger forms the sealing boundary between adjacent plates and must be selected according to media, temperature, and service requirements.
As a heat exchanger gasket manufacturer, Senovis PHE produces replacement gaskets with NBR, EPDM, FKM and other material options for suitable applications.
For buyers comparing phe gasket suppliers, Senovis PHE can assist with Sigma M56 model identification, gasket material selection, and replacement plate requirements.
Our api schmidt plate heat exchanger spare-parts range supports maintenance of multiple Sigma-series units used in industrial heating, cooling, and process duties.
Senovis PHE also supplies components for api sigma heat exchanger refurbishment, including replacement plates and gaskets for scheduled maintenance.

Sigma M56 Gasket Replacement Specification

PHE Model	Sigma M56 Evaporator Alfa Laval Gasket
Applicable Industries	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip on/ Glueless/ Glued
Gasket material	NBR,FKM, HNBR, ACM,Silicone,EPDM
Color	Black/White
Temperature Range(°C)	-15~180℃
Keyword	NBR Gasket Supplier
Certificate	ISO / CE
Service	Professional technical support for model selection and installation
Design Pressure	0.6MPa~5MPa

Sigma M13 Plate heat exchanger specification

PHE Plate Heat Exchanger Replacemnet	Sigma M56
Corrugation Depth(mm)	3.2
Port Diameter(mm)	φ215
Chevron Angle	125°58°
Corrugation Pitch(mm)	10.4/11.35
Equivalent Diameter	6.4
Flow Area(m²)	0.00193
One Plate (m²)	0.51
Port Distance (mm)	*3251048**
Dimensions (mm)	*6001333**

API Schmidt Sigma Model Cross-Reference

Current Model	Legacy / Alternative Model Names
Sigma13	Sigma 13 / Sigma M13
Sigma26	Sigma 26 / Sigma S26 / Sigma M26
Sigma36	Sigma 36 / Sigma M36
Sigma37	Sigma 37 / Sigma S37 / Sigma M37
Sigma48	Sigma 48 / Sigma S48
Sigma49X	Sigma X49 / SX49 / X49
Sigma56	Sigma 56 / Sigma M56
Sigma76	Sigma 76 / Sigma M76
Sigma96	Sigma 96 / Sigma M96
Sigma66	Sigma 66 / Sigma S66 / Sigma M66
Sigma156	Sigma 156 / Sigma S156 / Sigma M156
SigmaM55	Sigma M55 / M55
SigmaM35	Sigma M35 / M35 / M35S / M35X
SigmaM25	Sigma M25 / M25 / M25S / M25X
SigmaM136	Sigma M136 / M136X
SigmaM106	Sigma M106 / M106X
SigmaM90	Sigma M90 / M90
G33	Sigma G33 / G33

faq

What is the API Schmidt Sigma M56 gasket used for?

The API Schmidt Sigma M56 gasket is a replacement sealing component for Sigma M56 gasketed plate heat exchangers. It seals the plate perimeter and port areas, separates different process fluids, and guides media through the designed channels. Senovis PHE supplies compatible Sigma M56 gaskets and plates for industrial maintenance, refurbishment, and scheduled spare-parts replacement.

What other names are commonly used for Sigma M56 replacement parts?

Buyers and maintenance engineers may search for this model using names such as Sigma M56, SigmaM56, Sigma M-56, API Sigma M56, API Schmidt Sigma M56, Schmidt Sigma M56, Sigma 56, and related API Heat Transfer Sigma references. Sigma M55, Sigma M66, and Sigma M96 may also appear in the same product-family searches, but they are separate models and should not be assumed interchangeable. Senovis PHE can help confirm the correct model from the nameplate, plate profile, gasket shape, dimensions, or original Part Number.

Are Sigma M56, Sigma M55, and Sigma M66 the same model?

No. Sigma M56, Sigma M55, and Sigma M66 are related Sigma-series model references, but the plates and gaskets should be verified separately before ordering. Similar naming does not guarantee the same gasket groove, dimensions, port arrangement, or plate configuration.

What industries commonly use Sigma M56 plate heat exchangers?

Sigma M56 plate heat exchanger configurations are commonly associated with HVAC, power generation, food and beverage processing, marine systems, refining, chemical processing, refrigeration, mining, and industrial utility applications. The relatively large flow capability makes the model suitable for industrial duties where stable heat transfer and maintainable gasketed construction are important.

How can Sigma M56 be used in Qatar industrial cooling and energy projects?

In Qatar, Sigma M56 plate heat exchanger configurations can support district cooling, HVAC systems, process cooling, LNG and energy facilities, refinery utilities, marine systems, and heat recovery duties. Senovis PHE can supply compatible Sigma M56 plates and gaskets for Qatar maintenance projects, with materials selected according to cooling water, oil, seawater, chemical media, operating temperature, and pressure.

Is FKM suitable for Sigma M56 chemical or high-temperature applications?

FKM/Viton can be considered for certain higher-temperature, oil, solvent, and chemical applications when its chemical compatibility is appropriate. It should not be selected solely according to temperature; the actual process medium, concentration, pressure, cleaning chemicals, and continuous operating conditions should also be evaluated.

How can customers verify Senovis PHE’s company qualifications?

Senovis PHE is the brand of Senovis (Beijing) Technology Co., Ltd., a company engaged in plate heat exchanger products for approximately 10 years. Customers can verify the registered company information using Unified Social Credit Code 91110112MA003P8F5W through China’s National Enterprise Credit Information Publicity System (GSXT) or Tianyancha. No material judicial disputes have been identified in the public records previously reviewed.
