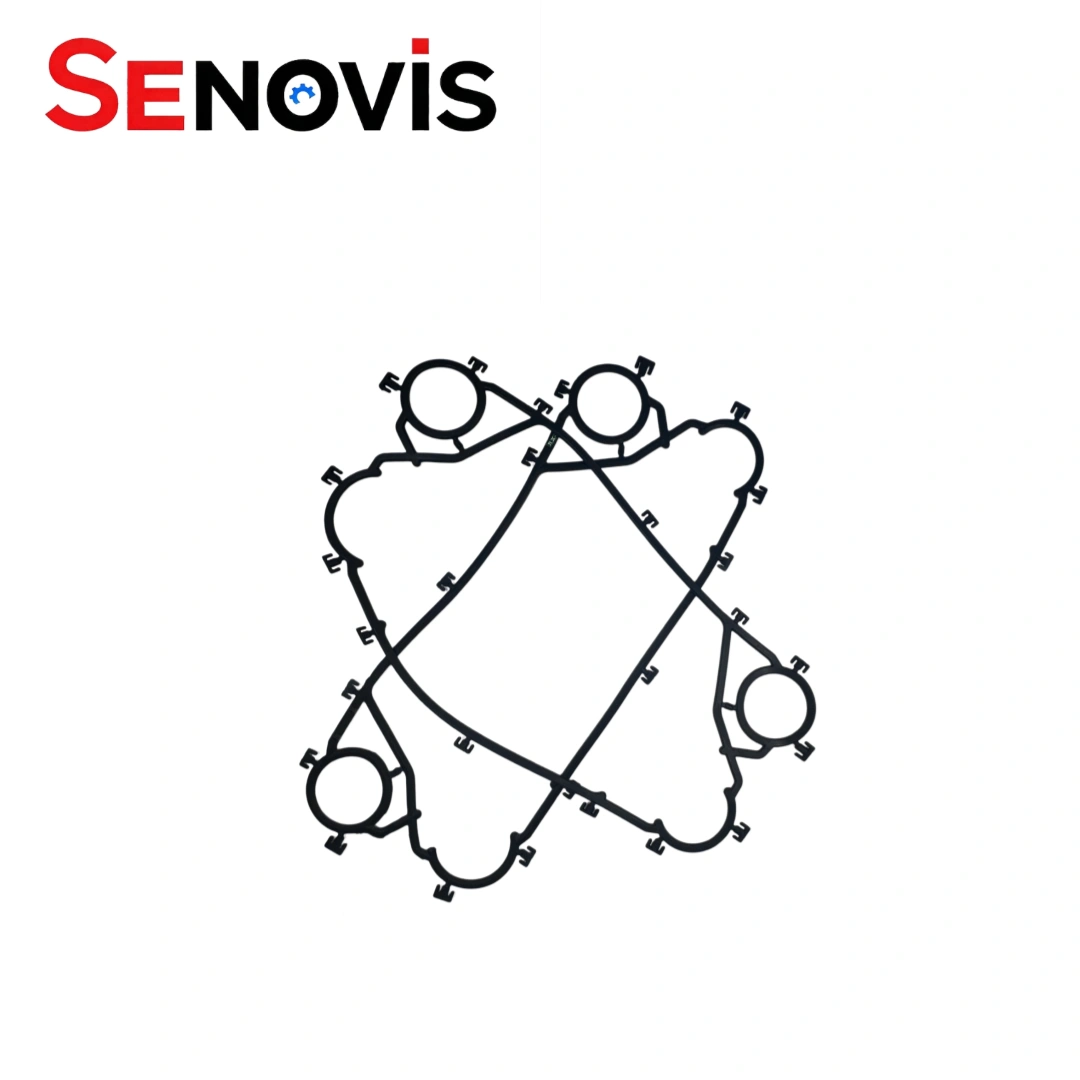

Sigma M35 gasket supply can include related phe parts, backed by a phe plate and gasket manufacturer offering application-specific phe sealing solutions. — Sigma M35 sealing components are intended for a phe system and phe type heat exchanger, with related plate exchanger replacement parts available for maintenance.

Sigma M35 Gasket For Plate Heat Exchanger Rubber Gasket NBRP FKM EPDM

The Sigma M35 Gaskets are replacement seals for API Schmidt Sigma M35 plate heat exchangers. Senovis (Beijing) Technology Co., Ltd. (Senovis PHE), a plate heat exchanger gasket manufacturer, supplies Sigma M35 Plate Heat Exchanger Rubber Gasket options in NBR, EPDM and FKM.

Sigma M35 PHE Gasket details

PHE Model

Sigma M35 API Heat Transfer Sigma

Keyword

Compatible Plate Heat Exchanger Parts

Applicable Industries

Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper

Compatible Brands

API Schmidt

Connection Type

Clip-on/ Glue/ Glueless

Gasket material

EPDM, NBR, HNBER, HEPDM,FKW

Oil Applications

Thermal Oil, Hydraulic Oil, Lubricating Oil, Fuel Oil

Connection size

DN25-DN500

DESCRIPTION

The Sigma M35 Gaskets are replacement sealing components for API Schmidt Sigma M35 plate heat exchangers, supporting industrial heating, cooling, boiler, and process heat-transfer maintenance.
Senovis (Beijing) Technology Co., Ltd. (Senovis PHE), a plate heat exchanger gasket manufacturer, supplies Sigma M35 plates and gaskets with NBR, EPDM, FKM and other material options according to operating conditions.
The Plate Heat Exchanger Plates Sigma M27/Sigma M35 reference is commonly used when sourcing replacement heat-transfer components within this Sigma model range.
Model references such as SIGMA X29/SIGMA M35/SIGMA M35X should be verified against the existing plate profile and equipment information before replacement parts are ordered.
The Sigma M76 and M35 Gasket references represent different model requirements and should not be assumed interchangeable without dimensional verification.
A Sigma M35 Plate Heat Exchanger Rubber Gasket can be selected according to the working medium, temperature, pressure, and cleaning conditions.
For Sigma/Schmidt/API equipment, Senovis PHE provides model identification and aftermarket plate-and-gasket replacement support.
As one of the high quality api plate heat exchanger gasket manufacturers, Senovis PHE focuses on model-specific manufacturing and material verification for overseas maintenance projects.
An nbr gasket for plate heat exchanger is suitable for selected oil and industrial-fluid duties when NBR meets the actual operating requirements.
Senovis PHE also supplies phe gaskets for industrial boiler systems where the gasket material is suitable for the water chemistry and operating temperature.
Our replacement gaskets for plate heat exchanger range supports scheduled servicing, refurbishment, and spare-parts replacement for existing Sigma M35 units.

Sigma M35 Gasket Replacement Specification

PHE Model	Sigma M35 Evaporator Alfa Laval Gasket
Applicable Industries	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip on/ Glueless/ Glued
Gasket material	NBR,FKM, HNBR, ACM,Silicone,EPDM
Color	Black/White
Temperature Range(°C)	-15~180℃
Keyword	NBR Gasket Supplier
Certificate	ISO / CE
Service	Professional technical support for model selection and installation
Design Pressure	0.6MPa~5MPa

Sigma M35 Plate heat exchanger specification

PHE Plate Heat Exchanger Replacemnet	Sigma M35
Corrugation Depth(mm)	3.8
Port Diameter(mm)	φ110
Chevron Angle	124° 61°
Corrugation Pitch(mm)	11.48/12.19
Equivalent Diameter	7.6
Flow Area(m²)	0.00151
One Plate (m²)	0.39
Port Distance (mm)	*944272**
Dimensions (mm)	*1128440**

API Schmidt Sigma Model Cross-Reference

Current Model	Legacy / Alternative Model Names
Sigma13	Sigma 13 / Sigma M13
Sigma26	Sigma 26 / Sigma S26 / Sigma M26
Sigma36	Sigma 36 / Sigma M36
Sigma37	Sigma 37 / Sigma S37 / Sigma M37
Sigma48	Sigma 48 / Sigma S48
Sigma49X	Sigma X49 / SX49 / X49
Sigma56	Sigma 56 / Sigma M56
Sigma76	Sigma 76 / Sigma M76
Sigma96	Sigma 96 / Sigma M96
Sigma66	Sigma 66 / Sigma S66 / Sigma M66
Sigma156	Sigma 156 / Sigma S156 / Sigma M156
SigmaM55	Sigma M55 / M55
SigmaM35	Sigma M35 / M35 / M35S / M35X
SigmaM25	Sigma M25 / M25 / M25S / M25X
SigmaM136	Sigma M136 / M136X
SigmaM106	Sigma M106 / M106X
SigmaM90	Sigma M90 / M90
G33	Sigma G33 / G33

faq

What other names are commonly used when searching for Sigma M35 replacement parts?

Buyers may search using names such as Sigma M35, SigmaM35, Sigma M-35, API Sigma M35, API Schmidt Sigma M35, Schmidt Sigma M35, Sigma 35, SIGMA M35X, Sigma M35 gasket, Sigma M35 plate, and API plate heat exchanger gasket. References such as Sigma X29, Sigma M27, Sigma M35X, and Sigma M25 may also appear in related searches, but these should not automatically be treated as interchangeable with Sigma M35.

Are Sigma M35, Sigma M35X, Sigma M25, and Sigma M27 the same model?

No. These are related Sigma-series model references, but their plate profiles, corrugation depths, gasket grooves, and dimensions may differ. Even where the external plate dimensions appear similar, Senovis PHE recommends checking the equipment nameplate, original plate, gasket profile, and Part Number before ordering.

When should EPDM be considered for Sigma M35?

EPDM is commonly considered for hot water, steam-related services, water-based process fluids, and selected food or CIP applications. It is generally not preferred for mineral oils and many hydrocarbon fluids, so the actual process medium should be confirmed before selection.

Does Senovis PHE supply API Schmidt Sigma M35 plates and gaskets?

Yes. Senovis (Beijing) Technology Co., Ltd., operating under the Senovis PHE brand, supplies compatible Sigma M35 gaskets, heat-transfer plates, and related plate heat exchanger spare parts for overseas maintenance, repair, and refurbishment projects.

How can Sigma M35 gaskets and plates be shipped to Vietnam?

Senovis PHE can arrange express courier, air freight, or sea freight to Vietnam. EXW, FCA, FOB, DAP, and DDP terms can be supported according to project requirements, with FOB Shanghai used by default when no special trade term is requested. If customers do not have their own freight forwarder, Senovis PHE can assist with transportation and recommend a suitable shipping method that balances delivery efficiency and cost-effectiveness. After dispatch, available tracking information can be used to follow the logistics progress.
