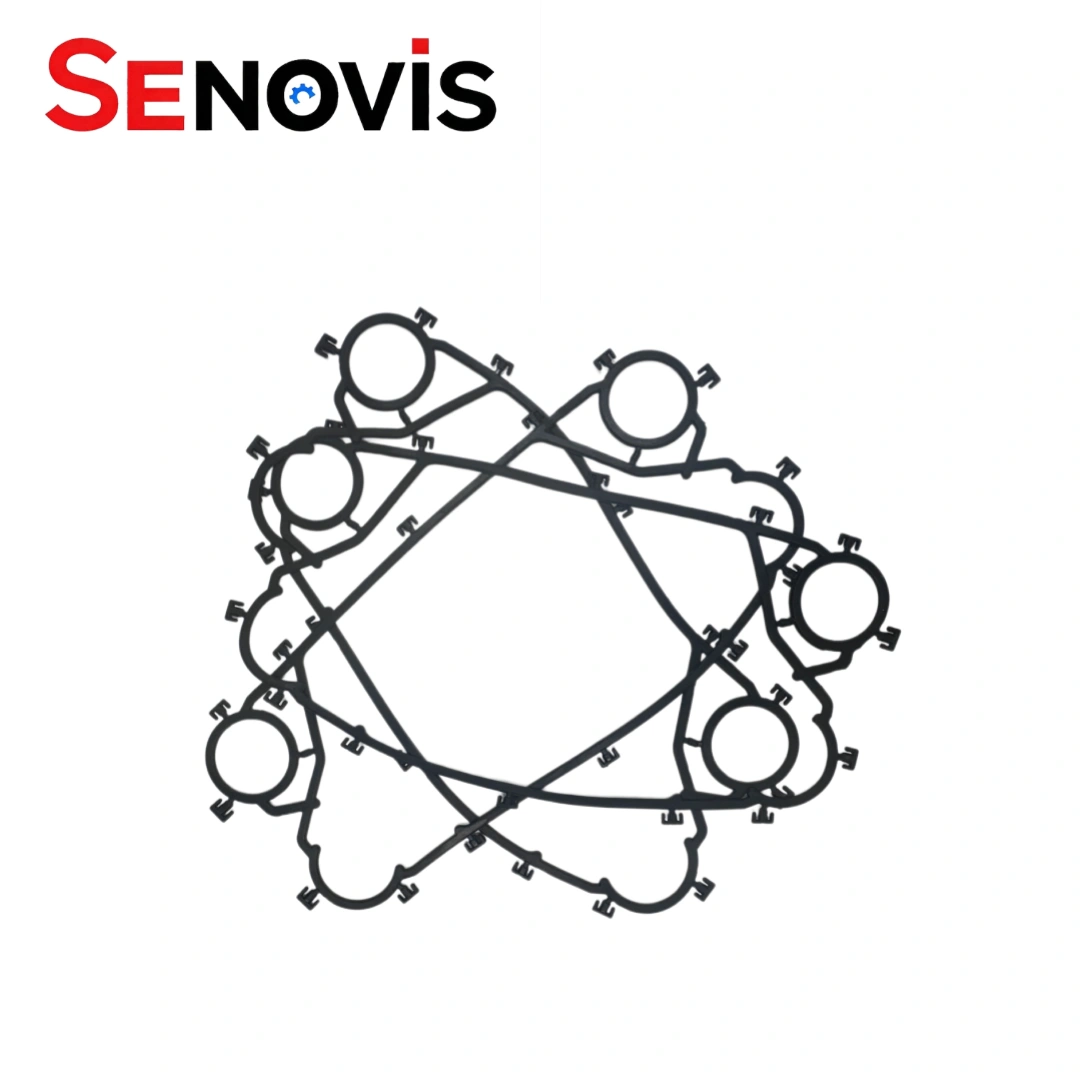

Sigma M13 replacement gasket for api heat exchanger and api heat exchangers, within the api heat transfer products range associated with api heat transfer schmidt equipment. — Sigma M13 PHE sealing component for api sigma heat exchanger applications, with maintenance relevance to api welded plate heat exchanger, heat exchanger api and heat exchanger sigma equipment.

Sigma M13 Gasket API Schmidt Plate Heat Exchanger Spare Parts Factory Direct Sales

The Sigma M13 Gaskets are direct replacements for API Schmidt Sigma M13 PHEs. The Sigma M13/Sigma M19 designation covers the related model family — both referenced interchangeably in sourcing searches.

API Schmidt Sigma M13 Replacement plates and gaskets available in NBR, EPDM and FKM. The Api Sigma M13 FKM Gasket And Plate For Industrial option covers higher-temperature and chemical-resistant applications.

SIGMA M13/SIGMA M19 Stainless Steel Plate Heat Exchanger Plate and api heat transfer products stocked for global api heat exchangers aftermarket maintenance. Model identification assistance available if nameplate details are unclear.

Sigma M13 PHE Gasket details

PHE Model

Sigma M13 API Heat Exchanger

Keyword

Components Of Plate Heat Exchanger

Applicable Industries

Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper

Compatible Brands

API Heat Transfer Products

Connection Type

Clip-on/ Glue/ Glueless

Gasket material

EPDM, NBR, HNBER, HEPDM,FKW

Oil Applications

Thermal Oil, Hydraulic Oil, Lubricating Oil, Fuel Oil

Connection size

DN25-DN500

DESCRIPTION

The Sigma M13 Gaskets are replacement sealing components for API Schmidt Sigma M13 plate heat exchanger maintenance, with Sigma M13/Sigma M19 commonly referenced as related Sigma-series model designations.
Senovis (Beijing) Technology Co., Ltd. (Senovis PHE) manufactures Sigma M13 Gaskets and Plates for industrial heating, cooling, and process heat-transfer maintenance.
The SIGMA M13/SIGMA M19 Stainless Steel Plate Heat Exchanger Plate reference is commonly used by buyers sourcing replacement heat-transfer plates for these model families.
Senovis PHE provides API Schmidt Sigma M13 Replacement plates and gaskets with material selection based on the existing unit and operating conditions.
The Api Sigma M13 Fkm Gasket And Plate For Industrial configuration is suitable for applications where FKM sealing material is required by the medium and operating temperature.
As a manufacturer serving the api heat exchangers aftermarket, Senovis PHE supplies model-specific plates, gaskets, and related PHE components.
Our api heat transfer products range includes replacement components for multiple Schmidt Sigma plate heat exchanger models, including M13 and M19.
For maintenance teams searching api heat transfer sigma components, Senovis PHE can assist with model identification and gasket or plate material selection.

Sigma M13 Gasket Replacement Specification

PHE Model	Sigma M13 Evaporator Alfa Laval Gasket
Applicable Industries	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip on/ Glueless/ Glued
Gasket material	NBR,FKM, HNBR, ACM,Silicone,EPDM
Color	Black/White
Temperature Range(°C)	-15~180℃
Keyword	NBR Gasket Supplier
Certificate	ISO / CE
Service	Professional technical support for model selection and installation
Design Pressure	0.6MPa~5MPa

Sigma M13 Plate heat exchanger specification

PHE Plate Heat Exchanger Replacemnet	Sigma M13
Corrugation Depth(mm)	2.9
Port Diameter(mm)	φ70
Chevron Angle	128°54°
Corrugation Pitch(mm)	9.4/9.5
Equivalent Diameter	5.8
Flow Area(m²)	0.00065
One Plate (m²)	0.13
Port Distance (mm)	*135590**
Dimensions (mm)	*250710**

API Schmidt Sigma Model Cross-Reference

Current Model	Legacy / Alternative Model Names
Sigma13	Sigma 13 / Sigma M13
Sigma26	Sigma 26 / Sigma S26 / Sigma M26
Sigma36	Sigma 36 / Sigma M36
Sigma37	Sigma 37 / Sigma S37 / Sigma M37
Sigma48	Sigma 48 / Sigma S48
Sigma49X	Sigma X49 / SX49 / X49
Sigma56	Sigma 56 / Sigma M56
Sigma76	Sigma 76 / Sigma M76
Sigma96	Sigma 96 / Sigma M96
Sigma66	Sigma 66 / Sigma S66 / Sigma M66
Sigma156	Sigma 156 / Sigma S156 / Sigma M156
SigmaM55	Sigma M55 / M55
SigmaM35	Sigma M35 / M35 / M35S / M35X
SigmaM25	Sigma M25 / M25 / M25S / M25X
SigmaM136	Sigma M136 / M136X
SigmaM106	Sigma M106 / M106X
SigmaM90	Sigma M90 / M90
G33	Sigma G33 / G33

faq

What is the API Schmidt Sigma M13 gasket used for?

The API Schmidt Sigma M13 gasket seals the plate perimeter and port areas, separates the two process media, and guides fluid through the designed channels. Senovis PHE supplies compatible Sigma M13 gaskets and plates for industrial maintenance, refurbishment, and replacement projects.

Are Sigma M13 and Sigma M19 the same model?

No. Sigma M13 and Sigma M19 are related models within the Sigma plate heat exchanger family, but they should not be assumed to use interchangeable plates or gaskets. Senovis PHE recommends checking the nameplate, plate profile, gasket shape, and original part information before replacement.

What other names may buyers use when searching for Sigma M13 replacement parts?

Buyers may search using terms such as Sigma M13, SigmaM13, Sigma M13 gasket, Sigma M13 plate, API Sigma M13, API Schmidt Sigma M13, Schmidt Sigma M13, API heat transfer Sigma, or API heat exchanger parts. Older documents and market listings may use different API, Schmidt, or Sigma naming conventions, so Senovis PHE can help cross-reference the actual equipment before supply.

How is the Sigma M13 used in industrial cooling projects in the UAE?

In the UAE, Sigma M13 plate heat exchanger configurations can support industrial cooling, HVAC, process cooling, and utility heat-transfer duties. Senovis PHE can supply compatible Sigma M13 plates and gaskets for UAE maintenance projects, with materials selected according to the medium, temperature, pressure, and site conditions.

Does Senovis PHE manufacture replacement parts for API Schmidt Sigma M13 heat exchangers?

Yes. Senovis (Beijing) Technology Co., Ltd., operating as Senovis PHE, supplies compatible API Schmidt Sigma M13 gaskets, plates, and related plate heat exchanger replacement components. Our solutions are intended for aftermarket maintenance and refurbishment projects and are supplied according to the confirmed equipment specification.

What trade and shipping terms are available for UAE customers?

Senovis PHE supports EXW, FCA, FOB, DAP, DDP, and other suitable trade terms, with FOB Shanghai used by default when no special term is requested. If customers do not have their own freight forwarder, we can assist with transportation and recommend an appropriate shipping method by balancing delivery efficiency and cost. After dispatch, shipment progress can be tracked through the relevant logistics provider’s website.
