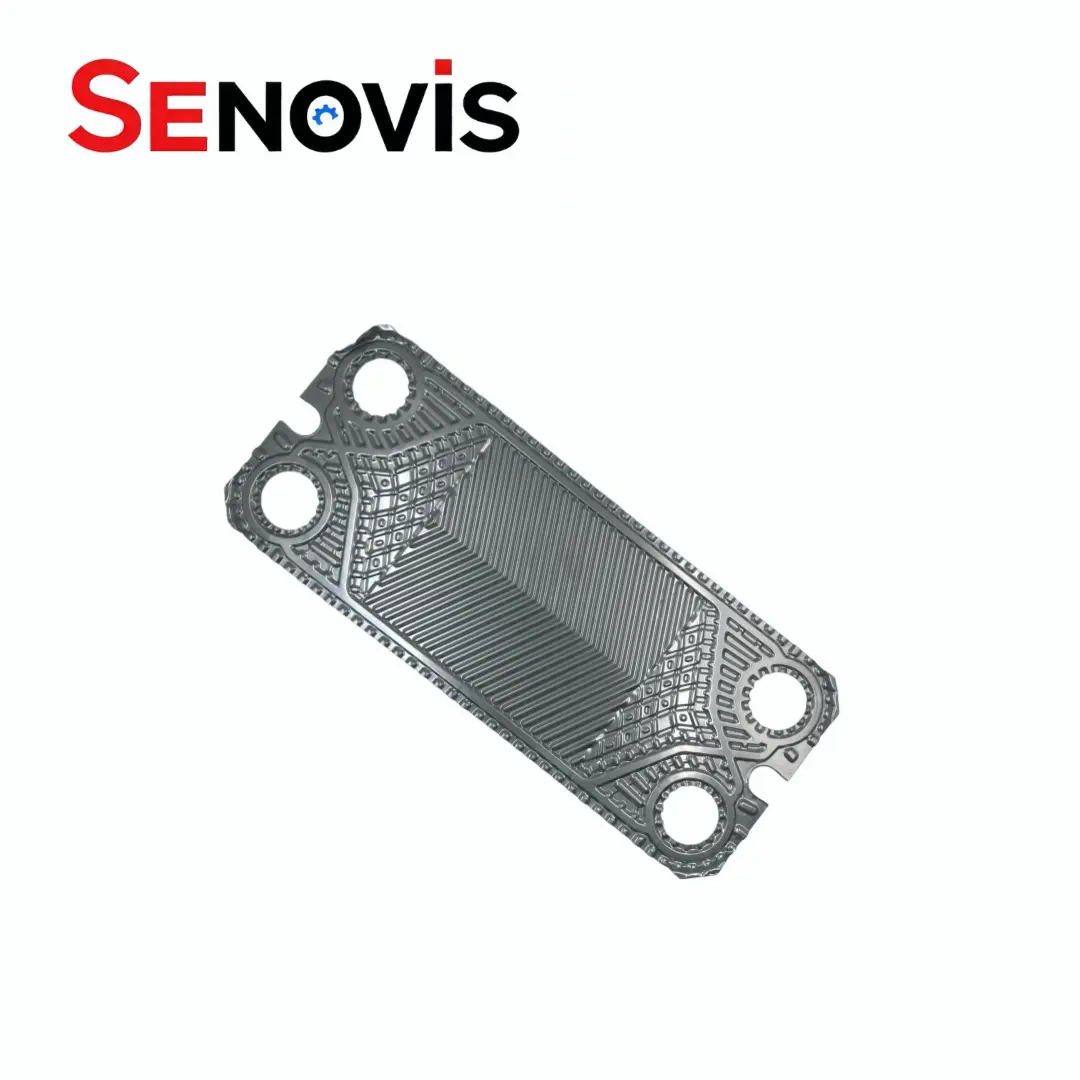

Alfa Laval T20M plate manufactured for heat exchanger food processing applications by Senovis PHE. — Compatible Alfa Laval T20M plate with heat exchanger plate diagram reference requirements.

Alfa Nova Plate Heat Exchanger Spare Parts Factory Direct Sales Alfa Laval T20M

The Alfa Laval T20M Plate is a replacement heat transfer plate for the Alfa Laval IndustrialLine T20 W gasketed PHE. The Plate heat exchanger type T20–BFG covers the most common frame configurations, with the 163 plates arrangement available for specific capacity requirements.

The Industrial semi-welded line variant handles more demanding duties where standard gasketed designs reach their limits.

Plate materials include SS304/316, 254SMO, C-276, C-2000, nickel and titanium. Alfa Laval T20M Exchanger Gaskets are available in NBR, EPDM and FKM.

Alfa Laval T20M details

PHE Model

Alfa Laval T20M PHE Plates

Keyword

PHE PARTS

Function

High Efficient Heat Transfer

Application

Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper

Design pressure

0.6MPa~4.5MPa

Plate Material

SS304,316L,Ti, Alloy C276, Nickel, 254 SMO

Plate Type

H channel M channel L channel

Thinckness

0.5~0.7mm

Angle

H or L

DESCRIPTION

The Alfa Laval T20M Plate is a replacement heat transfer plate for the Alfa Laval IndustrialLine T20 W gasketed plate heat exchanger — a frame that sees regular use in industrial process heating, cooling, HVAC and utility systems where thermal performance and reliable plate matching both matter.
The Plate heat exchanger type T20–BFG covers the most common frame and plate combinations engineers encounter when sourcing T20 series replacements. The Alfa Laval T20 plate heat exchanger 163 plates configuration is available for projects requiring a specific plate count and heat transfer capacity.
The Industrial semi-welded line variant handles the more demanding end of T20 applications — conditions where a standard gasketed design starts to show its limits.
Alfa Laval T20M Exchanger Gaskets are stocked alongside the plates in NBR, EPDM and FKM. Plate materials cover SS304/316, 254SMO, C-276, C-2000, nickel and titanium — a broader alloy range than most M-Series equivalents, which reflects the T20’s positioning in heavier industrial duties.

Alfa Laval M6M Gasket Replacement Specification

Specification

PHE Model	Alfa Laval T20M PHE Plate
Plate Material	SS304,316L,Ti, Alloy C276, Nickel, 254 SMO
Plate Thickness	0.5~0.7mm
Feature	Corrosion Resistant
Application	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Function	High Efficient Heat Transfer
Angle	H or L
Keyword	PHE PARTS

Alfa Laval Series – Model List by Series

Alfa Laval M Series: M3, M6B, M6M, M6MW, M10B, M10M, M10BW, M15B, M15M, M20M, M30

Alfa Laval MX Series: MX25B, MX25M

Alfa Laval MK Series: MK15BW

Alfa Laval MA Series: MA30M, MA30S, MA30W

Alfa Laval T Series: T2B, T5B, T5M, T8B, T8M, T20B, T20M, T20MW, T20P, T20S, T35P

Alfa Laval TL Series: TL6B, TL10B, TL10P, TL10S, TL15B, TL35B, TL35X

Alfa Laval TS Series: TS6M, TS20M

Alfa Laval A Series: A10B, A15B, A20, A20B, A35

Alfa Laval AM Series: AM10, AM20, AM20B

Alfa Laval AK Series: AK20

Alfa Laval AX Series: AX30B

Alfa Laval P Series: P16, P22, P26, P36, P41

Alfa Laval Clip Series: Clip3, Clip6, Clip8, Clip10, Clip15

Alfa Laval HU Series: HU15M

Alfa Laval AC Series: AC400, AC400W, AC400W1, AC600

Alfa Laval EC Series: EC500

Actual Product Details

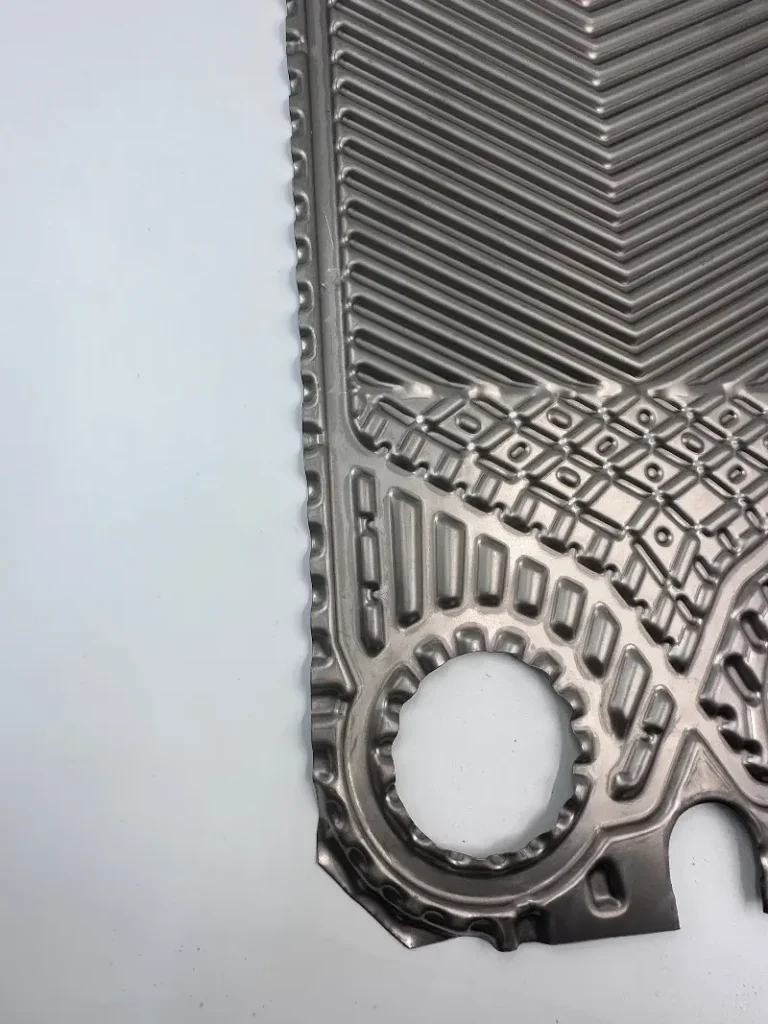

Alfa Laval T20M plate manufactured for parts of plate heat exchanger replacement needs. — Compatible Alfa Laval T20M plate applied as a PHE evaporator component.

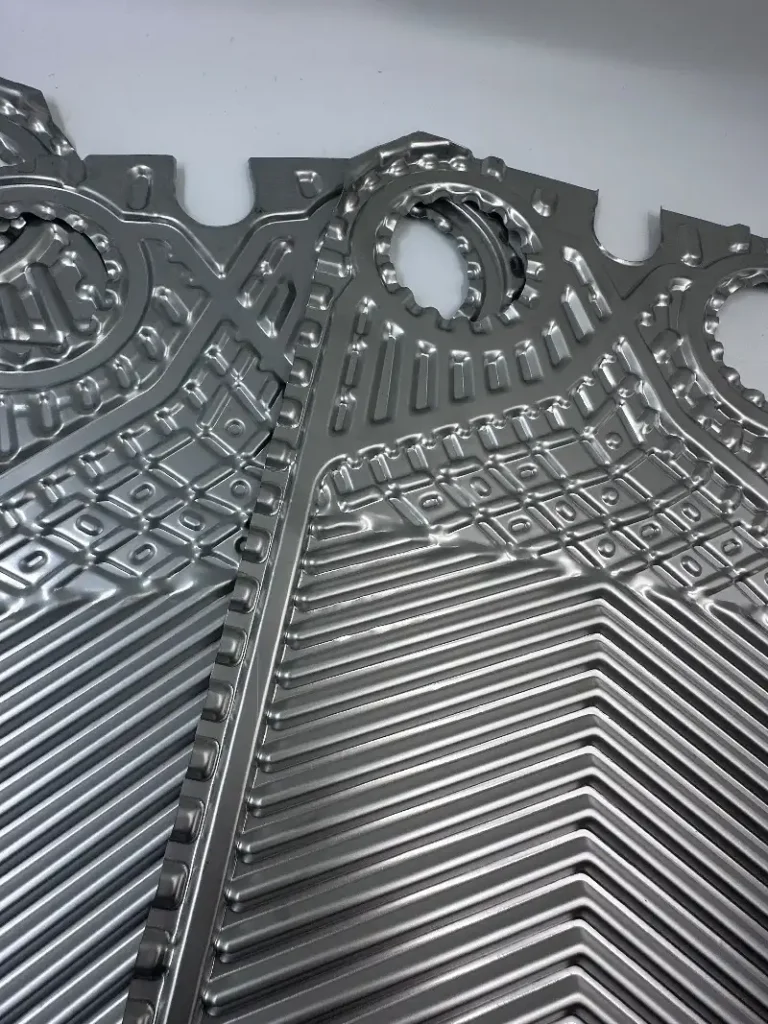

Alfa Laval T20M replacement plate for industrial plate heat exchanger stainless steel requirements. — Precision Alfa Laval T20M plate designed for large plate heat exchanger equipment.

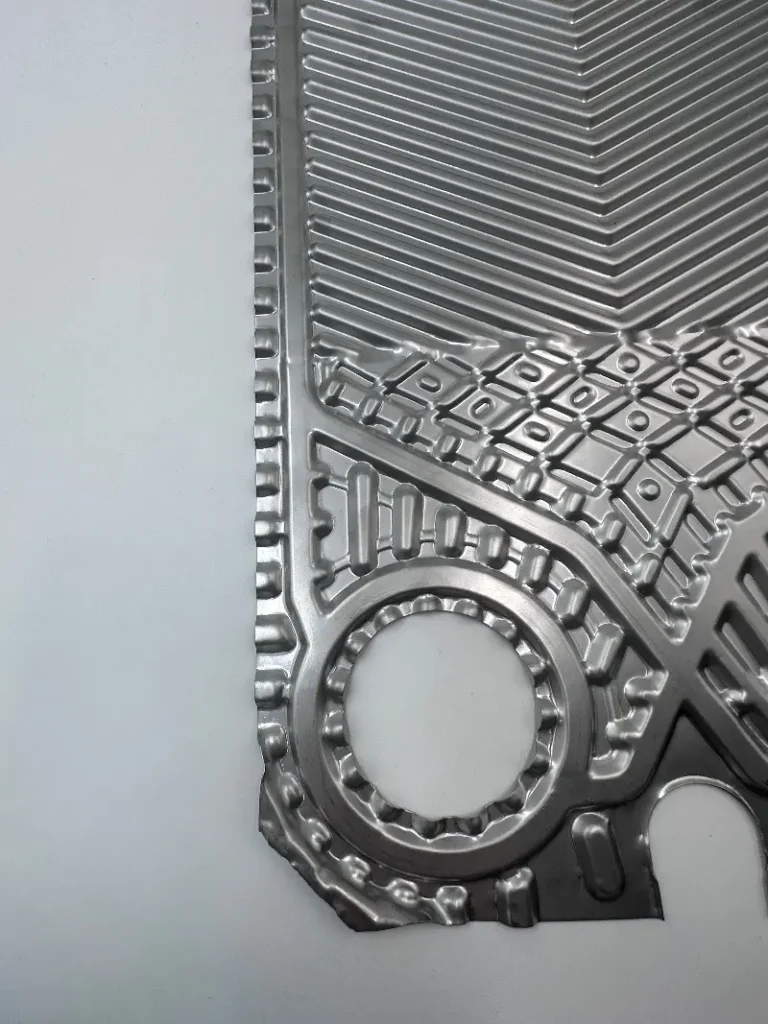

Alfa Laval T20M plate for industrial gasketed plate heat exchanger applications. — Compatible Alfa Laval T20M plate used in industrial heat exchanger piping system projects.

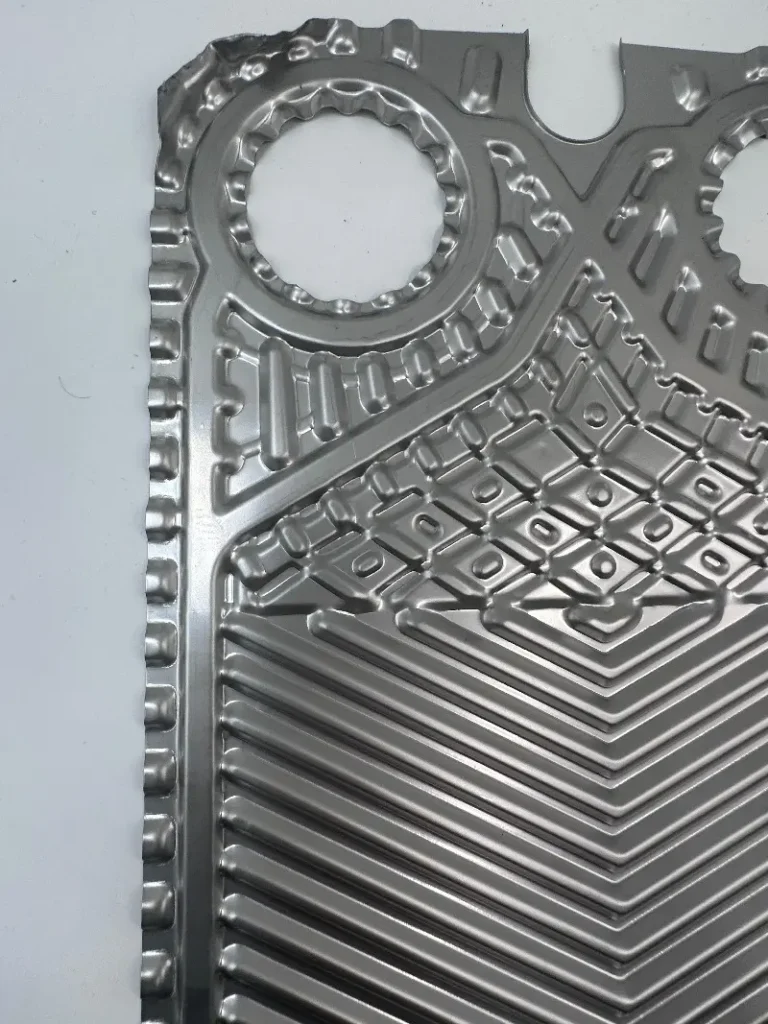

Alfa Laval T20M replacement plate designed with high corrosion resistance PHE plates materials. — Precision Alfa Laval T20M plate explaining how does a gasketed plate heat exchanger work.

faq

What are Alfa Laval T20M plates?

The Alfa Laval T20M plates are single heat transfer plates designed for Alfa Laval T20 series gasketed plate heat exchangers. They are commonly used in industrial heating, cooling, heat recovery, HVAC, and process applications requiring reliable thermal performance. Senovis PHE supplies compatible T20M plates, T20M gaskets, and related plate heat exchanger spare parts for maintenance and replacement projects.

What type of plate is the Alfa Laval T20M？

The Alfa Laval T20M is a single plate configuration with a 4.0 mm free channel.u003cbru003eCompared with other T20 series plate versions:u003cbru003eT20-B: 1.9 mm free channelu003cbru003eT20-P: 2.9 mm free channelu003cbru003eT20M: 4.0 mm free channelu003cbru003eThe T20M provides a balanced design between heat transfer efficiency and pressure drop, making it suitable for general industrial heating and cooling applications.

What is the difference between Alfa Laval T20M, T20B, and T20P plates?

The main difference is the flow channel design.u003cbru003eT20B: Narrower 1.9 mm channel, often selected for cleaner fluids and higher heat transfer efficiency.u003cbru003eT20P: Medium channel 2.9 mm design.u003cbru003eT20M: 4.0 mm channel design, providing a balance between flow capacity and heat transfer performance.u003cbru003eThe correct plate selection depends on the application conditions, fluid characteristics, and pressure drop requirements.

Can Alfa Laval T20M be used with 163 plates configuration?

Yes. Alfa Laval T20 plate heat exchanger configurations with 163 plates can be applied when a specific heat transfer capacity and plate arrangement are required.u003cbru003eThe final plate quantity depends on:u003cbru003eRequired heat transfer areau003cbru003eFlow rateu003cbru003eTemperature differenceu003cbru003ePressure drop limitationu003cbru003eCustomers should confirm the complete equipment model before ordering replacement plates.

What are the common Alfa Laval T20M frame configurations?

Common T20 series frame configurations include:u003cbru003eFMu003cbru003eFGu003cbru003eFSu003cbru003eTypical design ratings include:u003cbru003eFM: up to 1.0 MPa / 180°Cu003cbru003eFG: up to 1.6 MPa / 180°Cu003cbru003eFS PED: up to 3.0 MPa / 160°Cu003cbru003eFS ASME: up to 400 psig / 320°Fu003cbru003eThe final pressure and temperature rating depends on the exact frame and certification.

Do you supply Alfa Laval T20M plates to Malaysia?

Yes. Senovis PHE supplies compatible Alfa Laval T20M plates and gaskets to customers throughout Malaysia, including:u003cbru003eHVAC contractorsu003cbru003eIndustrial plantsu003cbru003eFood processing companiesu003cbru003ePalm oil processing facilitiesu003cbru003eUtility projectsu003cbru003eHeat exchanger maintenance companiesu003cbru003eWe support deliveries to Kuala Lumpur, Selangor, Penang, Johor Bahru, Port Klang, and other industrial regions.

How long is the delivery time for Alfa Laval T20M plates in Malaysia?

Common T20M plate and gasket configurations are available from stock for fast dispatch.u003cbru003eAfter technical confirmation, customers can choose:u003cbru003eExpress courier for urgent maintenanceu003cbru003eAir freight for faster deliveryu003cbru003eSea freight for larger industrial shipmentsu003cbru003eThe final delivery time depends on shipment method, destination, and order quantity.
