Corrosion Resistant Heat Exchanger Plates OEM Evaporator HVAC PHE Machine

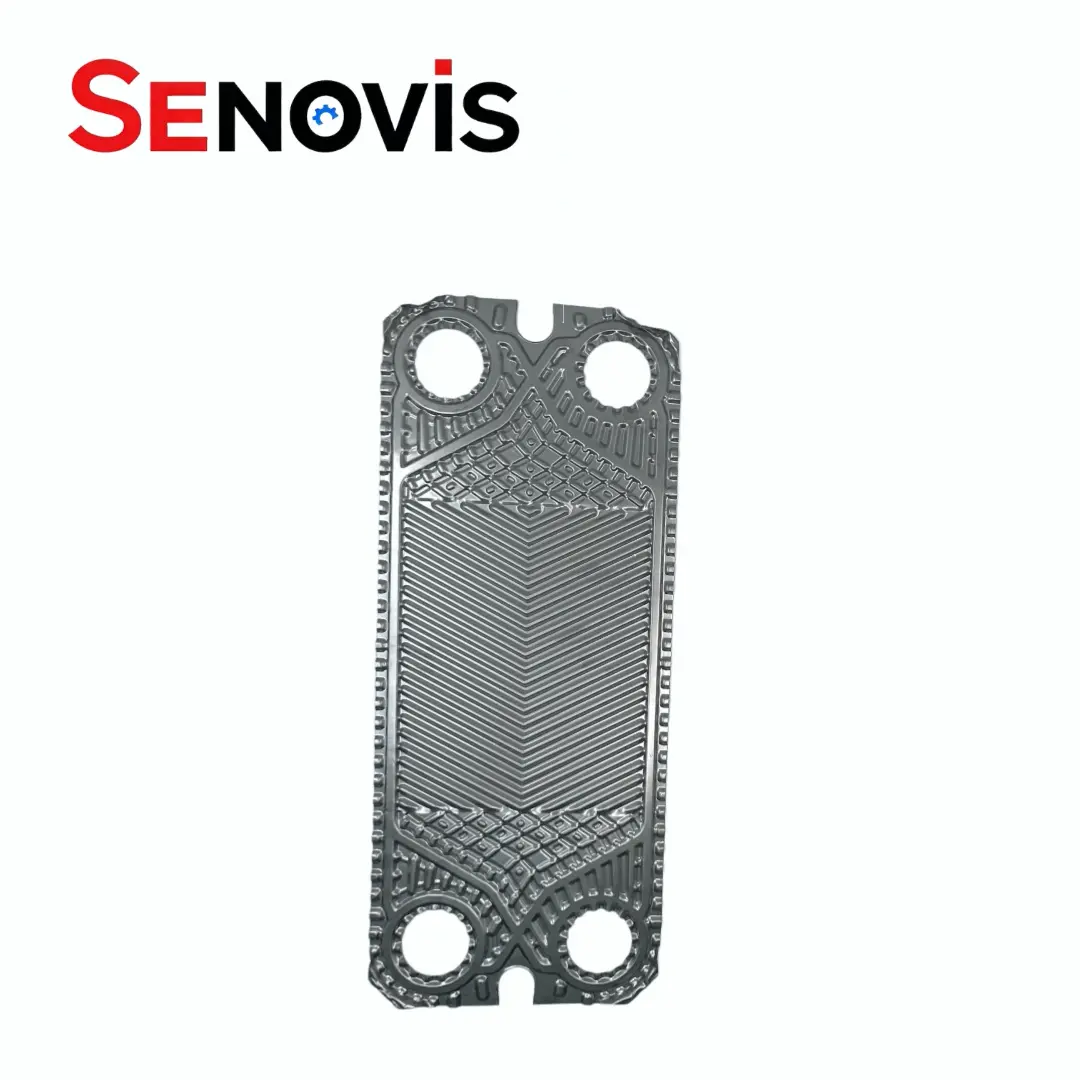

The Alfa Laval M15M Plates are replacement plates for the Alfa Laval M-Series Plate Heat Exchanger. The M Line 15 uses a 4.0 mm free channel — wider than standard, which is why it gets specified for higher flow capacity applications.
Plates available in SS304/316 and special alloys. Alfa Laval Heat Exchangers Gaskets M15M stocked in NBR, EPDM and FKM. ALFA LAVAL M15M PHE spares supplied based on frame configuration.
Alfa Laval M15M details
PHE Model
Alfa Laval M15M PHE Plates
Keyword
PHE PARTS
Function
High Efficient Heat Transfer
Application
Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Design pressure
0.6MPa~4.5MPa
Plate Material
SS304,316L,Ti, Alloy C276, Nickel, 254 SMO
Plate Type
H channel M channel L channel
Thinckness
0.5~0.7mm
Angle
H or L
DESCRIPTION
The Alfa Laval M15M Plates are replacement single plates for the Alfa Laval M-Series Plate Heat Exchanger — part of the Alfa Laval M Line 15 range, which uses a 4.0 mm free channel design. That wider channel is why it gets specified for higher flow capacity duties where a standard channel would create pressure drop issues.
The M15–BFM8–MFM8 configuration covers the most common frame setups engineers encounter when sourcing M15M plate and gasket replacements.
Alfa Laval M15M Plates & Gaskets are available for maintenance, refurbishment and spare parts replacement. Plate material options include SS304/316 and special alloys — Alfa Laval M15M Plate SS316L For Heat Exchanger 50 Pcs being the most commonly requested specification.
Alfa Laval Heat Exchangers Gaskets M15M are stocked in NBR, EPDM and FKM to cover the range of media and temperatures the M15M frame typically sees across HVAC, food and beverage, chemical processing, utilities and industrial heat transfer applications.
ALFA LAVAL M15M PHE spares including plates and sealing components are available based on frame configuration and operating requirements.
Alfa Laval M6M Gasket Replacement Specification
Specification
| PHE Model | Alfa Laval M15M PHE Plate |
| Plate Material | SS304,316L,Ti, Alloy C276, Nickel, 254 SMO |
| Plate Thickness | 0.5~0.7mm |
| Feature | Corrosion Resistant |
| Application | Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper |
| Function | High Efficient Heat Transfer |
| Angle | H or L |
| Keyword | PHE PARTS |
Alfa Laval Series – Model List by Series
Alfa Laval M Series: M3, M6B, M6M, M6MW, M10B, M10M, M10BW, M15B, M15M, M20M, M30
Alfa Laval MX Series: MX25B, MX25M
Alfa Laval MK Series: MK15BW
Alfa Laval MA Series: MA30M, MA30S, MA30W
Alfa Laval T Series: T2B, T5B, T5M, T8B, T8M, T20B, T20M, T20MW, T20P, T20S, T35P
Alfa Laval TL Series: TL6B, TL10B, TL10P, TL10S, TL15B, TL35B, TL35X
Alfa Laval TS Series: TS6M, TS20M
Alfa Laval A Series: A10B, A15B, A20, A20B, A35
Alfa Laval AM Series: AM10, AM20, AM20B
Alfa Laval AK Series: AK20
Alfa Laval AX Series: AX30B
Alfa Laval P Series: P16, P22, P26, P36, P41
Alfa Laval Clip Series: Clip3, Clip6, Clip8, Clip10, Clip15
Alfa Laval HU Series: HU15M
Alfa Laval AC Series: AC400, AC400W, AC400W1, AC600
Alfa Laval EC Series: EC500

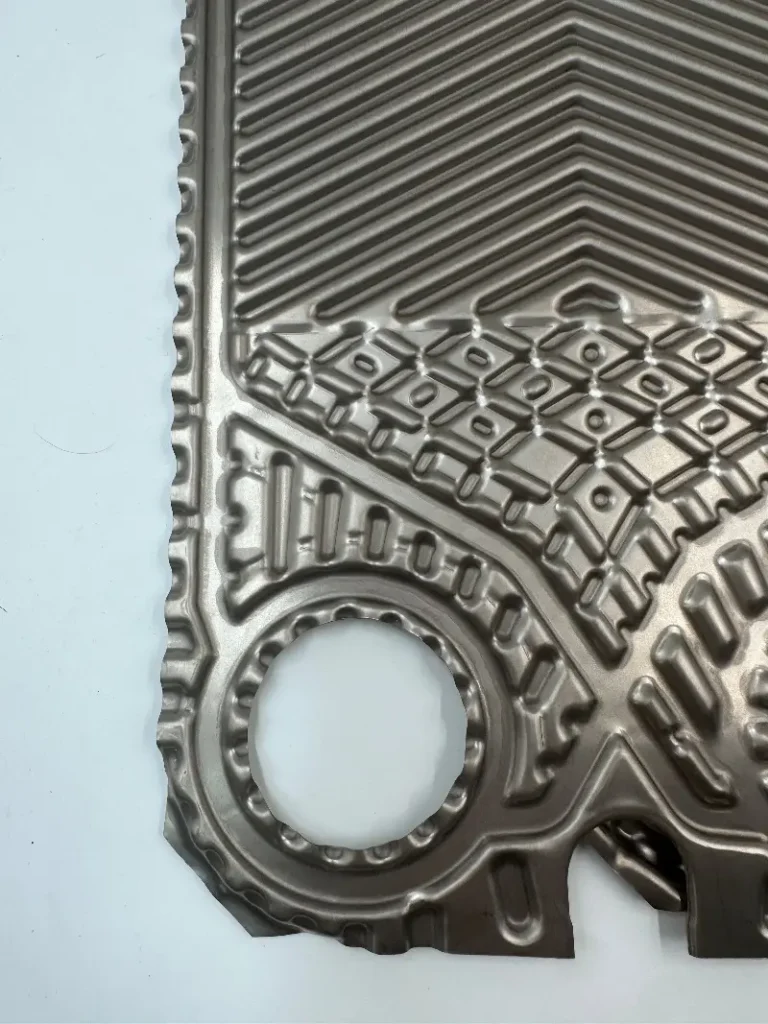

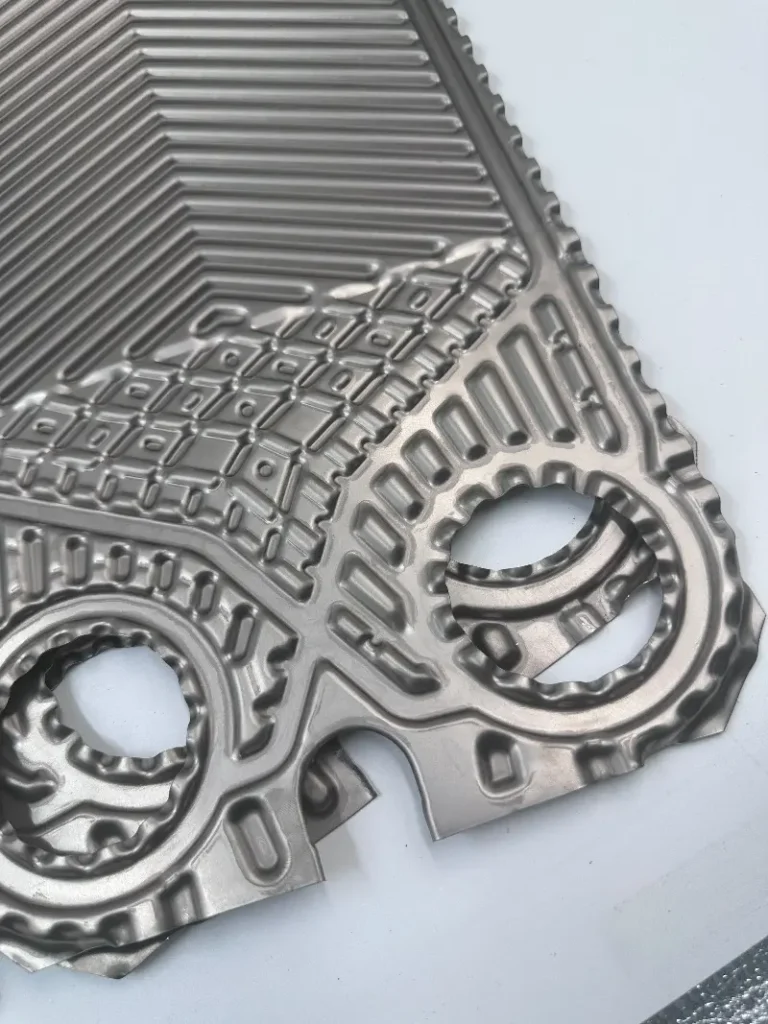

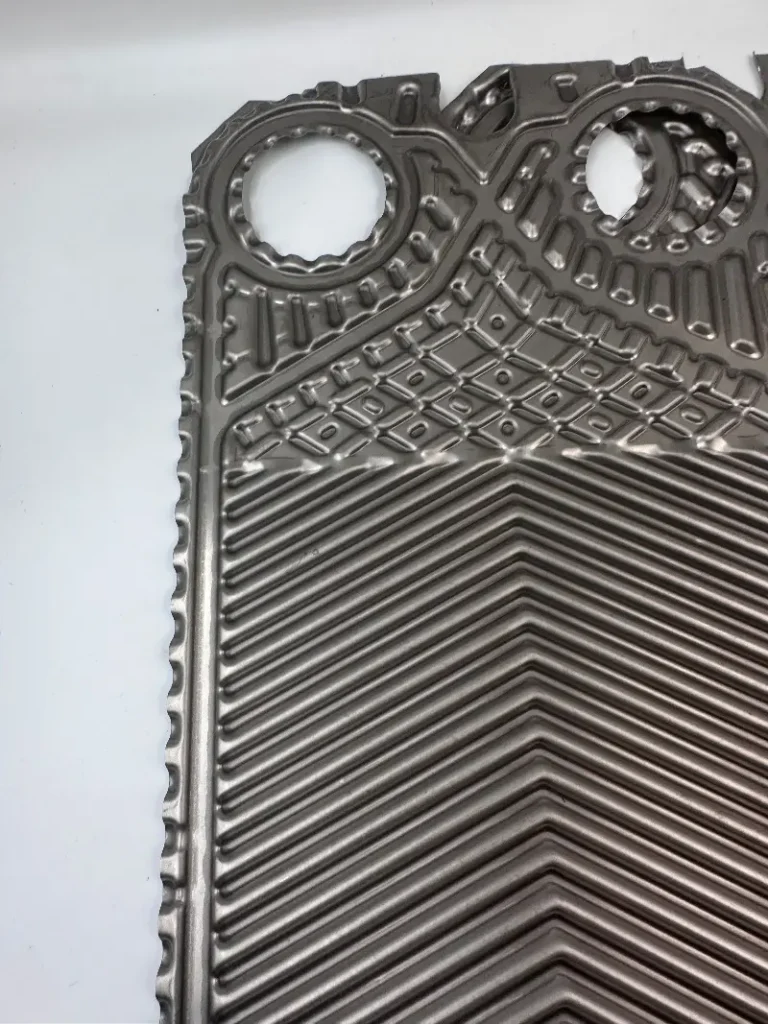

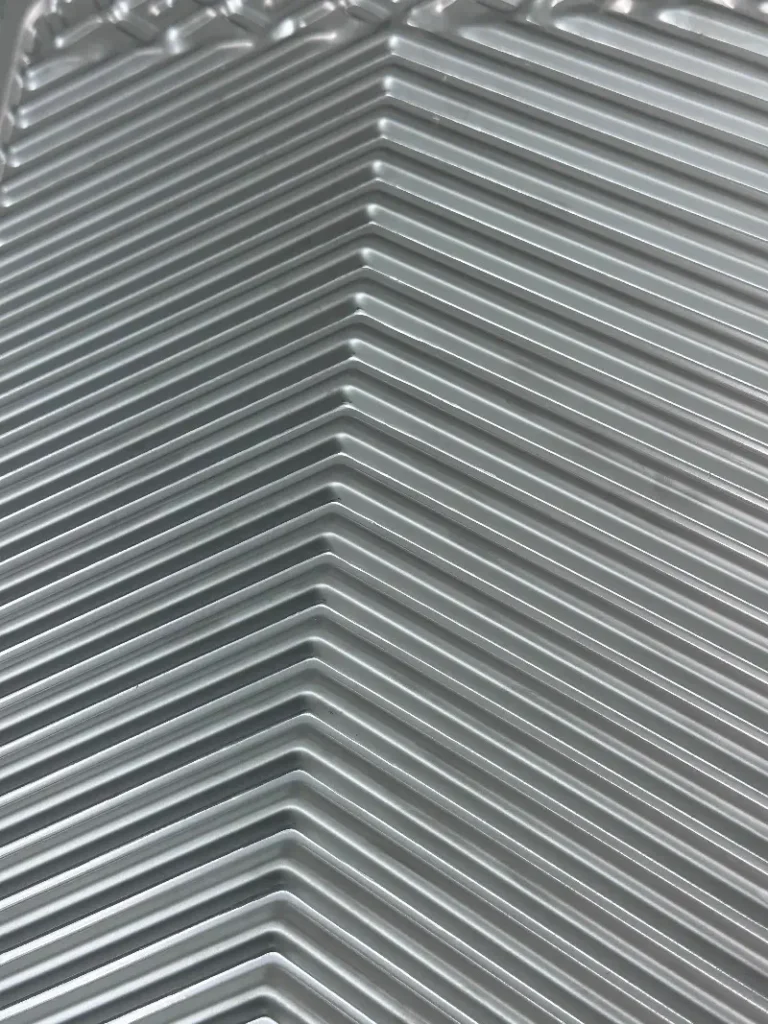

Actual Product Details
