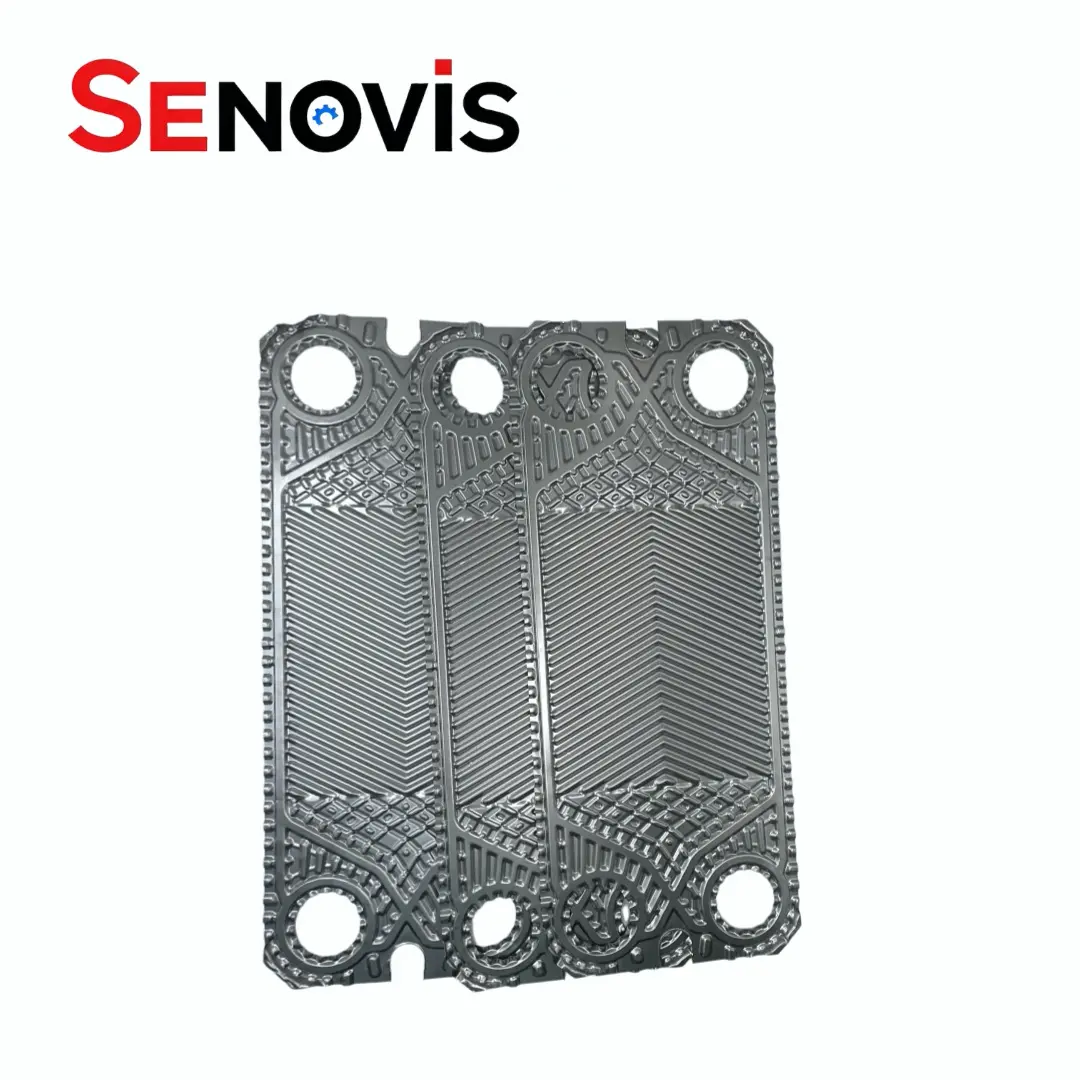

Alfa Laval M10M plate for gasketed plate and frame heat exchanger systems manufactured by Senovis PHE. — Compatible Alfa Laval M10M plate for PHE heat exchanger maintenance and replacement.

Compatible PHE Spare Parts Factory Alfa Laval M10M line 10 M10–BFM

Alfa Laval M10M Plates are single plate components for gasketed plate heat exchangers, featuring a 4.0 mm free channel for efficient heat transfer in industrial, HVAC, and hygienic applications. Senovis PHE supplies Alfa Laval Heat Exchangers Plate M10M in SS316L and other materials for replacement projects.

Alfa Laval M10M details

PHE Model

Alfa Laval M10M PHE Plates

Keyword

PHE PARTS

Function

High Efficient Heat Transfer

Application

Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper

Design pressure

0.6MPa~4.5MPa

Plate Material

SS304,316L,Ti, Alloy C276, Nickel, 254 SMO

Plate Type

H channel M channel L channel

Thinckness

0.5~0.7mm

Angle

H or L

DESCRIPTION

The Alfa Laval M10M Plates are single plate heat transfer components designed for gasketed plate heat exchanger systems in industrial, HVAC, and hygienic applications.
The alfa laval m10 mfm plate configuration features a 4.0 mm free channel design, making it suitable for applications requiring efficient flow capacity and effective heat transfer.
The alfa laval m10mfg solution is commonly selected for maintenance and replacement projects involving Alfa Laval M10 series plate heat exchangers.
These plates are designed for the Alfa Laval M Series Heat Exchanger M10 M15 M10B range, which is widely used in chemical processing, energy, utilities, food and beverage, and HVAC systems.
Senovis PHE supplies replacement plates for the Alfa Laval M line 10, including stainless steel options selected according to different operating media and corrosion requirements.
Our Alfa Laval Heat Exchangers Plate M10M solutions are available in materials such as 316/316L, 316Ti, 904L, and other special alloys for demanding heat transfer applications.
The Alfa Laval M10M Plate SS316L For Heat Exchanger option is widely used where corrosion resistance and reliable thermal performance are required.
The Alfa Laval M10-MF plate design belongs to the M10 series single plate configuration and is commonly applied in the Alfa Laval M10 Gasketed plate-and-frame heat exchanger systems.
Senovis PHE also manufactures Heat Transfer Plates Alfa Laval M10M PHE Plate solutions with matching gasket options, including NBR, EPDM, and FKM materials for different industrial requirements.

Alfa Laval M10M Gasket Replacement Specification

Specification

PHE Model	Alfa Laval M10M PHE Plate
Plate Material	SS304,316L,Ti, Alloy C276, Nickel, 254 SMO
Plate Thickness	0.5~0.7mm
Feature	Corrosion Resistant
Application	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Function	High Efficient Heat Transfer
Angle	H or L
Keyword	PHE PARTS

Alfa Laval Series – Model List by Series

Alfa Laval M Series: M3, M6B, M6M, M6MW, M10B, M10M, M10BW, M15B, M15M, M20M, M30

Alfa Laval MX Series: MX25B, MX25M

Alfa Laval MK Series: MK15BW

Alfa Laval MA Series: MA30M, MA30S, MA30W

Alfa Laval T Series: T2B, T5B, T5M, T8B, T8M, T20B, T20M, T20MW, T20P, T20S, T35P

Alfa Laval TL Series: TL6B, TL10B, TL10P, TL10S, TL15B, TL35B, TL35X

Alfa Laval TS Series: TS6M, TS20M

Alfa Laval A Series: A10B, A15B, A20, A20B, A35

Alfa Laval AM Series: AM10, AM20, AM20B

Alfa Laval AK Series: AK20

Alfa Laval AX Series: AX30B

Alfa Laval P Series: P16, P22, P26, P36, P41

Alfa Laval Clip Series: Clip3, Clip6, Clip8, Clip10, Clip15

Alfa Laval HU Series: HU15M

Alfa Laval AC Series: AC400, AC400W, AC400W1, AC600

Alfa Laval EC Series: EC500

Actual Product Details

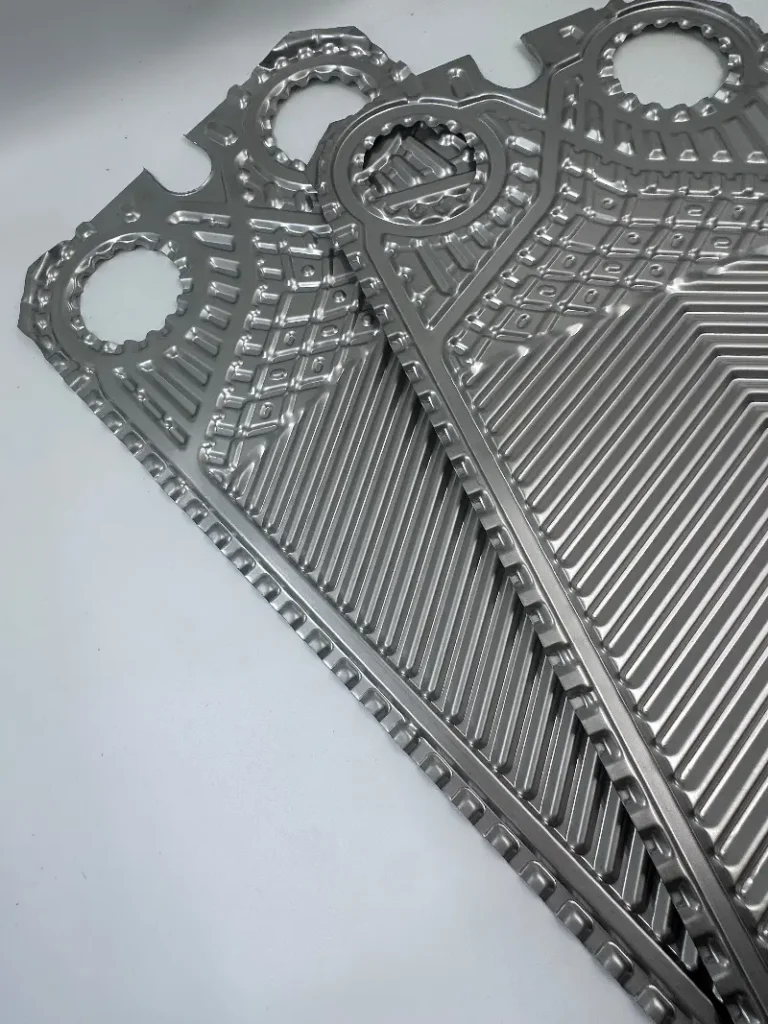

Alfa Laval M10M replacement plate with heat exchanger plates and gaskets solutions for servicing. — Precision Alfa Laval M10M plate manufactured as stainless steel heat exchanger plates.

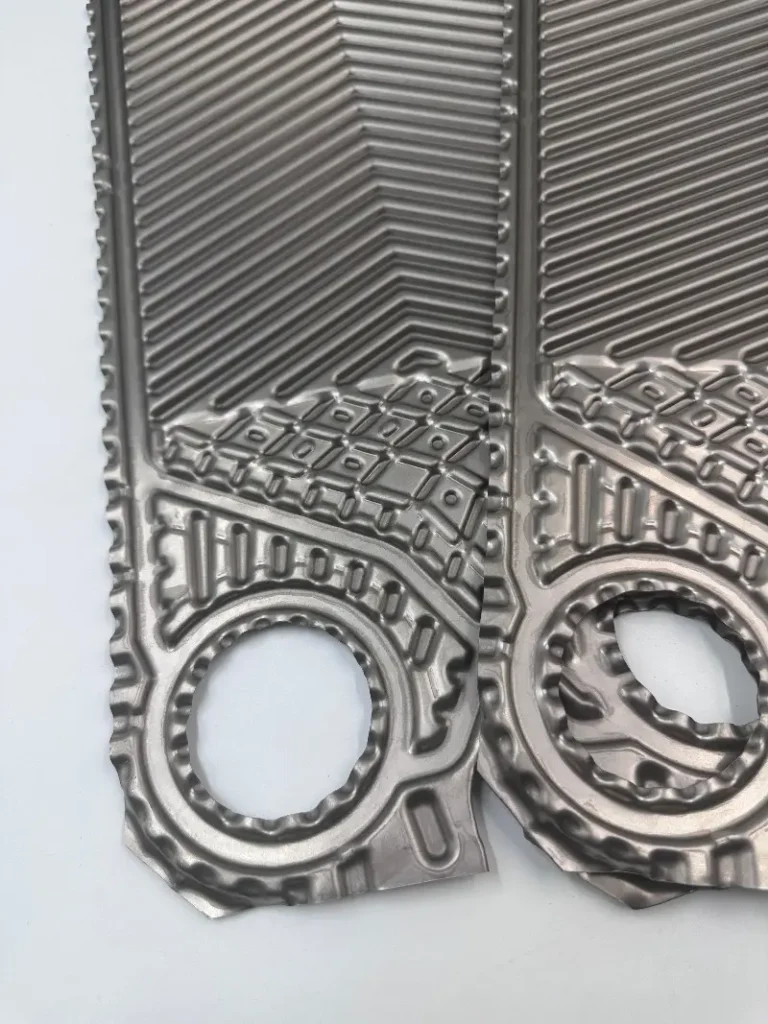

Alfa Laval M10M replacement plate supplied as replacement parts for plate heat exchanger systems. — Original-style replacement Alfa Laval M10M plate for alfa laval plate heat exchanger equipment.

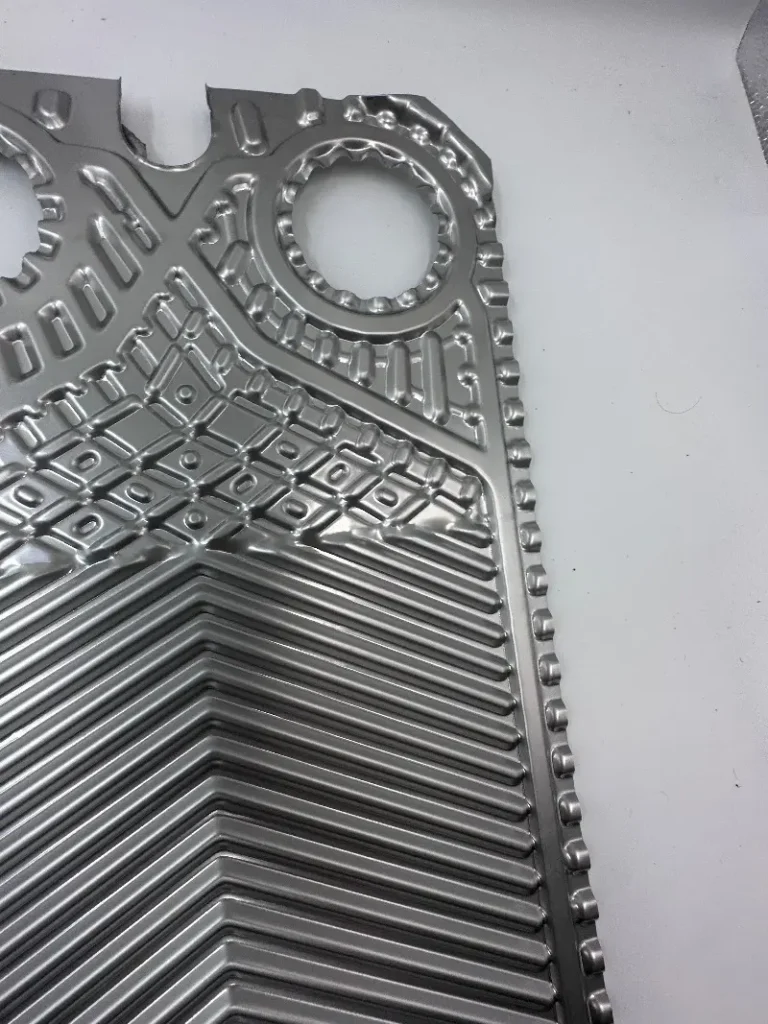

Alfa Laval M10M plate designed for alfa nova heat exchanger replacement applications. — Replacement Alfa Laval M10M plate used in plate heat exchanger refrigeration equipment.

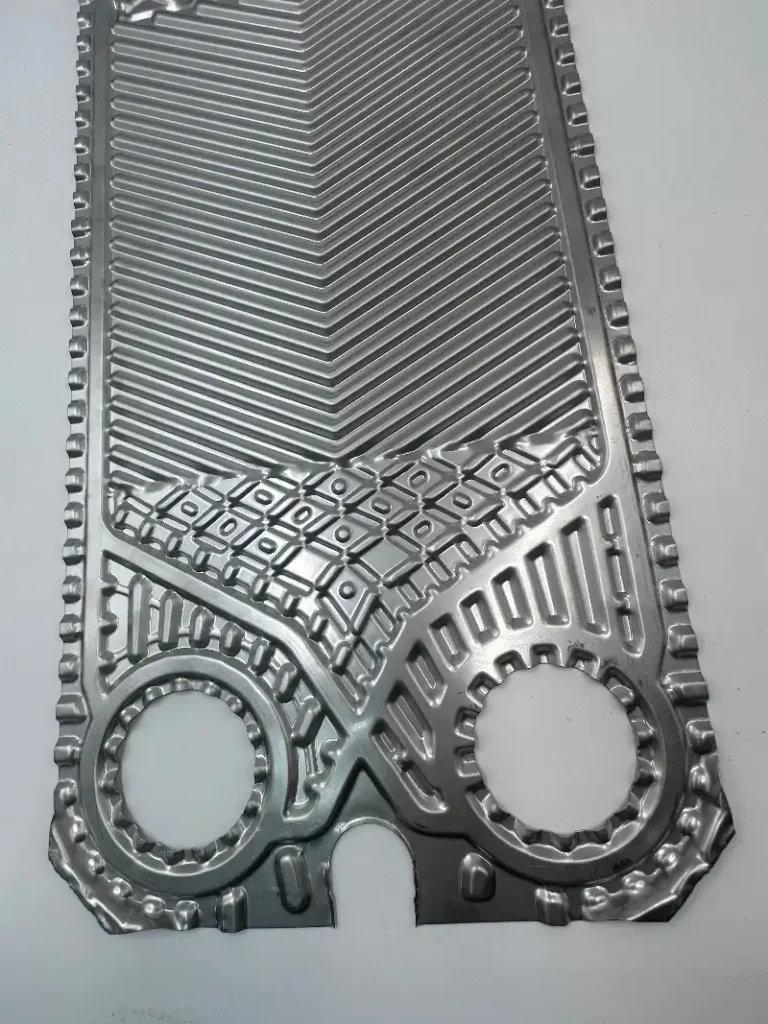

Alfa Laval M10M replacement plate for plate heat exchanger district heating projects. — Alfa Laval M10M plate reference for plate heat exchanger diagram and technical evaluation.

faq

What is the difference between Alfa Laval M10M and M10B plates?

The main difference is the plate channel design. The Alfa Laval M10M plate has a 4.0 mm free channel, while the M10B plate has a smaller 2.6 mm free channel. The M10M configuration is suitable for applications requiring higher flow capacity or lower pressure drop.u003cbru003eThe correct plate selection should be based on the original plate code, pressing pattern, thickness, and operating conditions.

What applications use Alfa Laval M10M plates?

Alfa Laval M10M plates are commonly used in:u003cbru003eChemical processingu003cbru003eEnergy systemsu003cbru003eUtilitiesu003cbru003eHVAC systemsu003cbru003eFood and beverage productionu003cbru003eIndustrial coolingu003cbru003eProcess heating and coolingu003cbru003eThe M10M plate design is suitable for a wide range of industrial heat transfer applications.

What materials are available for Alfa Laval M10M plates?

Senovis PHE supplies compatible M10M plates in various corrosion-resistant materials, including:u003cbru003e316 / 316L stainless steelu003cbru003e316Tiu003cbru003e904Lu003cbru003eTitaniumu003cbru003eTitanium Palladiumu003cbru003eSpecial alloys such as C-276 and C-22u003cbru003eMaterial selection depends on the process media, temperature, pressure, and corrosion requirements.

Which gaskets are used with Alfa Laval M10M plates?

M10M plates can be supplied with matching gasket options depending on the application, including:u003cbru003eNBRu003cbru003eEPDMu003cbru003eFKMu003cbru003eQ materialu003cbru003eThe correct gasket material should be selected according to the operating medium, temperature range, and cleaning requirements.

Can Senovis PHE supply Alfa Laval M10M plates and gaskets together?

Yes. Senovis PHE supplies compatible M10M heat transfer plates together with matching gasket solutions. Customers can source plates, gaskets, and related plate heat exchanger spare parts from one supplier for maintenance and refurbishment projects.

Are Alfa Laval M10M plates available from stock?

Many common M10M plate configurations are available from stock for fast dispatch. After confirming the plate model, material, quantity, and gasket requirements, Senovis PHE can prepare the order quickly to help customers reduce equipment downtime.u003cbru003eSpecial materials or customized plate configurations will be confirmed according to project requirements.

Do you supply Alfa Laval M10M plates to Chile?

Yes. Senovis PHE supplies compatible Alfa Laval M10M plates and gasketed plate heat exchanger spare parts to customers in Chile, including mining companies, food processing plants, energy projects, HVAC contractors, and industrial maintenance companies.u003cbru003eWe support deliveries to Santiago, Valparaiso, Antofagasta, Concepcion, and other industrial regions in Chile.
