Thermowave Gaskets TL500S TL250S TL500P TL250P TL400S
100% Compatible with original Thermowave models.
Food-grade NBR/EPDM materials available.
In stock & Fast global shipping.

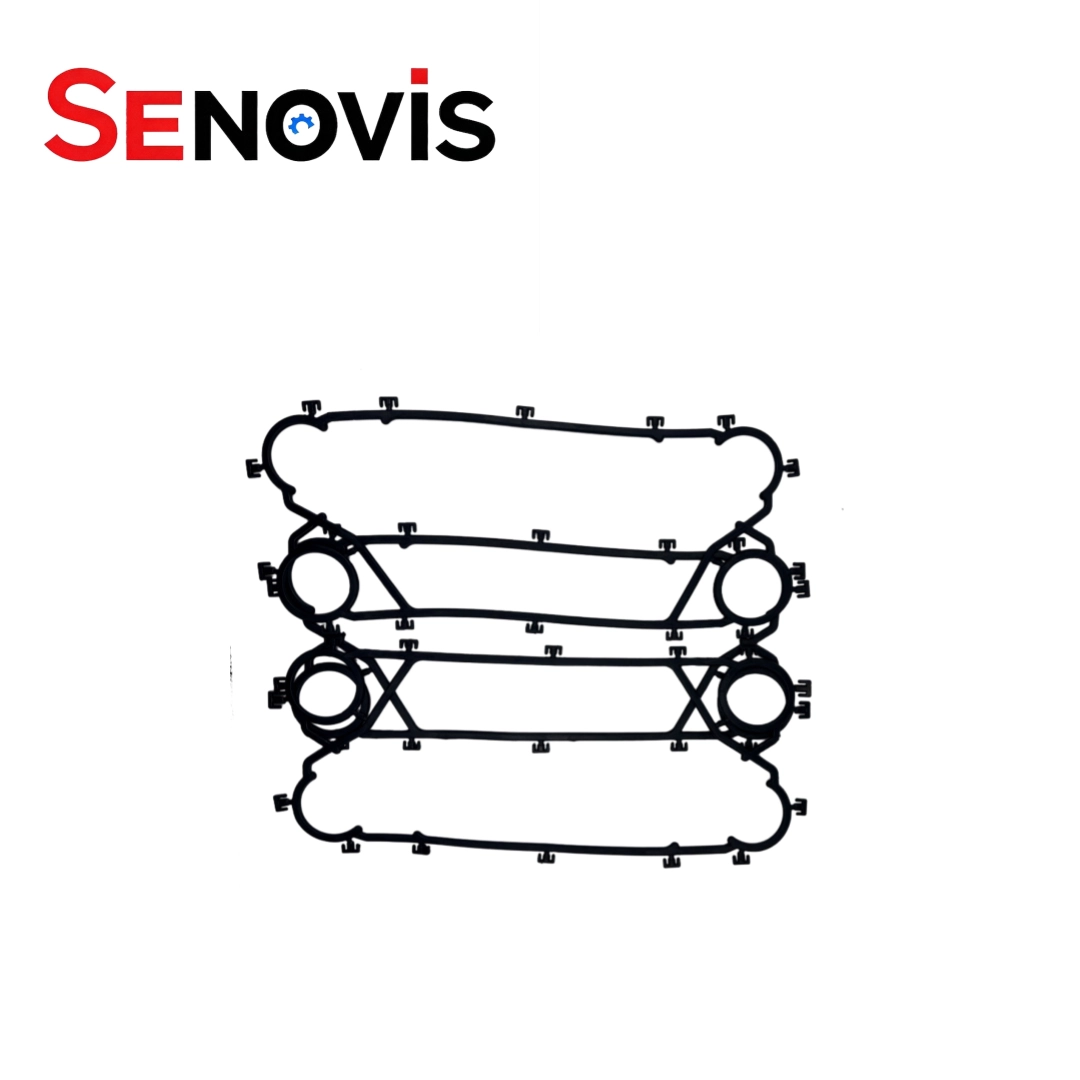

Thermowave gaskets details
PHE Model
Thermowave Gasket
Keyword
Thermowave Plate Heat Exchanger Gasket
Application
Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Connection Type
Clip-on, Glue-on, Hang-on, Snap-on
Gasket Material
NBR.HNBR EPDM HEPDM VITON
Plate Heat Exchanger Models
TL500S/TL250S/TL500P/TL250P/TL400S/TL200S/TL400P/TL200P
DESCRIPTION
As a dedicated manufacturing facility specializing in heat transfer solutions, Senovis provides precision-engineered Plate Heat Exchanger gaskets designed specifically for the Thermowave TL series. Our production process focuses on material integrity, ensuring that each seal maintains optimal compression under rigorous industrial loads. Whether you are managing large scale HVAC systems or complex chemical plant, sourcing PHE Spare Parts is critical for preventing cross contamination and maintaining system pressure.
Our Thermowave TL500S Plate Heat Exchanger PHE solutions are molded from premium NBR and EPDM, tailored to withstand temperature fluctuations and aggressive media. By choosing factory direct spares, engineers and maintenance teams can ensure exact dimensional alignment with the Thermowave TL500S frame. Trust our manufacturing expertise to provide the technical reliability required for your heavy-duty heat transfer equipment, minimizing unplanned downtime through superior gasketed technology.
specification
| Thermowave PHE Plate Heat Exchanger Replacemnet | Thermowave TL500S PHE Plate Heat Exchanger |
| Keyword | Thermowave Plate Heat Exchanger |
| Corrugation Depth(mm) | 3.8 |
| Port Diameter(mm) | φ107 |
| Chevron Angle | 127.5°60° |
| Corrugation Pitch(mm) | 14.39 |
| Equivalent Diameter | 7.6 |
| Flow Area(m²) | 0.00145 |
| One Plate (m²) | 0.5 |
| Port Distance (mm) | 1256*256 |
| Dimensions (mm) | 1496*438 |
catalogue
| Compatible Brands | Plate heat exchanger models |
| Alfa Laval | M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, P22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600 |
| Sondex | S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123 |
| APV | T4, SR1, SR2, SR3, SR9, R5, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134 |
| GEA | VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184 |
| API | SIGMA13, SIGMA19, SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156 |
| FUNKE | FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405 |
| Tranter | GC8, GX26, GC51, GX64, GX145, GL13, GX42, GX51, GX85, GL16, GCD044, GC60, GX91, GC26, GCD054, GX60, GX100 |
| Vicarb | V2 / V4 / V8 / V13 / V20 / V45 / V28 / V60 / V100 / V110 / V130 / V170 / V280 |
| Thermowave | TL500S / TL250S / TL500P / TL250P / TL400S / TL200S / TL400P / TL200P / DN150A / TL150S / TL90S / TL50P / TL90P / TL150P / TL650P / LT850P / TL650S / LT850S |
| SWEP | C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180 |
aPPLICAtion
Product Applications for Thermowave TL500S
- Large-Scale HVAC Systems: Ideal for central cooling and heating stations in massive commercial complexes, airports, and district energy plants.
- Industrial Process Cooling: Efficiently manages heat dissipation for heavy machinery, hydraulic oil systems, and large-scale manufacturing lines.
- Chemical & Petrochemical Processing: Used for the precise temperature control of corrosive fluids, solvents, and chemical reactors, utilizing high-grade plate materials like Titanium or Hastelloy.
- Power Plant Operations: Functions as a reliable secondary cooling circuit for lubricating oils and turbine cooling systems in power generation facilities.
- Food & Beverage Pasteurization: Optimized for high-flow thermal treatment of dairy, juices, and beverages, ensuring compliance with strict hygiene and safety standards.
- Maritime & Shipbuilding: Acts as a central fresh water or lube oil cooler for large vessel engines, designed to withstand harsh saline environments.
- Renewable Energy Systems: Effectively integrates into geothermal heating projects and biomass energy recovery cycles to maximize thermal efficiency.
- Pulp & Paper Industry: Handles the cooling of process water and heat recovery from black liquor or other byproduct streams.
about us
About Senovis (Beijing) Technology Co., Ltd.
Your Reliable Partner for High-Performance Plate Heat Exchanger Solutions
Senovis is a professional manufacturer dedicated to the R&D and production of Plate Heat Exchangers (PHE) and high-quality Replacement Parts (Plates & Gaskets). With 10 years of expertise in thermal engineering, we provide global clients with efficient, durable, and cost-effective heat transfer solutions.
Why Choose Senovis?
- Source Factory Advantage: As a direct manufacturer, we eliminate middleman markups. We provide factory-direct pricing, ensuring you get the most competitive rates in the market without compromising on quality.
- Ultimate Cost-Performance (ROI): We utilize advanced pressing technology and premium materials (SS304, SS316L, Titanium, NBR, EPDM) to deliver products that match or exceed OEM standards at a fraction of the cost.
- Seamless Compatibility: Our spare parts are 100% precision-engineered to be compatible with mainstream global brands, including Alfa Laval, GEA, Thermowave, APV, Tranter, and Sondex.
- Strict Quality Control: Every plate and gasket undergoes rigorous pressure and sealing tests in our facility to ensure zero-leakage performance in the most demanding industrial environments.
- Rapid Global Response: We maintain an extensive inventory of common models, allowing for fast lead times to minimize your facility’s downtime.
Get Expert Support Today!
Are you looking for a specific model or dealing with a complex thermal challenge? Our engineering team is ready to help you optimize your system.
- Need a replacement? Please send us the model number from your current nameplate.
- Technical query? Tell us your specific working conditions (Temperature, Pressure, Flow Rate, and Media), and we will provide a customized calculation and quote within 24 hours.
