Sondex S9a Ig16 Gasketed Plate And Frame Heat Exchanger Manufacturers
Gasket Model
Sondex S9A/Sondex S9a IG16
Place of Origin
China
Brand Name
Senovis/OEM
Minimum Order Quantity
5 pieces
Price
Negotiation
Packaging Details
Carton Packaging

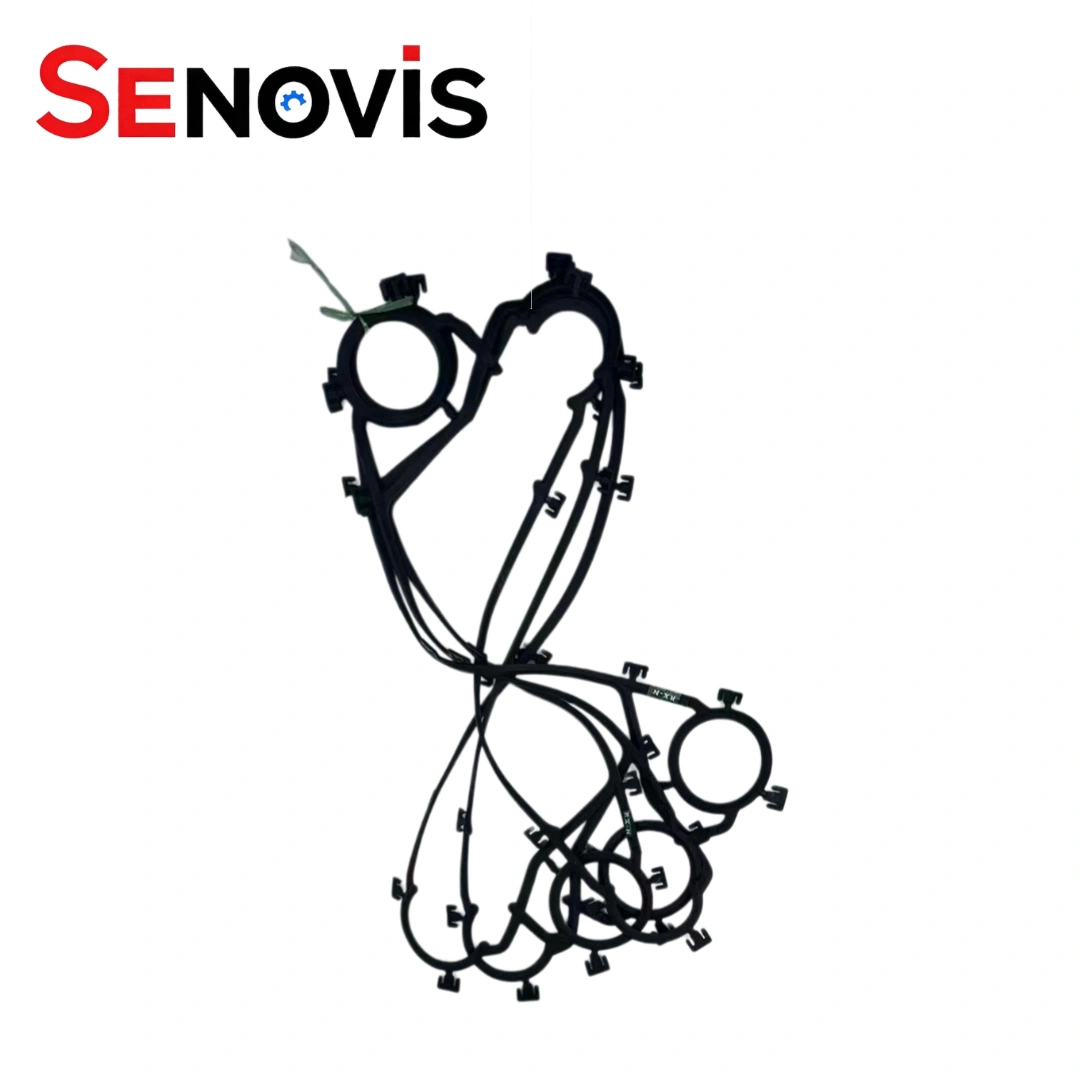

Sondex S9A gaskets details
PHE Model
Sondex S9A Gasket
Keyword
Sondex Gaskets
Application
HVAC & Building Services/Industrial Equipment Cooling/Food, Dairy & Beverage/Marine & Power Generation
Connection size
DN32 (1¼”)
Gasket Material
NBR/HNBR/SIL/EPDM/FVMQ/AFLAS/FKM/FFKM/EPDM, etc.
Other Sondex Gasket Replacement
Sondex S19a/Sondex S31a/Sondex S21a/Sondex S41a/Sondex S17
DESCRIPTION
Professional factory supply of sondex s9a IG16 and sondex s9a replacement gasket solutions for industrial plate heat exchangers. Our Heat Exchanger Seal products are manufactured with precision rubber compounds for stable sealing performance under demanding thermal conditions. We provide reliable sondex gaskets and Plate And Frame Heat Exchanger Gasket options for HVAC, food processing, chemical, and energy industry applications.
specification
| Sondex S9A Plate Heat Exchanger Replacement | Sondex S9A Plate Heat Exchanger |
| Keyword | Sondex GPHE |
| Corrugation Depth(mm) | 2.3 |
| Port Diameter(mm) | φ66 |
| Chevron Angle | 55°125° |
| Corrugation Pitch(mm) | 10 7 |
| Equivalent Diameter | 4.6 |
| Flow Area(m²) | 0.00062 |
| One Plate (m²) | 0.09 |
| Port Distance (mm) | 381*192 |
| Dimensions (mm) | 496*306 |
catalogue
| Compatible Brands | Plate heat exchanger models |
| Alfa Laval | M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, P22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600 |
| Sondex | S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123 |
| APV | T4, SR1, SR2, SR3, SR9, R5, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134 |
| GEA | VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184 |
| API | SIGMA13, SIGMA19, SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156 |
| FUNKE | FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405 |
| Tranter | GC8, GX26, GC51, GX64, GX145, GL13, GX42, GX51, GX85, GL16, GCD044, GC60, GX91, GC26, GCD054, GX60, GX100 |
| Vicarb | V2 / V4 / V8 / V13 / V20 / V45 / V28 / V60 / V100 / V110 / V130 / V170 / V280 |
| Thermowave | TL500S / TL250S / TL500P / TL250P / TL400S / TL200S / TL400P / TL200P / DN150A / TL150S / TL90S / TL50P / TL90P / TL150P / TL650P / LT850P / TL650S / LT850S |
| SWEP | C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180 |
Advantages of Sondex S9A Gaskets
High-Quality Rubber Materials
Sondex S9A gaskets are available in premium elastomer materials such as NBR, EPDM, and Viton, allowing selection based on different media, temperature ranges, and operating environments.
Excellent Temperature Resistance
Depending on the gasket material, the working temperature can range from low-temperature cooling systems to high-temperature industrial heat transfer applications. EPDM performs well in hot water and steam systems, while Viton is suitable for higher temperature conditions.
Reliable Oil Resistance
NBR material offers strong resistance to mineral oils, lubricants, hydraulic fluids, and industrial oils, making it suitable for oil cooling and machinery applications.
Stable Sealing Performance
Precision molding technology helps maintain uniform gasket structure and sealing stability under continuous pressure and thermal cycling conditions.
Suitable for Multiple Industrial Applications
Widely used in HVAC systems, food processing, marine equipment, chemical processing, power plants, refrigeration systems, and industrial heat recovery applications.
Designed for Plate And Frame Heat Exchangers
Specifically engineered for plate heat exchanger systems, ensuring secure fitting between plates and efficient thermal transfer performance.
Direct Contact Channels:
Reduce your maintenance costs with SENOVIS! As a specialized factory for GPHE, BPHE, plates, and gaskets, we offer 100% interchangeable solutions for Alfa Laval, APV, Tranter, Sondex, GEA, and more. Click “Contact Us” to request a quick quote and premium catalog now!
