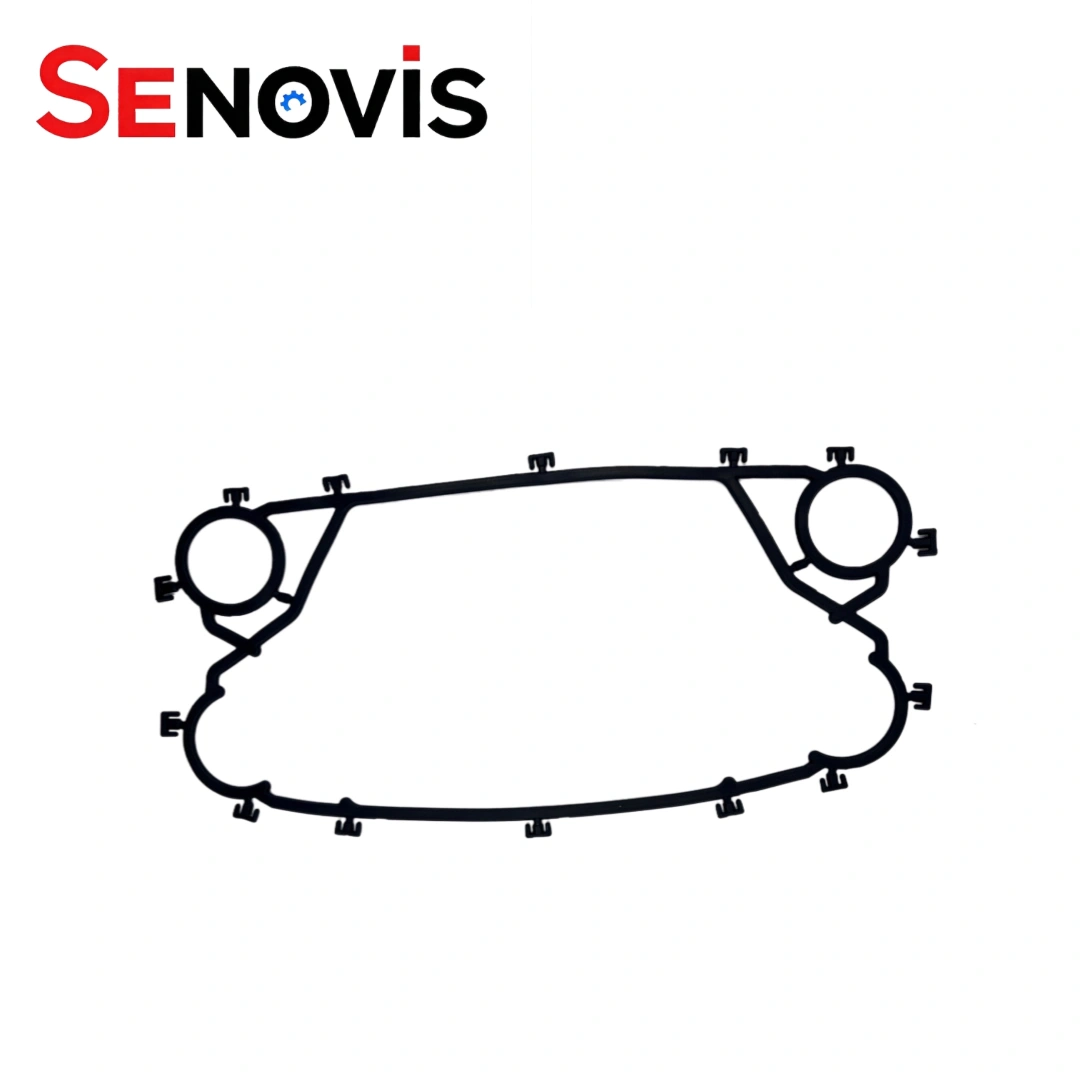

Sondex S41a Flat Plate Heat Exchanger Rubber Gasket
Gasket Model
sondex s41a
Place of Origin
China
Brand Name
Senovis/OEM
Minimum Order Quantity
5 pieces
Price
Negotiation
Packaging Details
Carton Packaging
Sondex S41A gaskets details
PHE Model
Sondex S41A Plate And Frame Heat Exchanger Gasket
Keyword
Sondex PHE Gasket Suppliers
Temperature
-40°C~+200°C
warranty
1 Year
Gasket Material
NBR,EPDM,SILICONE,FKM,AFLAS,FFKM
Other Sondex Gasket Replacement
Sondex S16b/Sondex S43/Sondex S65/Sondex S100
DESCRIPTION
The Sondex S41A belongs to the SONDEX / Danfoss gasketed plate heat exchanger series, widely used in HVAC, geothermal, marine, heat recovery, food processing, industrial, and chemical applications. The Sondex S41A gasket is part of the S41 / S41A / S42 / S62 platform family, where different suffixes represent variations in plate pattern design or gasket attachment structure.
This series adopts corrugated plate technology and counterflow heat exchange design to improve thermal efficiency and optimize heat transfer performance. The Sondex S41A PHE configuration is commonly used in single-pass arrangements, with all connections positioned on the frame head side for easier piping installation and maintenance access. In many technical references, the “A” designation mainly indicates a specific gasket fixing or hanging structure rather than a completely different heat exchanger model.
specification
| Sondex S9A Plate Heat Exchanger Replacement | Sondex S41A Plate Heat Exchanger |
| Keyword | Sondex Gasketed Plate Heat Exchanger |
| Corrugation Depth(mm) | 2.6 |
| Port Diameter(mm) | φ147 |
| Chevron Angle | 135°55° |
| Corrugation Pitch(mm) | 8.5/9.0 |
| Equivalent Diameter | 5.2 |
| Flow Area(m²) | 0.00117 |
| One Plate (m²) | 0.41 |
| Port Distance (mm) | 890*296 |
| Dimensions (mm) | 1100*500 |
catalogue
| Compatible Brands | Plate heat exchanger models |
| Alfa Laval | M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, P22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600 |
| Sondex | S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123 |
| APV | T4, SR1, SR2, SR3, SR9, R5, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134 |
| GEA | VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184 |
| API | SIGMA13, SIGMA19, SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156 |
| FUNKE | FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405 |
| Tranter | GC8, GX26, GC51, GX64, GX145, GL13, GX42, GX51, GX85, GL16, GCD044, GC60, GX91, GC26, GCD054, GX60, GX100 |
| Vicarb | V2 / V4 / V8 / V13 / V20 / V45 / V28 / V60 / V100 / V110 / V130 / V170 / V280 |
| Thermowave | TL500S / TL250S / TL500P / TL250P / TL400S / TL200S / TL400P / TL200P / DN150A / TL150S / TL90S / TL50P / TL90P / TL150P / TL650P / LT850P / TL650S / LT850S |
| SWEP | C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180 |
Performance Features of S41A Plate Heat Exchanger
Efficient Heat Transfer Design
The S41A series adopts corrugated plate technology and counterflow heat exchange structure to improve thermal efficiency and optimize energy utilization in industrial processes.
Low Pressure Drop Performance
Designed for applications requiring balanced flow distribution and reduced pressure loss, making it suitable for large-flow operating conditions.
Single-Pass Configuration
Many S41A systems use a single-pass arrangement with all connections positioned on the frame head side for easier piping installation, inspection, and maintenance.
Large Capacity Operation
The S41 platform is commonly used in medium to large heat transfer systems, with some configurations supporting flow capacities up to approximately 250–350 m³/h depending on operating conditions and plate arrangement.
Industrial Operating Capability
Example configurations in the S41 series can support high thermal loads and stable operation under industrial working pressure conditions.
Direct Contact Channels:
Reduce your maintenance costs with SENOVIS! As a specialized factory for GPHE, BPHE, plates, and gaskets, we offer 100% interchangeable solutions for Alfa Laval, APV, Tranter, Sondex, GEA, and more. Click “Contact Us” to request a quick quote and premium catalog now!
