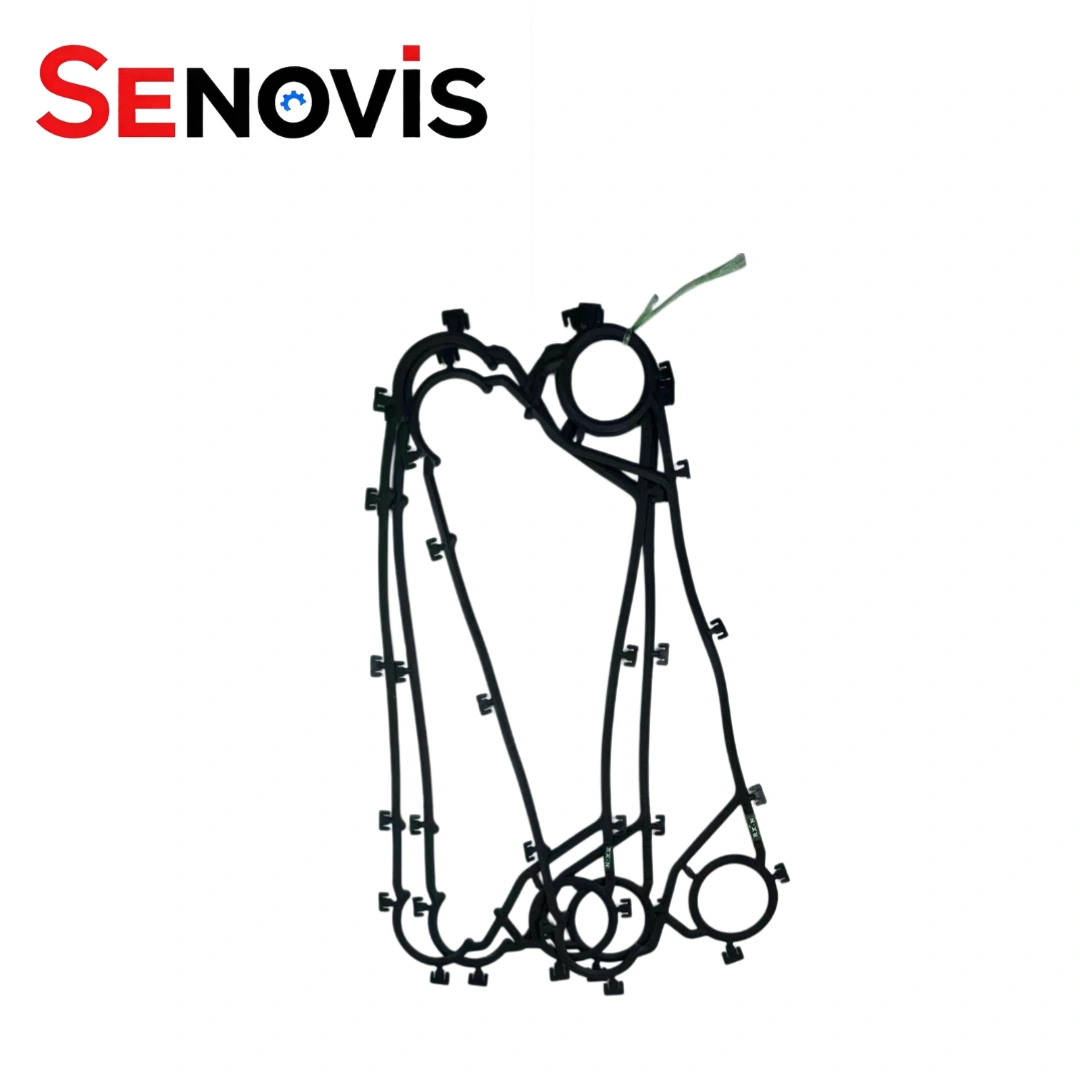

Sondex S20A ST16 Gasketed Plate Heat Exchanger PHE Gaskets
Gasket Model
Sondex S20A/Sondex S20a St16
Place of Origin
China
Brand Name
Senovis/OEM
Minimum Order Quantity
5 pieces
Price
Negotiation
Packaging Details
Carton Packaging
Sondex S20A gaskets details
PHE Model
Sondex S20A Gasket
Keyword
Sondex Heat Exchanger Gaskets
Application
HVAC (Heating, Ventilation, and Air Conditioning), Central Heating/Cooling, Marine & Offshore Oil Cooling, District Heating Systems, Industrial Wastewater Heat Recovery, Food & Beverage Pasteurization, Hydraulic Oil Cooling, Chemical Processing.
Connection Type
Clip-on, Glue-on, Hang-on, Snap-on
Gasket Material
NBR / NBR-HT/EPDM / EPDM-HT/Viton / FKM
Other Sondex Gasket Replacement
Sondex S4a/Sondex S8a/Sondex S7a/Sondex S14a/Sondex S20a
DESCRIPTION
As an ISO certified manufacturer specializing in PHE spare parts, we make sondex s20a gaskets to precise molds specifications. Heat Exchanger Gasket Replacement options are available, including the precise sondex s20a st16 profile, designed to withstand rigorous industrial pressures and heat recovery. Trusted globally among professional PHE Gasket Suppliers, we utilize NBR and EPDM compounds to manufacture these sondex Heat Exchanger gaskets. Our heat transfer solutions ensure seamless dimensional alignment across major thermal systems, offering comprehensive support for Alfa Laval, APV, Tranter, Sondex, GEA, Vicarb, API, Funke, Thermowave, and Hisaka plates.
specification
| Sondex S20A Plate Heat Exchanger Replacement | Sondex S20A Plate Heat Exchanger |
| Keyword | Sondex Plate Heat Exchanger |
| Corrugation Depth(mm) | 2.6 |
| Port Diameter(mm) | φ60 |
| Chevron Angle | 55°125° |
| Corrugation Pitch(mm) | 9.5 8.4 |
| Equivalent Diameter | 5.2 |
| Flow Area(m²) | 0.0005 |
| One Plate (m²) | 0.2 |
| Port Distance (mm) | 894*126 |
| Dimensions (mm) | 998*230 |
catalogue
| Compatible Brands | Plate heat exchanger models |
| Alfa Laval | M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, P22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600 |
| Sondex | S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123 |
| APV | T4, SR1, SR2, SR3, SR9, R5, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134 |
| GEA | VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184 |
| API | SIGMA13, SIGMA19, SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156 |
| FUNKE | FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405 |
| Tranter | GC8, GX26, GC51, GX64, GX145, GL13, GX42, GX51, GX85, GL16, GCD044, GC60, GX91, GC26, GCD054, GX60, GX100 |
| Vicarb | V2 / V4 / V8 / V13 / V20 / V45 / V28 / V60 / V100 / V110 / V130 / V170 / V280 |
| Thermowave | TL500S / TL250S / TL500P / TL250P / TL400S / TL200S / TL400P / TL200P / DN150A / TL150S / TL90S / TL50P / TL90P / TL150P / TL650P / LT850P / TL650S / LT850S |
| SWEP | C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180 |
Sondex S20A GasketApplications
Our premium sondex s20a gaskets and plates are engineered to maintain exceptional sealing integrity and thermal efficiency under demanding fluid dynamics, making them ideal for a wide range of industrial and civil applications:
Chemical & Process Industries:
Capable of handling mild corrosive media, process fluid cooling, and chemical temperature control when configured with specialized high-temperature NBR/EPDM or Viton compounds.
HVAC & District Heating:
Extensively utilized in central heating systems, pressure isolation barriers for high-rise buildings, and district cooling networks to ensure stable heat transfer between primary and secondary loops.
Marine & Offshore Engineering:
Perfectly suited for vessel central cooling, jacket water cooling, and lube oil cooling systems. Our EPDM/NBR compounds are highly resilient against thermal cycling in marine environments.
Industrial Cooling & Heat Recovery:
Widely applied in hydraulic oil cooling for heavy machinery, injection molding cooling loops, and reclaiming low-grade waste heat from industrial wastewater or steam condensate.
Food, Dairy, and Beverage:
Serving as reliable Heat Exchanger Gasket Replacement options for sanitary processing, pasteurization loops, and thermal regulation of juices, dairy, and brewery products.
