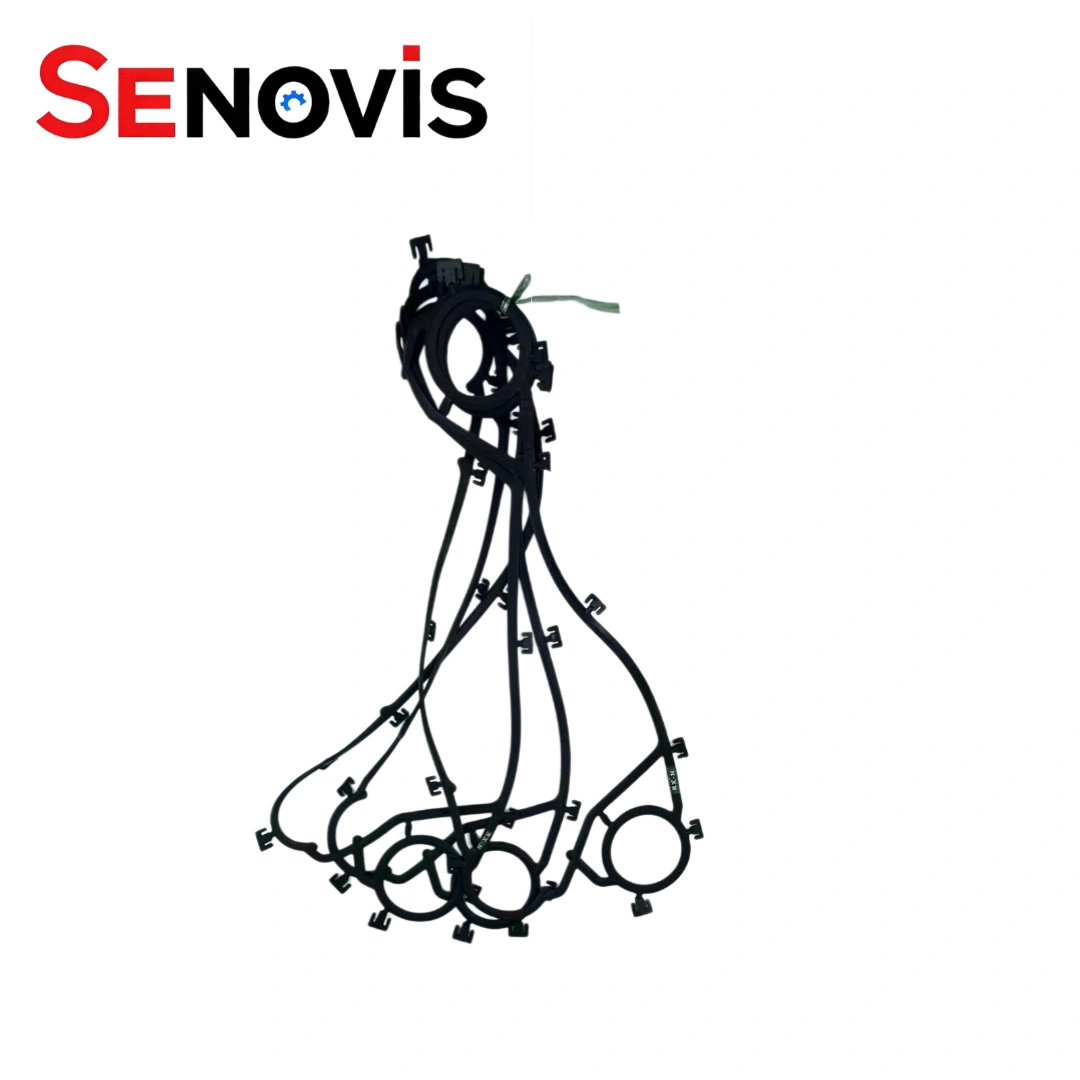

Sondex S19a Ig16 Ig10 Sanitary Titanium Plate And Frame Heat Exchanger Gaskets
Gasket Model
Sondex S19A/sondex s19a ig16/sondex s19a ig10
Place of Origin
China
Brand Name
Senovis/OEM
Minimum Order Quantity
5 pieces
Price
Negotiation
Packaging Details
Carton Packaging
Sondex S19A gaskets details
PHE Model
Sondex S19A Gasket
Keyword
Sondex PHE Gaskets
Feature
Anti-leakage/anti-aging/corrosion resistant
Installation method of gasket
Using adhesives,mechanical clamping
Gasket Material
NBR/HNBR/SIL/EPDM/FVMQ/AFLAS/FKM/FFKM/EPDM, etc.
Other Sondex Gasket Replacement
Sondex S37/Sondex S22/Sondex S21/Sondex S47/Sondex S42
DESCRIPTION
Factory manufactured sondex s19a ig10 and sondex s19a ig16 gasket solutions for industrial heat transfer systems. Our Frame Plate Heat Exchanger gasket products are produced with precision rubber compounds for stable sealing in thermal processing applications. Suitable for Sanitary Plate And Frame Heat Exchanger and Titanium Plate And Frame Heat Exchanger systems used in food processing, marine, HVAC, and chemical industries. Professional plate heat exchanger and gasket manufacturing support for global industrial applications.
specification
| Sondex S9A Plate Heat Exchanger Replacement | Sondex S19A Plate Heat Exchanger |
| Keyword | Sondex GPHE |
| Corrugation Depth(mm) | 2.3 |
| Port Diameter(mm) | φ66 |
| Chevron Angle | 56°125° |
| Corrugation Pitch(mm) | 10 7 |
| Equivalent Diameter | 4.6 |
| Flow Area(m²) | 0.00062 |
| One Plate (m²) | 0.19 |
| Port Distance (mm) | 701*192 |
| Dimensions (mm) | 816*306 |
catalogue
| Compatible Brands | Plate heat exchanger models |
| Alfa Laval | M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, P22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600 |
| Sondex | S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123 |
| APV | T4, SR1, SR2, SR3, SR9, R5, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134 |
| GEA | VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184 |
| API | SIGMA13, SIGMA19, SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156 |
| FUNKE | FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405 |
| Tranter | GC8, GX26, GC51, GX64, GX145, GL13, GX42, GX51, GX85, GL16, GCD044, GC60, GX91, GC26, GCD054, GX60, GX100 |
| Vicarb | V2 / V4 / V8 / V13 / V20 / V45 / V28 / V60 / V100 / V110 / V130 / V170 / V280 |
| Thermowave | TL500S / TL250S / TL500P / TL250P / TL400S / TL200S / TL400P / TL200P / DN150A / TL150S / TL90S / TL50P / TL90P / TL150P / TL650P / LT850P / TL650S / LT850S |
| SWEP | C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180 |
Advantages of Sondex S19A Gaskets
HVAC Systems
Used in heating, ventilation, and air conditioning systems for efficient heat transfer between water, glycol, and other working fluids.
Food & Beverage Processing
Suitable for pasteurizers, dairy processing, brewery systems, and beverage cooling applications where stable sealing performance is required.
Marine Industry
Applied in marine cooling systems, central cooling units, lubricating oil coolers, and seawater heat exchangers.
Chemical Processing
Used in chemical plants for heat exchange involving corrosive or temperature-sensitive fluids with suitable gasket material selection.
Oil & Lubrication Cooling
Commonly installed in hydraulic oil coolers, compressor cooling systems, and industrial lubrication equipment.
