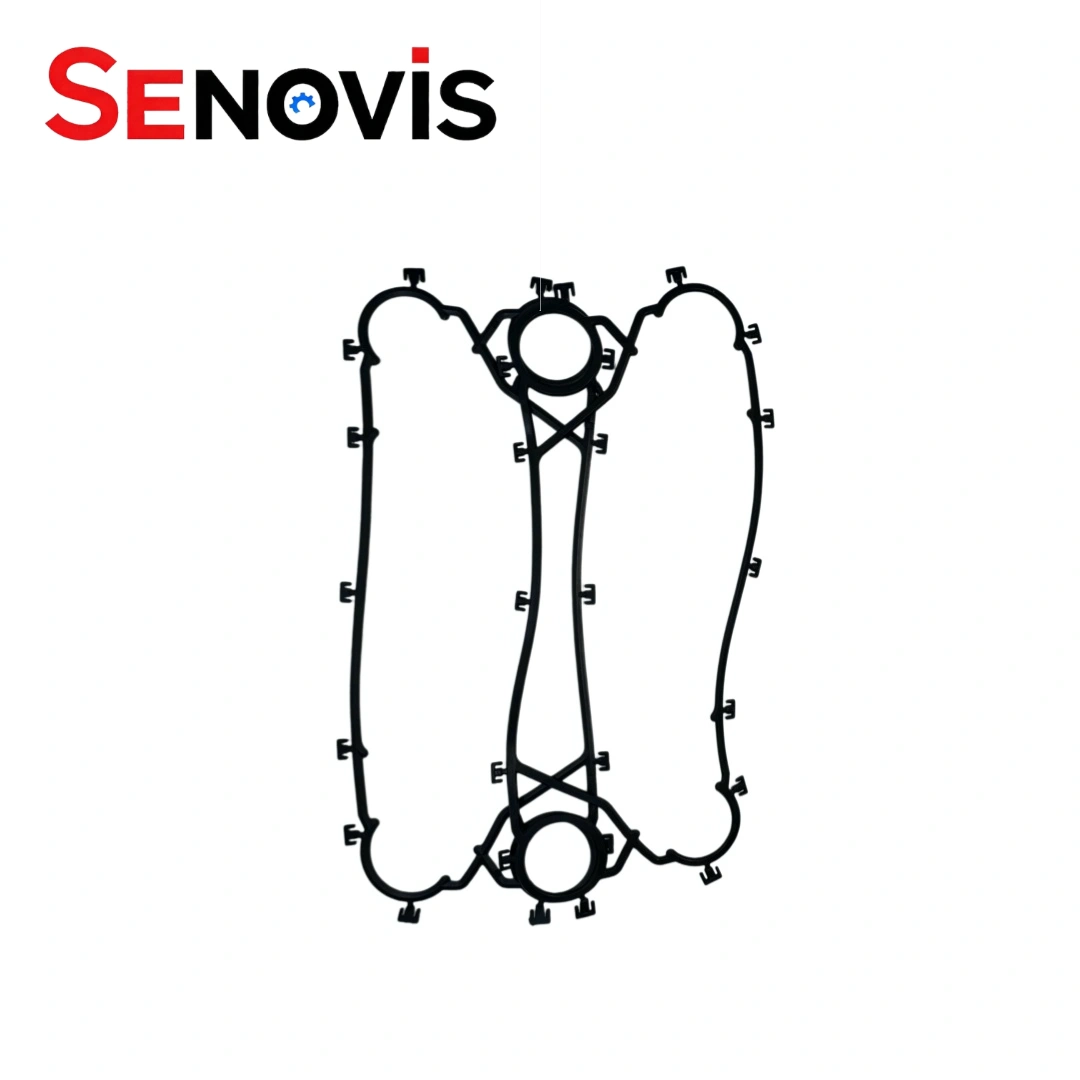

Compatible Alfa Laval P41 gaskets designed as the gasket used in plate heat exchanger systems. — Precision P41 gasket for compatible gasketed plate evaporator applications.

Plate And Frame Heat Exchanger Alfa Laval P41 PHE Gasket Suppliers

The Alfa Laval P41 gasket covers a range of operating conditions that the P41 frame typically encounters , which is why it’s available in NBR, EPDM, HNBR and Viton rather than a single standard compound. Getting the material right matters more than most people factor in at the parts sourcing stage.

Alfa Laval P41 PHE Gasket details

PHE Model

Alfa Laval P41

Keyword

Alfa Laval Heat Exchanger Gasket

Applicable Industries

Hygienic Sealing Gaskets for Pasteurization Systems, Chemical and Petroleum Equipment, and Marine Heat Exchangers

Compatible Brands

Alfa Laval Plate Heat Exchanger Gaskets

Connection Type

Clip-on/ Glue/ Glueless

Gasket material

EPDM, NBR, EPDM HT, NBR HT, HNBR, VitonA, Vitona

HVAC Fluids

Chilled Water, Heating Water, Ethylene Glycol, Propylene Glycol

Connection size

DN25-DN500

DESCRIPTION

The Alfa Laval P41 Gaskets are replacement sealing solutions designed for reliable performance in industrial plate heat exchanger maintenance.Our Alfa Laval P41 Gaskets and Plates are manufactured to support routine servicing, equipment refurbishment, and spare parts replacement.We offer alfa laval epdm gaskets for applications requiring dependable sealing performance under different operating conditions.As experienced neoprene gasket manufacturers, Senovis PHE also supplies elastomer options selected according to media, temperature, and service requirements.Our range of alfa laval heat exchanger parts helps customers maintain efficient operation across a variety of industrial heat transfer systems.These products are suitable for plate heat exchanger gasket replacement, supporting maintenance teams with dependable replacement solutions.

Alfa Laval M15 Gasket Replacement Specification

PHE Model	Alfa Laval P41 EPDM Gasket Manufacturers
Applicable Industries	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip on/ Glueless/ Glued
Gasket material	EPDM/EPDM-HT/NBR/NBR-HT
Processing Service	Moulding
Temperature Range(°C)	40~260
Keyword	Heat Exchanger Gaskets Suppliers
Process	Mold making, vulcanization
Available Medium	Water, Oil, Acid,Steam, Ammonia, Acid, etc.
Design Pressure	0.6MPa~5MPa

Alfa Laval P41 Plate heat exchanger specification

Alfa Laval PHE Plate Heat Exchanger Replacemnet	Alfa Laval P41
Corrugation Depth(mm)	4.8
Port Diameter(mm)	φ150
Chevron Angle	90°
Corrugation Pitch(mm)	22.5
Equivalent Diameter	9.5
Flow Area(m²)	0.00205
One Plate (m²)	0.41
Port Distance (mm)	1115×276
Dimensions (mm)	1318×470

Actual Product Details

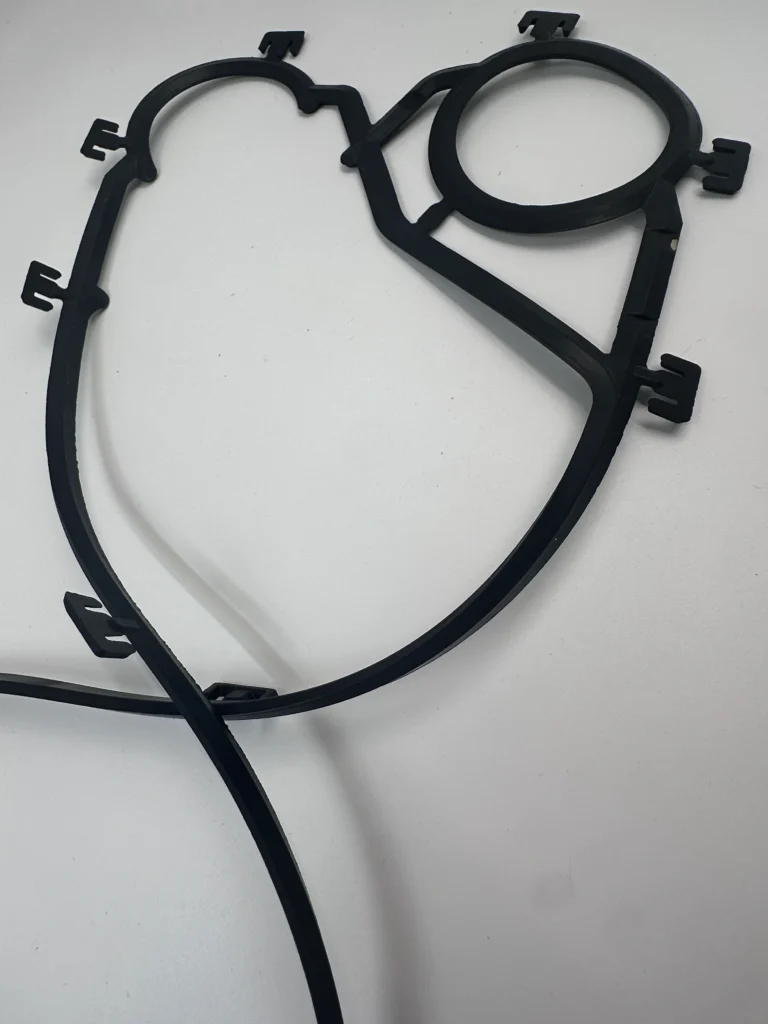

Precision Alfa Laval P41 gasket compatible with GPHE (Alfa Laval) equipment. — Industrial P41 gasket engineered for heat exchanger Alfa Laval applications.

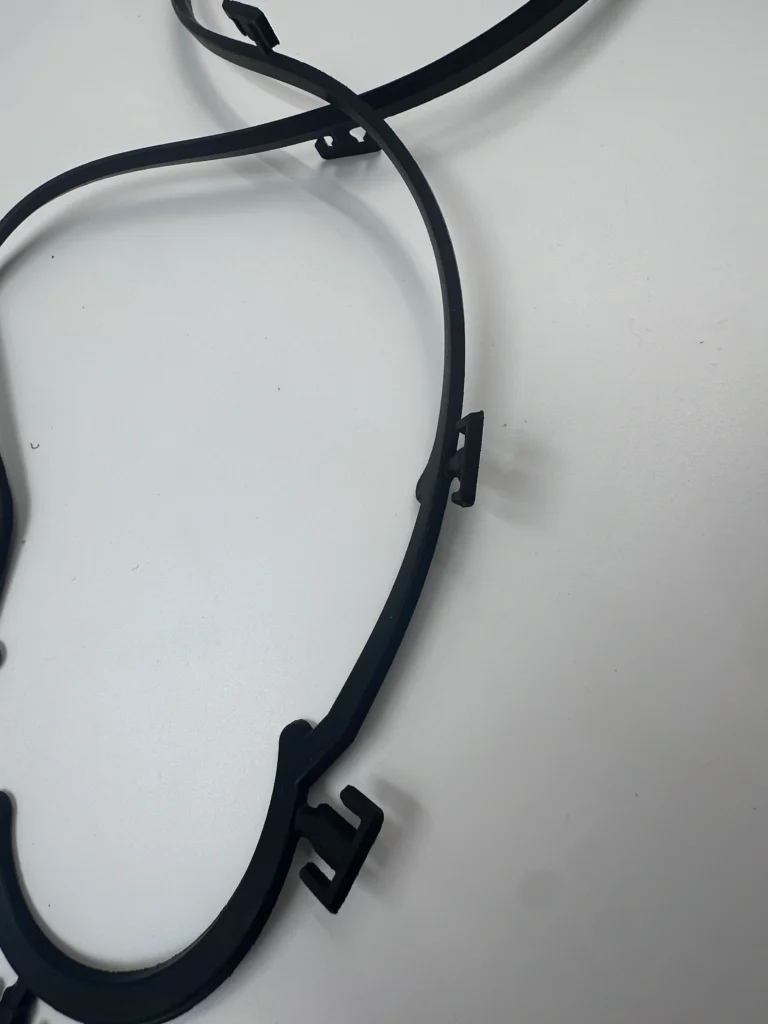

High-quality replacement gasket for Alfa Laval P41 compatible with heat exchanger gaskets. — Compatible Alfa Laval P41 gasket for heat exchanger plate replacement projects.

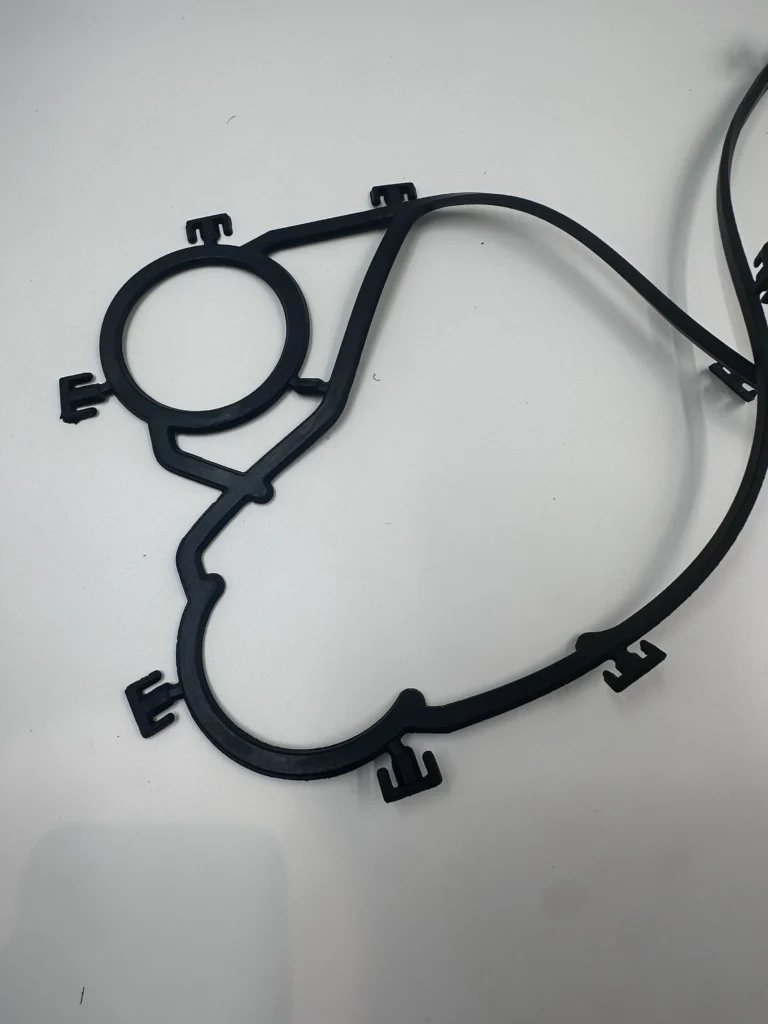

Durable Alfa Laval P41 gasket for compatible heat exchangers Alfa Laval applications. — Precision P41 gasket manufactured using high temp rubber gasket materials.

faq

Which industries commonly use Alfa Laval P41 gaskets?

Compatible P41 gaskets are widely used in:
Food and beverage processing
Chemical processing
HVAC systems
Industrial heat transfer
Marine applications
Energy and utility plants
Water treatment systems
Different gasket materials should be selected according to the operating conditions of each industry, including process media, temperature range, pressure requirements, cleaning procedures, and chemical compatibility.

Are Alfa Laval P41 gaskets available from stock?

Yes. Senovis PHE keeps standard compatible Alfa Laval P41 gaskets in stock for fast dispatch. After confirming the model, gasket material, and required quantity, orders can normally be prepared promptly, helping customers reduce maintenance downtime.

What factors will affect the final price of the plate heat exchanger?

The main factors include product model, plate and gasket material, customization requirements, raw material market price fluctuation, order quantity and transportation cost. We will quote transparently without any hidden charges.

Do you supply Alfa Laval P41 gaskets to the United Kingdom?

Yes. Senovis PHE supplies compatible Alfa Laval P41 gaskets to customers throughout the United Kingdom, including heat exchanger service companies, industrial maintenance contractors, food manufacturers, engineering companies, and OEM support businesses. We regularly arrange deliveries to London, Birmingham, Manchester, Liverpool, Glasgow, and other industrial locations across the UK.

Why choose Senovis PHE for Alfa Laval P41 gasket replacement?

Senovis PHE specializes in compatible plate heat exchanger gaskets, plates, and spare parts for global industrial customers. We provide multiple gasket material options, technical selection support, stock availability for standard P41 gaskets, fast quotations, and worldwide shipping to help maintenance teams complete reliable plate heat exchanger gasket replacement projects.
