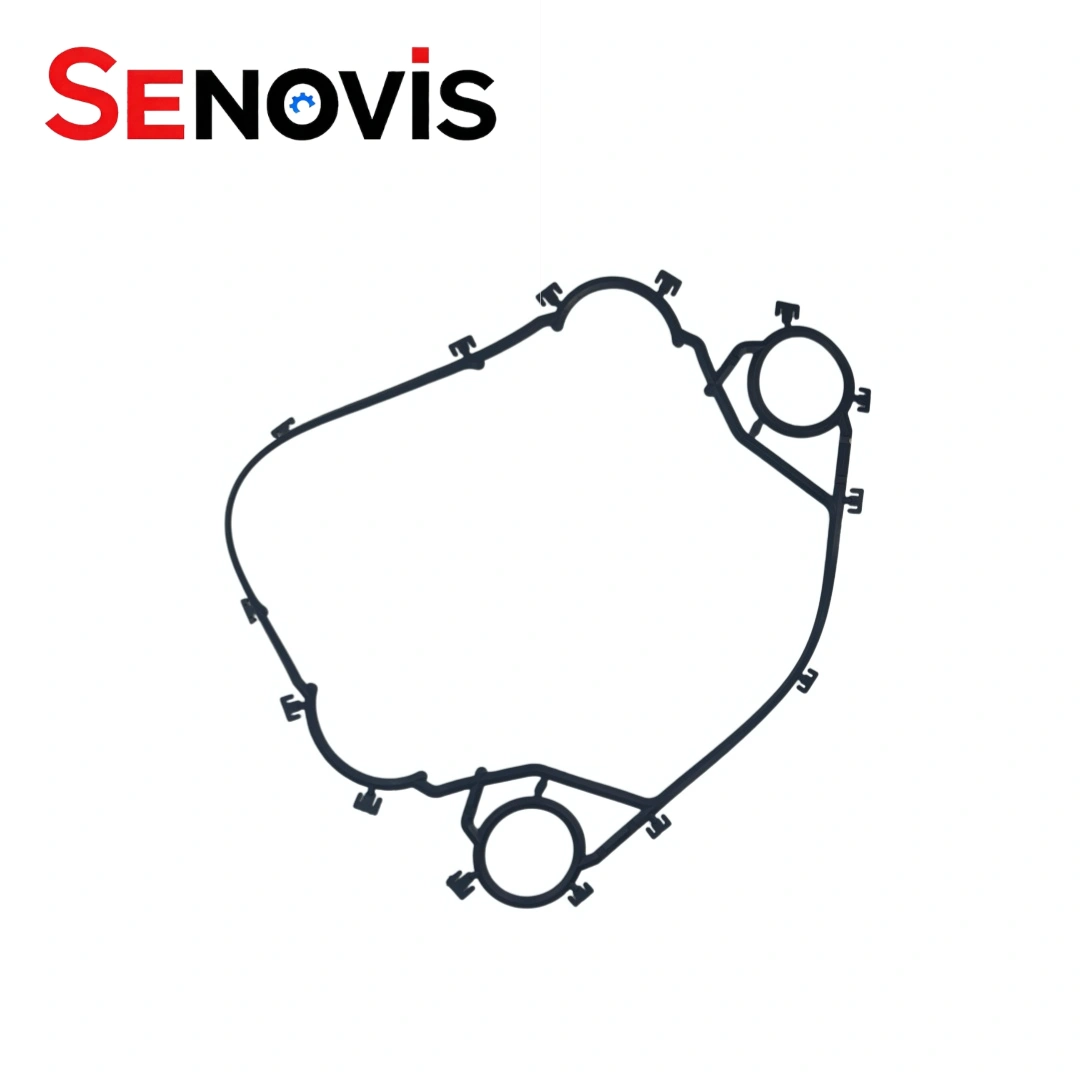

Compatible Alfa Laval P36 gaskets manufactured with EPDM rubber gasket material. — Precision P36 gasket for compatible evaporator Alfa Laval applications.

Silicone Viton FKMG Gasket For Plate Heat Exchanger ALFA LAVAL P36

The Alfa Laval P36 gasket is a direct replacement sealing component for Alfa Laval P36 plate heat exchangers, available in NBR, EPDM, HNBR and FKM to suit different process media and operating temperatures.

At Senovis PHE, we supply P36 gaskets for routine maintenance, repair and refurbishment — including applications in marine fresh water generators where the P36 frame is commonly installed. Replacement plates are available alongside the gaskets if a full service is needed.

Alfa Laval P36 PHE Gasket details

PHE Model

Alfa Laval P36

Keyword

Alfa Laval Gaskets

Applicable Industries

Hotels, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops

Compatible Brands

Alfa Laval Plate Gasket

Connection Type

Clip-on, loc-in and glued

Gasket material

NBR,EPDM,NBR-Aiprel,EPDM-Aiprel,TFEP,FPM

Marine Fluids

Seawater, Fresh Water, Jacket Water, Central Cooling Water

Connection size

DN25-DN500

DESCRIPTION

Alfa Laval P36 Gaskets are compatible replacement sealing solutions manufactured by Senovis PHE for industrial plate heat exchangers and routine maintenance.

Senovis PHE supplies Alfa Laval P36 heat exchanger gaskets and plates to support equipment repair and spare parts replacement.

Each gasket of plate heat exchanger is manufactured with carefully selected materials, including EPDM, NBR, HNBR, and FKM, for different operating conditions.

Our alfa laval heat exchanger phe gasket solutions help maintenance teams source reliable replacement components.

These products are also suitable as fresh water generator spare parts for marine and industrial applications.

Senovis PHE manufactures plate heat exchanger gaskets for Alfa Laval and supports customers with stable production and technical assistance.

We also provide PHE spare plate & gasket solutions for customers looking for compatible plate heat exchanger spare parts from a single supplier.

Alfa Laval P36 Gasket Replacement Specification

PHE Model	Alfa Laval P36 EPDM Gasket For Plate Heat Exchanger
Applicable Industries	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip on/ Glueless/ Glued
Gasket material	NBR,FKM, HNBR, ACM,Silicone,EPDM
Gasket Type	Field gasket, ring gasket
Temperature Range(°C)	-20 to 220
Keyword	Heat Exchanger Gaskets
Material quality	Food grade
Product tolerance	Acid, alkali, high temperature
Design Pressure	0.6MPa~5MPa

Alfa Laval P36 Plate heat exchanger specification

Alfa Laval PHE Plate Heat Exchanger Replacemnet	Alfa Laval P36
Corrugation Depth(mm)	4.55
Port Diameter(mm)	φ120
Chevron Angle	90°
Corrugation Pitch(mm)	21.5
Equivalent Diameter	9.1
Flow Area(m²)	0.00161
One Plate (m²)	0.32
Port Distance (mm)	946*226
Dimensions (mm)	1124*400

Actual Product Details

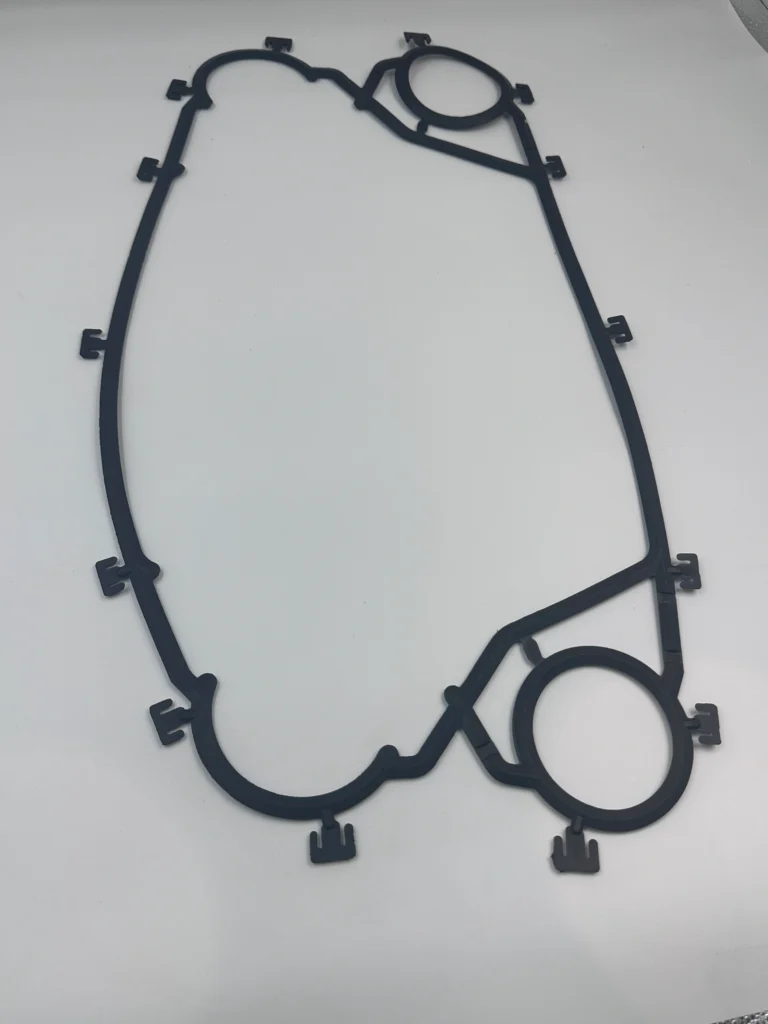

High-quality Alfa Laval P36 gasket produced using premium FKM gasket material. — Industrial P36 gasket manufactured from FKM rubber gasket materials.

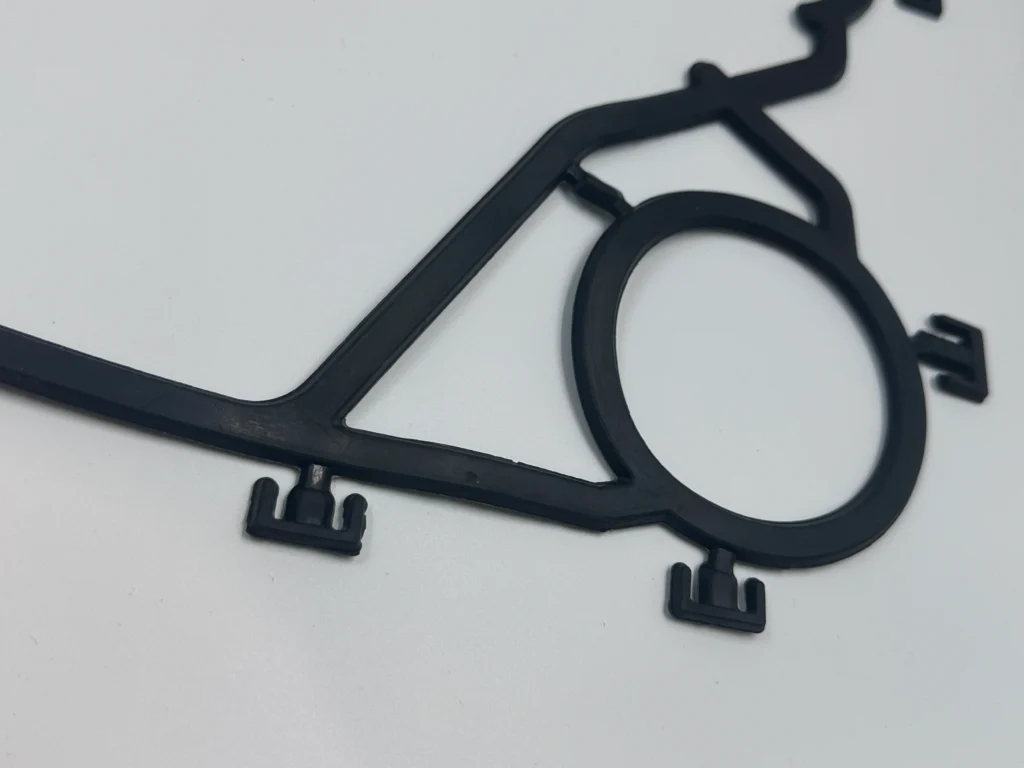

Precision replacement gasket for Alfa Laval P36 using food grade EPDM gasket materials. — Compatible Alfa Laval P36 gasket manufactured with food safe silicone gasket compounds.

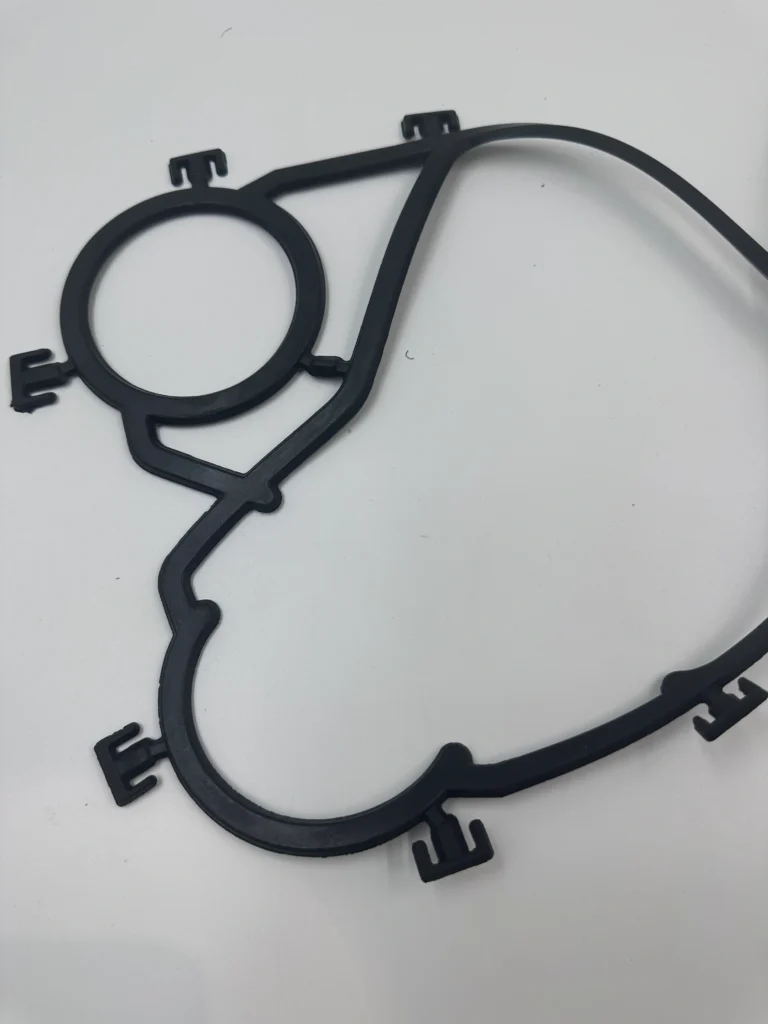

Compatible Alfa Laval P36 gasket manufactured from gasket EPDM rubber compounds. — Precision P36 gasket using gasket material NBR for industrial maintenance.

faq

What is the primary function of an Alfa Laval P36 gasket?

The P36 gasket performs two essential functions. It creates a reliable seal between heat transfer plates to help prevent leakage, while also guiding the process media through the correct flow paths. Proper gasket performance is important for maintaining pressure integrity and thermal efficiency.

Which industries commonly use Alfa Laval P36 gaskets?

Compatible Alfa Laval P36 gaskets are widely used in HVAC systems, industrial heat exchangers, energy and utility plants, chemical processing, food and beverage production, water treatment facilities, and marine fresh water generator systems.
Different gasket materials should be selected according to the actual operating conditions of each application, including process media, temperature range, pressure requirements, cleaning procedures, and chemical compatibility.
Senovis PHE supplies compatible Alfa Laval P36 gaskets and plate heat exchanger spare parts for maintenance, refurbishment, and replacement projects worldwide.

Can Senovis PHE also supply P36 plates and spare parts?

Yes. Besides compatible Alfa Laval P36 gaskets, Senovis PHE supplies compatible heat transfer plates, complete plate heat exchanger spare parts, and PHE spare plate and gasket solutions. Customers can source multiple replacement components from a single supplier.

Are Alfa Laval P36 gaskets available from stock?

Yes. Senovis PHE keeps standard Alfa Laval P36 compatible gaskets in stock for fast dispatch. After confirming the model, gasket material, and quantity, orders can usually be prepared promptly to help minimize equipment downtime.

Do you supply Alfa Laval P36 gaskets to the United Arab Emirates?

Yes. Senovis PHE supplies compatible Alfa Laval P36 gaskets to customers across the United Arab Emirates, including marine service companies, industrial maintenance contractors, HVAC service providers, and engineering companies. We can arrange delivery to Dubai, Abu Dhabi, Sharjah, Jebel Ali, and other industrial locations throughout the UAE.
