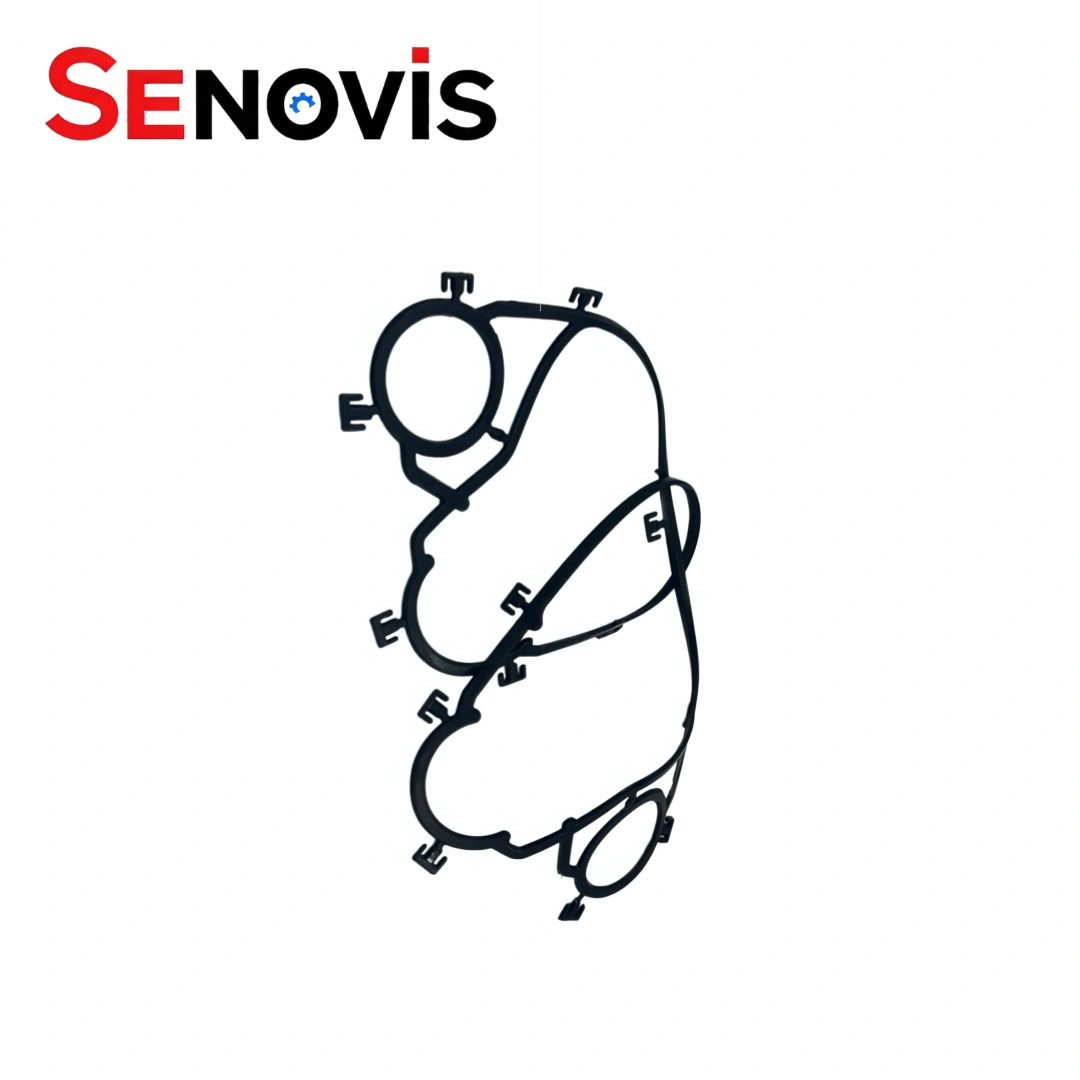

Compatible Alfa Laval P26 gaskets for Alfa Laval plate heat exchanger gaskets applications. — Precision P26 gasket manufactured as a compatible Alfa Laval rubber gasket.

NBR EPDM Heat Exchanger Gasket OEM Manufacturer Alfa Laval P26

The Alfa Laval P26 gasket is a direct replacement for Alfa Laval P26 plate heat exchangers, available in NBR, EPDM, HNBR and Viton.

At Senovis PHE, we also stock compatible gaskets for the P21, P22 and P2 models — covering food processing, HVAC and general industrial maintenance.

Send us your nameplate details and we’ll confirm the right spec.

Alfa Laval P26 PHE Gasket details

PHE Model

Alfa Laval P26

Keyword

Alfa Laval Gasket

Applicable Industries

Food & Beverage Factory, Energy & Mining, metallurgy, petroleum,

Compatible Brands

Alfa Laval Plate Cooler

Connection Type

Clip on, Lock in, fasten, Glued

Gasket material

NBR.HNBR EPDM HEPDM VITON

Water Applications

Fresh Water, Pure Water, Deionized Water, Boiler Feed Water

Connection size

DN25-DN500

DESCRIPTION

The Alfa Laval P26 Gaskets are replacement sealing solutions manufactured for reliable performance in industrial plate heat exchangers. Our Alfa Laval P26 Gaskets and Plates support equipment maintenance and spare parts replacement. Each ALFA LAVAL P26 PHE GASKET is available in Material: NBR / EPDM / HNBR / VITON to suit different operating conditions. These Heat Exchanger Gaskets are widely used For Food Processing Industry and other industrial applications. Senovis PHE also supplies ALFA LAVAL P26 PHE spares, GASKET P21/P22/P2 NBR, and a complete range of Alfa Laval Heat Exchangers Gaskets for global aftermarket customers.

Alfa Laval P26 Gasket Replacement Specification

PHE Model	Alfa Laval P26 EPDM Gasket
Applicable Industries	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip on/ Glueless/ Glued
Gasket material	rubber and plastic
Color	Black
Temperature Range(°C)	-20 to 220
Keyword	Heat Exchanger Gasket Replacement
video outgoing-inspection	Provided
Package size per batch	100X50X10 cm
Design Pressure	0.6MPa~5MPa

Alfa Laval P26 Plate heat exchanger specification

Alfa Laval PHE Plate Heat Exchanger Replacemnet	Alfa Laval P26/P22
Corrugation Depth(mm)	3
Port Diameter(mm)	φ70
Chevron Angle	46°120°
Corrugation Pitch(mm)	9.7 10
Equivalent Diameter	6
Flow Area(m²)	0.00065
One Plate (m²)	0.13
Port Distance (mm)	592*135
Dimensions (mm)	709*248

Actual Product Details

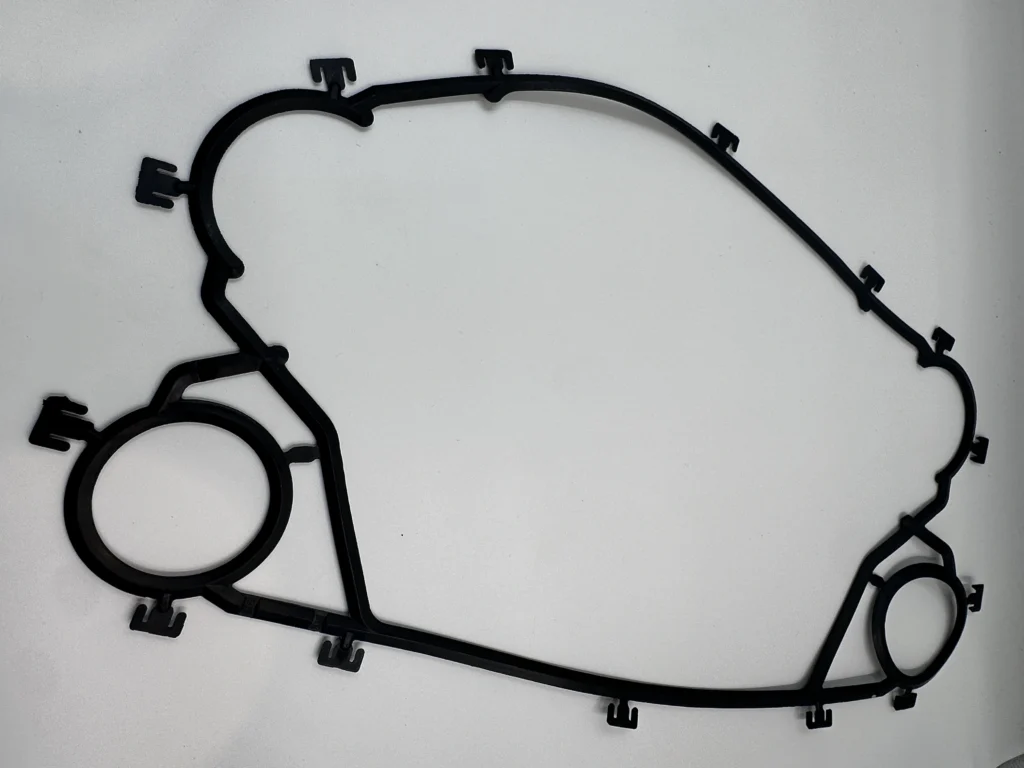

Precision Alfa Laval P26 gasket manufactured as a compatible black neoprene gasket. — Industrial P26 gasket designed with a clip-on gasket installation system.

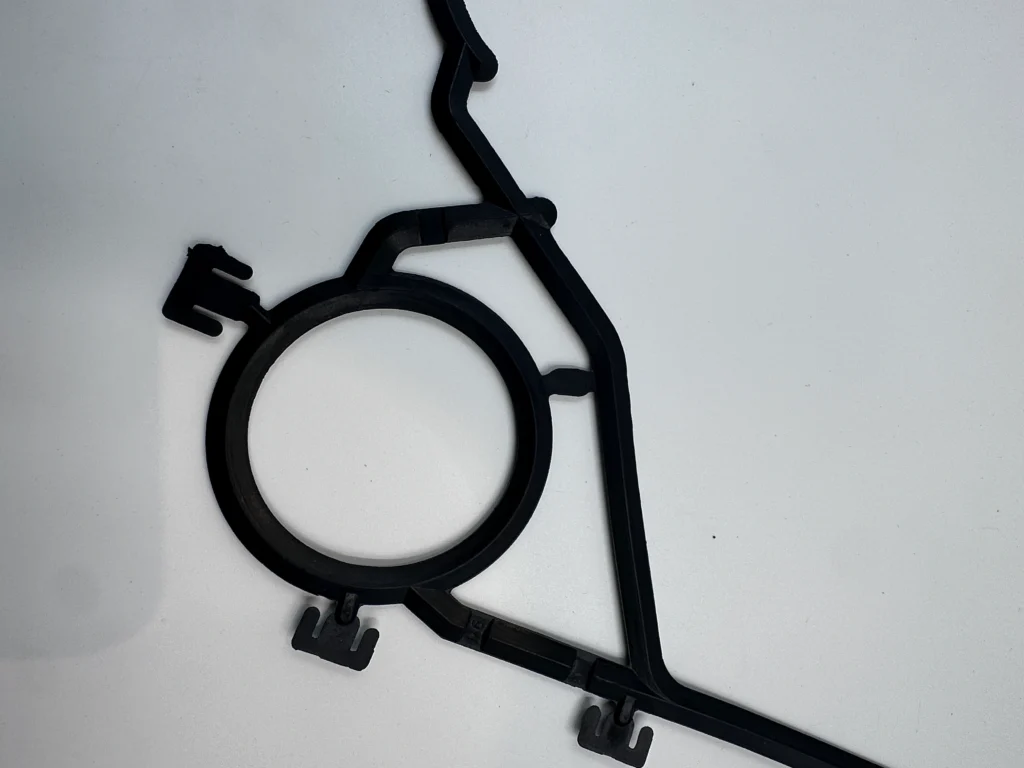

High-quality replacement gasket for Alfa Laval P26 using custom neoprene gaskets technology. — Compatible Alfa Laval P26 gasket manufactured with EPDM gasket food grade compounds.

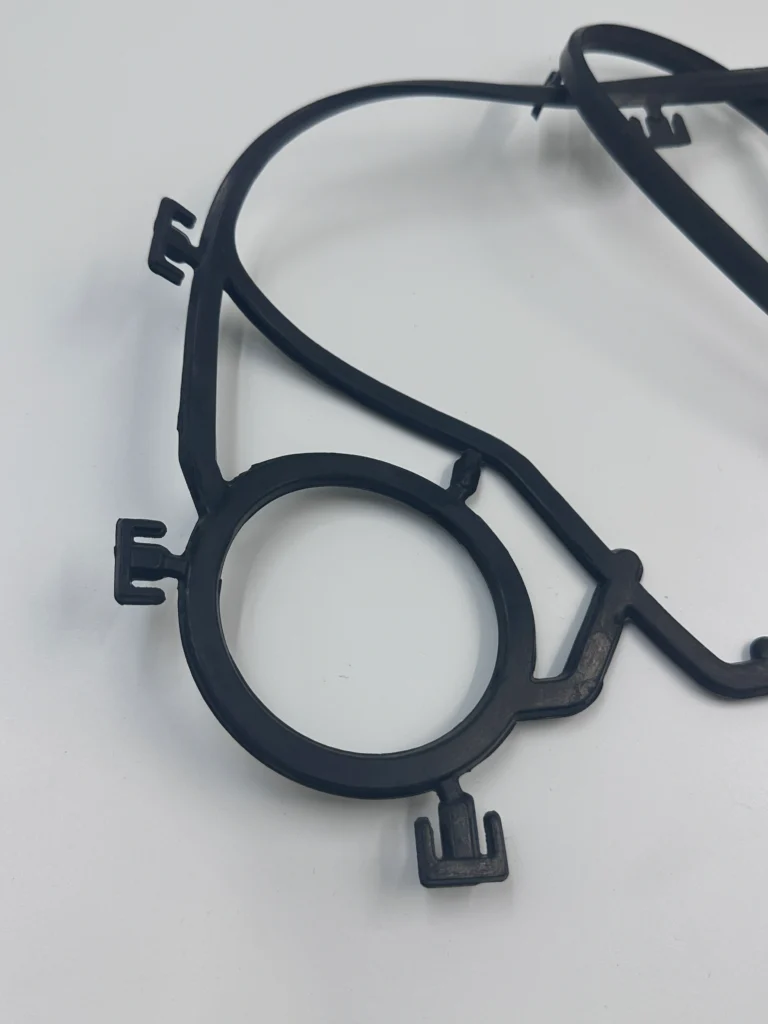

Durable Alfa Laval P26 gasket manufactured by experienced EPDM gasket manufacturers. — Compatible P26 gasket comparing EPDM gasket vs NBR gasket for different sealing requirements.

faq

What is the main function of an Alfa Laval P26 gasket?

The primary function of a P26 gasket is to provide reliable sealing between adjacent heat transfer plates while directing the process media through alternating channels. Proper sealing helps reduce leakage, maintain pressure integrity, and preserve the designed thermal efficiency of the plate heat exchanger.

Which gasket materials are available for the Alfa Laval P26 gasket?

Senovis PHE supplies compatible Alfa Laval P26 gaskets in several material options, including NBR, EPDM, HNBR, and VITON (FKM).
Each gasket material is selected according to the actual operating conditions, including the process medium, operating temperature, pressure requirements, and chemical compatibility.
The correct gasket material should be confirmed based on the specific application rather than using one material for every working condition. Senovis PHE provides suitable P26 gasket solutions for plate heat exchanger maintenance and replacement projects.

Which industries commonly use the Alfa Laval P26 gasket?

The Alfa Laval P26 gasket is widely used in food processing, beverage production, dairy plants, chemical processing, general industrial heating and cooling systems, and process water applications.
Material selection should always match the specific operating conditions of each application, including the process medium, temperature range, pressure requirements, cleaning procedures, and chemical compatibility.
Senovis PHE supplies compatible Alfa Laval P26 gaskets and plate heat exchanger spare parts for industrial maintenance, refurbishment, and replacement projects worldwide.

Can Senovis PHE also supply P26 plates and other PHE spare parts?

Yes. Besides compatible Alfa Laval P26 gaskets, Senovis PHE also supplies compatible heat transfer plates, related P2 series spare parts, and complete maintenance solutions for plate heat exchangers. This allows customers to source multiple replacement components from one supplier.

Are Alfa Laval P26 gaskets available from stock?

Yes. Senovis PHE keeps standard Alfa Laval P26 compatible gaskets in stock for fast dispatch. Once the model, gasket material, and required quantity are confirmed, orders can normally be prepared promptly, helping customers reduce maintenance downtime.

Which shipping methods are available for P26 gasket orders?

Senovis PHE offers worldwide delivery through DHL, FedEx, UPS, air freight, and sea freight.
Express courier is commonly selected for urgent maintenance orders, while air freight and sea freight are suitable for larger quantities, plate heat exchanger components, and complete spare parts shipments.
Senovis PHE recommends suitable transportation solutions by balancing delivery time, cost efficiency, and project requirements to support customers with reliable global logistics services.

Do you supply Alfa Laval P26 gaskets to the Philippines?

Yes. Senovis PHE regularly supplies compatible Alfa Laval P26 gaskets to customers throughout the Philippines, including maintenance contractors, food processing factories, marine companies, industrial distributors, and plate heat exchanger service providers. We can arrange delivery to Manila, Cebu, Davao, and other industrial regions using the most suitable shipping method.
