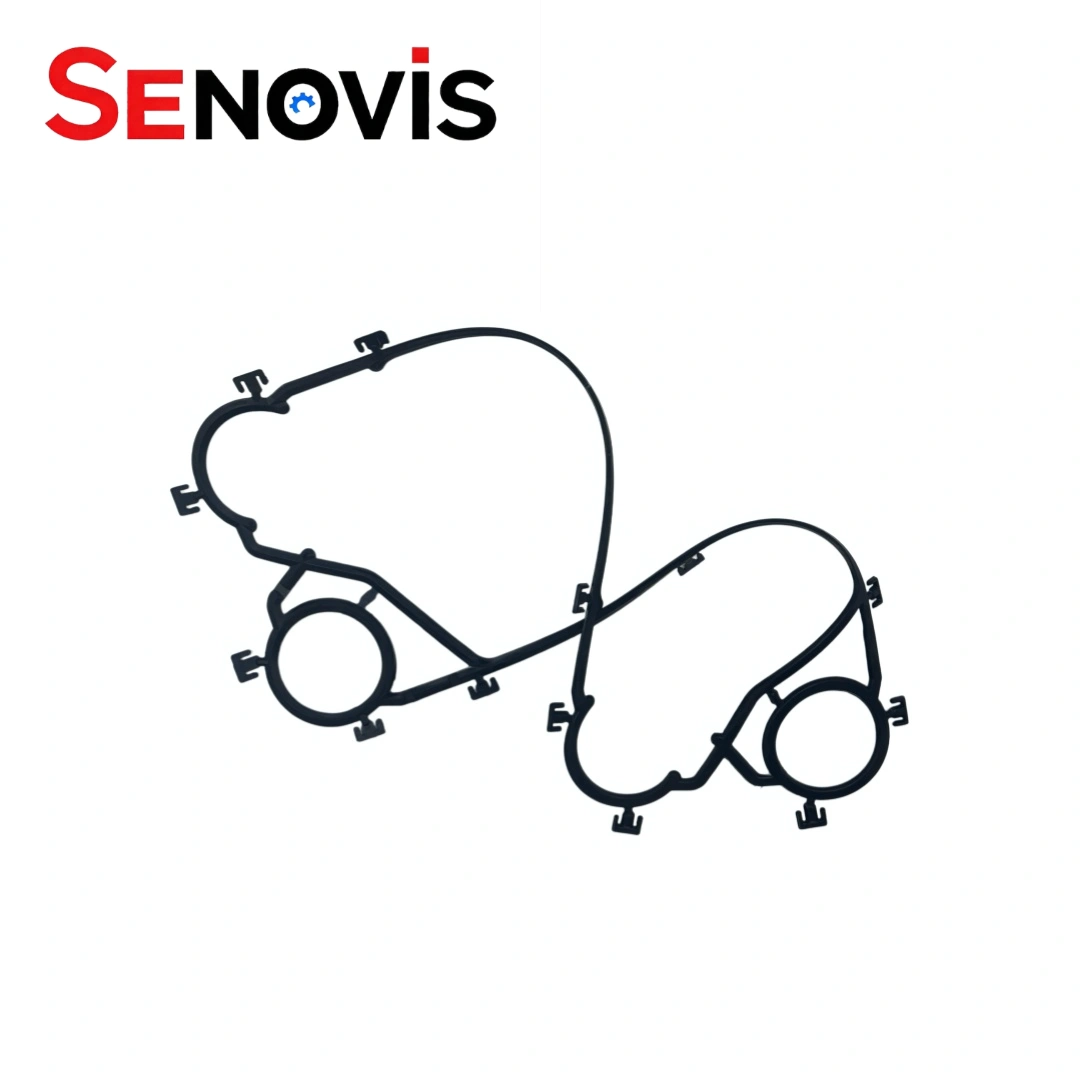

Compatible Alfa Laval P16 gaskets for Alfa Laval clip on gasket applications. — Precision P16 gasket compatible with Alfa Laval gasket systems.

Replacement Gaskets For Plate Heat Exchanger Alfa Laval P16

The Alfa Laval P16 Gasket is designed for Suitable for Alfa Laval P16 Plate Heat Exchanger applications, supporting routine maintenance and gasket replacement. Senovis PHE manufactures Alfa Laval P16 Plates & Gaskets and offers a complete range of Alfa Laval Plate Heat Exchanger Gaskets and Alfa Laval Heat Exchanger Spares. As one of the experienced PHE gasket suppliers, we provide NBR EPDM gasket materials for different media and operating temperatures.

Alfa Laval p16 PHE Gasket details

PHE Model

Alfa Laval p16

Keyword

Alfa Laval EPDM Gaskets

Applicable Industries

Machinery Repair Shops, Manufacturing Plant

Compatible Brands

Alfa Laval Plate And Frame Heat Exchanger

Connection Type

Clip-on, Glue-on, Hang-on, Snap-on

Gasket material

NBR, HNBR, EPDM , HEPDM, FKM

Compatible Media

Cooling Water, Chilled Water, Hot Water, Process Water

Connection size

DN25-DN500

DESCRIPTION

The Alfa Laval P16 Gasket is a replacement plate heat exchanger gasket designed for reliable sealing performance in industrial heat transfer systems.
It is Suitable for Alfa Laval P16 P26/P22 Plate Heat Exchanger applications, supporting routine maintenance, equipment servicing, and gasket replacement projects.
The gasket is manufactured for use with Alfa Laval P16 Plates & Gaskets, helping maintain stable sealing under appropriate operating conditions.
As one of our Alfa Laval Plate Heat Exchanger Gaskets, it is available in multiple elastomer materials to suit different media and temperature requirements.
Senovis PHE supplies a wide range of Alfa Laval Heat Exchanger Spares for OEMs, distributors, and maintenance professionals worldwide.
As experienced PHE gasket suppliers, we offer customized manufacturing and flexible production solutions for global aftermarket applications.
The gasket is available in NBR EPDM gasket materials, with material selection based on the working fluid, operating temperature, and application requirements.

Alfa Laval p16 Gasket Replacement Specification

Material	Typical Temperature Range	Typical Media / Service	Notes
NBR	-20 to +110 °C	Water, hot water, oils, light hydrocarbons	Common for general industrial and HVAC water systems.
EPDM	-30 to +140 °C	Water, steam, brine, weak acids, weak alkalis, alcohols	Very common for hot water and steam applications.
FKM / Viton	-20 to +200 °C	Hot oils, solvents, stronger chemicals	Better for higher temperature and more aggressive chemical service.
CR	-20 to +100 °C	Cooling water, general water service	Often used in normal-temperature water systems.
NR	-50 to +80 °C	Water, mildly corrosive media	Good low-temperature elasticity, but poor oil resistance.
PTFE	-50 to +100 °C, depending on design	Strong corrosives, chemicals	Excellent chemical resistance, but actual limits depend on construction.
Expanded / Modified PTFE	-40 to +290 °C	Corrosive media, high-temperature chemical service	Used in more demanding chemical applications.
Flexible Graphite	-40 to +650 °C	High-temperature steam, hot oil, chemical service	High temperature capability, but oxidation limits may apply.

Alfa Laval P16 Plate heat exchanger specification

Alfa Laval PHE Plate Heat Exchanger Replacemnet	Alfa Laval P16
Corrugation Depth(mm)	2.5
Port Diameter(mm)	φ29
Chevron Angle	60°120°
Corrugation Pitch(mm)	10
Equivalent Diameter	5
Flow Area(m²)	0.00025
One Plate (m²)	0.03
Port Distance (mm)	357*60
Dimensions (mm)	427*123

Actual Product Details

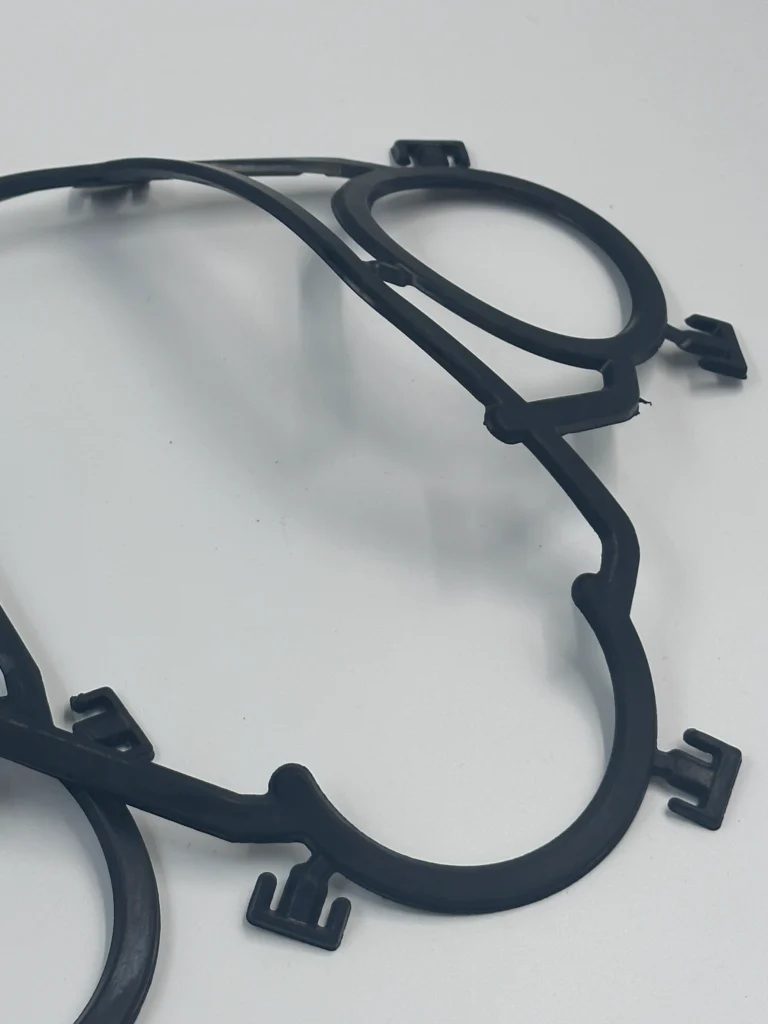

Precision P16 gasket compatible with Alfa Laval gaskets for industrial plate heat exchangers. — Industrial Alfa Laval P16 sealing gasket for Alfa Laval heat exchanger gasket glue installation.

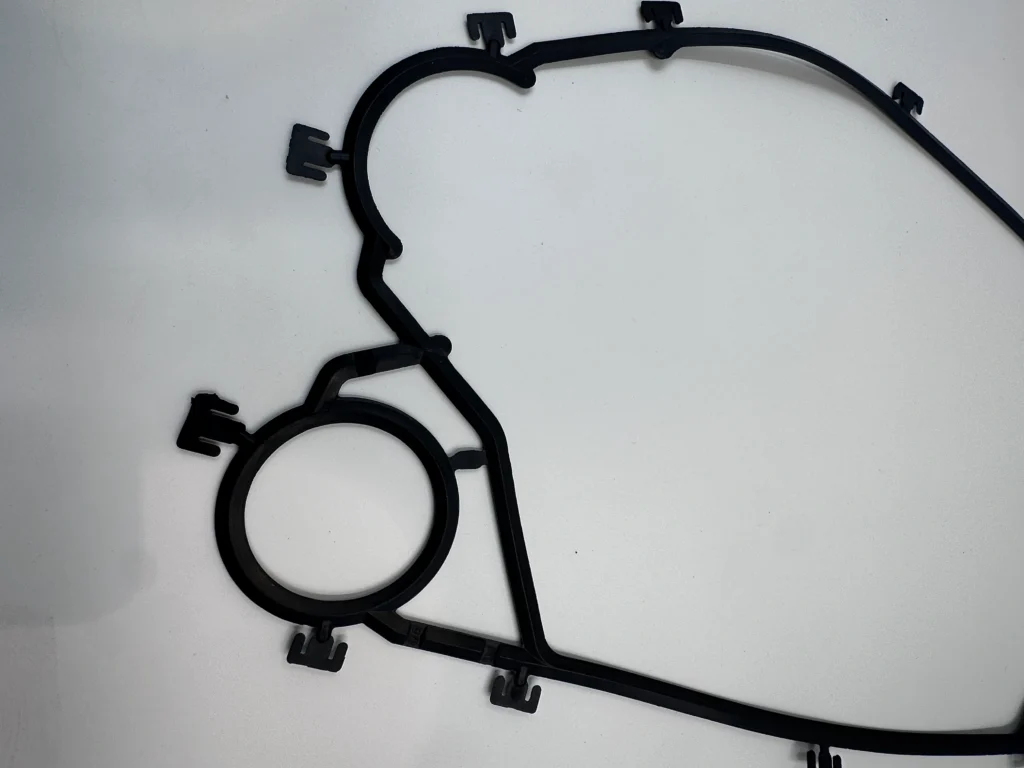

High-quality Alfa Laval P16 gasket for compatible Alfa Laval heat exchanger gaskets. — Compatible P16 gasket supplied as Alfa Laval heat exchanger spares.

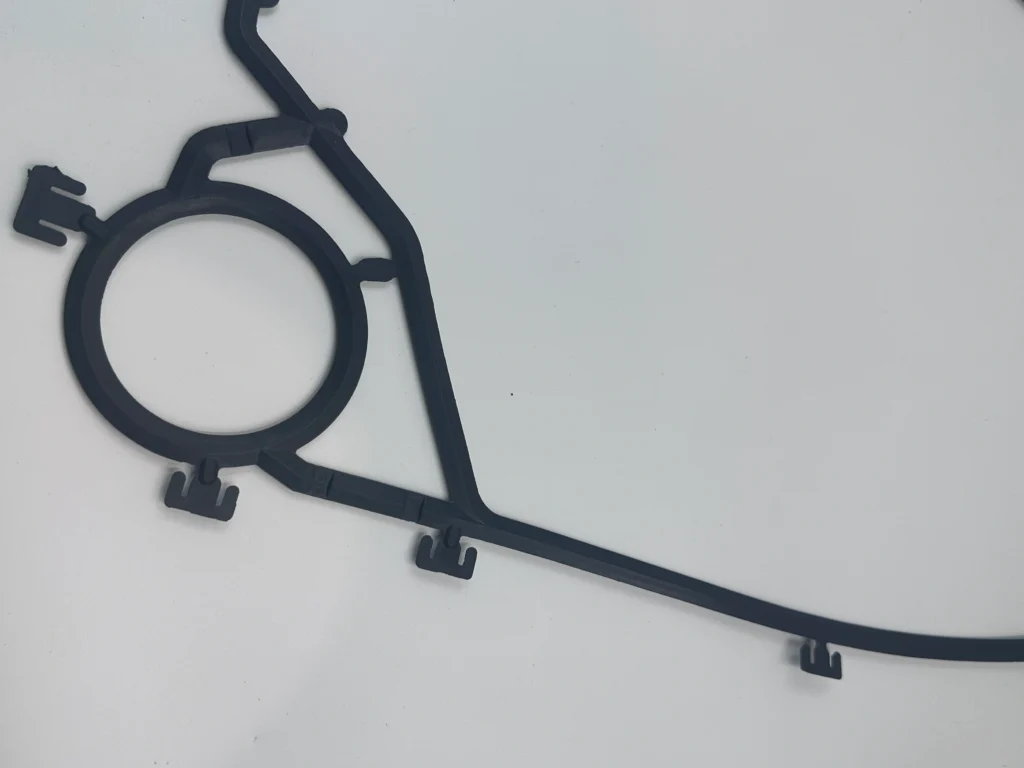

Durable replacement gasket for Alfa Laval P16 compatible with Alfa Laval PHE gasket designs. — Compatible Alfa Laval P16 gasket for Alfa Laval plate and frame heat exchanger servicing.

faq

Is the P16 gasket also suitable for P22 or P26 plate heat exchangers?

No. A gasket identified for the P16 series should not automatically be treated as suitable for P22 or P26 units. These models may use different plate dimensions, gasket grooves, fixing methods, and end plate configurations. The complete heat exchanger nameplate and original gasket information should be checked before ordering.

Are Alfa Laval P16 gaskets glued or clip-on?

The fixing method depends on the specific P16 plate and gasket version. Some configurations use glued gaskets, while others may use a mechanical clip-on installation method. Buyers should confirm the original fixing style rather than selecting a gasket only by the P16 model name.

Should I choose NBR or EPDM for a P16 gasket?

NBR is commonly selected for oil-related duties and general industrial water systems, while EPDM is often used with water, hot water, steam, salt solutions, and selected acid or alkaline media. Neither material is suitable for every application, so the operating fluid and temperature must be confirmed before selection.

Can Senovis PHE also supply P16 plates and other spare parts?

Yes. Senovis PHE supplies compatible P16 gaskets, heat transfer plates, end plate gaskets, and related plate heat exchanger spare parts. Supplying the plate and gasket information together can make it easier to verify the correct spare parts configuration.

Are Alfa Laval P16 gaskets available from stock?

Many standard P16 gasket configurations are normally available from stock, subject to the required material and fixing method. Stock items can usually be prepared for dispatch quickly after technical confirmation. Special materials or less common versions may require production, and the lead time will be confirmed in the quotation.u003cbru003e

How are P16 gaskets shipped to Malaysia?

Senovis PHE can ship P16 gaskets to Malaysia by DHL, FedEx, UPS, air freight, or sea freight. Express courier is generally suitable for urgent maintenance quantities, while air or sea freight may be more economical for larger gasket sets, plates, or combined spare parts orders. Delivery can be arranged to Kuala Lumpur, Selangor, Penang, Johor Bahru, Port Klang, and other locations in Malaysia.u003cbru003e

How can Malaysian buyers reduce the risk of ordering the wrong P16 gasket?

Do not purchase solely from the words u0022Alfa Laval P16 gasket.u0022 The safer method is to cross-check the full nameplate, plate version, gasket fixing method, material code, plate quantity, and end plate II gasket arrangement. Senovis PHE can review these details before production or shipment.
