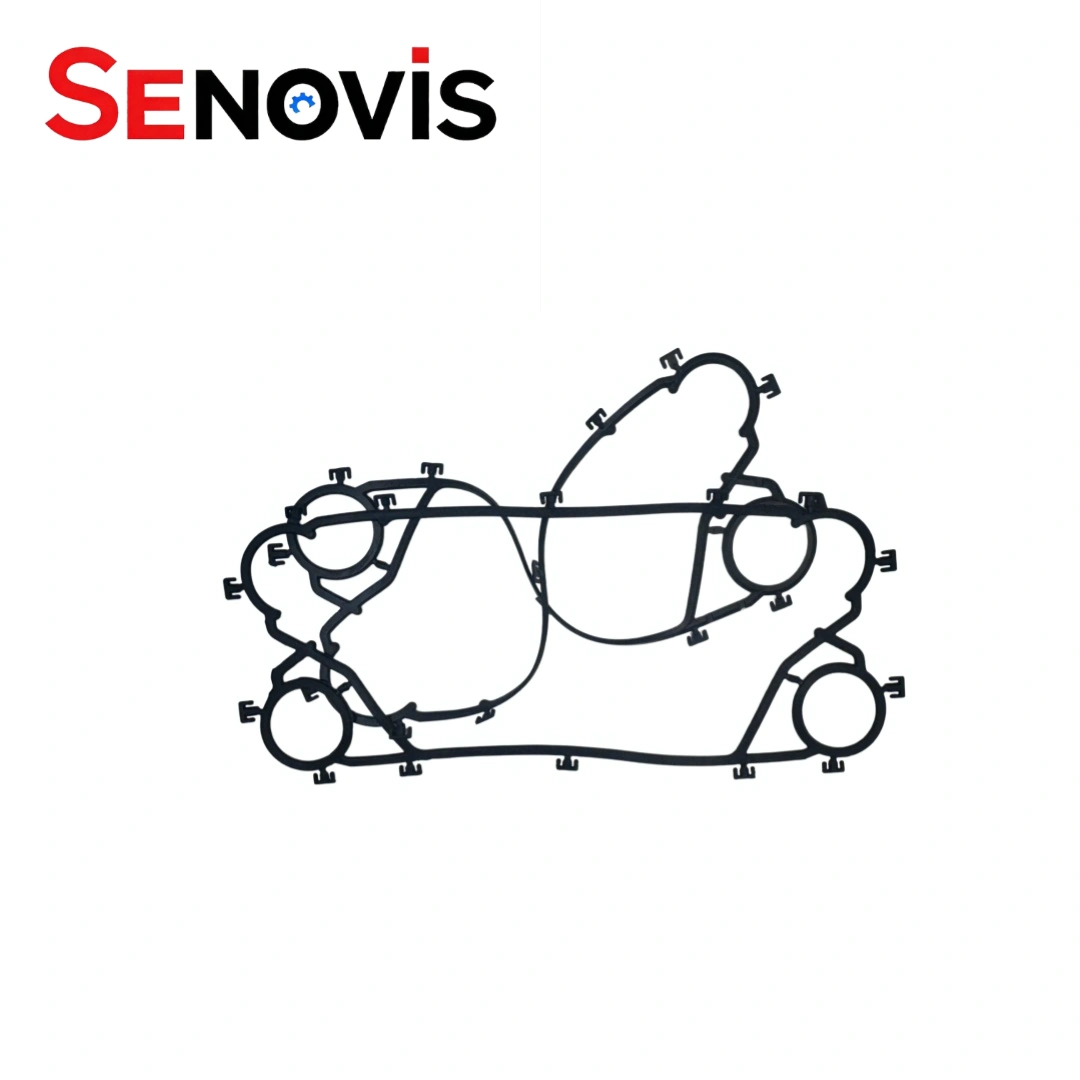

Compatible Alfa Laval Clip8 gaskets manufactured with premium white EPDM gasket materials. — Precision Clip8 gasket produced using white neoprene gasket material.

Malaysia PHE Gaskets For Oil Refinery Cooling Systems Alfa Laval Clip 8

The Alfa Laval Clip 8 gasket is a clip-on channel plate design for the Frontline 8 platform, referenced under part number 3450526301. Unlike glued designs, the clip-on format simplifies on-site replacement , no adhesive, less preparation time during a service window.

Alfa Laval Clip 8 PHE Gasket details

PHE Model

Alfa Laval Clip 8

Keyword

Alfa Laval PHE Gasket

Applicable Industries

HVAC, Power, Suger, Marine, Chemical, etc

Compatible Brands

Alfa Laval Exchanger

Connection Type

Clip on/ Glueless/ Glued

Gasket material

NBR、EPDM、FKM

Gas & Steam

Steam, Compressed Air, Nitrogen, Natural Gas, Flue Gas

Connection size

DN25-DN500

DESCRIPTION

The Alfa Laval Clip 8 Gasket is a replacement sealing solution designed for reliable performance in industrial plate heat exchanger maintenance.
The clip8 nbrff clip-on channel plate gasket is manufactured with precise dimensions to support dependable sealing under a wide range of operating conditions.
The alfa laval 3450526301 gasket h7/clip 8 is commonly specified for equipment servicing and replacement projects requiring compatible sealing components.
Our plate heat exchanger channel gaskets are produced using carefully selected elastomer materials to meet different process requirements.
The black alfa laval clip 8 phe gasket c8 is available for industrial applications where NBR sealing materials are required.
The gasket is designed for the alfa laval front 8 platform and supports routine maintenance of compatible plate heat exchangers.
Senovis PHE manufactures high quality alfa laval plate heat exchanger clip8 gasket solutions in multiple material options, including the clip8 epdmff clip-on channel plate gasket for different media and operating temperatures.
We also supply frontline plate heat exchanger plates and gaskets to support OEMs, distributors, and maintenance professionals worldwide.

Alfa Laval Clip 8 Gasket Replacement Specification

PHE Model	Alfa Laval Clip 8 Gasket EPDM Rubber
Applicable Industries	Hygienic Sealing Gaskets for Pasteurization Systems, Chemical and Petroleum Equipment, and Marine Heat Exchangers
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip on/ Glueless/ Glued
Gasket material	NBR,FKM, HNBR, ACM,Silicone,EPDM
Color	Black、 Customizable
Temperature Range(°C)	-15~180℃
Keyword	PHE Alfa Laval
Certificate	ISO / CE
Performance	Oil,Water resistant
Design Pressure	0.6MPa~5MPa

Alfa Laval Clip 8 Plate heat exchanger specification

Alfa Laval PHE Plate Heat Exchanger Replacemnet	Alfa Laval Clip 8
Corrugation Depth(mm)	4
Port Diameter(mm)	φ78
Chevron Angle	130°59°
Corrugation Pitch(mm)	13.69/13.7
Equivalent Diameter	8
Flow Area(m²)	0.00125
One Plate (m²)	0.37
Port Distance (mm)	1095*220
Dimensions (mm)	1245*370

Actual Product Details

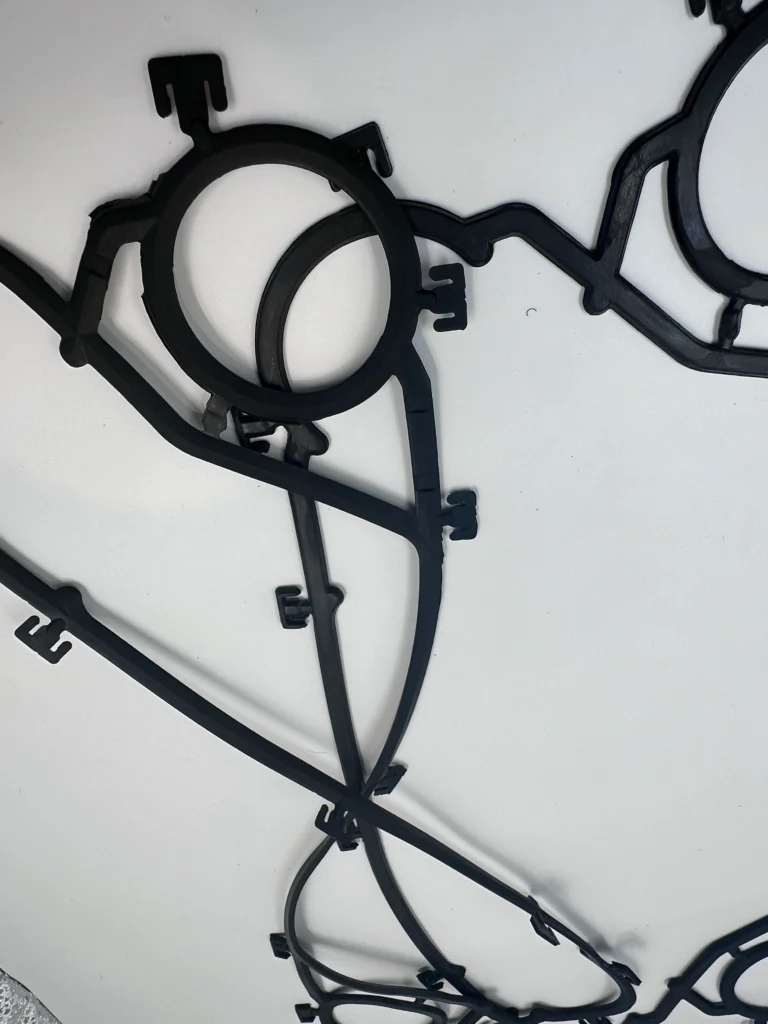

Precision Alfa Laval Clip8 gasket manufactured by a customized PHE gasket plate heat exchanger factory. — Industrial Clip8 gasket supplied by an experienced FKM heat exchanger gasket manufacturer.

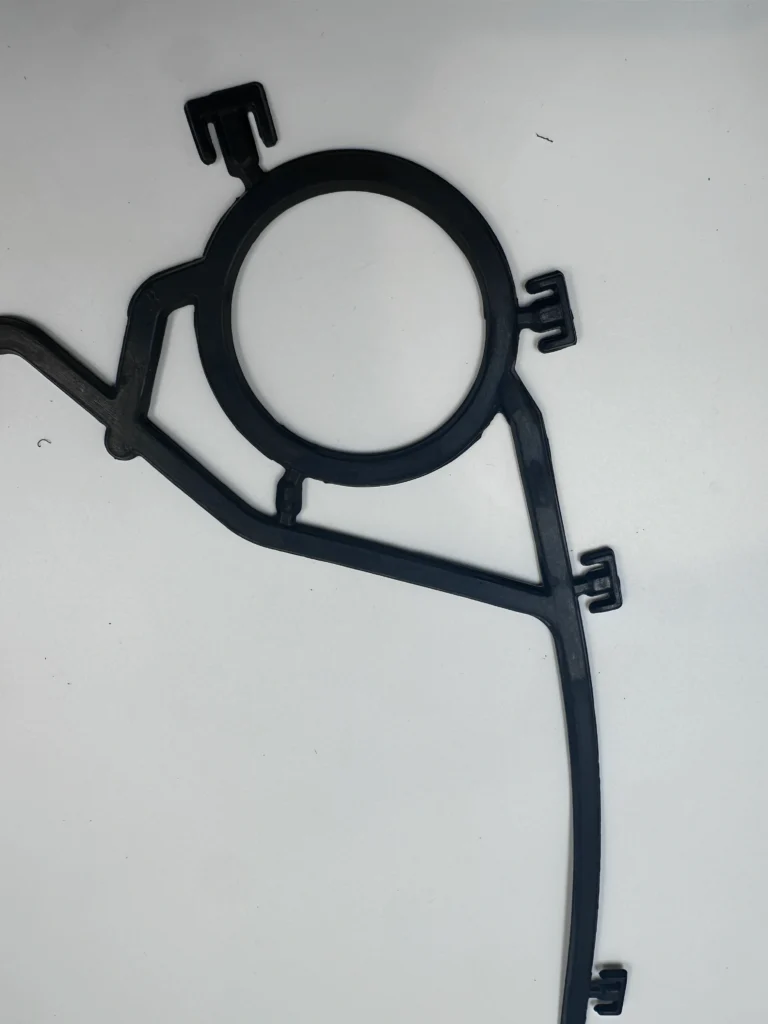

High-quality replacement gasket for Alfa Laval Clip8 using FKMG gasket for plate heat exchanger technology. — Compatible Alfa Laval Clip8 gasket supplied by a trusted FKMG gasket supplier.

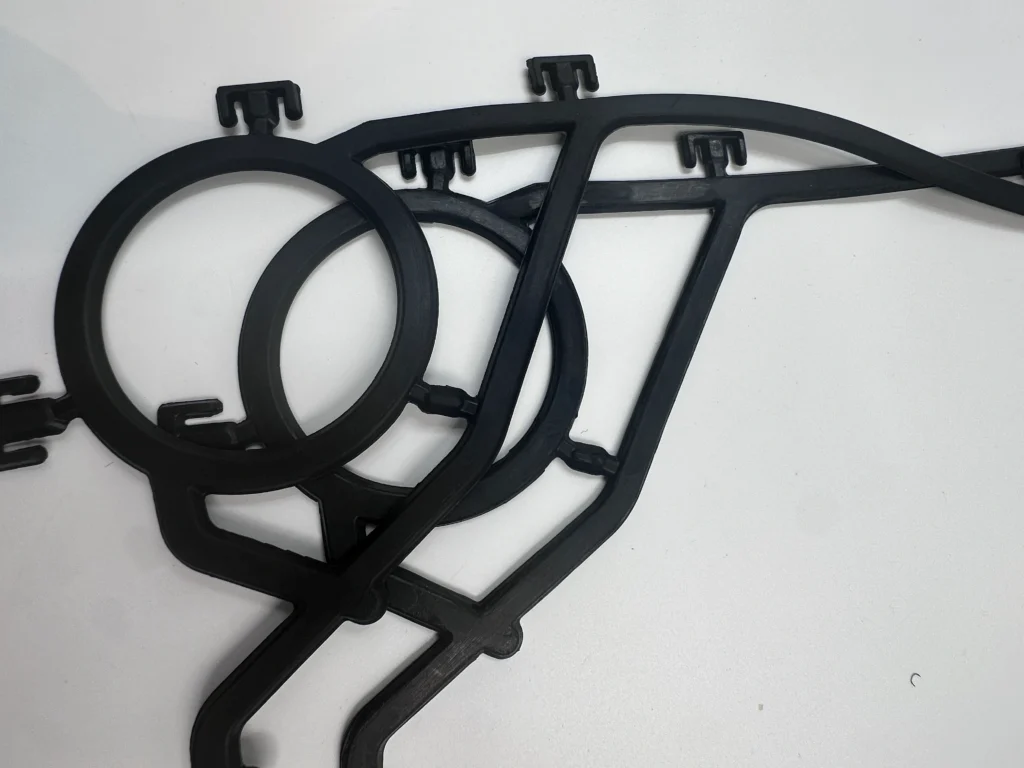

Durable Alfa Laval Clip8 gasket manufactured as premium fluorine rubber heat exchanger gaskets. — Precision Clip8 gasket designed as a gasket for plate heat exchanger.

faq

What is the primary function of the Alfa Laval Clip 8 gasket?

The Clip 8 gasket performs two essential functions. It seals the plate pack to prevent media leakage and guides the product and service fluids through alternating channels. Proper gasket performance helps maintain thermal efficiency, hygienic processing, and stable operating conditions.

Is the Alfa Laval Clip 8 gasket a clip-on gasket?

Yes. The Clip 8 uses a clip-on gasket design that attaches directly to the heat transfer plate without adhesive. This design allows faster gasket replacement, simplifies routine maintenance, and reduces service time during scheduled inspections.

Which industries commonly use the Alfa Laval Clip 8 gasket?

The Alfa Laval Clip 8 platform is widely used in hygienic processing industries, including:
Food processing
Dairy production
Beverage manufacturing
Biotechnology
Pharmaceutical processing
Personal care products
These industries require reliable sealing performance together with easy cleaning, hygienic equipment design, and suitable material compatibility for demanding sanitary heat transfer applications.

What features make the Alfa Laval Clip 8 suitable for sanitary applications?

The Clip 8 platform incorporates several hygienic design features, including a leak chamber, fixed bolt head, key hole bolt opening, bearing boxes, and pressure plate roller. Depending on the application, Gemini double-wall plates and WideStream configurations are also available to support different processing requirements.

Are Alfa Laval Clip 8 gaskets available from stock?

Yes. Senovis PHE keeps standard Alfa Laval Clip 8 compatible gaskets in stock for fast dispatch. Once the model, gasket material, and quantity are confirmed, orders can normally be prepared quickly to help reduce equipment maintenance downtime.

Do you supply Alfa Laval Clip 8 gaskets to the United Kingdom?

Yes. Senovis PHE supplies compatible Alfa Laval Clip 8 gaskets to customers throughout the United Kingdom, including food manufacturers, dairy processors, beverage companies, pharmaceutical plants, and sanitary equipment maintenance contractors. We regularly support customers in London, Birmingham, Manchester, Liverpool, Leeds, and other industrial regions with fast international delivery.

Can Senovis PHE help identify the correct Clip 8 gasket before ordering?

Yes. If you are unsure which Clip 8 gasket version is installed, simply send the heat exchanger nameplate, plate photos, or the existing gasket sample. Our engineering team will verify the plate configuration, gasket material, and replacement specification before production or shipment, helping reduce the risk of ordering incorrect sanitary spare parts.
