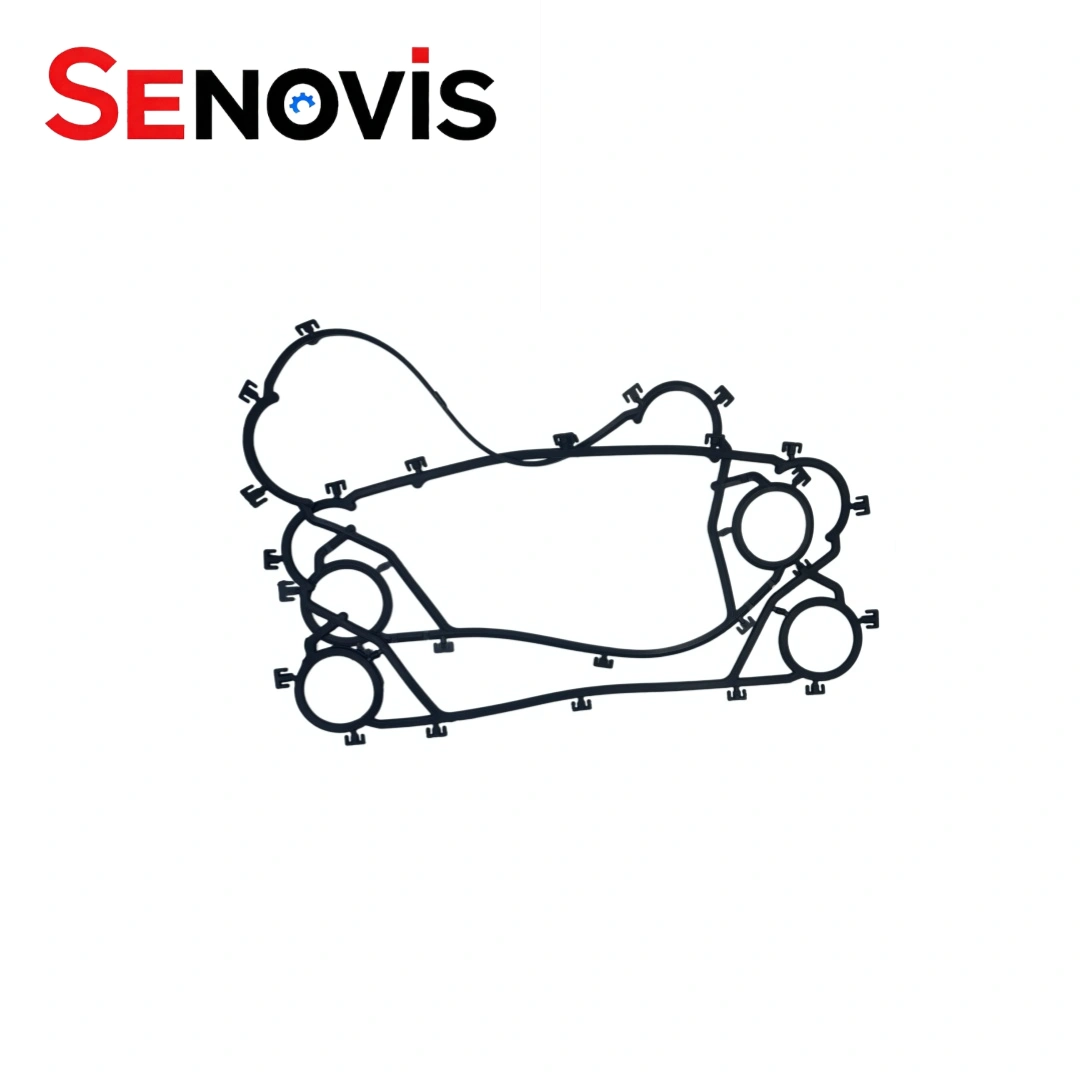

Compatible Alfa Laval Clip6 gaskets manufactured with premium rubber silicone gasket materials. — Precision Clip6 gasket designed for silicone gasket high temperature applications.

Alfa Laval Front 6 PHE Plate And Gasket Manufacturer Alfa Laval Clip 6

The Alfa Laval Clip 6 gasket fits the Frontline 6 plate-and-frame heat exchanger , a frame that sees heavy use across general industrial heat transfer where consistent gasket performance under continuous operation matters more than in intermittent-duty systems.

Alfa Laval Clip 6 PHE Gasket details

PHE Model

Alfa Laval Clip 6

Keyword

Alfa Laval Clip On Gasket

Applicable Industries

HVAC, Power, Suger, Marine, Chemical, etc

Compatible Brands

Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.

Connection Type

Clip On, Lock In, Fasten, Glued

Gasket material

NBR, EPDM, HNBR, HEPDM, rubber

Chemical Fluids

Sulfuric Acid, Hydrochloric Acid, Nitric Acid, Caustic Soda, Ethanol

Connection size

DN25-DN500

DESCRIPTION

The Alfa Laval Clip 6 Gaskets are replacement sealing solutions designed for dependable performance in industrial plate heat exchanger maintenance.
The clip6 nbr-ff channel plate gasket is manufactured with precise dimensions to support reliable sealing in demanding operating conditions.
It is suitable for the alfa laval frontline 6 gasketed plate-and-frame heat exchanger, supporting routine maintenance and spare parts replacement.
The alfa laval front 6 platform is widely used in industrial heat transfer systems where dependable gasket performance is required.
Each alfa laval phe gasket is manufactured using carefully selected elastomer materials to meet different application requirements.
Senovis PHE supplies alfa laval rubber gasket solutions, including black nbr gasket options for a wide range of industrial sealing applications.

Alfa Laval Clip 6 Gasket Replacement Specification

PHE Model	Alfa Laval Clip 6 FKM Gasket
Applicable Industries	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip on/ Glueless/ Glued
Gasket material	NBR,FKM, HNBR, ACM,Silicone,EPDM
Color	Black
Temperature Range(°C)	-15~180℃
Keyword	PHE Gasket Suppliers
Certificate	ISO / CE
Usage	Refrigeration Equipment
Design Pressure	0.6MPa~5MPa

Alfa Laval M15 Plate heat exchanger specification

Alfa Laval PHE Plate Heat Exchanger Replacemnet	Alfa Laval Clip 6
Corrugation Depth(mm)	4
Port Diameter(mm)	φ51
Chevron Angle	130°70°
Corrugation Pitch(mm)	14
Equivalent Diameter	8
Flow Area(m²)	0.00084
One Plate (m²)	0.18
Port Distance (mm)	859*130
Dimensions (mm)	998*244

Actual Product Details

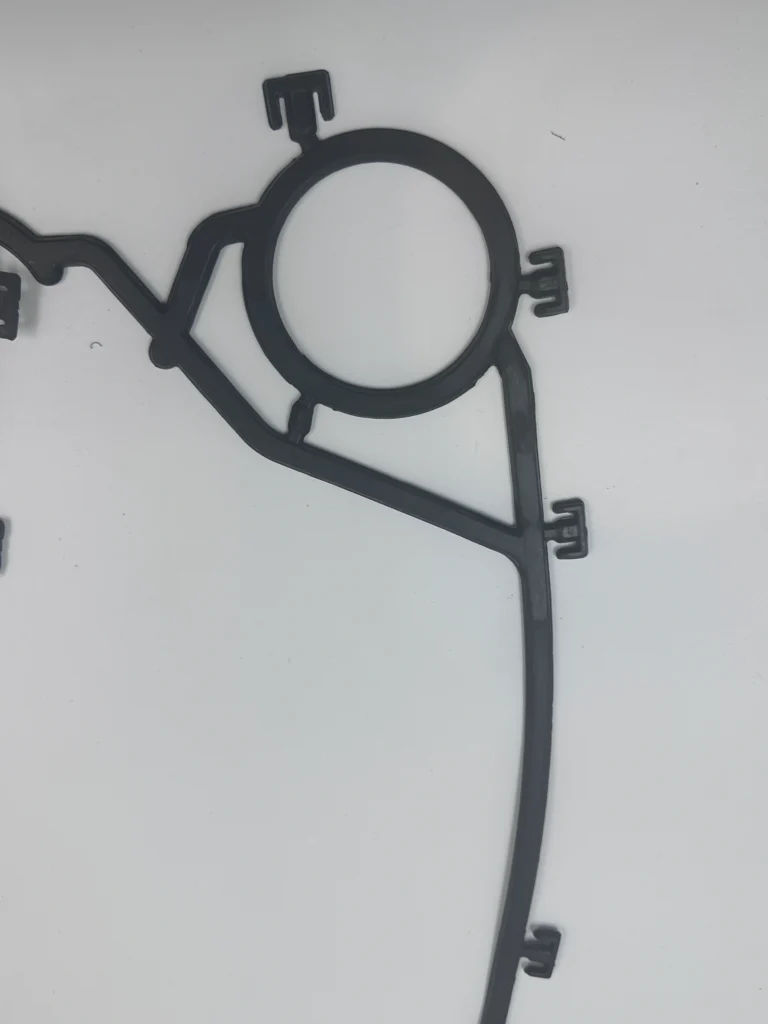

High-quality replacement gasket for Alfa Laval Clip6 manufactured as a premium silicone rubber gasket. — Compatible Alfa Laval Clip6 gasket for silicone vs EPDM gasket selection.

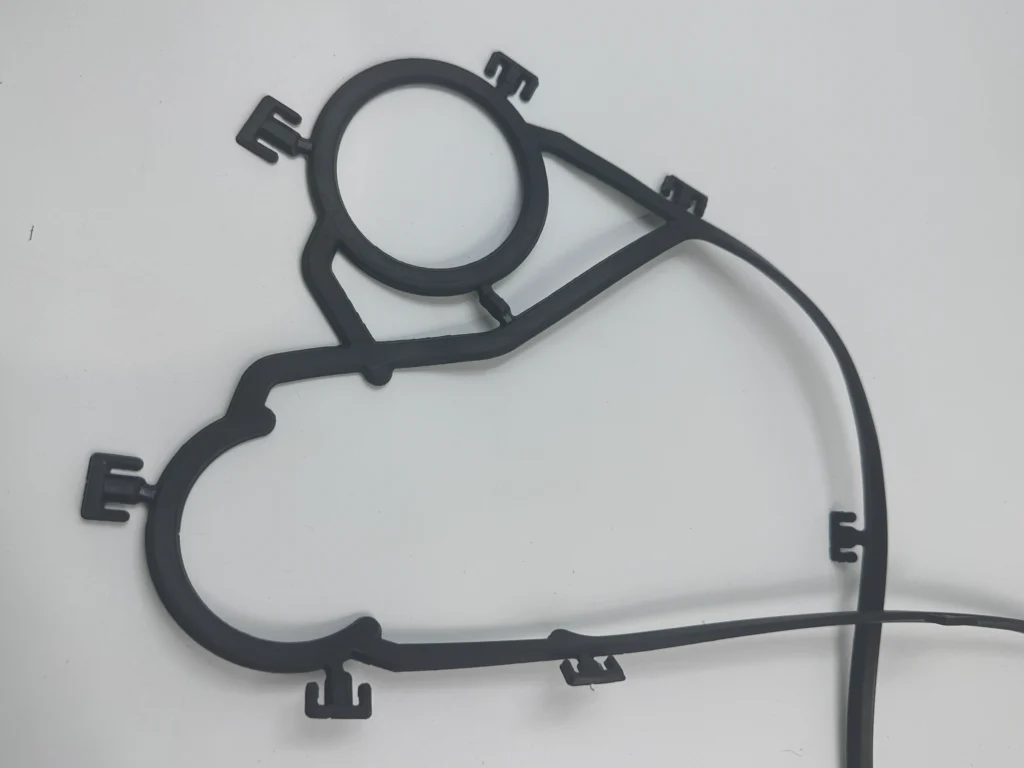

Durable Alfa Laval Clip6 gasket manufactured using premium Viton gasket material. — Precision Clip6 gasket produced with Viton rubber gasket material.

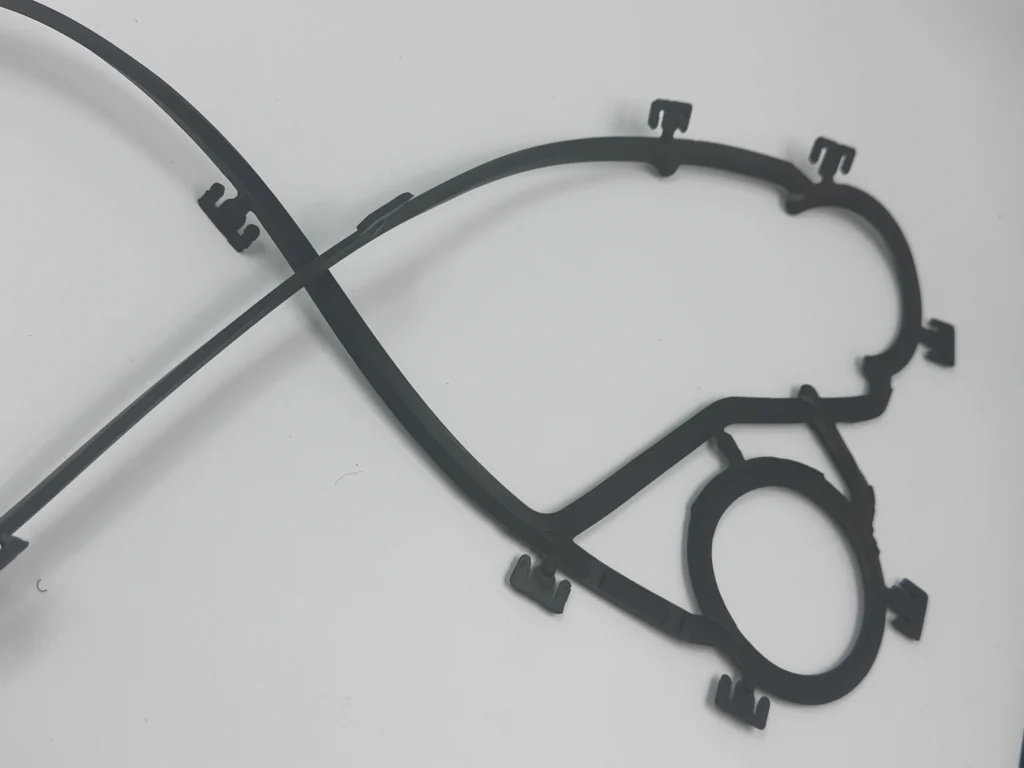

Precision Alfa Laval Clip6 gasket supplied by professional silicone gasket manufacturers. — Industrial Clip6 gasket provided by a trusted silicone gasket supplier.

faq

What is an Alfa Laval Clip 6 gasket?

The Alfa Laval Clip 6 gasket is a clip-on channel plate gasket designed for Clip 6 sanitary plate heat exchangers. Its primary function is to seal the plate channels and guide the product and service media safely through alternating flow passages, helping maintain efficient heat transfer in hygienic processing systems. Senovis PHE manufactures compatible replacement Clip 6 gaskets for sanitary plate heat exchanger maintenance.

What type of gasket is used on the Alfa Laval Clip 6?

The Clip 6 uses a clip-on gasket design that allows the gasket to be securely attached to the heat transfer plate without adhesive. This installation method helps simplify routine maintenance, gasket replacement, and cleaning during scheduled servicing.

Which materials are available for the Alfa Laval Clip 6 gasket?

Senovis PHE supplies compatible Clip 6 gaskets in several elastomer materials, including:
NBR
EPDM
Material selection should be based on:
Product media
Operating temperature
Cleaning chemicals
CIP process requirements
Hygienic application standards
Senovis PHE helps customers select suitable Clip 6 gasket materials according to actual operating conditions to ensure reliable sealing performance in hygienic heat transfer systems.

Does the Alfa Laval Clip 6 support hygienic applications?

Yes. The Clip 6 platform is designed for hygienic plate heat exchanger applications. Depending on the specific configuration, gasket materials may comply with relevant food-contact requirements such as FDA regulations, while the heat exchanger platform is widely used in sanitary processing environments.

Why choose Senovis PHE for Alfa Laval Clip 6 gasket replacement?

Senovis PHE specializes in compatible sanitary plate heat exchanger gaskets, plates, and spare parts. We offer multiple gasket material options, stock availability for standard Clip 6 gaskets, technical selection support, fast quotations, and worldwide shipping to help customers maintain hygienic heat exchanger systems efficiently.
