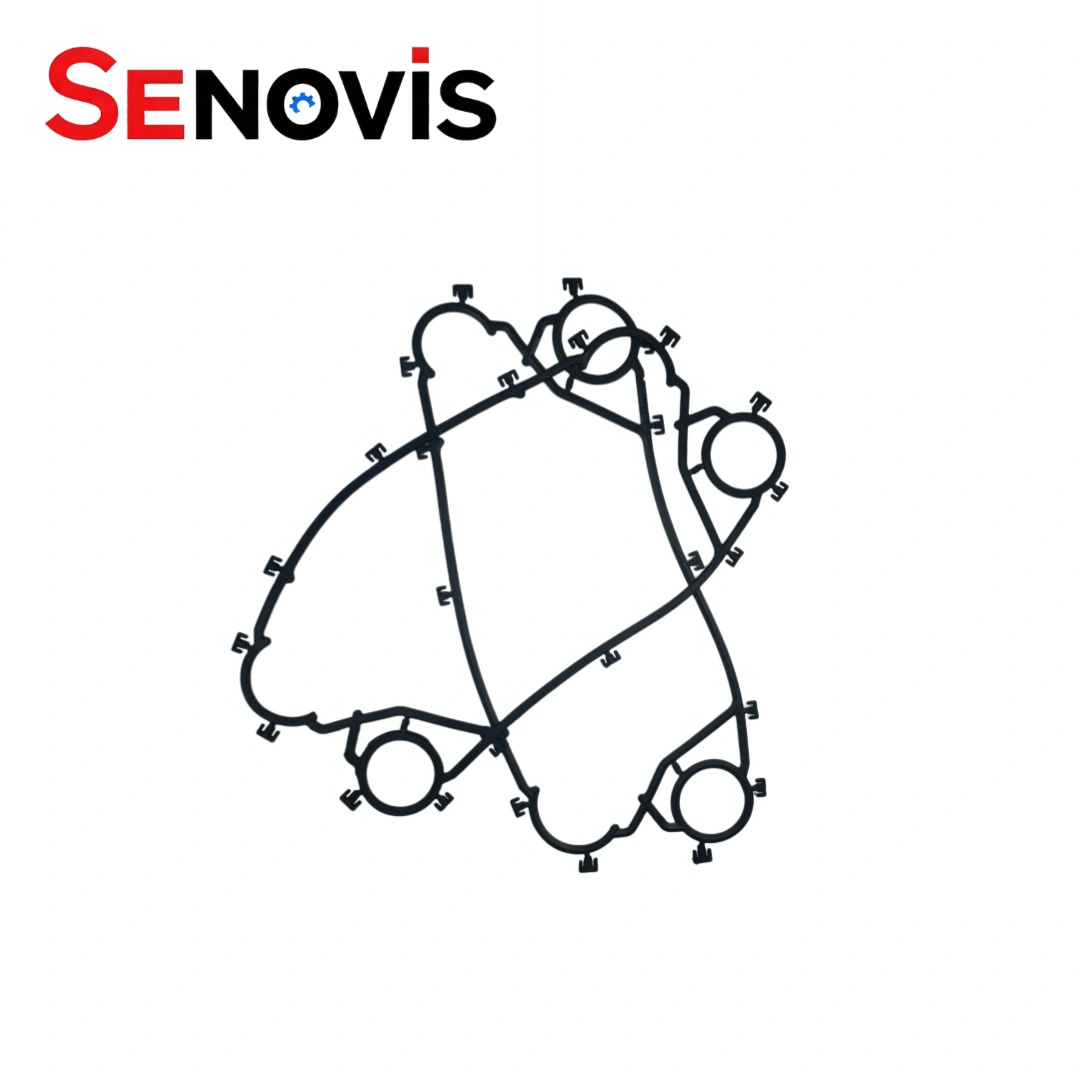

Compatible Alfa Laval Clip3 gaskets supplied by professional PHE gasket suppliers. — Precision Clip3 gasket for plate and frame heat exchanger Alfa Laval applications.

Food Grade FKMG FKM NBRP Gasket EPDM Rubber Alfa Laval Clip 3

The Alfa Laval Clip 3 gasket is a glued channel plate design for the Clip-3 plate-and-frame heat exchanger , one of the more established frames in food and beverage processing, where gasket material selection carries more weight than in standard industrial applications.

Food-grade EPDM and Viton options are available for hygienic processing requirements alongside standard compounds industrial .

Alfa Laval Clip 3 PHE Gasket details

PHE Model

Alfa Laval Clip 3

Keyword

Alfa Laval Heat Exchanger Parts

Applicable Industries

Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper

Compatible Brands

PHE Gasket Brands

Connection Type

Clip-on/ Glue/ Glueless

Gasket material

EPDM, NBR, HNBER, HEPDM,FKW

Oil Applications

Thermal Oil, Hydraulic Oil, Lubricating Oil, Fuel Oil

Connection size

DN25-DN500

DESCRIPTION

The Alfa Laval Clip 3 Gasket is a replacement sealing solution designed for reliable performance in industrial plate heat exchanger maintenance.
It is manufactured for the alfa laval clip-3 gasketed plate-and-frame heat exchanger, supporting routine servicing and gasket replacement applications.
The clip3-b nbrb glued channel plate gasket is produced with precise dimensions to help maintain effective sealing under appropriate operating conditions.
Each plate heat exchanger rubber gasket is manufactured using elastomer materials selected according to the working media, temperature, and application requirements.
As experienced viton gasket manufacturers, Senovis PHE provides multiple material options for different industrial operating environments.
We also offer epdm gasket food grade solutions for applications requiring suitable elastomer materials in food and beverage processing systems.

Alfa Laval Clip3 Gasket Replacement Specification

PHE Model	Alfa Laval Clip 3 Evaporator Alfa Laval Gasket
Applicable Industries	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip on/ Glueless/ Glued
Gasket material	NBR,FKM, HNBR, ACM,Silicone,EPDM
Color	Black/White
Temperature Range(°C)	-15~180℃
Keyword	NBR Gasket Supplier
Certificate	ISO / CE
Service	Professional technical support for model selection and installation
Design Pressure	0.6MPa~5MPa

Alfa Laval Clip 3 Plate heat exchanger specification

Alfa Laval PHE Plate Heat Exchanger Replacemnet	Alfa Laval Clip3
Corrugation Depth(mm)	4.0
Port Diameter(mm)	φ38
Chevron Angle	130° / 70°
Corrugation Pitch(mm)	13.9
Equivalent Diameter	8.0
Flow Area(m²)	0.00050
One Plate (m²)	0.10
Port Distance (mm)	650 × 95
Dimensions (mm)	760 × 180

Actual Product Details

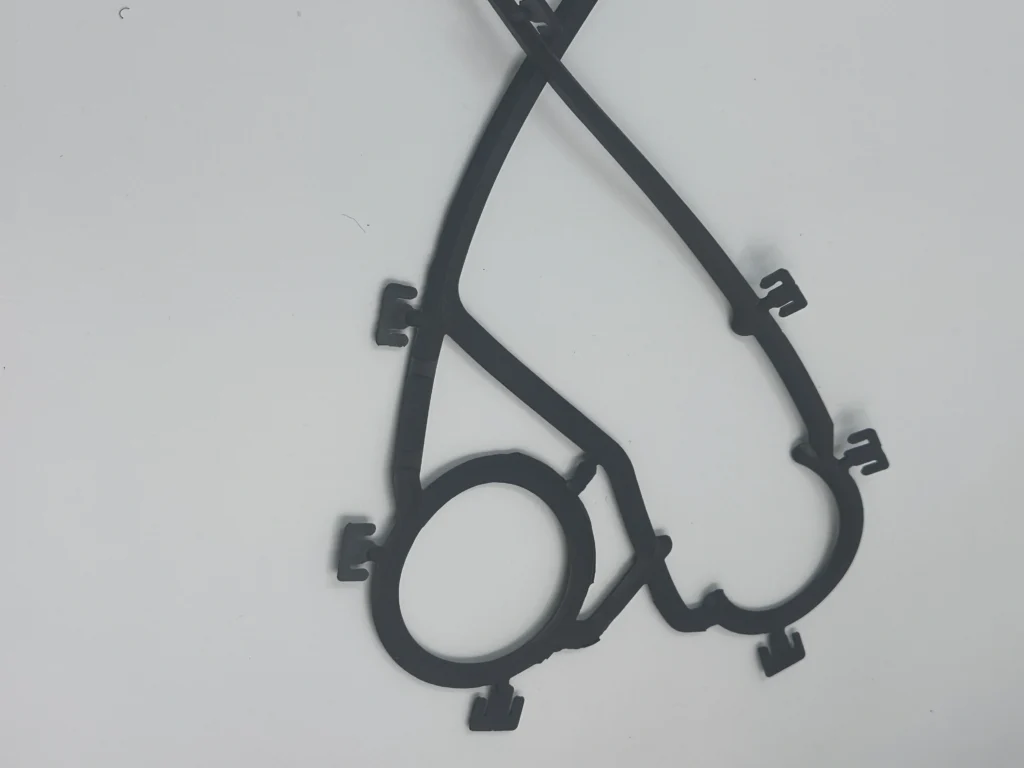

Precision Alfa Laval Clip3 gasket for compatible plate heat exchanger Alfa Laval systems. — Industrial Clip3 gasket manufactured by an experienced plate heat exchanger gasket manufacturer.

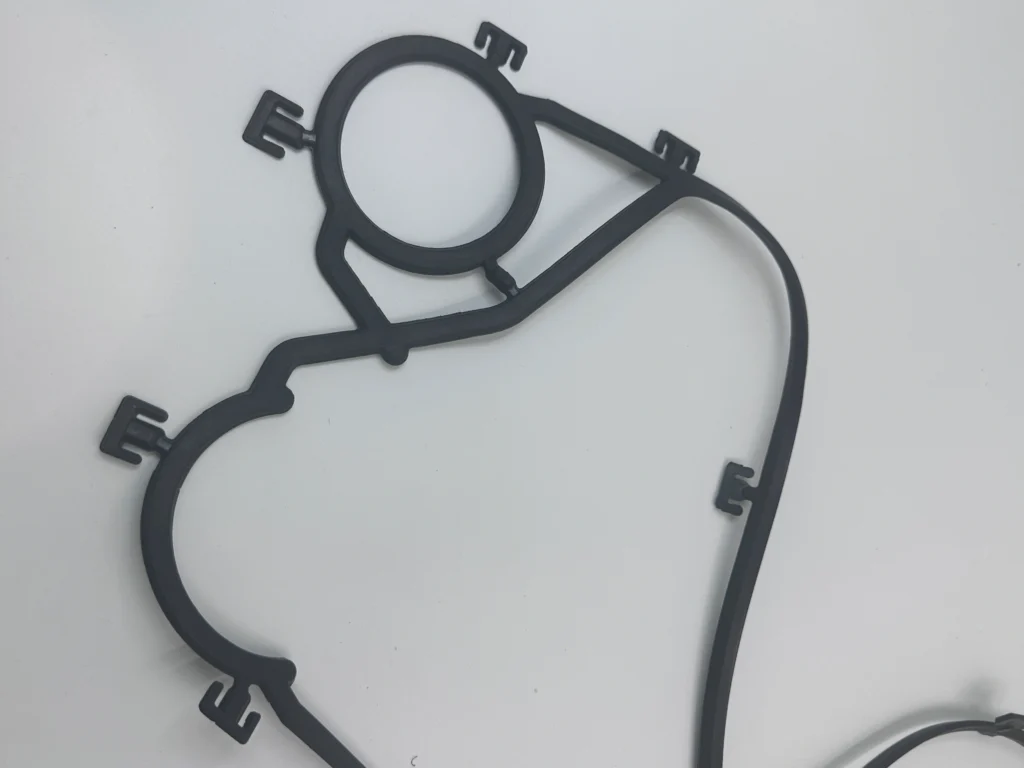

High-quality replacement gasket for Alfa Laval Clip3 supplied by a trusted plate heat exchanger gasket supplier. — Compatible Alfa Laval Clip3 gasket manufactured with plate heat exchanger rubber gasket technology.

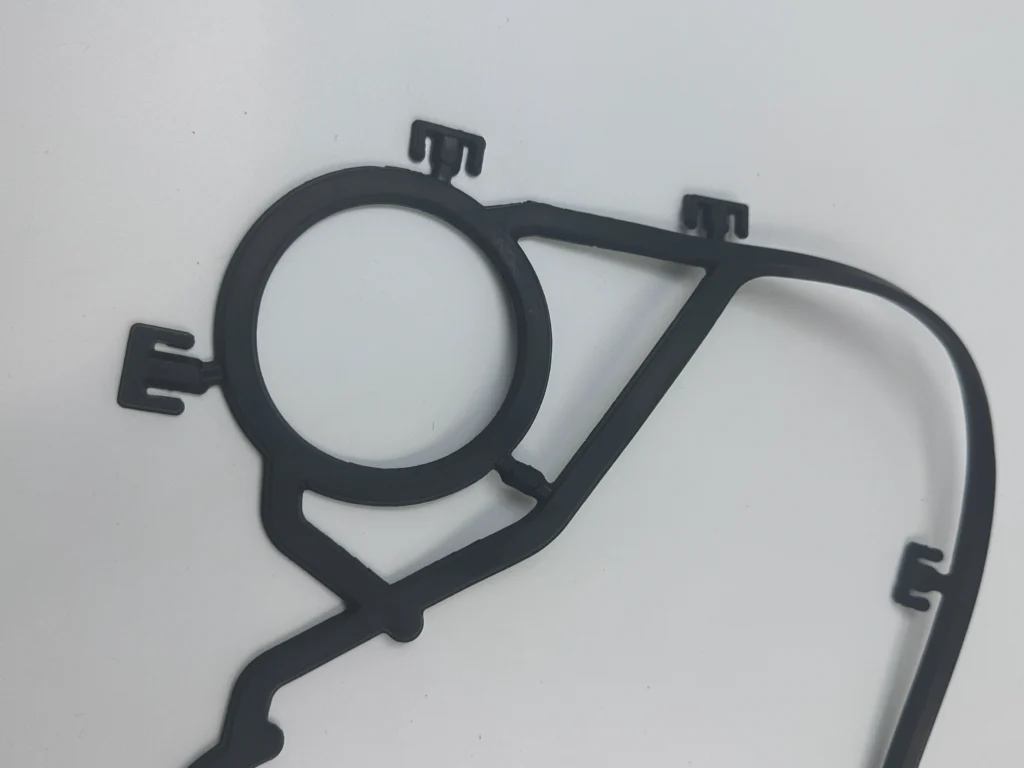

Durable Alfa Laval Clip3 gasket manufactured from premium rubber EPDM gasket materials. — Precision Clip3 gasket produced with rubber gasket of EPDM quality.

faq

What is an Alfa Laval Clip 3 gasket?g time for separate spare parts (plates, gaskets)?

The Alfa Laval Clip 3 gasket is a compatible clip-on channel plate gasket designed for Clip 3 hygienic plate heat exchangers. Installed between adjacent heat transfer plates, it seals the flow channels while directing product and service media through the designed flow paths. Senovis PHE manufactures compatible Clip 3 gaskets for hygienic maintenance, routine servicing, and spare parts replacement.

Which industries commonly use the Alfa Laval Clip 3 gasket?

Compatible Clip 3 gaskets are widely used in:
Food and beverage processing
Dairy production
Breweries
Biotechnology
Pharmaceutical manufacturing
Personal care products
Hygienic process industries
Different gasket materials should be selected according to the actual operating conditions, including:
Product media
Operating temperature
Cleaning chemicals
CIP process requirements
Hygienic standards
Senovis PHE supplies compatible Clip 3 gasket solutions with suitable elastomer options for hygienic plate heat exchanger maintenance and replacement projects.

Are Alfa Laval Clip 3 gaskets available from stock?

Yes. Senovis PHE keeps standard compatible Alfa Laval Clip 3 gaskets in stock for fast dispatch. After confirming the model, gasket material, and required quantity, orders can normally be prepared promptly, helping customers reduce maintenance downtime.

Do you supply Alfa Laval Clip 3 gaskets to Malaysia?

Yes. Senovis PHE supplies compatible Alfa Laval Clip 3 gaskets to customers throughout Malaysia, including food processing companies, beverage manufacturers, dairy plants, pharmaceutical facilities, engineering contractors, and hygienic process equipment service providers. We regularly arrange deliveries to Kuala Lumpur, Selangor, Johor Bahru, Penang, and other industrial regions.

Can Senovis PHE support food industry certification and export documents?

For food and beverage processing projects, Senovis PHE can support common export documentation and project documentation where applicable, including:
Material Certificate
Inspection Report
Certificate of Origin (CO)
Commercial Invoice
Packing List
For projects requiring food-grade gasket materials or customer-specific documentation, please advise us before production so the suitable material selection and required documents can be confirmed in advance.
Senovis PHE supports customers with technical verification, material confirmation, and documentation assistance for hygienic plate heat exchanger maintenance projects.
