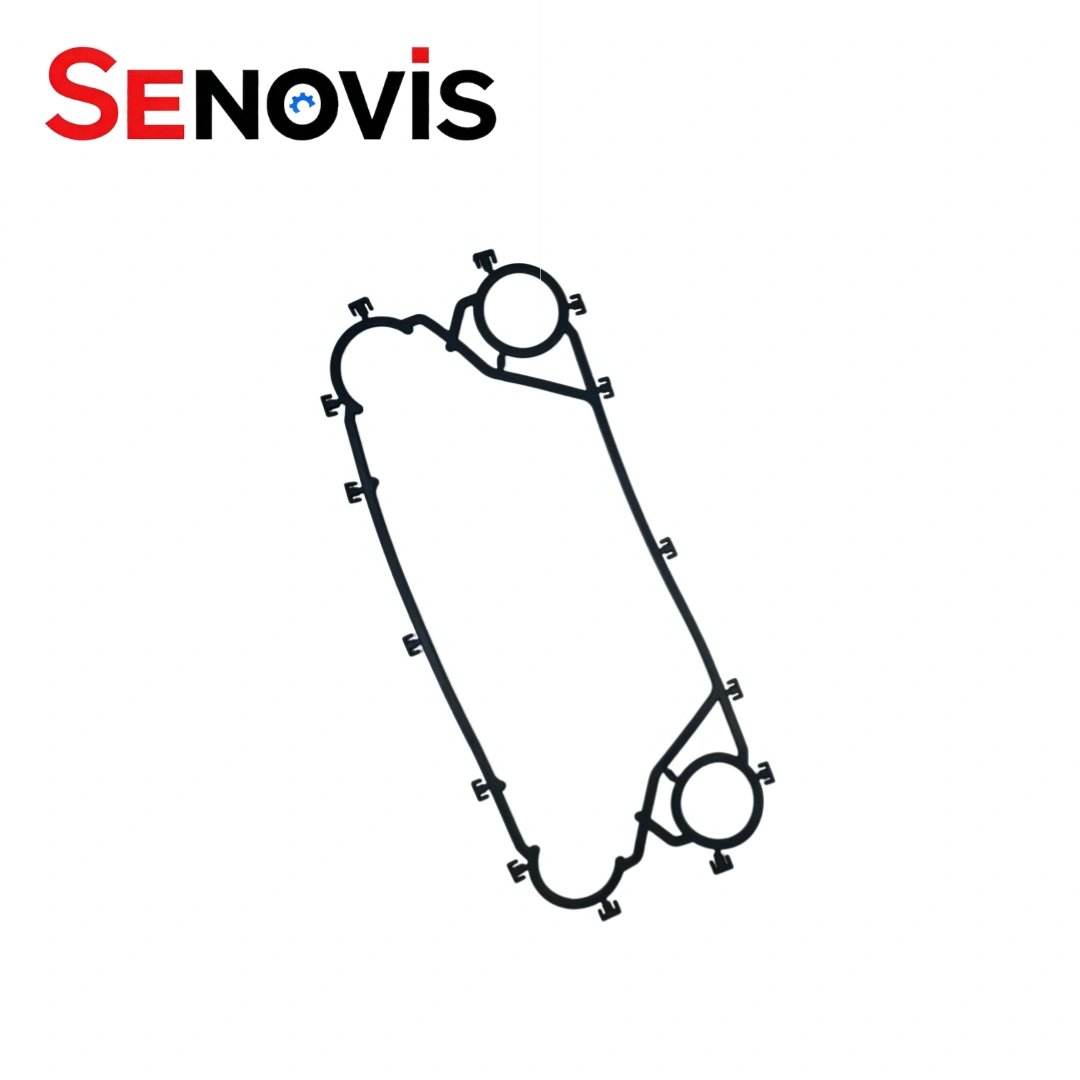

Compatible Alfa Laval Clip10 gaskets designed as premium gasket PHE solutions. — Precision Clip10 gasket supplied by a trusted gaskets for plate heat exchanger supplier.

Alfa Laval Front 10 FKMG Fluorine Rubber Heat Exchanger Gaskets Clip 10

The Alfa Laval Clip 10 gasket is built for hygienic and dairy processing applications , milk pasteurisation, cheese processing and similar food-grade systems .

Part number 3350003902 covers the standard EPDM variant. NBR is available for applications where the process media calls for it.

Alfa Laval Clip 10 PHE Gasket details

PHE Model

Alfa Laval Clip 10

Keyword

Alfa Laval PHE Gaskets

Applicable Industries

HVAC, Power, Suger, Marine, Chemical, etc

Compatible Brands

Alfa Laval Gasketed Plate Heat Exchanger

Connection Type

Clip on/ Glueless/ Glued

Gasket material

NBR/HNBR/SIL/EPDM/FVMQ/AFLAS/FKM/FFKM/EPDM, etc.

Pharmaceutical & Industrial Fluids

Purified Water (PW), Water for Injection (WFI), CIP Solution, Buffer Solution

Connection size

DN25-DN500

DESCRIPTION

The Alfa Laval Clip 10 Gasket is a replacement sealing solution designed for hygienic plate heat exchanger applications in food and industrial processing.
It is widely used with alfa laval clip 10 dairy & food equipment, supporting routine maintenance and gasket replacement requirements.
The gasket is suitable for alfa laval clip 10 cheese milk pasteuriser used machines, helping maintain dependable sealing performance in dairy processing systems.
Our clip10 epdm-ff channel plate gasket is manufactured with precise dimensions for reliable installation and operation.
The alfa laval 3350003902 gasket clip 10 epdmff is commonly referenced for equipment servicing and spare parts replacement.
As an alfa laval clip 10 phe gasket c10 manufacturer from china, Senovis PHE supplies compatible gasket solutions for global OEMs, distributors, and maintenance professionals.
These products are suitable for heat exchangers for hygienic use, with elastomer materials selected according to media, temperature, and process requirements.
We also manufacture the alfa laval clip10-nbrp-c/peak channel plate gasket for applications requiring compatible NBR sealing materials.

Alfa Laval Clip 10 Gasket Replacement Specification

PHE Model	Alfa Laval Clip 10 Gasket In Plate Heat Exchanger
Applicable Industries	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip on/ Glueless/ Glued
Gasket material	NBR,FKM, HNBR, ACM,Silicone,EPDM
Color	Black/White
Temperature Range(°C)	-15~180℃
Keyword	Plate Heat Exchanger Gasket Manufacturer
Certificate	ISO / CE
Performance	Corrosion resistance, aging resistance, abrasion resistance
Design Pressure	0.6MPa~5MPa

Alfa Laval Clip 10 Plate heat exchanger specification

Alfa Laval PHE Plate Heat Exchanger Replacemnet	Alfa Laval Clip 10
Corrugation Depth(mm)	4
Port Diameter(mm)	φ104
Chevron Angle	125°61°
Corrugation Pitch(mm)	13.76/13.92
Equivalent Diameter	8
Flow Area(m²)	0.00117
One Plate (m²)	0.63
Port Distance (mm)	1324*324
Dimensions (mm)	1496*494

Actual Product Details

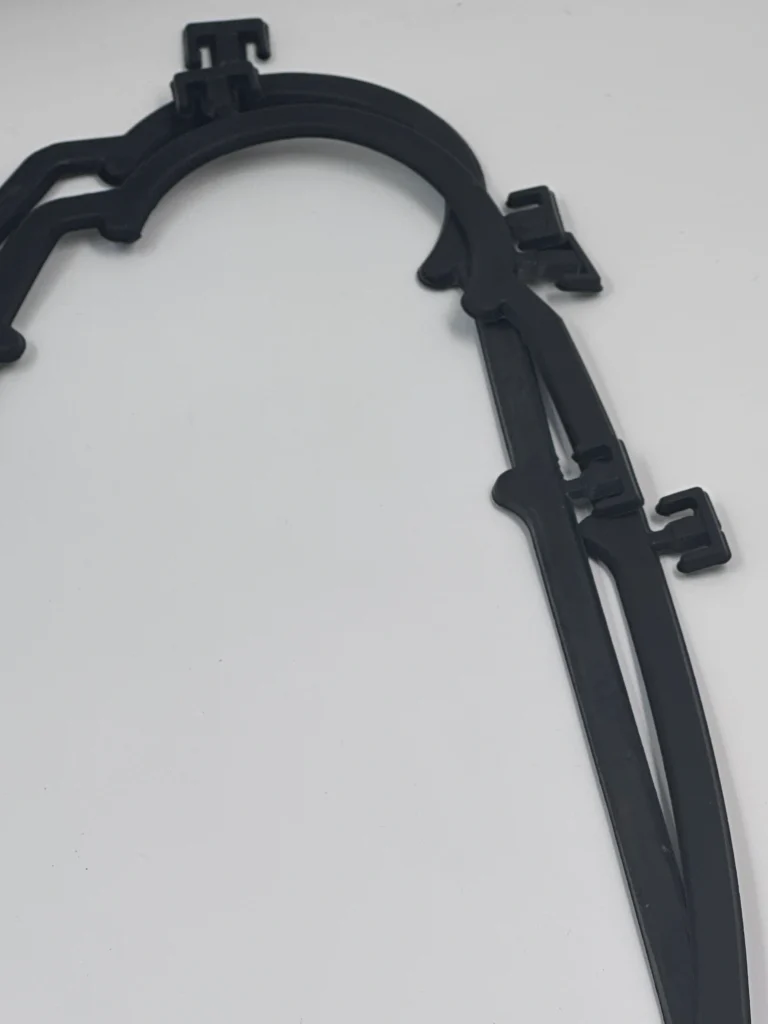

Precision Alfa Laval Clip10 gasket manufactured as premium gaskets heat exchanger replacements. — Industrial Clip10 gasket engineered as durable gaskets plate heat exchanger solutions.

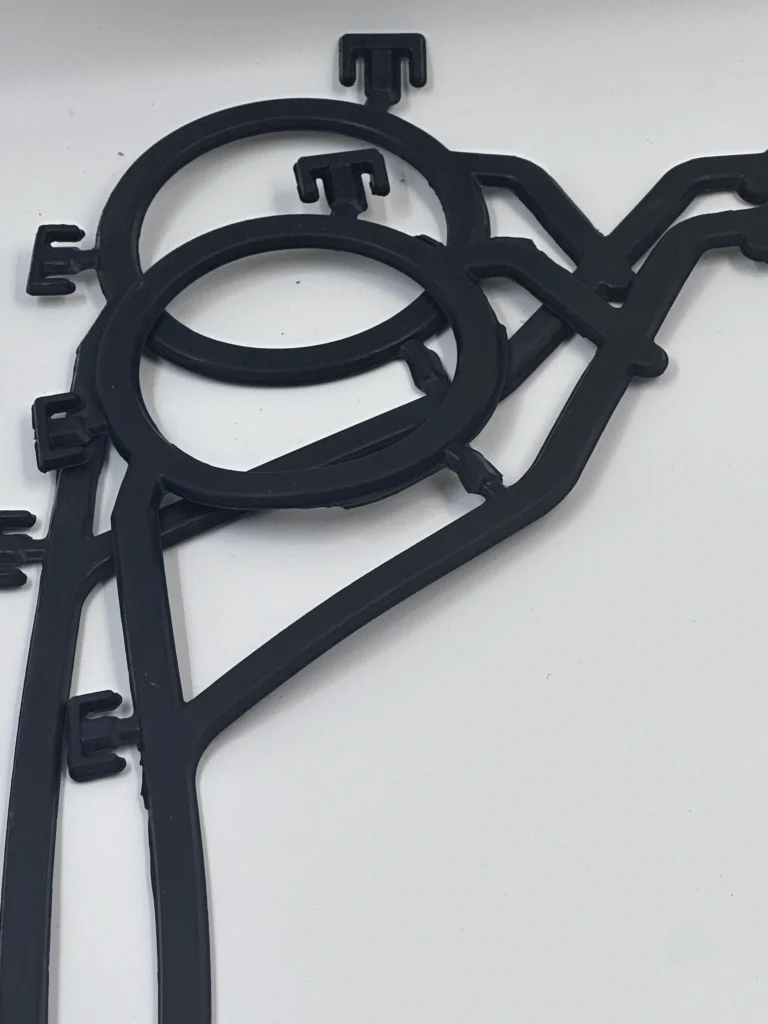

High-quality replacement gasket for Alfa Laval Clip10 produced by an experienced heat exchanger gasket manufacturer. — Compatible Alfa Laval Clip10 gasket supplied by a professional heat exchanger gasket supplier.

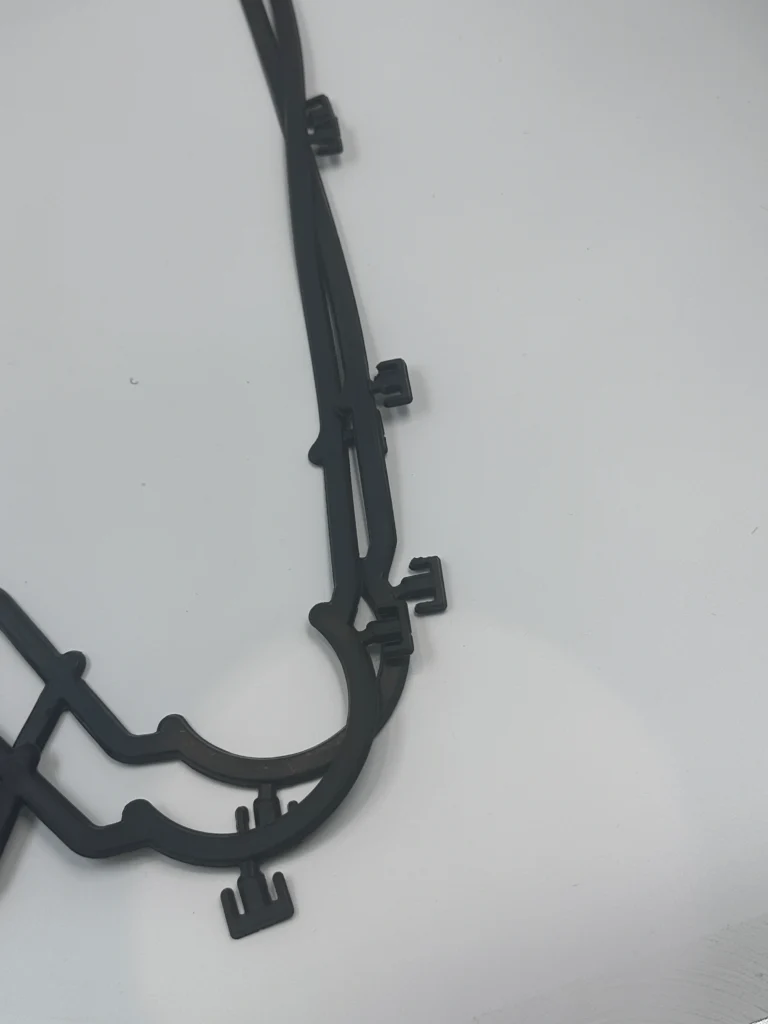

Durable Alfa Laval Clip10 gasket manufactured as premium NBR gasket for plate heat exchanger. — Precision Clip10 gasket manufactured as a reliable PHE gasket.

faq

What is an Alfa Laval Clip 10 gasket?

The Alfa Laval Clip 10 gasket is a clip-on end plate gasket designed for M10 series sanitary plate heat exchangers. It helps seal the end plate area, directs the process media toward the connection ports, and supports hygienic and efficient heat transfer. Senovis PHE manufactures compatible Clip 10 replacement gaskets for routine maintenance and spare parts replacement.

What industries commonly use the Alfa Laval Clip 10 gasket?

The Clip 10 platform is widely used in hygienic processing industries, including:u003cbru003eDairy processingu003cbru003eCheese productionu003cbru003eMilk pasteurizationu003cbru003eFood processingu003cbru003eBeverage manufacturingu003cbru003ePharmaceutical productionu003cbru003ePersonal care productsu003cbru003eThese industries require dependable sealing performance together with hygienic equipment design.

Is the Alfa Laval Clip 10 gasket suitable for dairy heat exchangers?

Yes. The Clip 10 gasket is commonly used in sanitary plate heat exchangers serving dairy processing applications, including milk pasteurizers and cheese production systems. Suitable gasket materials should always be selected according to the product media and cleaning process.

Are Alfa Laval Clip 10 gaskets available from stock?

Yes. Senovis PHE keeps standard compatible Alfa Laval Clip 10 gaskets in stock for fast dispatch. After confirming the model, gasket material, and quantity, orders can normally be prepared quickly to help reduce maintenance downtime.

Can Senovis PHE help verify the correct gasket before ordering?

Yes. If you are unsure which Clip 10 gasket is installed, simply send the heat exchanger nameplate, plate photos, or the existing gasket sample. Our engineering team will verify the gasket specification before shipment to reduce the risk of ordering the wrong spare parts.
