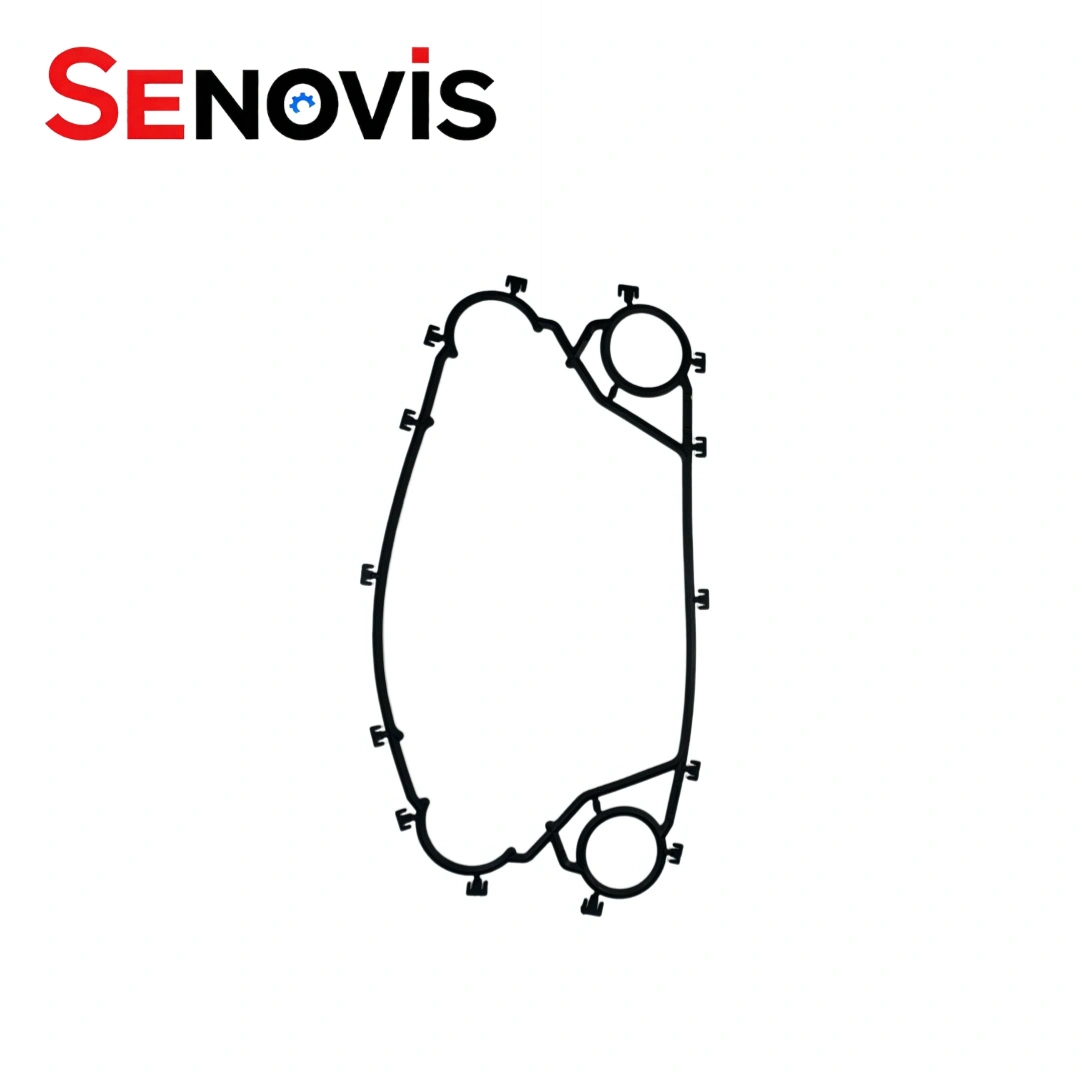

Compatible Alfa Laval A20B gaskets designed for NBR vs EPDM gasket comparison and replacement. — Precision A20B gasket manufactured as a compatible neoprene gasket.

Alfa Laval Plate Heat Exchanger Gaskets A20B High Temp Rubber Gasket

The Alfa Laval A20B gasket tends to come up in maintenance situations where getting the dimensions exactly right matters — the glued channel plate format leaves less room for tolerance variation than snap-on designs, so fit and compound selection both count.

Material options cover the range of media and temperatures the A20B frame typically encounters in industrial service.

Alfa Laval A20B PHE Gasket details

PHE Model

Alfa Laval A20B

Keyword

Alfa Laval Heat Exchanger Gaskets

Applicable Industries

Machinery Repair Shops, Manufacturing Plant

Compatible Brands

Alfa Laval Rubber Gasket

Connection Type

Clip-On, Loc-In And Glued

Gasket material

NBR EPDM HEPDM HNBR FKM

Food & Beverage Media

Milk, Cream, Whey, Juice, Beer, Syrup

Connection size

DN25-DN500

DESCRIPTION

The Alfa Laval A20B Gaskets are replacement sealing solutions designed for dependable performance in industrial plate heat exchanger maintenance.
The a20-b nbrp glued channel plate gasket is manufactured with precise dimensions to support stable sealing under a wide range of operating conditions.
Our alfa laval a20b gaskets and plates are produced for routine maintenance, equipment refurbishment, and spare parts replacement.
Senovis PHE supplies alfa laval a20b phe spares and heat exchanger components to support OEMs, distributors, and maintenance professionals worldwide.
These products are suitable for alfa laval heat exchanger gasket replacement, helping reduce maintenance downtime across various industrial applications.
As a professional plate heat exchanger gasket supplier, Senovis PHE manufactures compatible gasket and plate solutions for global aftermarket requirements.

Alfa Laval A20B Gasket Replacement Specification

PHE Model	Alfa Laval A20B EPDM Rubber Gasket
Applicable Industries	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip on/ Glueless/ Glued
Gasket material	NBR,FKM, HNBR, ACM,Silicone,EPDM
Color	Black
Temperature Range(°C)	-40°C~+200°C
Keyword	High Temperature EPDM Gasket
Certificate	ISO / CE
Performance	Anti-leakage/anti-aging/corrosion resistant
Design Pressure	0.6MPa~5MPa

Alfa Laval M15 Plate heat exchanger specification

Alfa Laval PHE Plate Heat Exchanger Replacemnet	Alfa Laval A20B
Corrugation Depth(mm)	2.95
Port Diameter(mm)	φ210
Chevron Angle	70 126
Corrugation Pitch(mm)	9.53
Equivalent Diameter	5.9
Flow Area(m²)	0.0021
One Plate (m²)	1
Port Distance (mm)	1550*430
Dimensions (mm)	1836*716

Actual Product Details

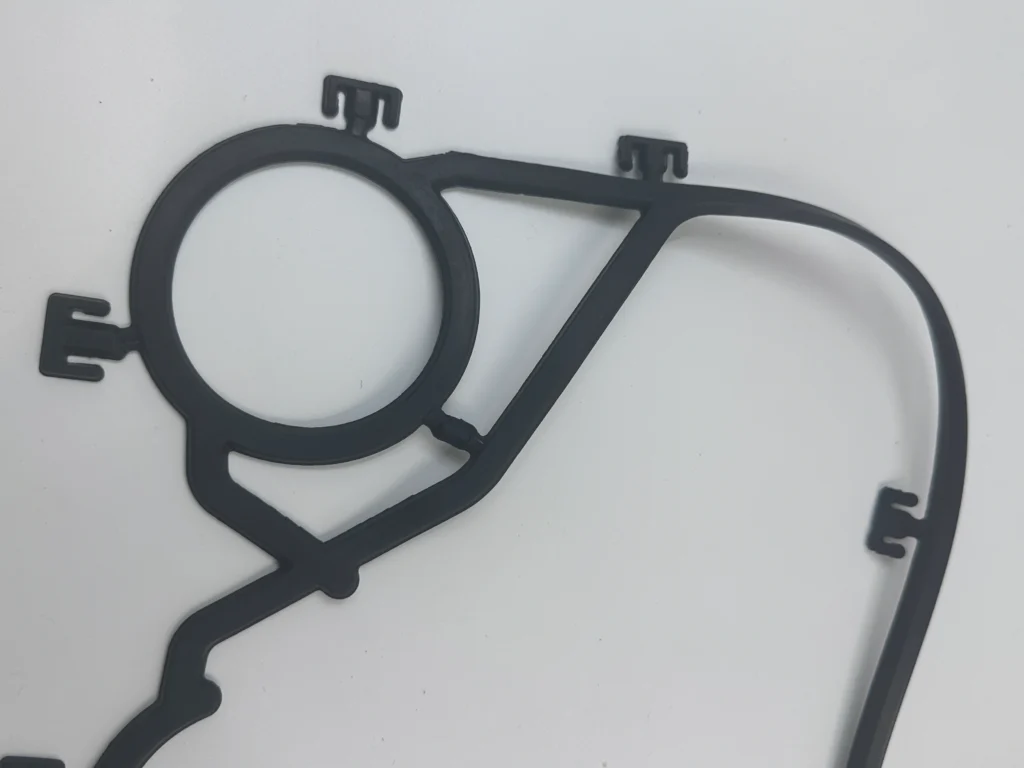

Precision Alfa Laval A20B gasket supplied by professional neoprene gaskets suppliers. — Industrial A20B gasket manufactured with premium neoprene rubber gasket material.

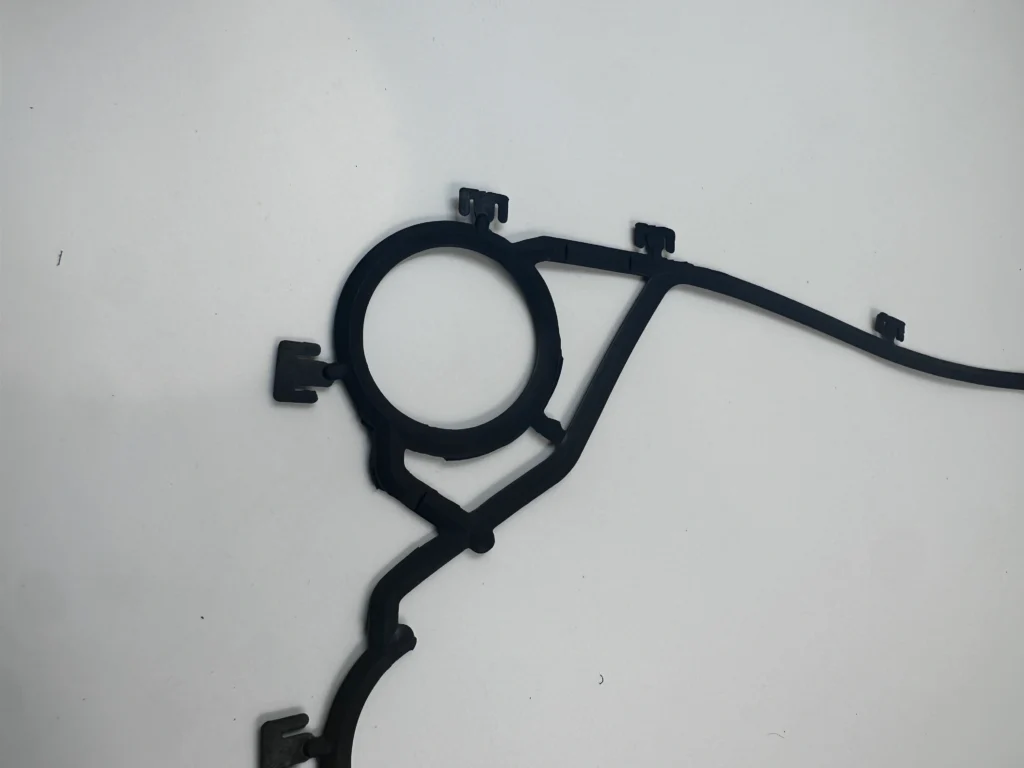

High-quality replacement gasket for Alfa Laval A20B manufactured from nitrile butadiene rubber gasket compounds. — Compatible Alfa Laval A20B gasket produced with premium nitrile rubber gasket material.

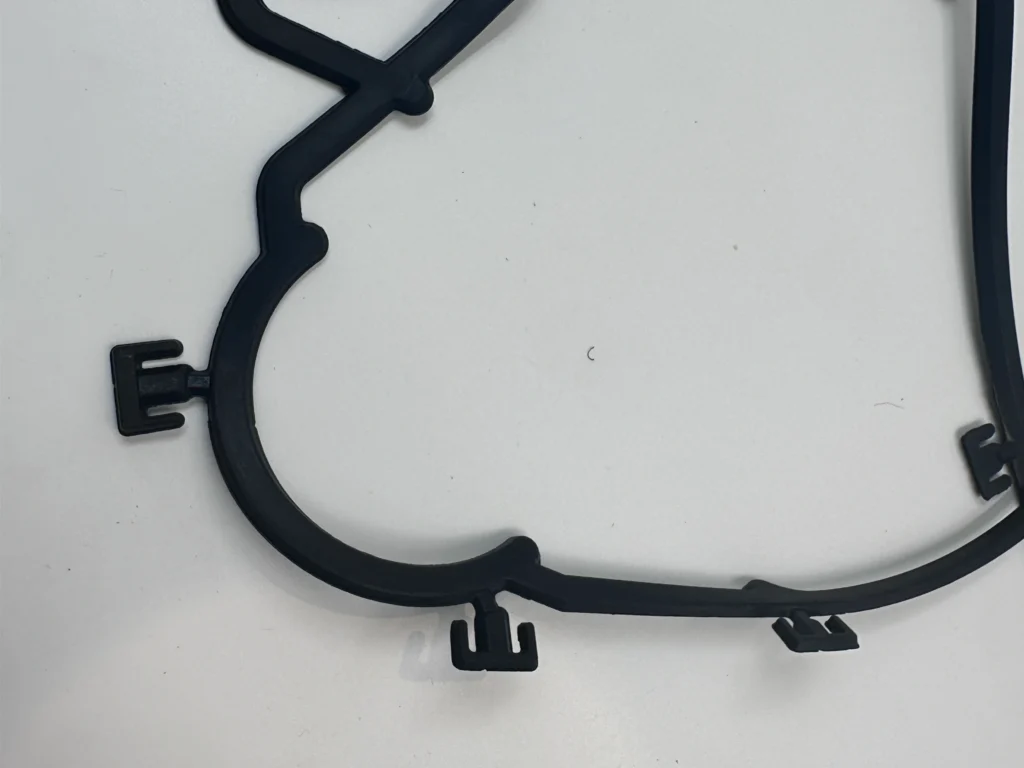

Durable Alfa Laval A20B gasket manufactured with premium nitrile rubber gaskets. — Precision A20B gasket for nitrile vs neoprene gasket sealing applications.

faq

Are Alfa Laval A20B gaskets available in different attachment types?

Yes. Compatible Alfa Laval A20B gaskets are available in different attachment styles depending on the original plate design, including glued and clip-on versions. Before ordering, customers should confirm both the gasket profile and the attachment type to ensure the replacement matches the installed plate pack.

Are Alfa Laval A20B gaskets available from stock?

Yes. Senovis PHE keeps standard compatible Alfa Laval A20B gaskets in stock for fast dispatch. Once the model, gasket material, and quantity are confirmed, orders can normally be prepared promptly, helping reduce maintenance downtime for planned and emergency maintenance projects.

Do you supply Alfa Laval A20B gaskets to Colombia?

Yes. Senovis PHE supplies compatible Alfa Laval A20B gaskets to customers throughout Colombia, including industrial maintenance companies, food and beverage manufacturers, chemical plants, engineering contractors, and heat exchanger service providers. We can arrange shipments to Bogotá, Medellín, Cali, Barranquilla, Cartagena, and other industrial regions.

What certifications and export documents can Senovis PHE support for Colombian projects?

For customers in Colombia, Senovis PHE can provide common export and project documentation where required, including:
Material Certificate
Inspection Report
Certificate of Origin (CO)
Commercial Invoice
Packing List
If your project requires additional third-party inspection or customer-specific documentation, please inform us before production so we can review the requirements and confirm the available documents in advance.
Senovis PHE supports customers with technical verification, product documentation, and export assistance for plate heat exchanger gasket, plate, and spare parts projects.

What are your standard payment terms?

Senovis PHE’s standard payment terms are 30% deposit in advance and 70% balance before shipment.
For standard A20B gaskets available from stock, orders can normally be prepared quickly after technical confirmation.
Shipment will be arranged after:
Technical details are confirmed
Order preparation is completed
Balance payment is received
For customized gasket materials or special requirements, production and delivery arrangements will be confirmed according to the specific project conditions.

Can you provide a detailed breakdown of the quotation?

Sure. Our formal quotation includes product cost, production cost, packaging cost, transportation cost, insurance cost and tax (if any), so you can clearly check each cost item.
