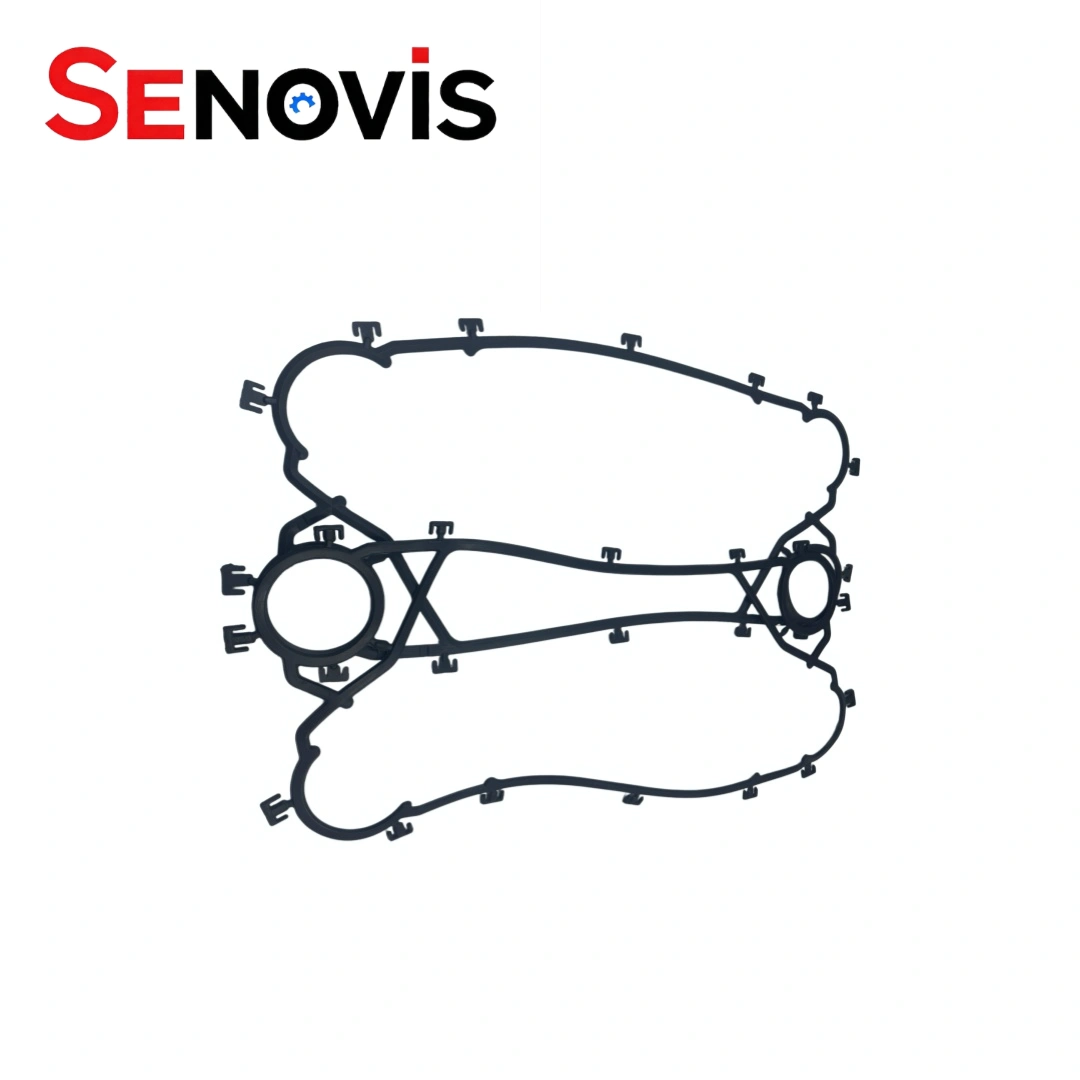

Compatible Alfa Laval A15B gaskets manufactured with high temperature EPDM gasket technology. — Precision A15B gasket produced with high temperature silicone gasket materials.

NBRP Nitrile Neoprene Rubber Gasket Alfa Laval PHE Gasket A15B

The Alfa Laval A15B gasket is a direct replacement for Alfa Laval A15B plate heat exchangers. The snap-on design fits precisely to original dimensions d.

Available in multiple elastomer compounds to suit different media and operating temperatures. The nameplate reference 3233002246 is usually enough to confirm the right spec.

Send over your nameplate details and we’ll sort it from there.

Alfa Laval A15B PHE Gasket details

PHE Model

Alfa Laval A15B

Keyword

Alfa Laval Heat Exchanger Gasket Replacement

Applicable Industries

Food & Beverage Factory, Energy & Mining, Food & Beverage Shops

Compatible Brands

Alfa Laval Plate Heat Exchanger Industrial

Connection Type

Clip on/ Glueless/ Glued

Gasket material

NBR,Nitrile,EPDM,silicon,VMQ,FKM,FPM,HNBR

Refrigeration Media

Ammonia (NH₃), CO₂ (R744), R134a, R410A, Brine

Connection size

DN25-DN500

DESCRIPTION

The Alfa Laval A15B Gasket is a replacement sealing solution designed for reliable performance in industrial plate heat exchanger maintenance.
Our alfa laval a15b gaskets and plates are manufactured to support routine servicing, spare parts replacement, and equipment refurbishment.
The a15-b nbrp snap-on channel plate gasket is produced with precise dimensions to help ensure proper installation and sealing performance.
The alfa laval 3233002246 channel plate gasket a15b is commonly referenced for maintenance and replacement projects requiring compatible sealing components.
As one of the experienced nitrile rubber gasket manufacturers china, Senovis PHE supplies elastomer solutions for a wide range of industrial operating conditions.
Each plate and frame heat exchanger gasket is available in multiple material options, including high temperature epdm gasket compounds selected according to the working media, operating temperature, and application requirements.

Alfa Laval A15B Gasket Replacement Specification

PHE Model	Alfa Laval A15B EPDM Gasket Supplier
Applicable Industries	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip on/ Glueless/ Glued
Gasket material	NBR,FKM, HNBR, ACM,Silicone,EPDM
Color	Red, black, brown, green and customized
Temperature Range(°C)	50℃~150℃
Keyword	Heat Exchanger Plates And Gaskets
Certificate	ISO / CE
Hardness	20~90 Shore A
Design Pressure	0.6MPa~5MPa

Alfa Laval A15B Plate heat exchanger specification

Alfa Laval PHE Plate Heat Exchanger Replacemnet	Alfa Laval A15B
Corrugation Depth(mm)	2.5
Port Diameter(mm)	φ160
Chevron Angle	72 120°
Corrugation Pitch(mm)	8.23 8.36
Equivalent Diameter	5
Flow Area(m²)	0.00135
One Plate (m²)	0.71
Port Distance (mm)	1315*350
Dimensions (mm)	1552*587

Actual Product Details

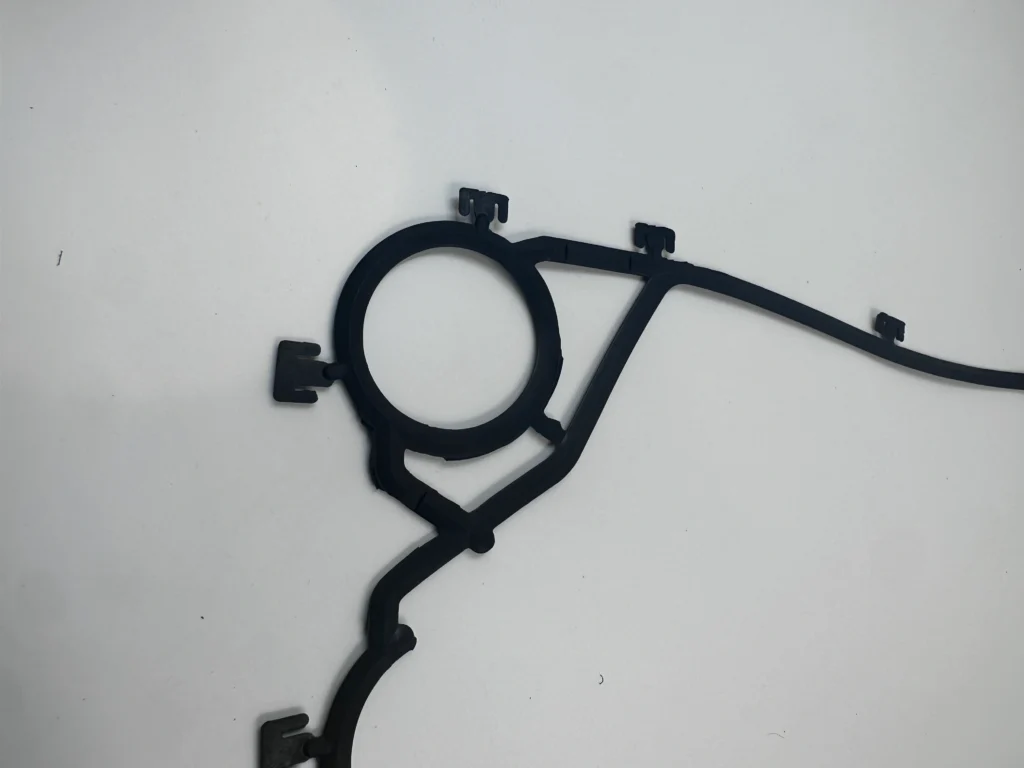

Precision Alfa Laval A15B gasket produced with HNBR gasket material for demanding applications. — Industrial A15B gasket manufactured as a reliable NBR bonded gasket solution.

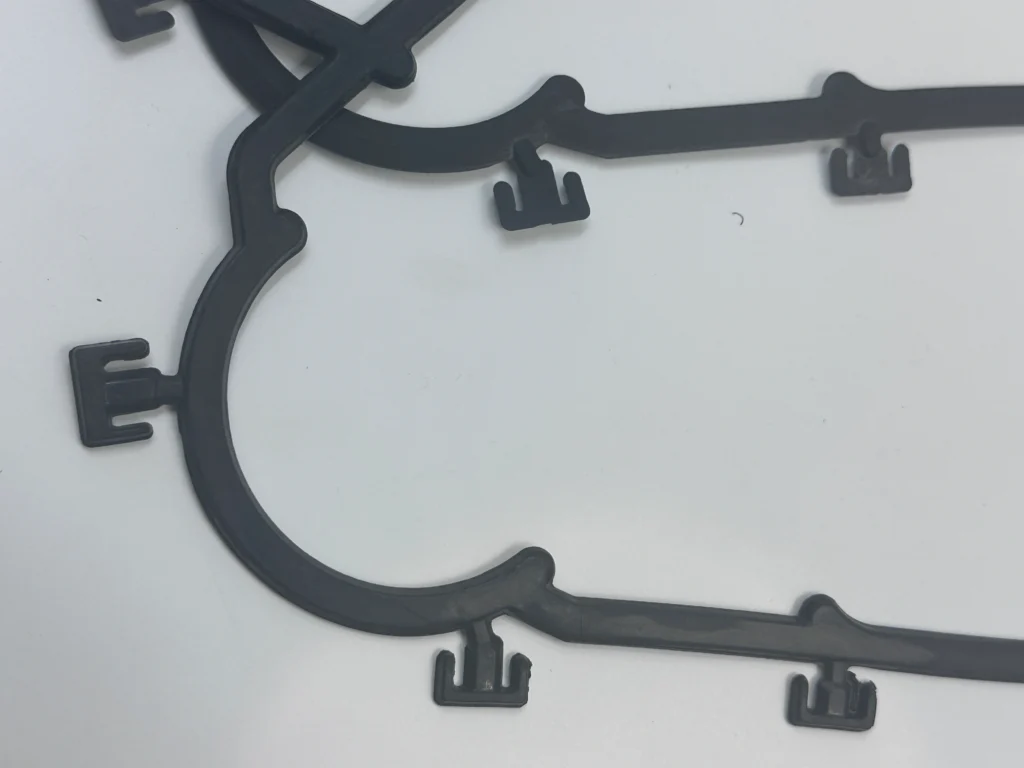

Durable Alfa Laval A15B gasket manufactured as a premium NBR nitrile gasket. — Precision A15B gasket produced with high-quality NBR rubber gaskets.

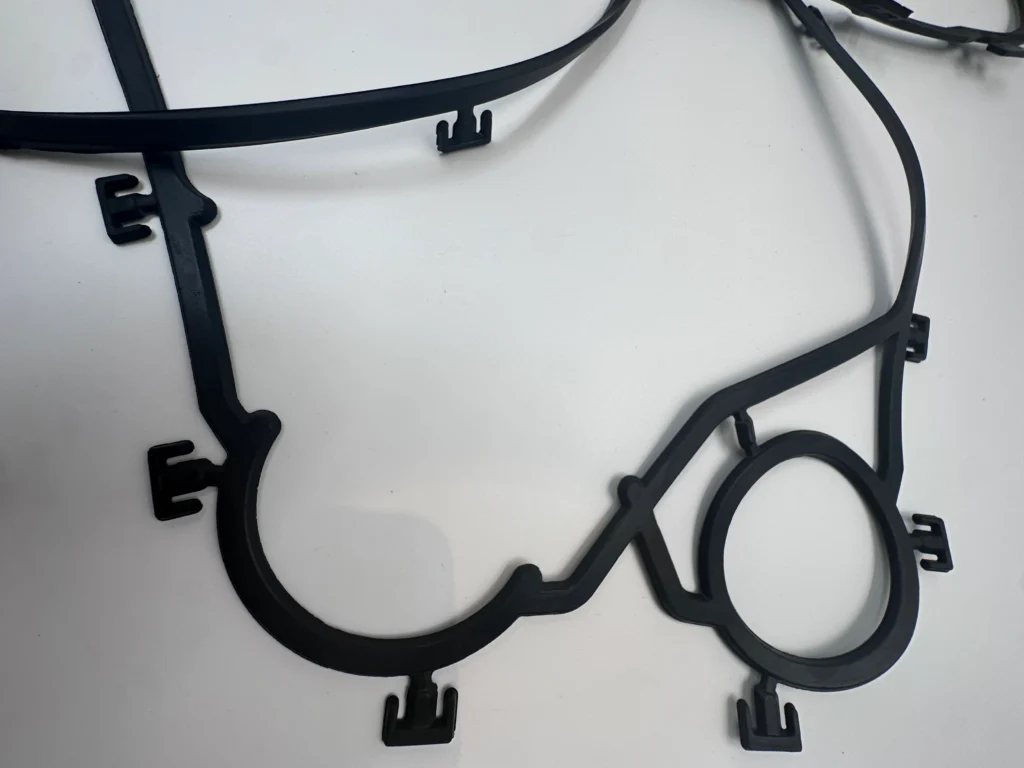

High-quality replacement gasket for Alfa Laval A15B manufactured from NBR EPDM rubber. — Compatible Alfa Laval A15B gasket produced with premium NBR gasket material.

faq

What is an Alfa Laval A15B gasket?

The Alfa Laval A15B gasket is a glued channel plate gasket designed for A15-B series plate heat exchangers. Installed between adjacent heat transfer plates, it seals the plate channels while directing the process media through the designed flow paths to maintain efficient heat transfer. Senovis PHE manufactures compatible A15B gasket solutions for industrial maintenance and spare parts replacement.

Are Alfa Laval A15B gaskets available from stock?

Yes. Senovis PHE keeps standard compatible Alfa Laval A15B gaskets in stock for fast dispatch. Once the model, gasket material, and quantity are confirmed, orders can normally be prepared quickly to help reduce maintenance downtime.

Do you supply Alfa Laval A15B gaskets to customers in India?

Yes. Senovis PHE supplies compatible Alfa Laval A15B gaskets to customers throughout India, including industrial maintenance companies, food processing plants, HVAC contractors, engineering companies, and plate heat exchanger service providers. We regularly arrange shipments to Mumbai, Chennai, Pune, Ahmedabad, Kolkata, and other industrial regions.

What certifications can Senovis PHE support for customers in India?

For customers in India and other international markets, Senovis PHE can support common project documentation and product certification requirements where applicable. Depending on the project specification, we can provide documents such as Material Certificates, Inspection Reports, Certificate of Origin (CO), Packing List, Commercial Invoice, and other export documentation. If additional third-party inspection or project-specific certification is required, please let us know before production so we can review the requirements together.

Why choose Senovis PHE for Alfa Laval A15B gasket replacement?

Senovis PHE specializes in compatible plate heat exchanger gaskets, plates, and spare parts for industrial maintenance worldwide. We provide technical selection support, multiple gasket material options, stock availability for standard A15B gaskets, fast quotations, worldwide shipping, and documentation support to help customers complete reliable maintenance projects with confidence.
