Mini Plate Heat Exchanger Demonstration Model 1:1 Stainless Steel Training Unit — 1:1 replica gasketed plate heat exchanger model for training and customer demonstrations.

mini plate heat exchanger training model

Name: mini plate heat exchanger training model
Price: 199 usd
Availability: InStock

PHE Model

Senovis PHE MINI

Shipping Time

5–7 Working Days

Payment Method

T/T, Western Union, MoneyGram, PayPal, Credit Card

Minimum Order Quantity

1 pieces

Packaging Details

Carton Packaging

SubtotalTotal InstallmentsInitial Payment

TotalTotal Due TodaySubtotalTrialAmount Due

Purchase

Senovis PHE MINI details

PHE Model

Mini Plate Heat Exchanger Demonstration Model

Application

Customer Presentations, Engineering Education, Technical Training, Trade Shows

Scale

1:1 Structural Replica

Frame Material

Carbon Steel

Plate Material

SS304 Stainless Steel

Gasket Material

EPDM

Construction

Fully Detachable

Plate Removal

Supported

Gasket Removal

Supported

DESCRIPTION

1:1 Stainless Steel Plate Heat Exchanger Demonstration Model

This Plate Heat Exchanger Demonstration Model is a 1:1 structural replica of a real gasketed plate heat exchanger. Manufactured from high-quality stainless steel, it accurately reproduces the frame, tightening bolts, heat transfer plates, and gasket arrangement of an actual unit.

The stainless steel plates and gaskets can be removed individually, allowing users to clearly understand the internal structure, assembly process, gasket positioning, and working principles of a gasketed plate heat exchanger.

The model features a fully detachable design, enabling each plate and gasket to be taken out separately for demonstration and training purposes. Users can directly observe plate patterns, gasket installation methods, flow channels, and component relationships, making complex heat exchanger concepts easier to explain and understand.

Senovis PHE MINI specification

Name	Senovis PHE MINI
Product Type	Mini Plate Heat Exchanger Demonstration Model
Scale	1:1 Structural Replica
Frame Material	Carbon Steel
Plate Material	SS304 Stainless Steel
Gasket Material	EPDM
Structure	Fully Detachable
Plate Removal	Supported
Gasket Removal	Supported
Purpose	Technical Training & Educational Demonstration
Packaging	Protective Carton Packaging
Shipping Time	5–7 Working Days

Key Features/Material/Applications

Key Features

✔ 1:1 reproduction of a real gasketed plate heat exchanger

✔ High-quality stainless steel construction

✔ Fully detachable design for hands-on demonstration

✔ Plates and gaskets can be removed and displayed individually

✔ Clearly demonstrates internal structure and assembly sequence

✔ Ideal for customer presentations, technical training, and engineering education

✔ Excellent tool for explaining maintenance, gasket replacement, and plate inspection procedures

Material

Frame Material: Stainless Steel
Plate Material: Stainless Steel
Gasket Type: Removable Demonstration Gaskets
Construction: Fully Detachable

Applications

Customer demonstrations
Technical training
Engineering education
Trade shows and exhibitions
Maintenance instruction
Sales presentations

Actual Product Details

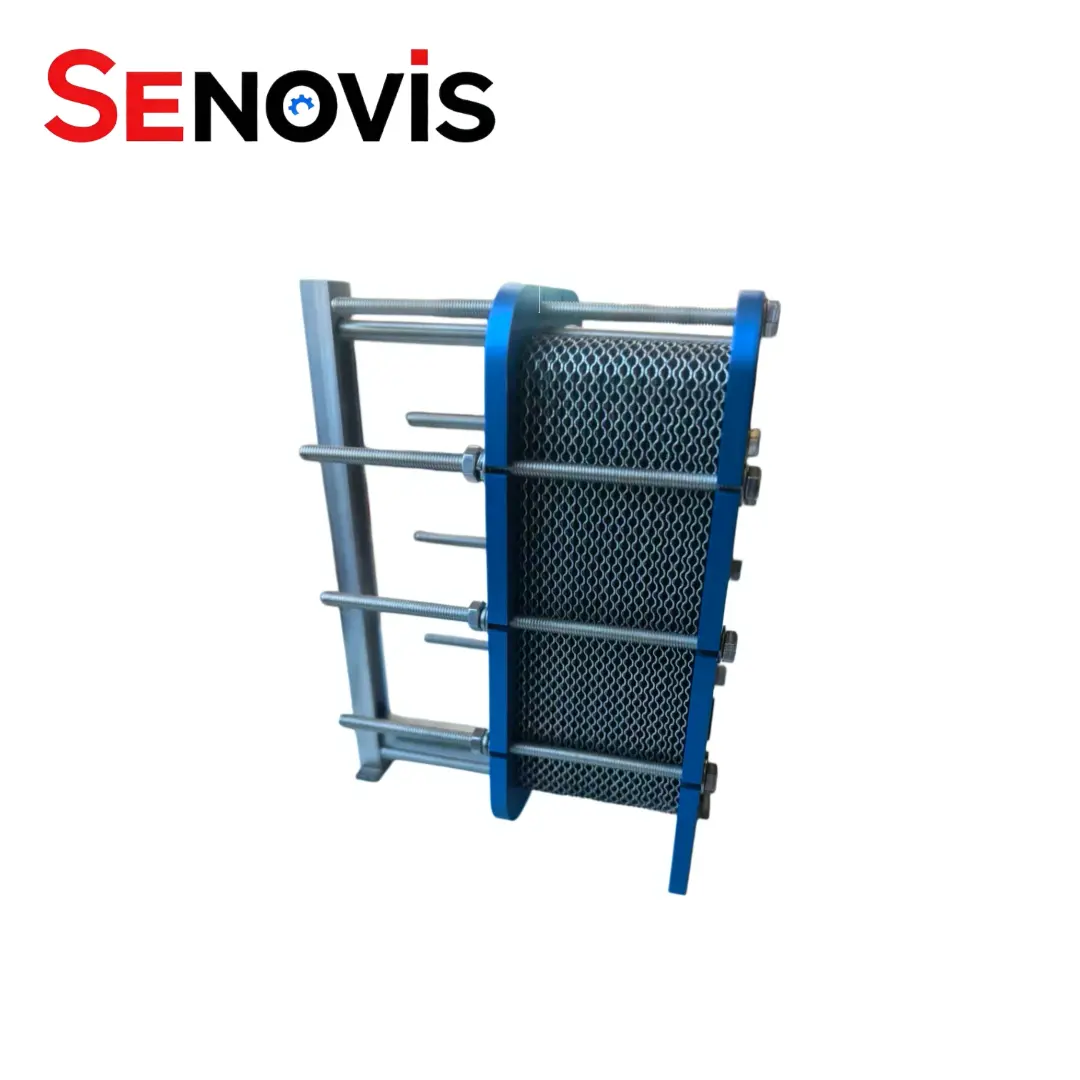

Mini Plate Heat Exchanger Demonstration Model 1:1 Replica — Demonstration model showing the carbon steel frame and plate assembly structure.

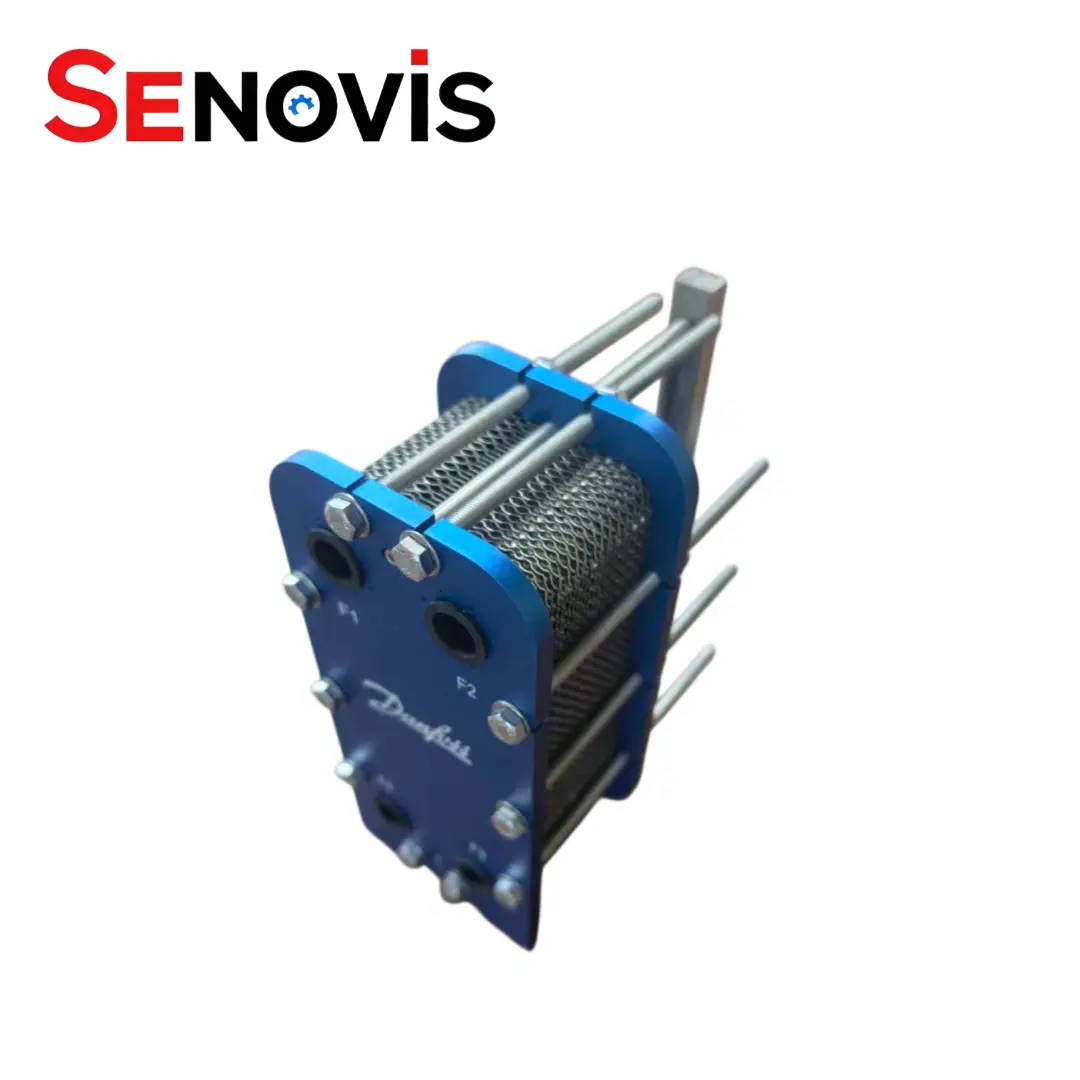

Stainless Steel Mini Plate Heat Exchanger Training Model — Designed for technical training, exhibitions, and educational demonstrations.

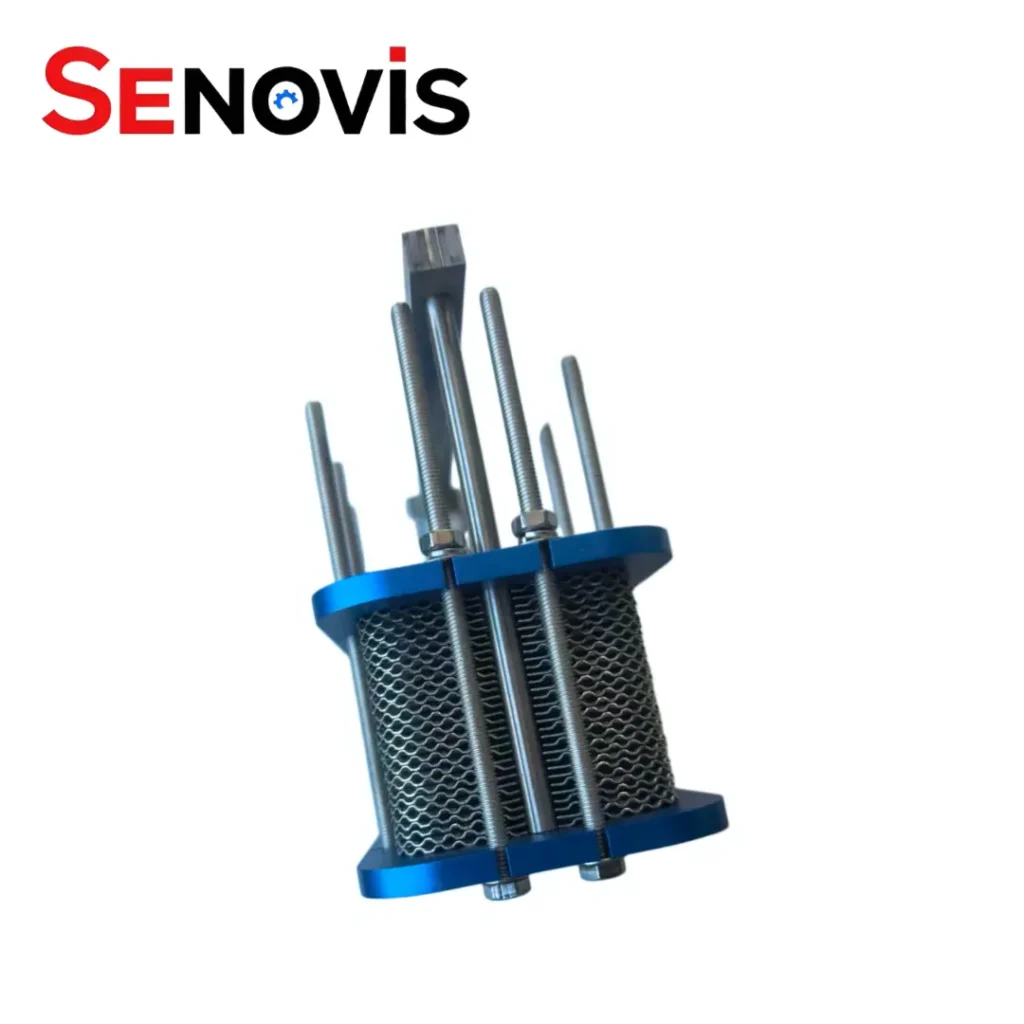

Mini Gasketed Plate Heat Exchanger Side View — Side profile showing the compact structure of a gasketed plate heat exchanger.

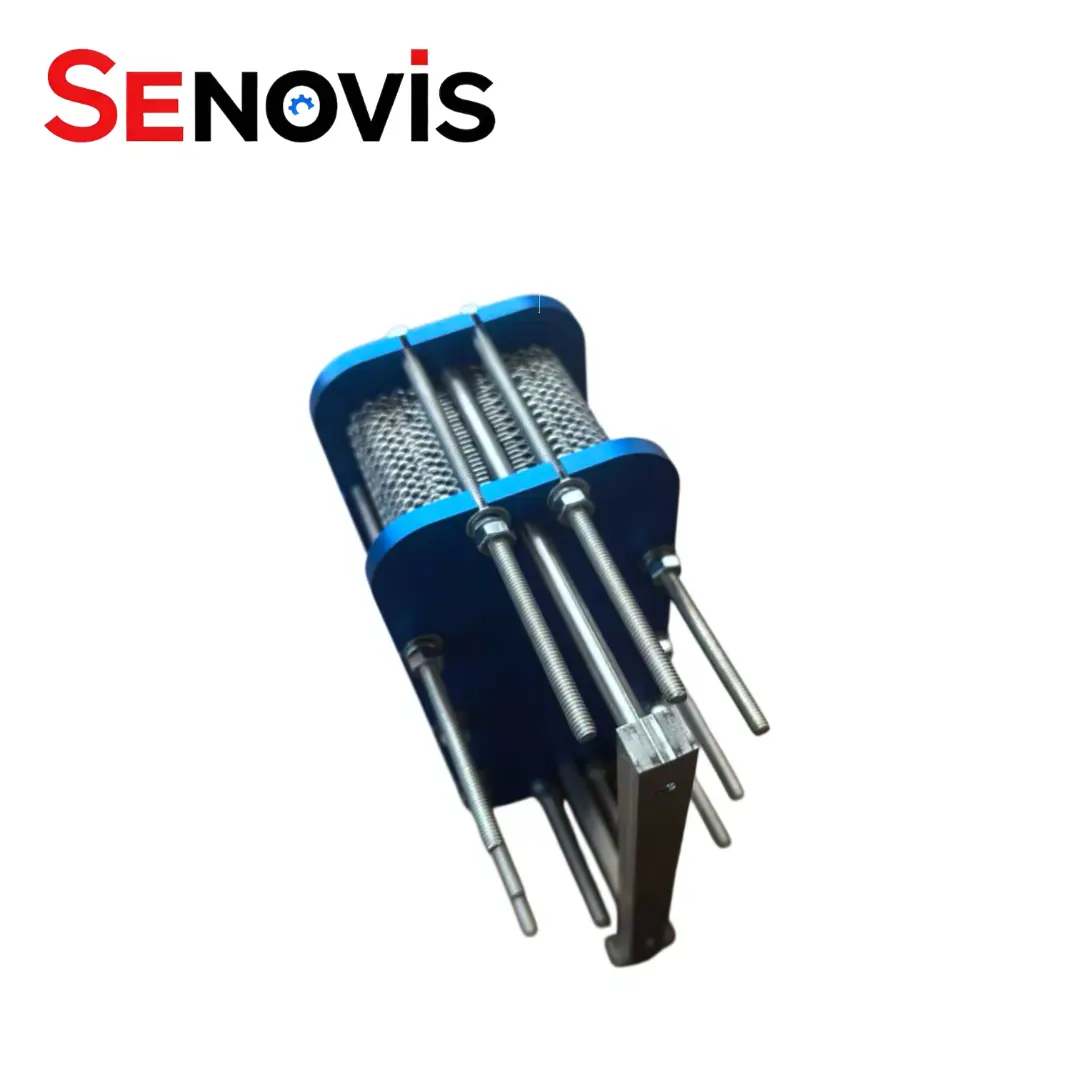

Mini Plate Heat Exchanger Demonstration Model Rear View — Professional demonstration model for customer presentations and engineering education.

Shipping Fast Worldwide Delivery

Delivery Time: 5–7 Working Days
Secure packaging for safe transportation
Worldwide shipping available

For bulk orders or customized demonstration models, please contact our sales team.

faq

What is a Mini Plate Heat Exchanger Demonstration Model?

A Mini Plate Heat Exchanger Demonstration Model is a teaching and training tool designed to replicate the structure of a real gasketed plate heat exchanger, helping users understand its components and working principles.

Is this model a real working heat exchanger?

No. This model is intended for educational demonstrations, technical training, exhibitions, and customer presentations. It does not perform actual heat transfer.

Is the model built to a 1:1 scale?

Yes. The model is designed as a 1:1 structural replica of a real gasketed plate heat exchanger, accurately reproducing its main components and assembly structure.

What materials are used in the model?

The frame is made of carbon steel, the plates are manufactured from SS304 stainless steel, and the gaskets are made from EPDM material.

Can the model be disassembled?

Yes. The model features a fully detachable design, allowing users to remove and inspect internal components for training and demonstration purposes.

What is the main purpose of this demonstration model?

It is widely used for technical training, engineering education, customer visits, product demonstrations, trade shows, and maintenance instruction.

Is this model suitable for exhibitions and trade shows?

Yes. Its compact size and realistic appearance make it an excellent display item for exhibitions, conferences, and industrial events.

Can the model help explain plate heat exchanger maintenance?

Yes. The detachable structure makes it easier to demonstrate assembly procedures, maintenance concepts, and component identification.

How long does shipping take?

Most orders can be shipped quickly, with an estimated delivery time of 5–7 working days after dispatch.

Is the model suitable for engineering schools and training centers?

Absolutely. It is designed specifically for educational and technical training environments where understanding plate heat exchanger construction is important.

Why choose a plate heat exchanger demonstration model instead of drawings or manuals?

A physical model provides a hands-on learning experience, making it easier to understand the structure, assembly, and operating principles of a gasketed plate heat exchanger.
