Vicarb V4 Vicarb Plate Heat Exchanger For Refrigeration
Vicarb V4 details
PHE Model
Vicarb V4 PHE
Keyword
Vicarb Plate Heat Exchanger
Design pressure
1.0M/Pa
Compatible Brands
Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Application
Liquid to liquid heat exchanging
Plate Material
SUS304,316 TI,Ni
Plate Hole
0 hole, 1 hole, 2 holes, 3 holes, 4holes
Gasket material
NBR EPDM FKM
Connection type
Weld, Tri-Clamp, Union
DESCRIPTION
As a specialized factory manufacturing high-precision thermal components, we focus on the engineering excellence required for Vicarb gasketed plate heat exchanger (gphe) maintenance. A successful Vicarb gasket replacement relies on the specific elastomeric density and groove alignment to manage complex fluid dynamics within the Vicarb heat exchanger frame. Our production line is dedicated to the Vicarb V4 series, utilizing advanced vulcanization to ensure each seal maintains its mechanical resilience under intense pressure differentials. By analyzing the Material of Plate and matching it with Suited Liquid Kinds, such as Stainless Steel (SS304, SS316) for pure water or Titanium for saline solutions, we provide technically optimized sealing solutions. Our Advantages include over 15 years experience in the field and an ISO9001 certified quality management system, ensuring that every component facilitates optimal heat transfer without leakage.
Our components are engineered for seamless integration and are fully compatible with brands including Alfa Laval, APV, TRANTER, Sondex, GEA, Vicarb, API, Funke, Thermowave, and Hisaka.
Vicarb V4 Plate heat exchanger specification
| PHE Plate Heat Exchanger Replacemnet | Vicarb V4 PHE Plate Heat Exchanger |
| Keyword | Vicarb Plate Heat Exchanger |
| Corrugation Depth(mm) | 3 |
| Port Diameter(mm) | φ30 |
| Chevron Angle | 60° |
| Corrugation Pitch(mm) | 9.3 |
| Equivalent Diameter | 6 |
| Flow Area(m²) | 0.00031 |
| One Plate (m²) | 0.04 |
| Port Distance (mm) | 430*62 |
| Dimensions (mm) | 500*125 |
Plate heat exchanger models Compatible Brands
| Compatible Brands | Plate heat exchanger models |
| Alfa Laval | M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, P22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600 |
| Sondex | S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123 |
| APV | T4, SR1, SR2, SR3, SR9, R5, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134 |
| GEA | VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184 |
| API | SIGMA13, SIGMA19, SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156 |
| FUNKE | FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405 |
| Tranter | GC8, GX26, GC51, GX64, GX145, GL13, GX42, GX51, GX85, GL16, GCD044, GC60, GX91, GC26, GCD054, GX60, GX100 |
| Vicarb | V2, V4,V8, V13, V20, V28, V45, V60, V85, , V100, V110, V130 |
| Thermowave | TL90SS, TL90PP, TL150SS, TL150PP, TL250SS, TL250PP, TL400SS, TL400PP, TL500SS, TL500PP, TL650SS, TL650PP |
| SWEP | C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180 |

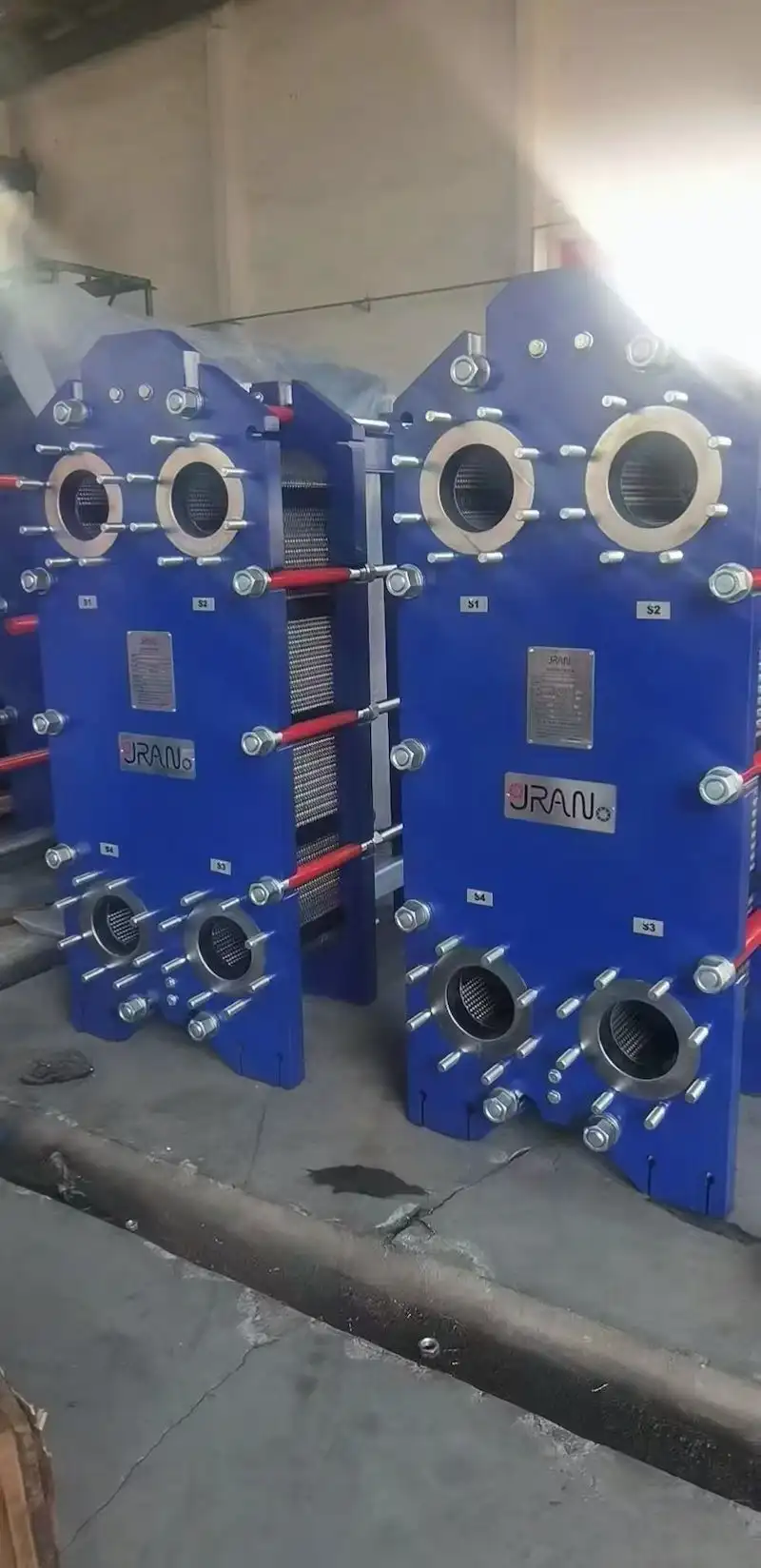

Workshop of Plate Heat Exchanger Factory
