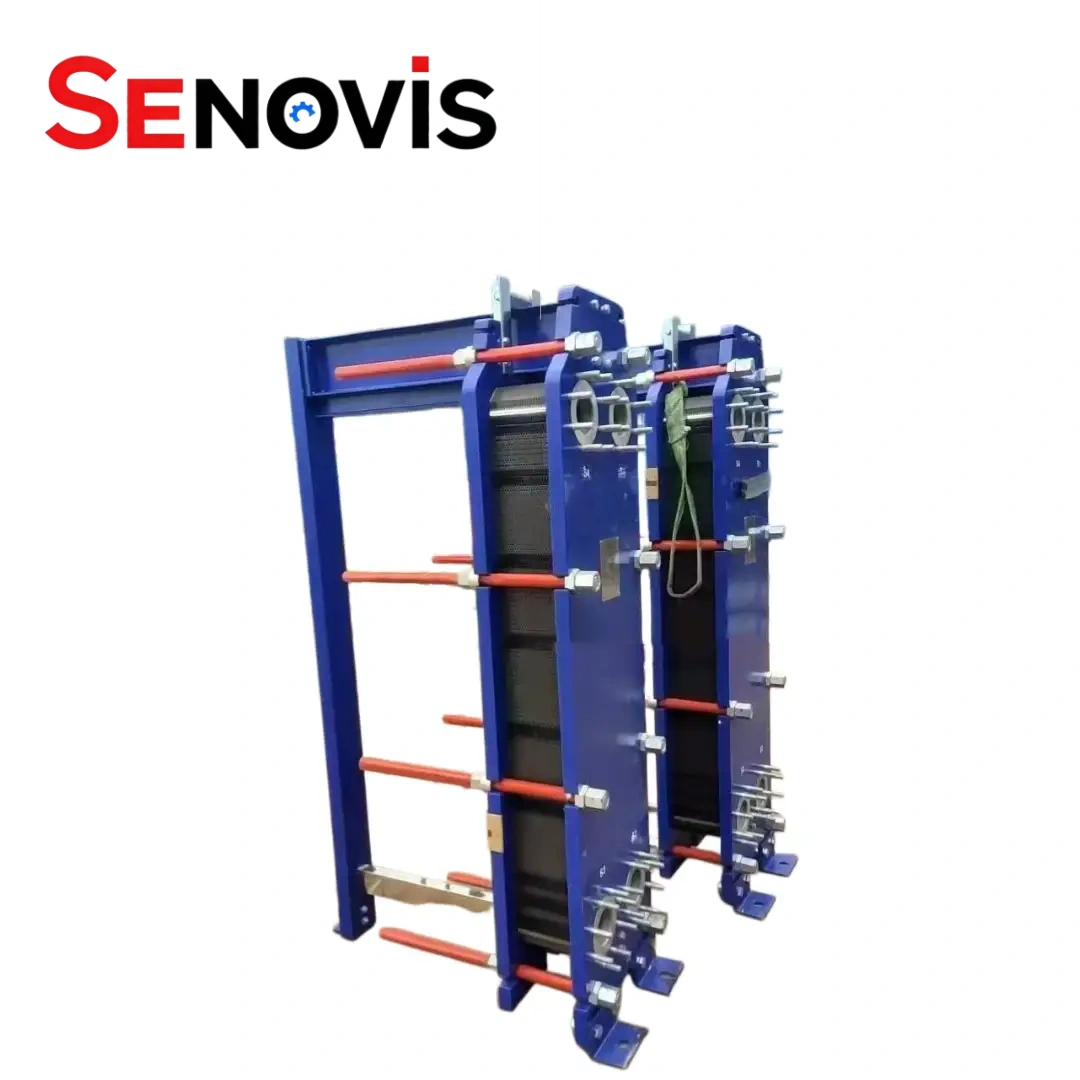

APV R5 Food Spx APV Heat Exchangers For Milk Pasteurization Replacement
Alfa laval gasket replacement solutions for your plate heat exchanger systems. We specialize in alfa laval heat exchanger gaskets for alfa laval m3 fgl and other m3 alfa laval models. As a leading manufacturer, Senovis provides industrial grade NBR and EPDM alfa laval gasket parts. Ensure leak proof operation and maximum efficiency for your PHE units with our factory-direct seals. Shop now for global shipping!
APV R5 details
PHE Model
APV R5 PHE Plates
Keyword
APV Heat Exchangers
Applicable Industries
HVAC System
Compatible Brands
Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Gasket Materical
NBR, Viton, PTFE Cushion
Plate Material
SS304, SS316, Titanium, Hastelloy, Nickle, Ti-pd
Plate Hole
0 hole, 1 hole, 2 holes, 3 holes, 4holes
Thinckness
0.5mm 0.6mm 0.7mm 0.8mm
Pressure
1.0/1.6/2.5MPa
DESCRIPTION
As a specialized manufacturer of heat transfer equipment, we produce high-performance APV Gasketed Plate Heat Exchanger systems designed for demanding industrial environments. Our solutions include models such as apv R5, apv SR3, and apv SR2, widely used for efficient thermal exchange in food processing, chemical production, and HVAC applications. The advanced plate design improves heat transfer efficiency while allowing flexible configuration to meet various process requirements. We also supply precision-engineered plates and gaskets to support maintenance and system optimization. With strong manufacturing capabilities and strict quality control, our products are built to meet the technical expectations of global heat exchanger systems. Our GPHE solutions are fully compatible with Alfa Laval, APV, TRANTER, sondex, GEA, Vicarb, API, Funke, thermowave, and Hisaka brands.
APV A055 Plate heat exchanger specification
| PHE Plate Heat Exchanger Replacemnet | APV R5 PHE Plate Heat Exchanger |
| Keyword | APV Heat Exchangers |
| Corrugation Depth(mm) | 5.4 |
| Port Diameter(mm) | φ101.4 |
| Chevron Angle | 120° |
| Corrugation Pitch(mm) | 14.45 |
| Equivalent Diameter | 10.8 |
| Flow Area(m²) | 0.00188 |
| One Plate (m²) | 0.527 |
| Port Distance (mm) | 1397*257 |
| Dimensions (mm) | 1556*420 |
Plate heat exchanger models Compatible Brands
| Compatible Brands | Plate heat exchanger models |
| Alfa Laval | M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, P22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600 |
| Sondex | S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123 |
| APV | T4, SR1, SR2, SR3, SR9, R5, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134 |
| GEA | VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184 |
| API | SIGMA13, SIGMA19, SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156 |
| FUNKE | FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405 |
| Tranter | GC8, GX26, GC51, GX64, GX145, GL13, GX42, GX51, GX85, GL16, GCD044, GC60, GX91, GC26, GCD054, GX60, GX100 |
| Vicarb | V2, V4,V8, V13, V20, V28, V45, V60, V85, , V100, V110, V130 |
| Thermowave | TL90SS, TL90PP, TL150SS, TL150PP, TL250SS, TL250PP, TL400SS, TL400PP, TL500SS, TL500PP, TL650SS, TL650PP |
| SWEP | C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180 |

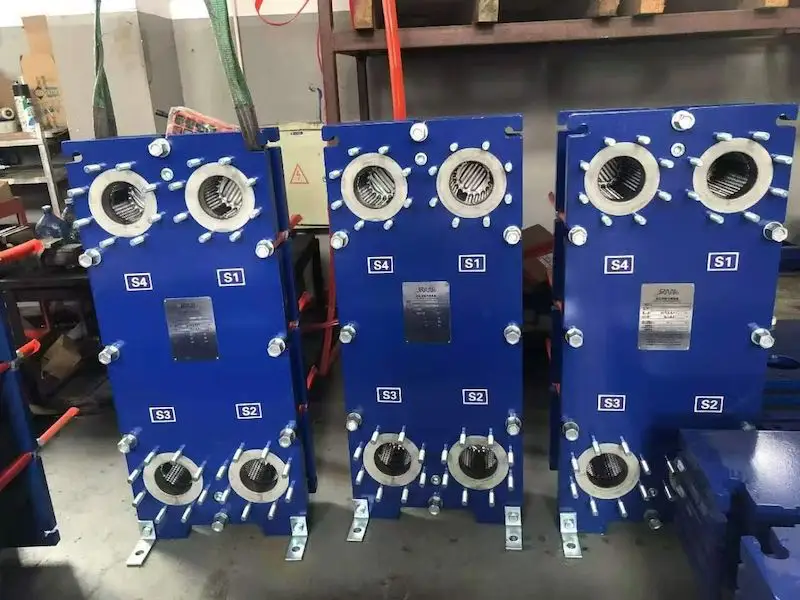

Workshop of Plate Heat Exchanger Factory
