Sondex S4a Ig16 It10 Sondex Plate And Frame Heat Exchanger Gaskets EPDM
We are a professional producer of Sondex PHE systems, specializing in the sondex s4a model. Our Sondex Plate Heat Exchanger products feature optimized plate structures, precise sealing, and stable thermal performance. We also manufacture high-quality plates and gaskets to support system reliability and consistency.
Sondex S4A details
PHE Model
Sondex S4A PHE Plates
Keyword
Sondex PHE
Plate Hole
0 hole, 1 hole, 2 holes, 3 holes, 4holes
Compatible Brands
Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Gasket Type
Clip-on, loc-in and glued
Plate Material
304/316L Stainless Steel
Plate Hole
0 hole, 1 hole, 2 holes, 3 holes, 4holes
Thinckness
0.5mm, 0.6mm, 0.7mm
Application
Heating & Cooling
DESCRIPTION
As an experienced factory specializing in thermal equipment, we manufacture high-efficiency Sondex PHE units, with strong expertise in the sondex s4a model. Our Sondex Plate Heat Exchanger products are designed to deliver stable heat transfer performance in industries such as food, chemical processing, and HVAC systems. The GPHE structure ensures adaptable configuration and consistent operation across different working conditions. We also supply accurately engineered plates and gaskets to support system servicing and performance consistency. Backed by advanced production and strict inspection standards, our Sondex Plate Heat Exchanger solutions meet diverse industrial demands. All products are fully interchangeable with Alfa Laval, APV, TRANTER, sondex, GEA, Vicarb, API, Funke, thermowave, and Hisaka brands.
APV A055 Plate heat exchanger specification
| PHE Plate Heat Exchanger Replacemnet | Sondex S4A PHE Plate Heat Exchanger |
| Keyword | Sondex PHE |
| Corrugation Depth(mm) | 2.35 |
| Port Diameter(mm) | φ28 |
| Chevron Angle | 130° |
| Corrugation Pitch(mm) | 8 |
| Equivalent Diameter | 4.7 |
| Flow Area(m²) | 0.00025 |
| One Plate (m²) | 0.04 |
| Port Distance (mm) | 381*70 |
| Dimensions (mm) | 449*140 |
Plate heat exchanger models Compatible Brands
| Compatible Brands | Plate heat exchanger models |
| Alfa Laval | M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, P22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600 |
| Sondex | S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123 |
| APV | T4, SR1, SR2, SR3, SR9, R5, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134 |
| GEA | VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184 |
| API | SIGMA13, SIGMA19, SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156 |
| FUNKE | FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405 |
| Tranter | GC8, GX26, GC51, GX64, GX145, GL13, GX42, GX51, GX85, GL16, GCD044, GC60, GX91, GC26, GCD054, GX60, GX100 |
| Vicarb | V2, V4,V8, V13, V20, V28, V45, V60, V85, , V100, V110, V130 |
| Thermowave | TL90SS, TL90PP, TL150SS, TL150PP, TL250SS, TL250PP, TL400SS, TL400PP, TL500SS, TL500PP, TL650SS, TL650PP |
| SWEP | C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180 |

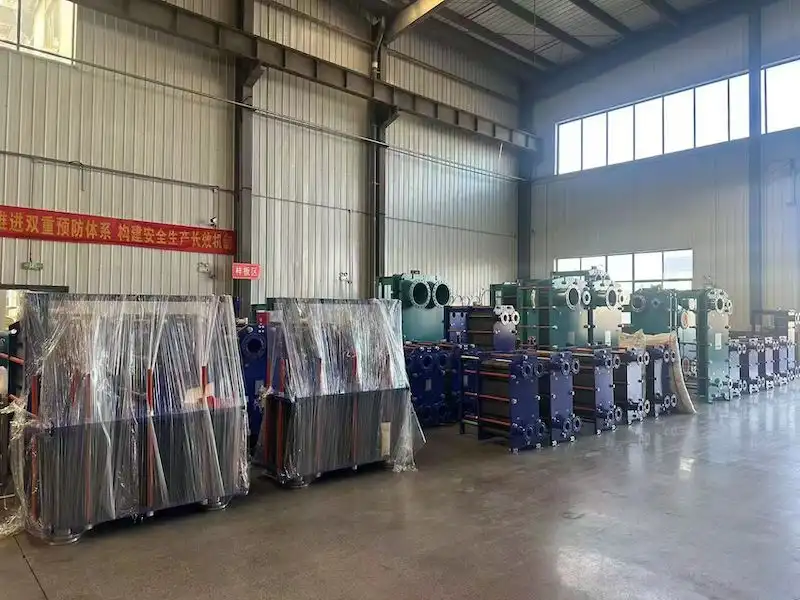

Workshop of Plate Heat Exchanger Factory
