We manufacture Sondex Plates for the Sondex S14A GPHE, including sondex s14a st16 and sondex s14a ig16. With precise corrugation design and strict dimensional control, our plates ensure stable sealing and consistent thermal transfer. As a professional factory, we supply reliable components for efficient GPHE system
Sondex S14A details
PHE Model
Sondex S14A PHE Plates
Keyword
Alfa Laval Plate Replacement
Applicable Industries
Beverage Heating/Food Industry/Sterilization
Sealing
EPDM,PTFE
Color
Silver
Plate Material
AISI 304/316L, SMO254, Hastelloy, Ni, Ti
One Plate exchanger area
0.02m2, 0.04m2, 0.06m2, 0.08m2, 0.15m2, 0.24m2, 0.65m2, 0.85m2, 1.54m2, 1.8m2
Thinckness
0.5mm 0.6mm 0.7mm 0.8mm
Frame material
Carbon steel
DESCRIPTION
As a specialized manufacturer of heat exchanger components, we produce high-quality Sondex Plates designed for the Sondex S14A gasketed plate heat exchanger (GPHE). Our product range includes configurations such as sondex s14a st16 and sondex s14a ig16, allowing flexible selection based on different plate patterns and operational needs. The plates are engineered with precise corrugation geometry and controlled pressing processes to ensure uniform flow distribution and dependable sealing. Each Sondex S14A plate is manufactured with strict dimensional accuracy to support consistent assembly and performance. With advanced production capabilities, we deliver reliable Sondex Plates that help maintain stable thermal transfer efficiency and structural integrity in GPHE systems.
Sondex S14A Plate heat exchanger specification
| PHE Plate Heat Exchanger Replacemnet | Sondex S14A PHE Plate Heat Exchanger |
| Keyword | APV Plate Heat Exchanger |
| Corrugation Depth(mm) | 2.6 |
| Port Diameter(mm) | φ60 |
| Chevron Angle | 55°125° |
| Corrugation Pitch(mm) | 8.95 8.4 |
| Equivalent Diameter | 5.2 |
| Flow Area(m²) | 0.0005 |
| One Plate (m²) | 0.14 |
| Port Distance (mm) | 694*126 |
| Dimensions (mm) | 798*230 |
Plate heat exchanger models Compatible Brands
| Compatible Brands | Plate heat exchanger models |
| Alfa Laval | M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, P22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600 |
| Sondex | S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123 |
| APV | T4, SR1, SR2, SR3, SR9, R5, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134 |
| GEA | VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184 |
| API | SIGMA13, SIGMA19, SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156 |
| FUNKE | FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405 |
| Tranter | GC8, GX26, GC51, GX64, GX145, GL13, GX42, GX51, GX85, GL16, GCD044, GC60, GX91, GC26, GCD054, GX60, GX100 |
| Vicarb | V2, V4,V8, V13, V20, V28, V45, V60, V85, , V100, V110, V130 |
| Thermowave | TL90SS, TL90PP, TL150SS, TL150PP, TL250SS, TL250PP, TL400SS, TL400PP, TL500SS, TL500PP, TL650SS, TL650PP |
| SWEP | C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180 |

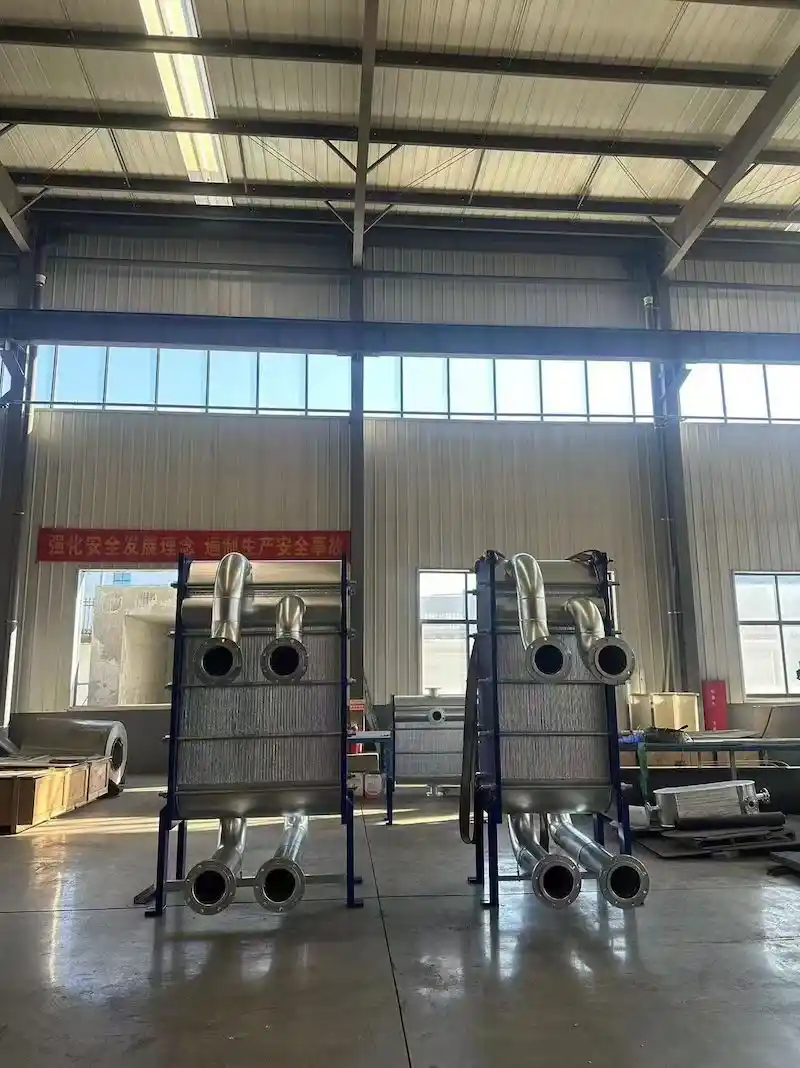

Workshop of Plate Heat Exchanger Factory
