GEA VT20 Heat Exchanger Ecoflex CDS 10 Milk Pasteurization
The GEA VT20 heat exchanger is a Gasketed Plate And Frame Heat Exchanger used in food processing, HVAC, and chemical installations, but dependent on correct plate geometry and gasket spec when components need replacing.
Senovis PHE manufactures replacement plates, gaskets, and service parts for the VT20 range, including the GEA VT20 CDS 10 or GEA Ecoflex VT20 CDS 10.
GEA VT20 details
PHE Model
GEA VT20
Keyword
GEA Coolers
Connection type
Weld, Tri-Clamp, Union
Compatible Brands
GEA VT20 CDS 10 / GEA Ecoflex VT20 CDS 10
working temperature range
-10℃-150℃
Liquid Flow Rate
60gpm
Material Type
Stainless Steel
Thickness
0.5-0.8mm
Gaskets Material
NBR/HNBR/EPDM/Solvent EPDM/General Fluoro rubber/Special fluoro rubber
DESCRIPTION

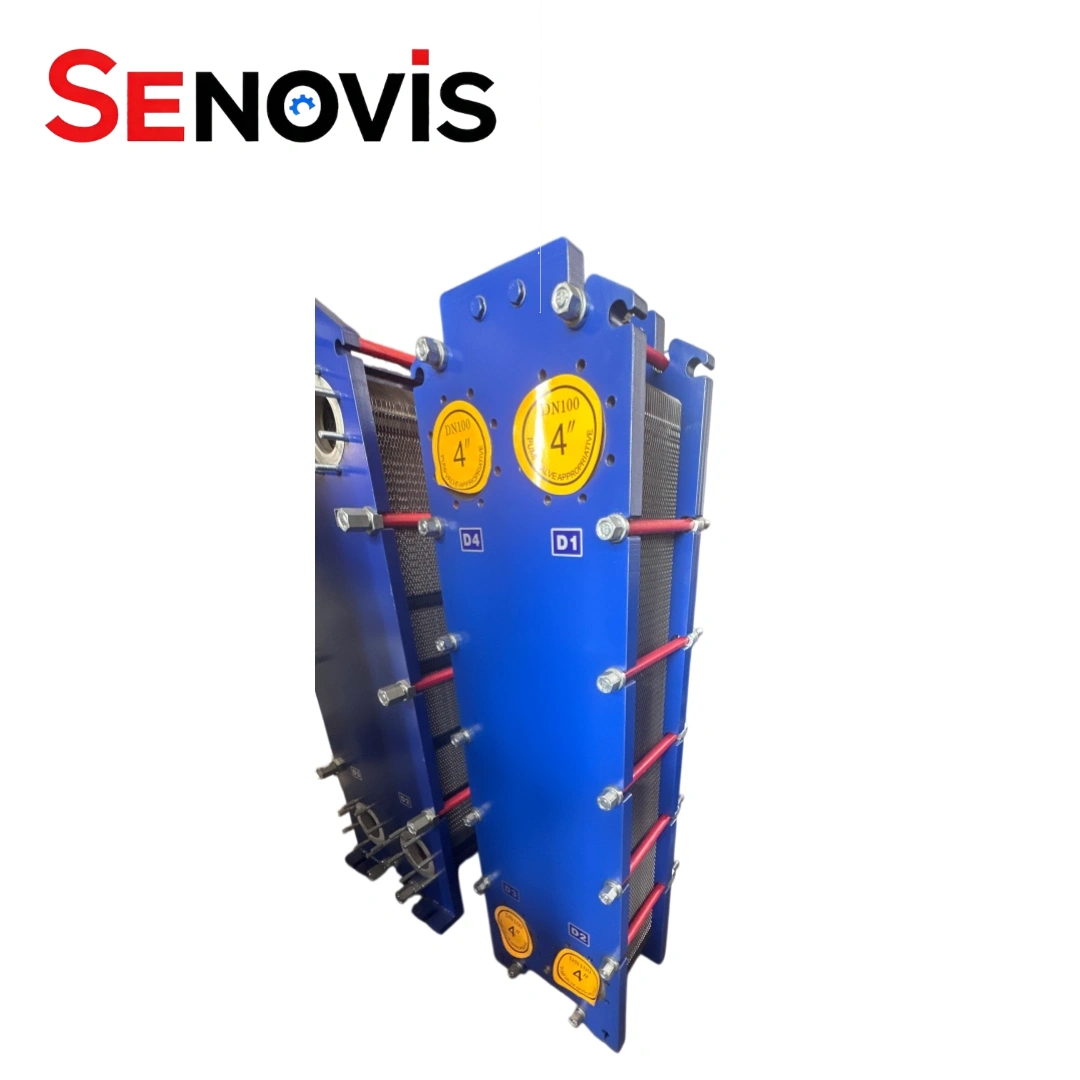

The GEA VT20 Heat Exchanger is a gasketed plate heat exchanger designed for efficient liquid to liquid heat transfer. At Senovis PHE, we manufacture and supply high quality replacement plates, gaskets, and service parts for GEA VT20 PHE, including configurations commonly identified as GEA VT20 CDS 10 and GEA Ecoflex VT20 CDS 10. Based on plate geometry, sealing arrangement, and operating conditions, our engineering team supports maintenance, refurbishment, and PHE spare parts sourcing for various VT20 series, helping plant operators and maintenance contractors maintain reliable thermal performance while reducing equipment downtime.
GEA VT20 Plate heat exchanger specification
| PHE Plate Heat Exchanger Replacemnet | GEA VT20 Gasketed Plate |
| Keyword | GEA Gasketed Plate Evaporator |
| Corrugation Depth(mm) | 3.9 |
| Port Diameter(mm) | φ79 |
| Chevron Angle | 127° (Horizontal & Vertical) |
| Corrugation Pitch(mm) | 16 |
| Equivalent Diameter | 7.8 |
| Flow Area(m²) | 0.00117 |
| One Plate (m²) | 0.26 |
| Port Distance (mm) | 868*212 |
| Dimensions (mm) | 999*337 |
Plate heat exchanger models Compatible Brands
| Compatible Brands | Plate heat exchanger models |
| Alfa Laval | M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, P22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600 |
| Sondex | S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123 |
| APV | T4, SR1, SR2, SR3, SR9, R5, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134 |
| GEA | VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184 |
| API | SIGMA13, SIGMA19, SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156 |
| FUNKE | FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405 |
| Tranter | GC8, GX26, GC51, GX64, GX145, GL13, GX42, GX51, GX85, GL16, GCD044, GC60, GX91, GC26, GCD054, GX60, GX100 |
| Vicarb | V2, V4,V8, V13, V20, V28, V45, V60, V85, , V100, V110, V130 |
| Thermowave | TL90SS, TL90PP, TL150SS, TL150PP, TL250SS, TL250PP, TL400SS, TL400PP, TL500SS, TL500PP, TL650SS, TL650PP |
| SWEP | C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180 |

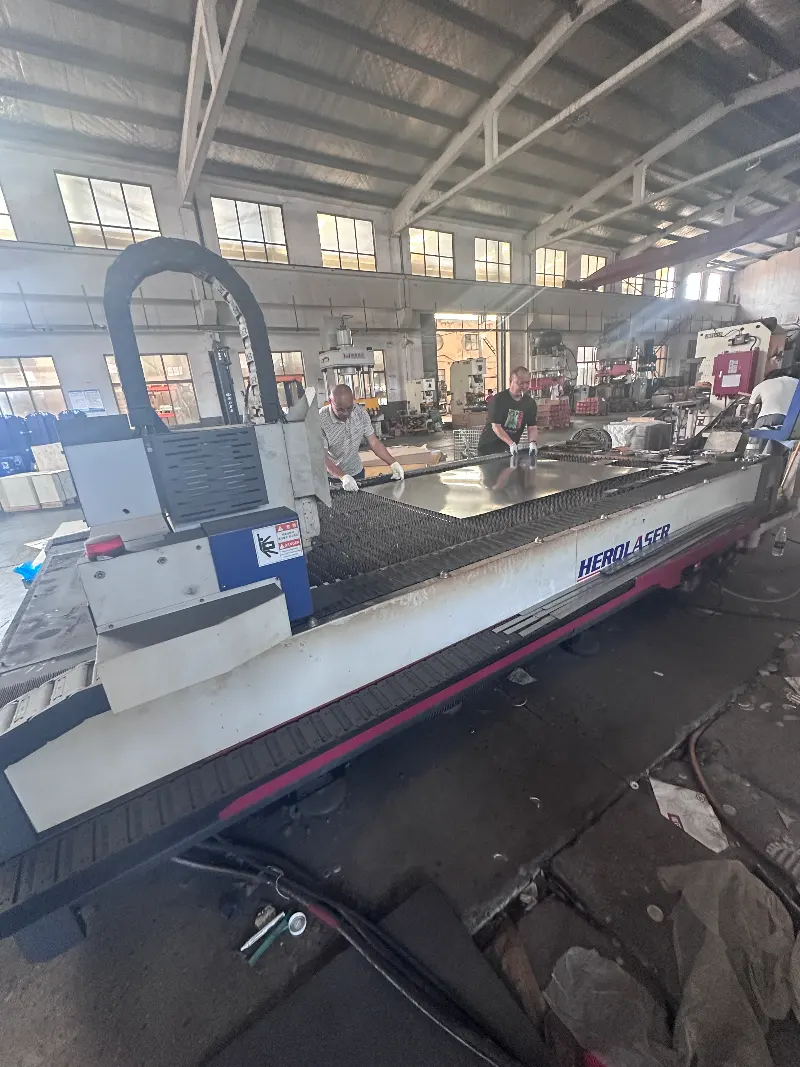

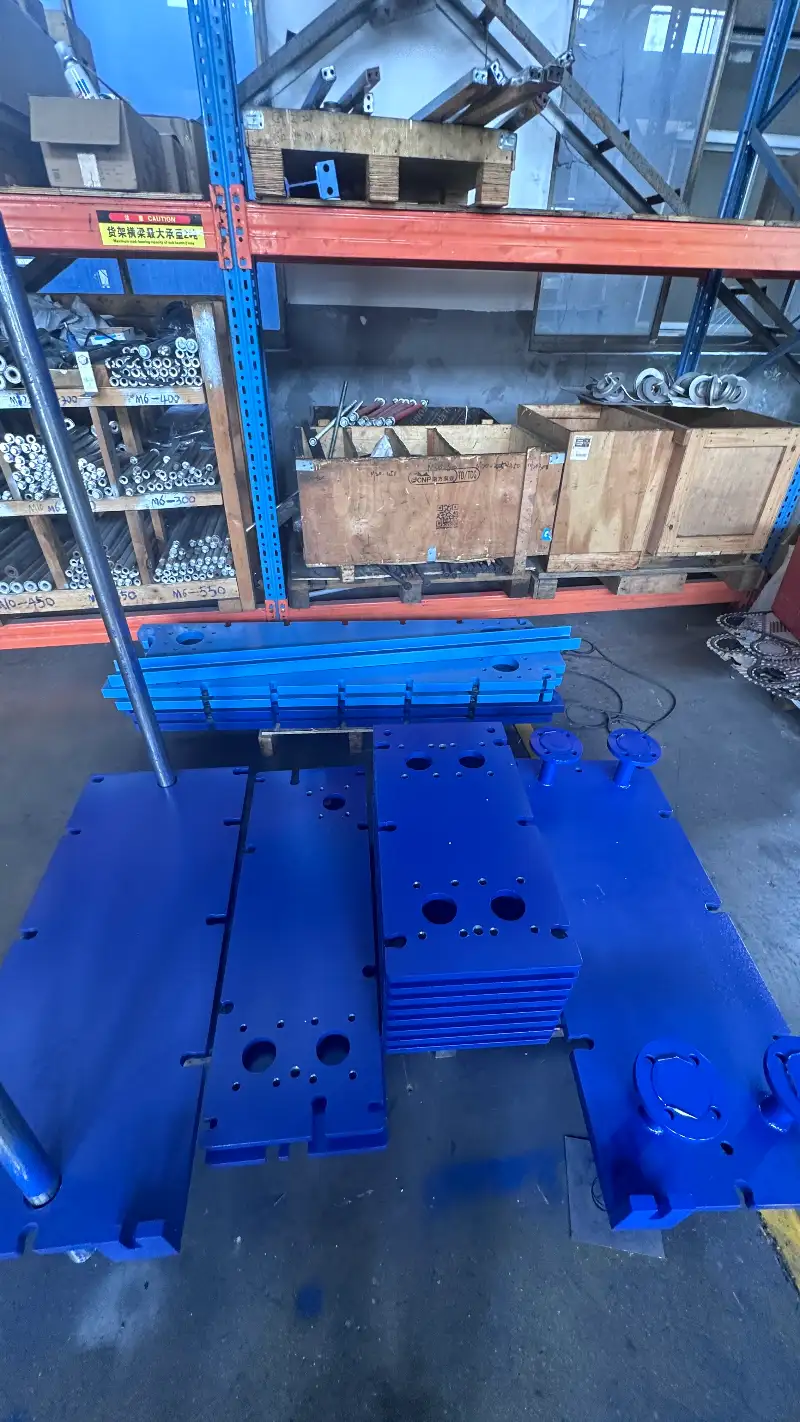

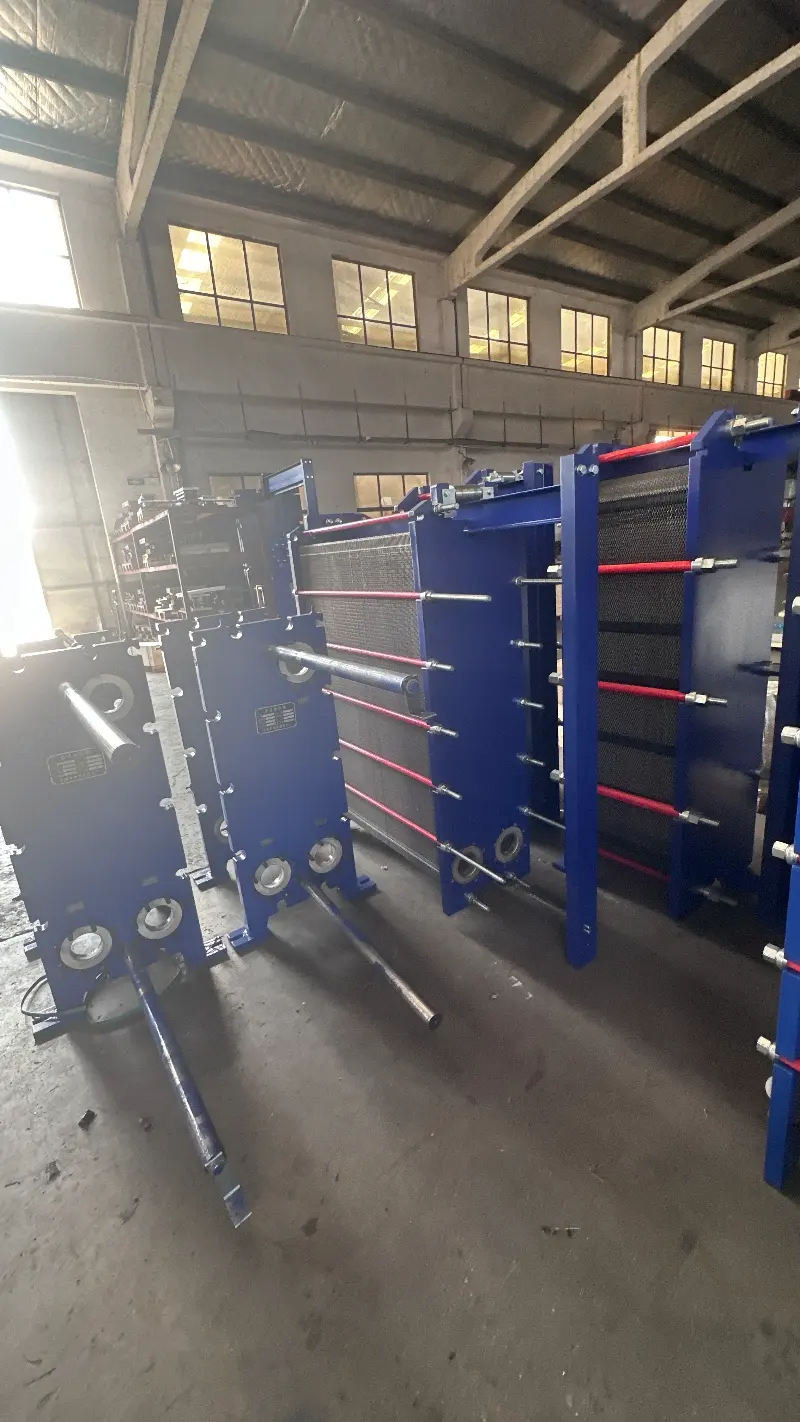

Workshop of Plate Heat Exchanger Factory
