GEA Plate Heat Exchanger ECOFLEX VT 40 CDS 10 CDL – 10
At Senovis PHE, we supply GEA VT 40 heat exchanger units across the full configuration range, including the GEA Ecoflex VT40 and variants referenced as GEA VT 40 CDL-10, GEA VT 40 CDS 10, and GEA Ecoflex VT 40 CDS 10. Each unit is matched to application requirements based on plate count, gasket material, connection layout, and operating conditions.
GEA VT40 details
PHE Model
GEA VT40
Keyword
GEA Ecoflex Heat Exchanger
Feature
Heating And Cooling
GEA Model
gea vt 40 heat exchanger /gea vt 40 cdl – 10 / gea vt 40 cds 10 / gea ecoflex vt40 / gea plate heat exchanger vt 40 / gea ecoflex vt 40 cds 10
working temperature range
≤135°C
Flow Capacity
500L/H
Plate Material
SS304/SS316/SS316L/Titanium/ALLOY C276/TAl TAi-Pd/N200/245SMO
Thickness
0.4mm~1.0mm
Gasket material
EPDM, NBR, EPDM HT, NBR HT, HNBR, VitonA, VitonG
DESCRIPTION

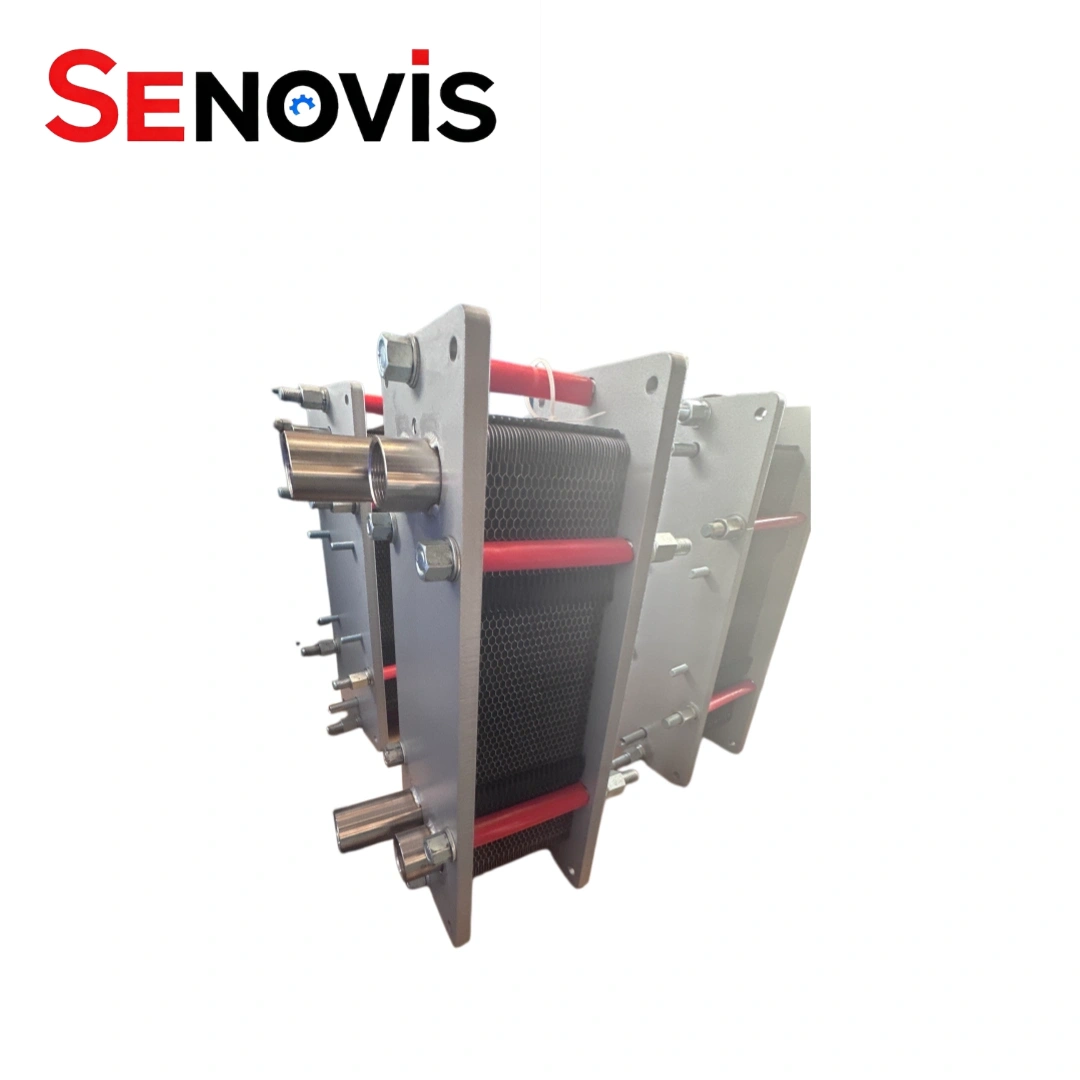

The GEA VT 40 Heat Exchanger is a high capacity gasket heat exchanger widely used for industrial heating, cooling, heat recovery, and process applications. As a specialized manufacturer of plate heat exchangers and PHE spars, Senovis PHE supplies replacement plates, gaskets, and maintenance components for multiple GEA VT 40 Heat Exchanger configurations, including GEA VT 40 CDL-10, GEA VT 40 CDS 10, GEA Ecoflex VT40, GEA Plate Heat Exchanger VT 40, and GEA Ecoflex VT 40 CDS 10. Our experience in servicing gasket type heat exchanger systems enables maintenance engineers and purchasing teams to source suitable replacement parts based on plate dimensions, gasket design, connection layout, and operating conditions.
GEA VT10 Plate heat exchanger specification
| PHE Plate Heat Exchanger Replacemnet | GEA VT40 PHE Plate Heat Exchanger |
| Keyword | GEA Heat Exchangers Kelvion |
| Corrugation Depth(mm) | 3.9 |
| Port Diameter(mm) | φ113 |
| Chevron Angle | 118° (Horizontal & Vertical) |
| Corrugation Pitch(mm) | 16 |
| Equivalent Diameter | 7.8 |
| Flow Area(m²) | 0.00151 |
| One Plate (m²) | 0.46 |
| Port Distance (mm) | 1227*257 |
| Dimensions (mm) | 1400*425 |
Plate heat exchanger models Compatible Brands
| Compatible Brands | Plate heat exchanger models |
| Alfa Laval | M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, P22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600 |
| Sondex | S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123 |
| APV | T4, SR1, SR2, SR3, SR9, R5, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134 |
| GEA | VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184 |
| API | SIGMA13, SIGMA19, SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156 |
| FUNKE | FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405 |
| Tranter | GC8, GX26, GC51, GX64, GX145, GL13, GX42, GX51, GX85, GL16, GCD044, GC60, GX91, GC26, GCD054, GX60, GX100 |
| Vicarb | V2, V4,V8, V13, V20, V28, V45, V60, V85, , V100, V110, V130 |
| Thermowave | TL90SS, TL90PP, TL150SS, TL150PP, TL250SS, TL250PP, TL400SS, TL400PP, TL500SS, TL500PP, TL650SS, TL650PP |
| SWEP | C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180 |

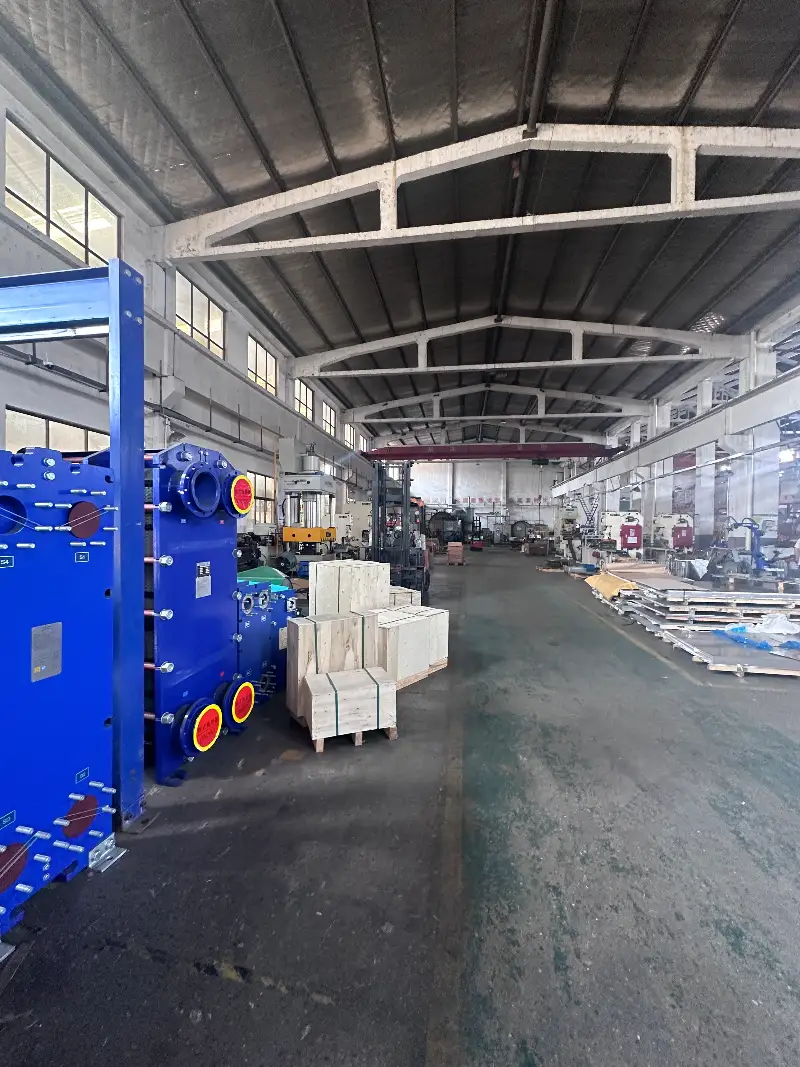

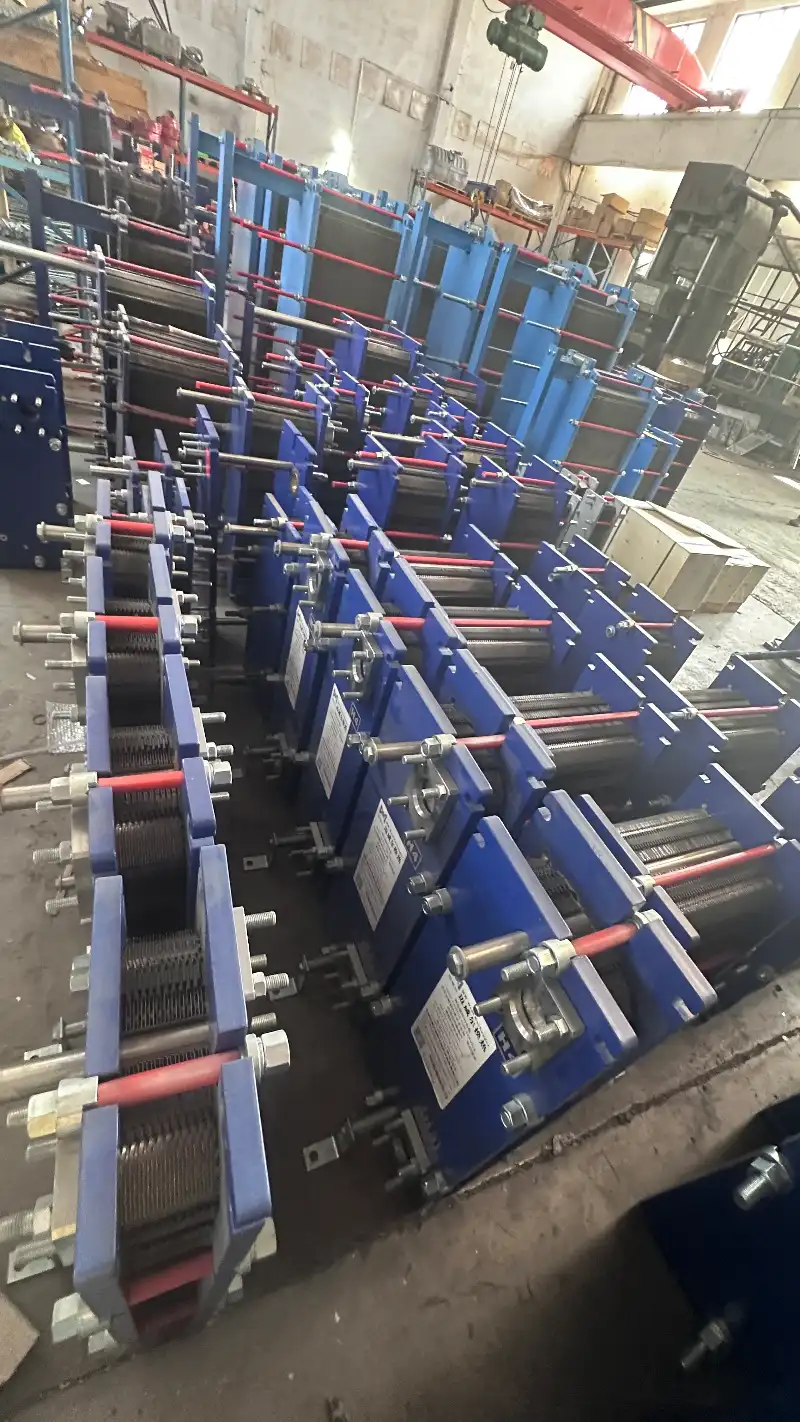

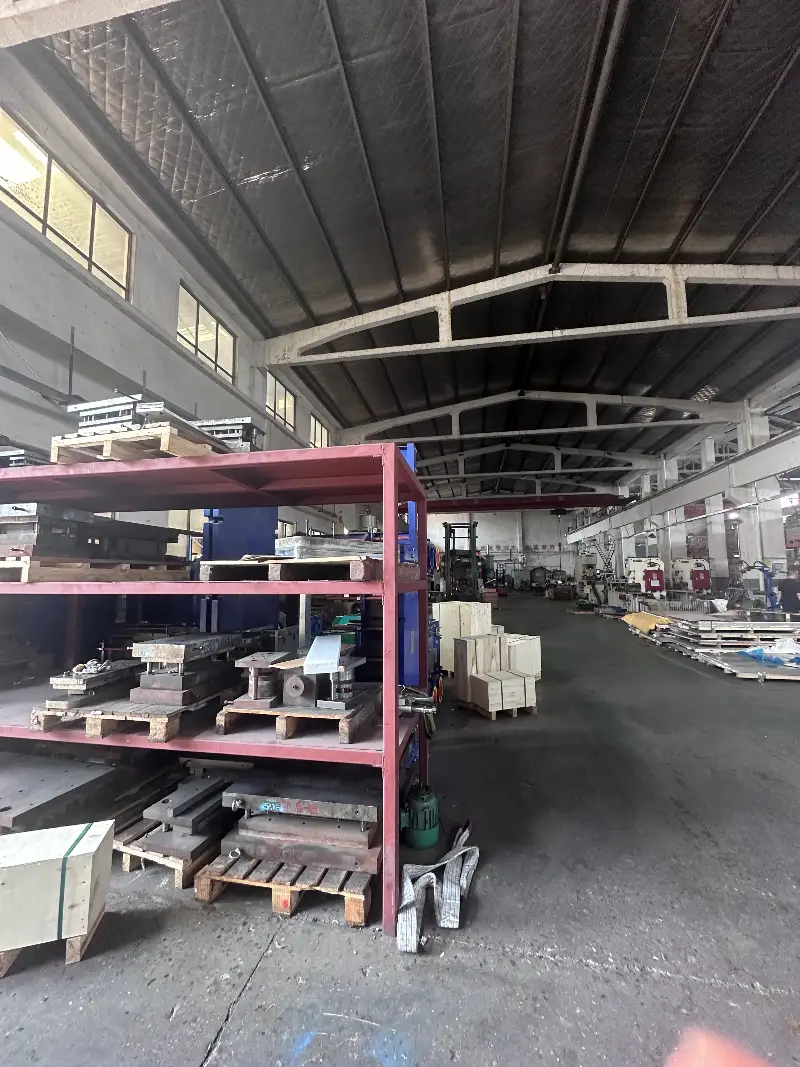

Workshop of Plate Heat Exchanger Factory
