GEA NT50X Compact Plate Heat Exchanger Kelvion PHE Evaporator
The GEA NT50X is a gasketed plate and frame heat exchanger built for demanding service across HVAC, process cooling, heating, evaporation, and condensation duties. Its plate geometry supports high thermal efficiency in a compact footprint, making it a common choice where floor space and maintenance access both matter.
Senovis PHE manufactures direct fit replacement plates and gaskets for the GEA NT 50X COL-10 and the broader GEA NT Series, including the NT50, NT80, NT100, and NT150. Our parts are produced to match the original plate corrugation profile, port dimensions, and gasket groove geometry — ensuring compatibility with existing frame hardware without re-gasketing or shimming.
GEA NT50X details
PHE Model
GEA NT50X PHE
Keyword
GEA Gasket
Interface material
CS/304/316L/hastelloy/Ti
machinery test report
Provided
working temperature range
≤135°C
Liquid Flow Rate
15-750M3/H
Material Type
Carbon steel/ Stainless less
Thickness
0.5/0.6mm
Gasket material
NBR.EPDM.HNBR.HEPDM.NBRHT
DESCRIPTION
The GEA NT50X Heat Exchanger is a widely used plate type heat exchanger designed for efficient heat transfer. As a professional manufacturer of Kelvion GEA Heat Exchangers, Senovis PHE supplies replacement solutions for GEA NT 50 X COL-10, including GEA NT50X Gaskets, plates, and related spare parts. Our portfolio also covers GEA NT50X Heat Exchanger Gaskets and Plates, GEA / Kelvion Heat Exchangers Plates, GEA NT50,NT80,NT100,NT150 Plate&Gasket, and other models within the GEA NT Series Plate Heat Exchangers.
GEA VT10 Plate heat exchanger specification
| PHE Plate Heat Exchanger Replacemnet | GEA NT50X Kelvion Plate Heat Exchanger |
| Keyword | Kelvion GEA Heat Exchangers |
| Corrugation Depth(mm) | 2.8 |
| Port Diameter(mm) | φ56 |
| Chevron Angle | 129° 127° |
| Corrugation Pitch(mm) | 10.5 |
| Equivalent Diameter | 5.6 |
| Flow Area(m²) | 0.00058 |
| One Plate (m²) | 0.26 |
| Port Distance (mm) | 1115*130 |
| Dimensions (mm) | 1236*246 |
Plate heat exchanger models Compatible Brands
| Compatible Brands | Plate heat exchanger models |
| Alfa Laval | M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, P22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600 |
| Sondex | S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123 |
| APV | T4, SR1, SR2, SR3, SR9, R5, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134 |
| GEA | VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184 |
| API | SIGMA13, SIGMA19, SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156 |
| FUNKE | FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405 |
| Tranter | GC8, GX26, GC51, GX64, GX145, GL13, GX42, GX51, GX85, GL16, GCD044, GC60, GX91, GC26, GCD054, GX60, GX100 |
| Vicarb | V2, V4,V8, V13, V20, V28, V45, V60, V85, , V100, V110, V130 |
| Thermowave | TL90SS, TL90PP, TL150SS, TL150PP, TL250SS, TL250PP, TL400SS, TL400PP, TL500SS, TL500PP, TL650SS, TL650PP |
| SWEP | C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180 |

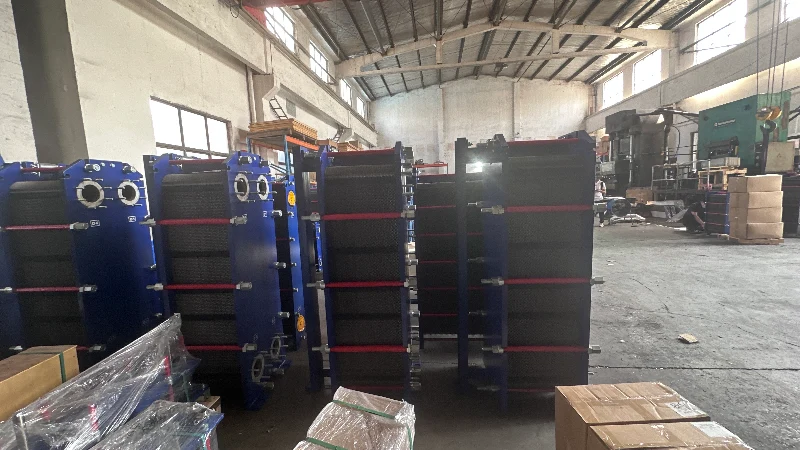

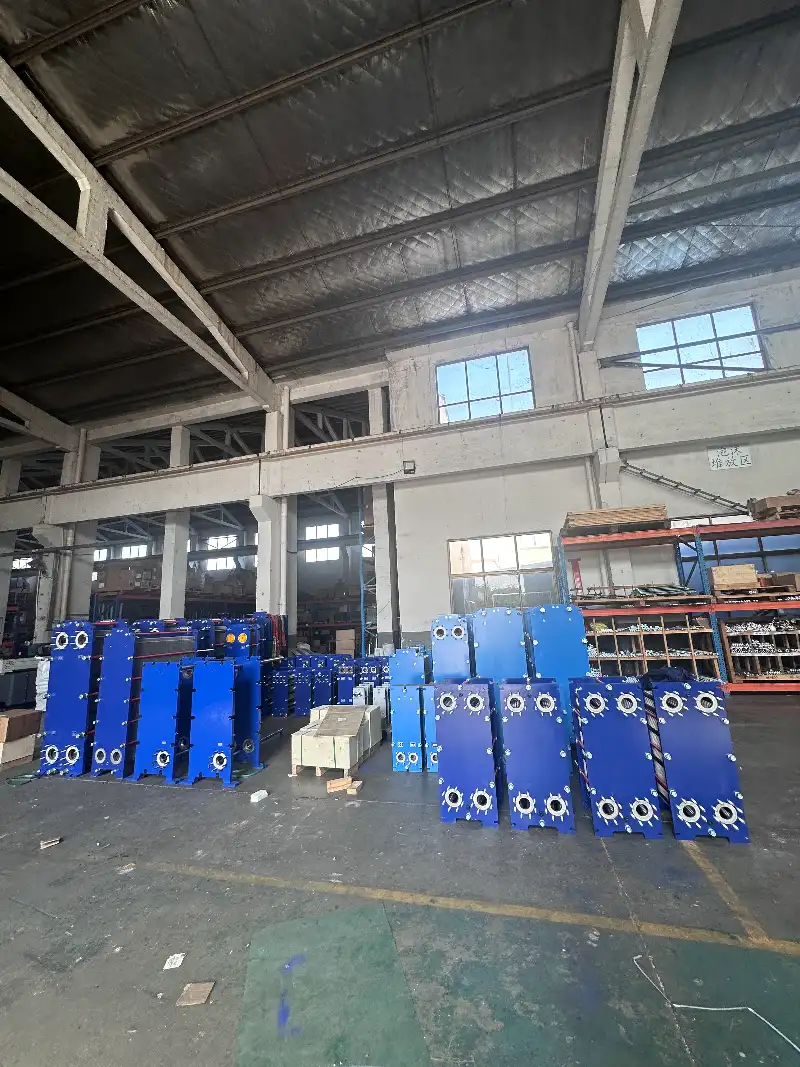

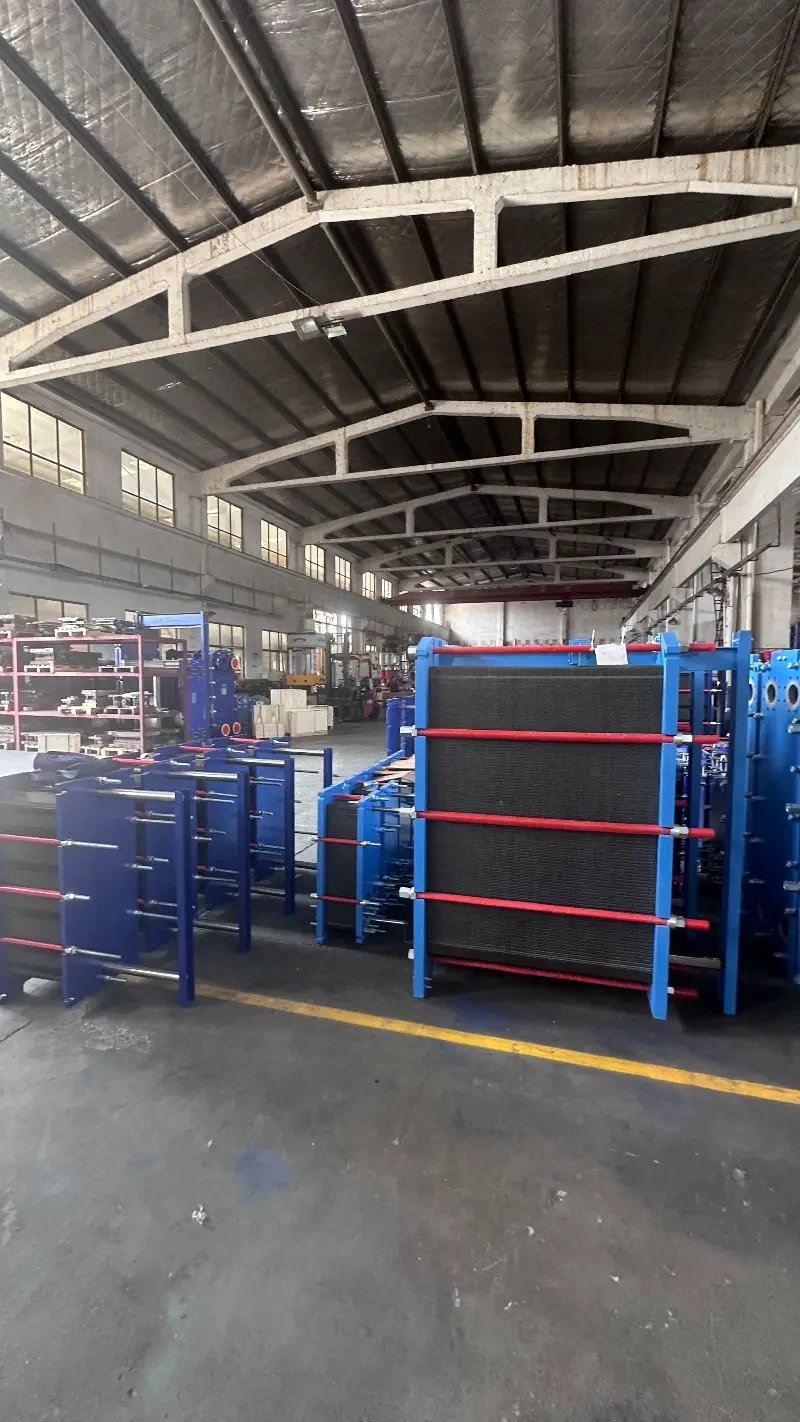

Workshop of Plate Heat Exchanger Factory
