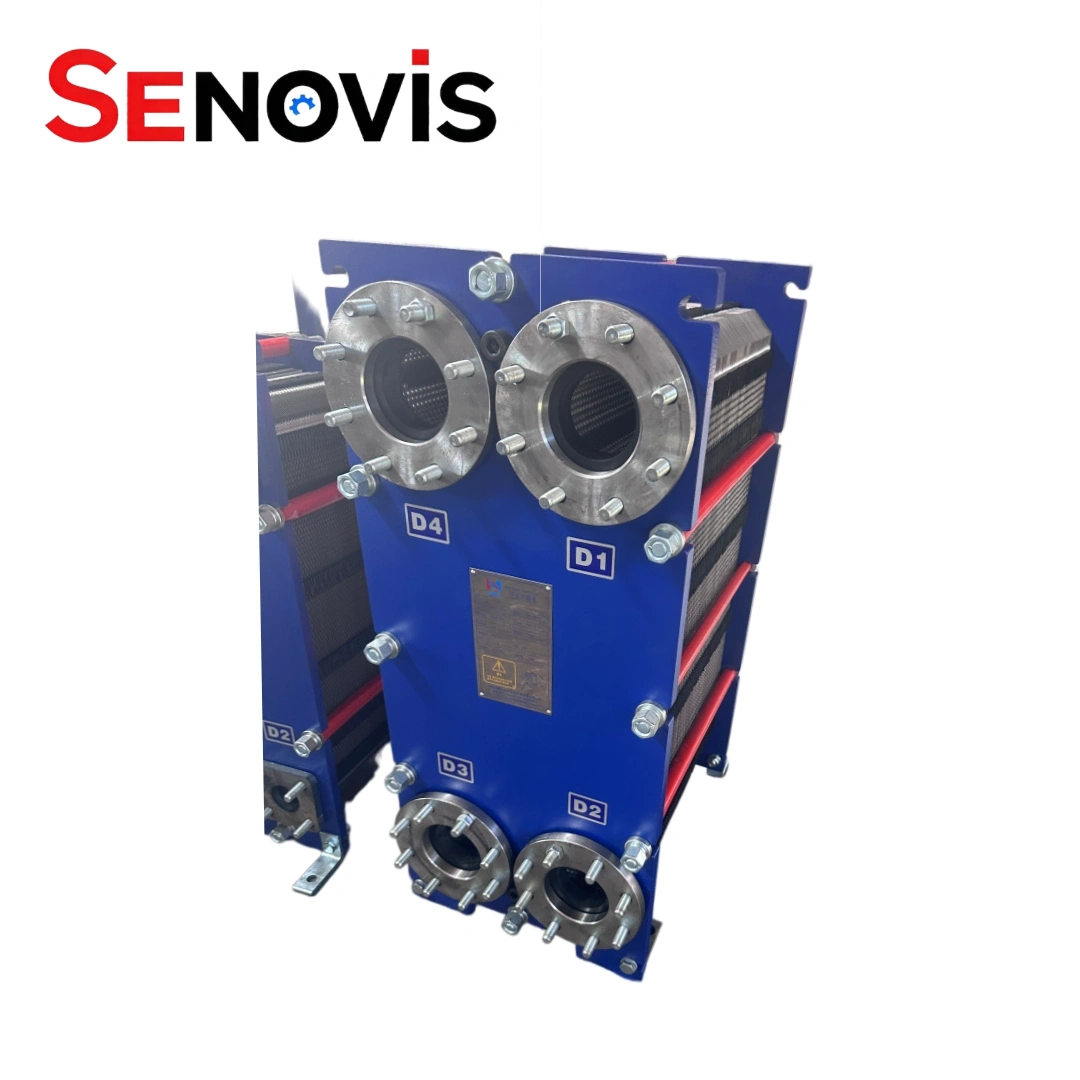

GEA NT50T Heat Exchanger Gaskets and Plates Kelvion PHE
GEA NT50T Heat Exchanger is a compact gasketed plate heat exchanger built for heat transfer duty across HVAC, food processing, chemical, and water treatment installations. Senovis PHE manufactures replacement plates and gaskets for GEA / Kelvion Ecoflex NT50T CDL-S-16 systems, covering routine maintenance cycles, full refurbishment projects, and one off spare parts orders.
Our plate and gasket production extends across the broader GEA NT series — NT50M, NT50T, NT80M, NT100T, NT100M, and NT150S
GEA VT10 details
PHE Model
GEA NT50T
Keyword
GEA Ecoflex Heat Exchanger
Application
Beverage Heating/Food Industry/Sterilization
GEA NT series
NT50M, NT50T, NT80M, NT100T, NT100M, and NT150S
Accurate Temperature Control
-30℃ – +180℃
Flow Capacity
Customized
Material Type
Carbon Steel / SS304
Thickness
0.5mm, 0.6mm, 0.7mm
Gasket material
EPDM / NBR(Buna-N)/FKM/Customized
DESCRIPTION
GEA NT50T Heat Exchanger is a compact gasketed plate heat exchanger designed for efficient heat transfer in HVAC, food processing, chemical, and water treatment applications. As a professional manufacturer of plate heat exchanger plates and gaskets, Senovis PHE supplies replacement solutions for GEA Kelvion Ecoflex NT50T CDL-S-16 Heat Exchanger systems, supporting routine maintenance, refurbishment, and spare parts sourcing. Our manufacturing capabilities also cover a wide range of GEA Flat Plate Heat Exchanger, including models within the Gea Nt80m Nt50m Nt50t Nt100t Nt100m Nt150s series. Each component is produced with strict dimensional control and material traceability to meet the practical requirements of plant operators, maintenance teams, and industrial buyers worldwide.
GEA VT10 Plate heat exchanger specification
| PHE Plate Heat Exchanger Replacemnet | GEA NT50T PHE Plate Heat Exchanger |
| Keyword | Kelvion Flat Plate |
| Corrugation Depth(mm) | 2.8 |
| Port Diameter(mm) | φ58 |
| Chevron Angle | 129°127° |
| Corrugation Pitch(mm) | 10.5 |
| Equivalent Diameter | 5.6 |
| Flow Area(m²) | 0.00058 |
| One Plate (m²) | 0.07 |
| Port Distance (mm) | 371*130 |
| Dimensions (mm) | 492*246 |
Plate heat exchanger models Compatible Brands
| Compatible Brands | Plate heat exchanger models |
| Alfa Laval | M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, P22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600 |
| Sondex | S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123 |
| APV | T4, SR1, SR2, SR3, SR9, R5, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134 |
| GEA | VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184 |
| API | SIGMA13, SIGMA19, SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156 |
| FUNKE | FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405 |
| Tranter | GC8, GX26, GC51, GX64, GX145, GL13, GX42, GX51, GX85, GL16, GCD044, GC60, GX91, GC26, GCD054, GX60, GX100 |
| Vicarb | V2, V4,V8, V13, V20, V28, V45, V60, V85, , V100, V110, V130 |
| Thermowave | TL90SS, TL90PP, TL150SS, TL150PP, TL250SS, TL250PP, TL400SS, TL400PP, TL500SS, TL500PP, TL650SS, TL650PP |
| SWEP | C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180 |

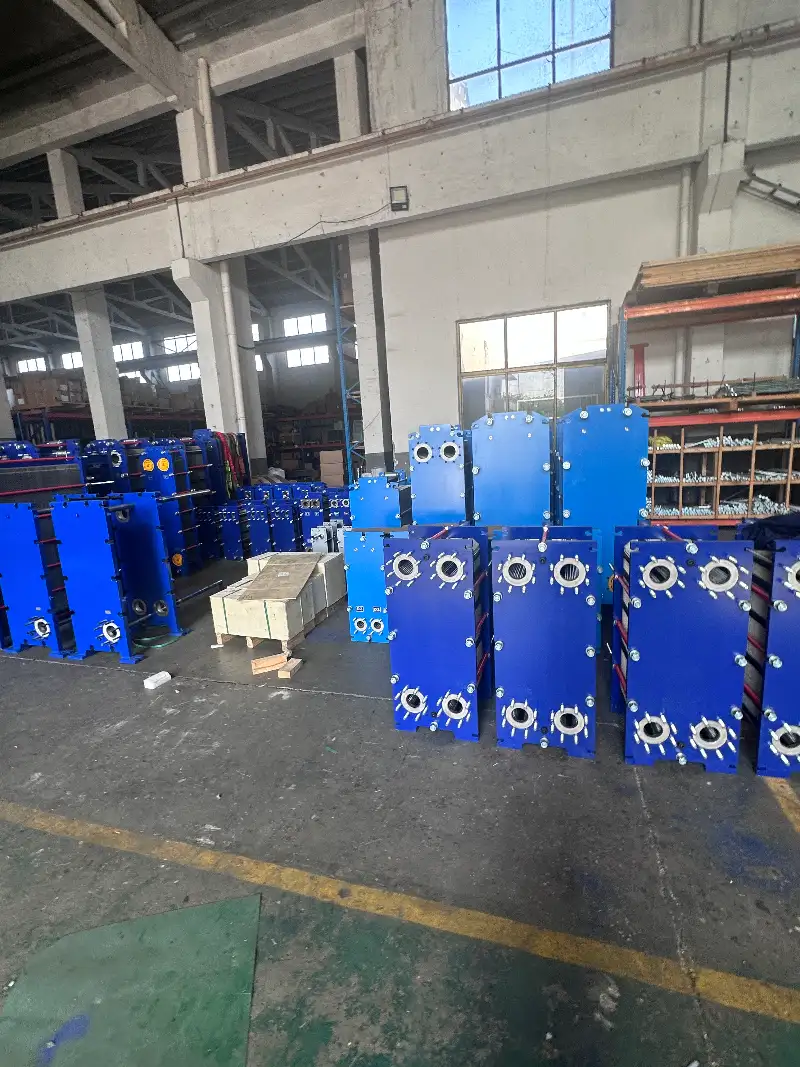

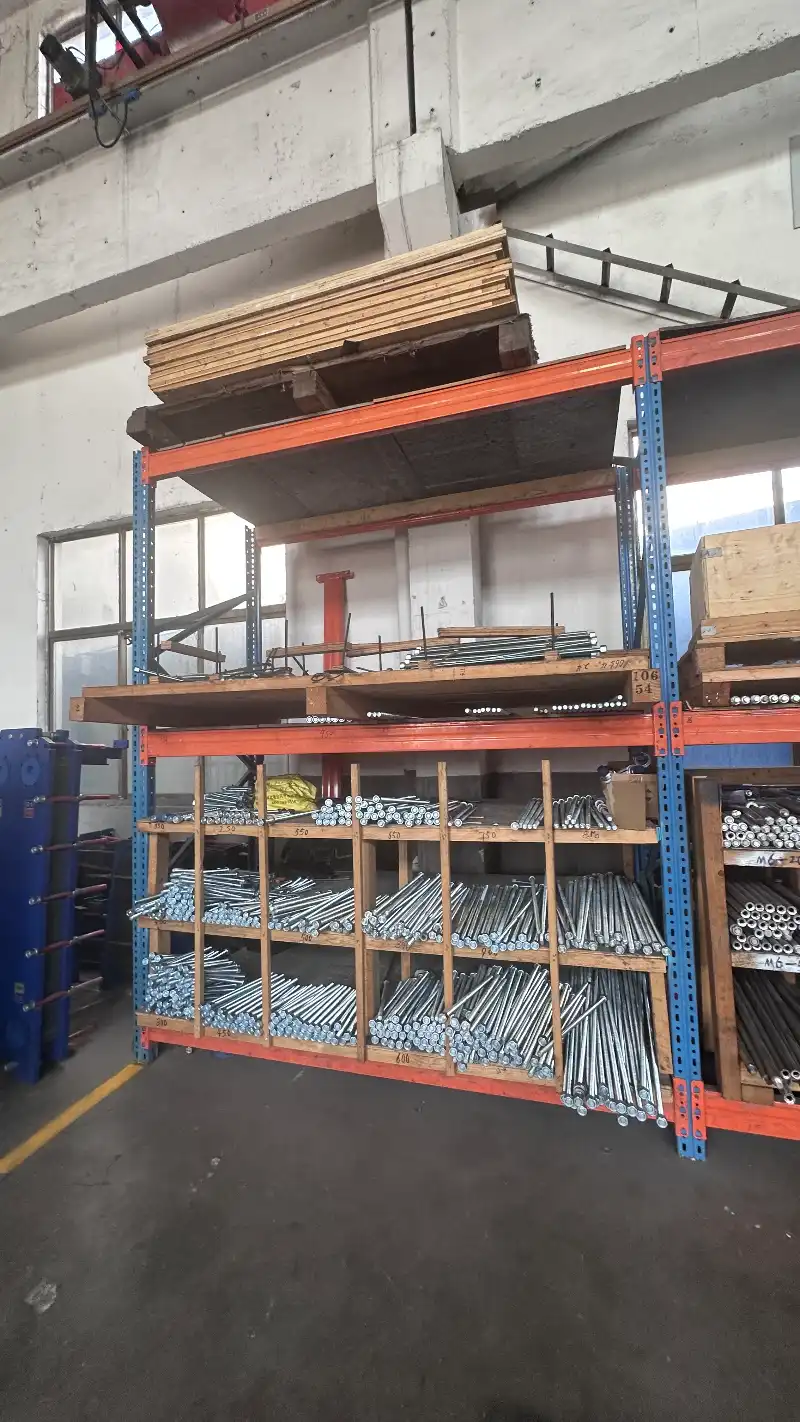

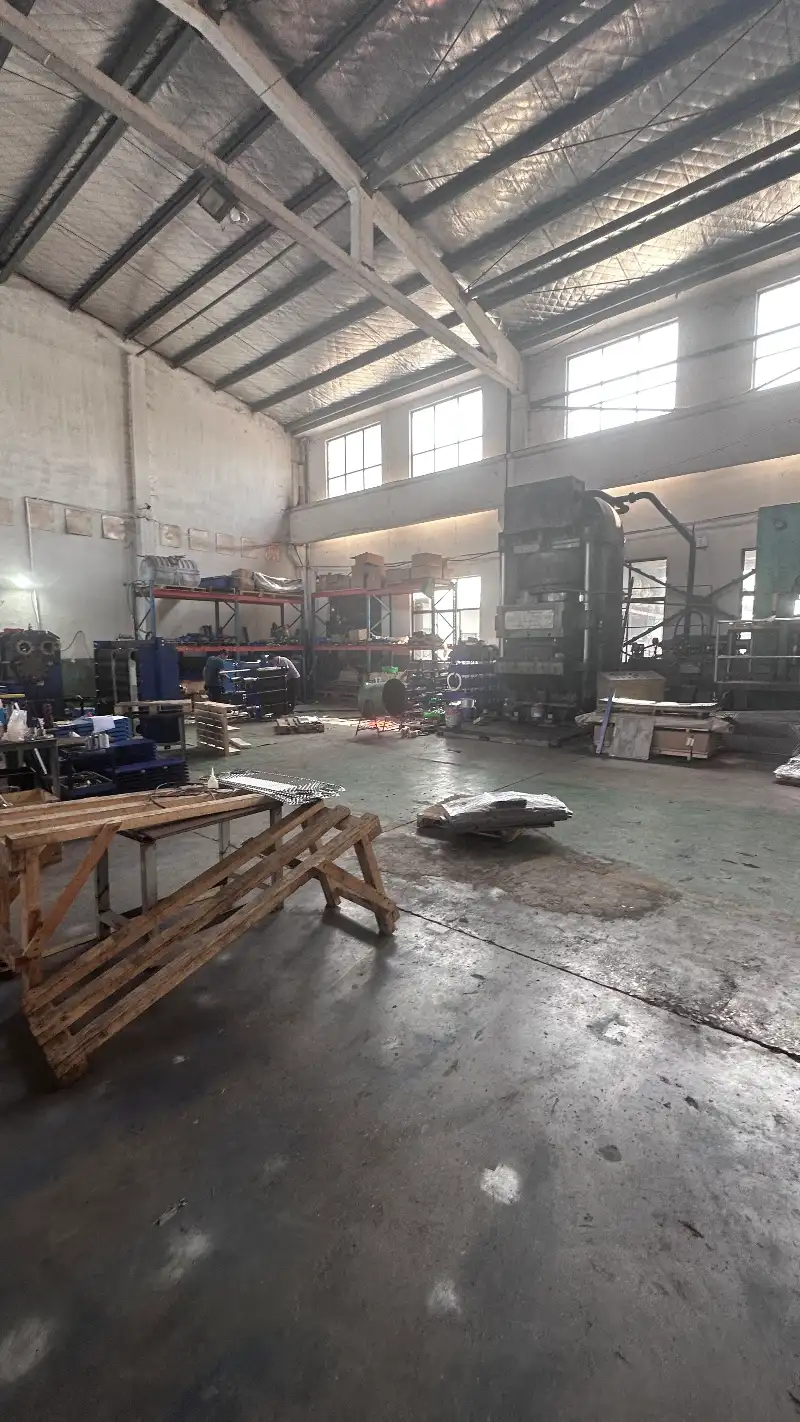

Workshop of Plate Heat Exchanger Factory
