GEA NT150L Detachable Plate Heat Exchanger In Refinery
GEA/Kelvion NT150L Replacement Plates & Gaskets
Senovis PHE is a professional manufacturer specializing in aftermarket plates and gaskets for GEA (Kelvion) NT series plate heat exchangers. We supply high quality, precision engineered replacement parts for heavy-duty heating, cooling, and heat recovery systems.
GEA NT150L details
PHE Model
GEA NT150L
Keyword
GEA PHE Systems
Application
Heating or cooling
Compatible Brands
Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
working temperature range
200°C
Liquid Flow Rate
Max 100 M3/h
Material Type
SS304/SS316/SS316L/Titanium/ALLOY C276
Thickness
0.5mm 0.6mm 0.7mm 0.8mm
Gasket material
Food-grade EPDM / NBR(Buna-N)/FKM/Customized
DESCRIPTION

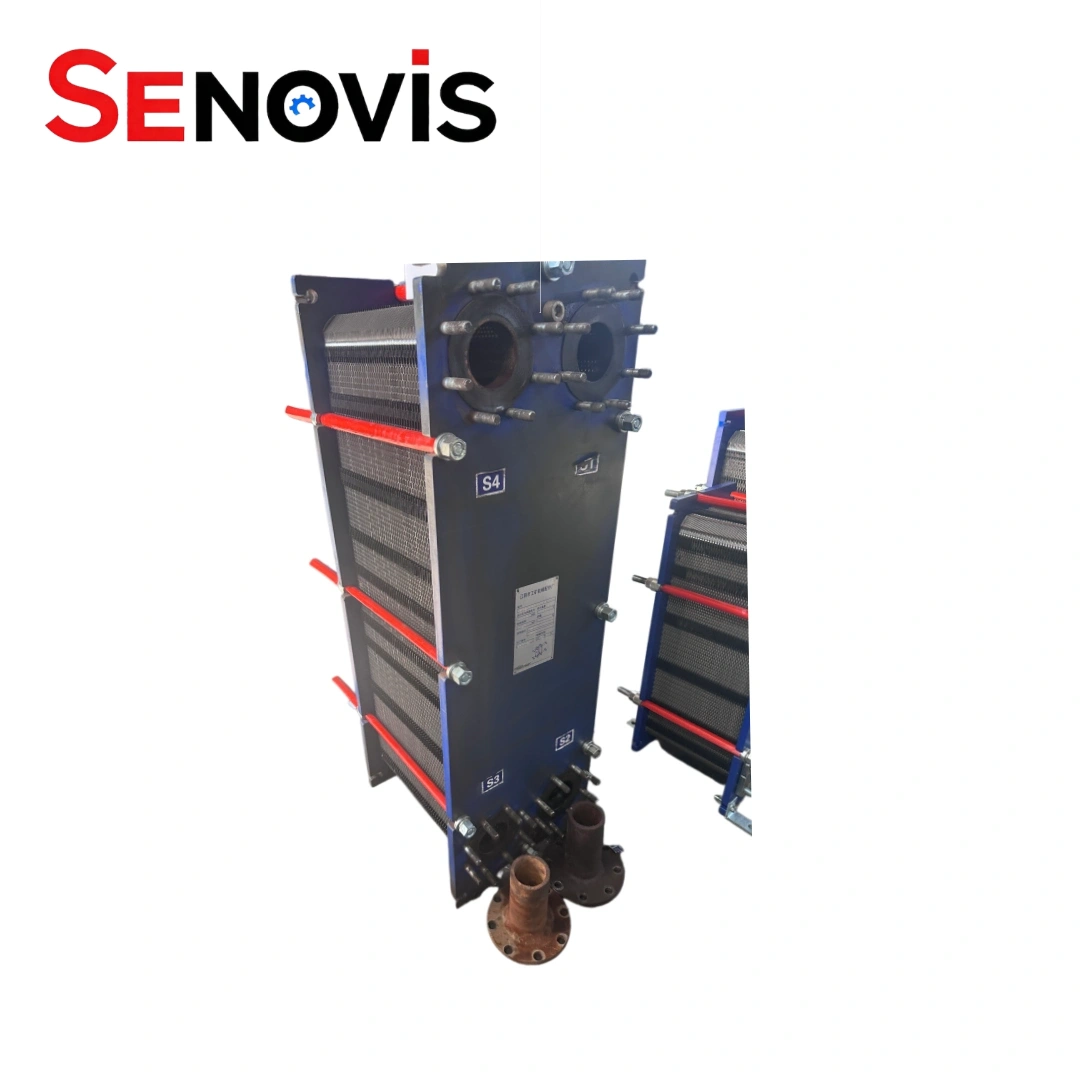

GEA NT150L Heat Exchanger is a large capacity gasketed plate heat exchanger engineered for high flow industrial heating, cooling, heat recovery, and refrigeration applications. As a professional plate heat exchanger and spare parts manufacturer, Senovis PHE supplies replacement plates and gaskets for Gea Plate Heat Exchanger NT150L, including GEA NT150L Seal Gasket, Gea NT150L Plates and NBR Gaskets, and customized spare parts for related models such as Gea Kelvion NT100T, NT100X, NT150L, NT150S, NT250L, and NT250S. Designed for maintenance, refurbishment, and OEM replacement projects, these components are widely used in HVAC, marine, energy, and industrial process systems where reliable heat transfer performance is essential.
GEA NT150L Plate heat exchanger specification
| PHE Plate Heat Exchanger Replacemnet | GEA NT150L GEA Kelvion |
| Keyword | Heat Exchanger Kelvion |
| Corrugation Depth(mm) | 3.2 |
| Port Diameter(mm) | φ155 |
| Chevron Angle | 120° (Horizontal & Vertical) |
| Corrugation Pitch(mm) | 12 |
| Equivalent Diameter | 6.4 |
| Flow Area(m²) | 0.00155 |
| One Plate (m²) | 0.85 |
| Port Distance (mm) | 1572*314 |
| Dimensions (mm) | 1804*541 |
Plate heat exchanger models Compatible Brands
| Compatible Brands | Plate heat exchanger models |
| Alfa Laval | M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, P22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600 |
| Sondex | S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123 |
| APV | T4, SR1, SR2, SR3, SR9, R5, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134 |
| GEA | VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184 |
| API | SIGMA13, SIGMA19, SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156 |
| FUNKE | FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405 |
| Tranter | GC8, GX26, GC51, GX64, GX145, GL13, GX42, GX51, GX85, GL16, GCD044, GC60, GX91, GC26, GCD054, GX60, GX100 |
| Vicarb | V2, V4,V8, V13, V20, V28, V45, V60, V85, , V100, V110, V130 |
| Thermowave | TL90SS, TL90PP, TL150SS, TL150PP, TL250SS, TL250PP, TL400SS, TL400PP, TL500SS, TL500PP, TL650SS, TL650PP |
| SWEP | C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180 |

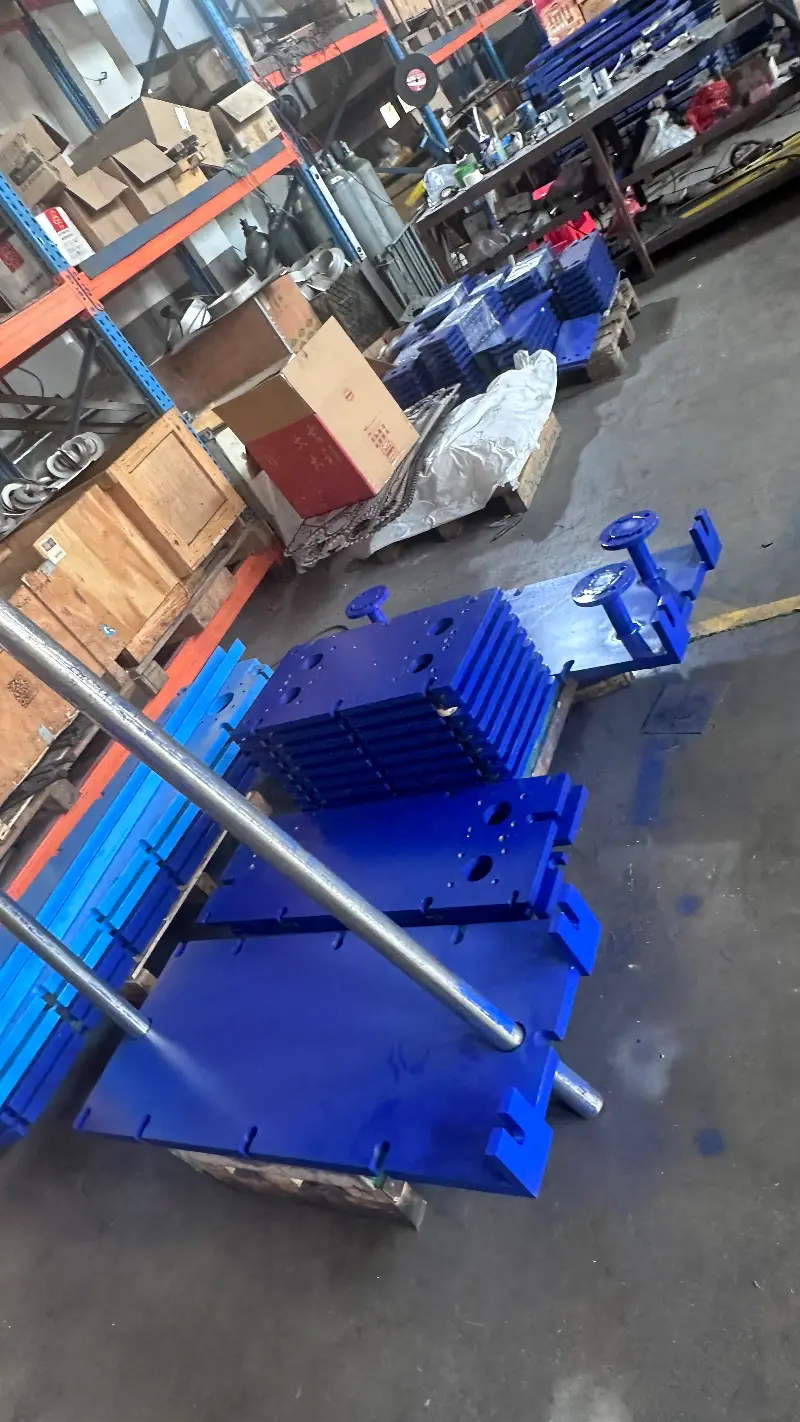

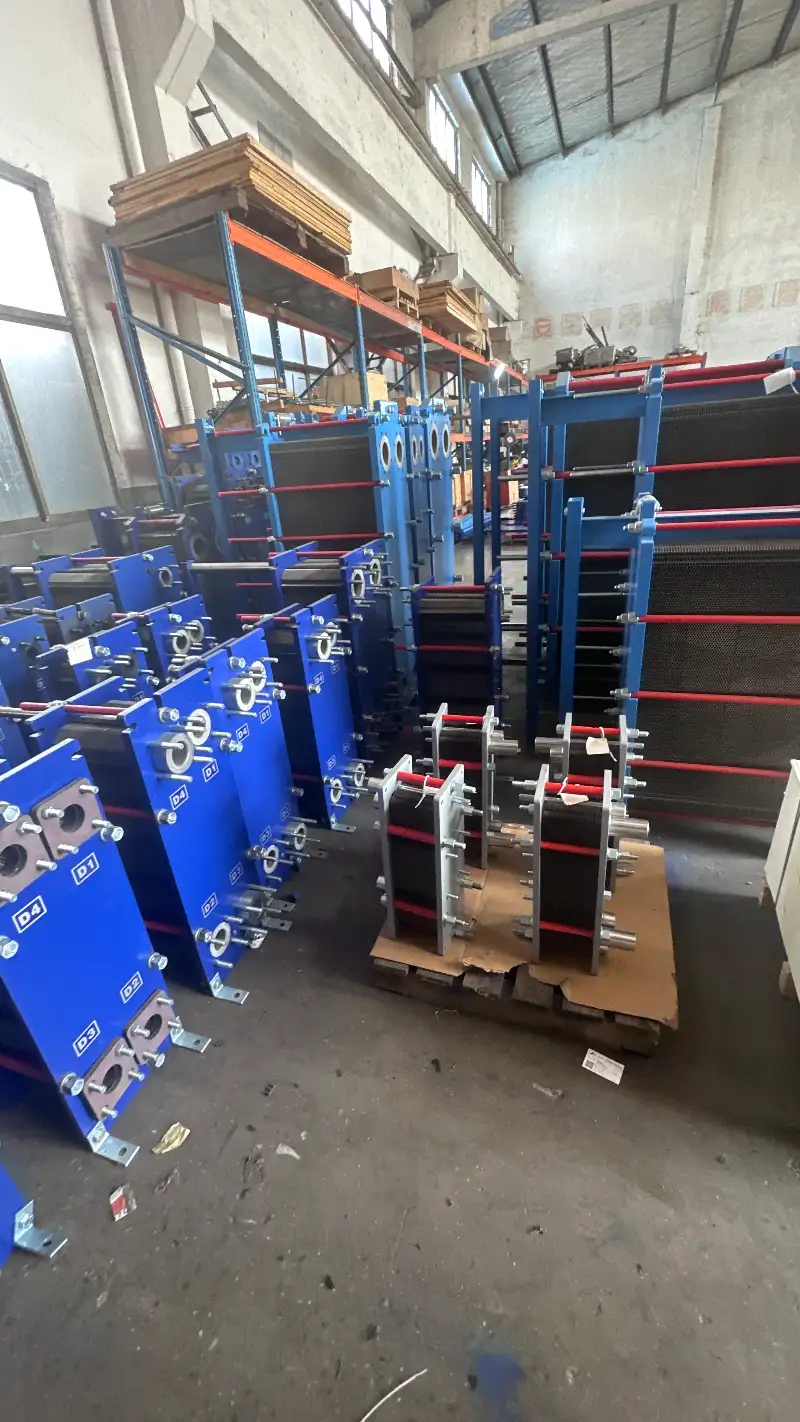

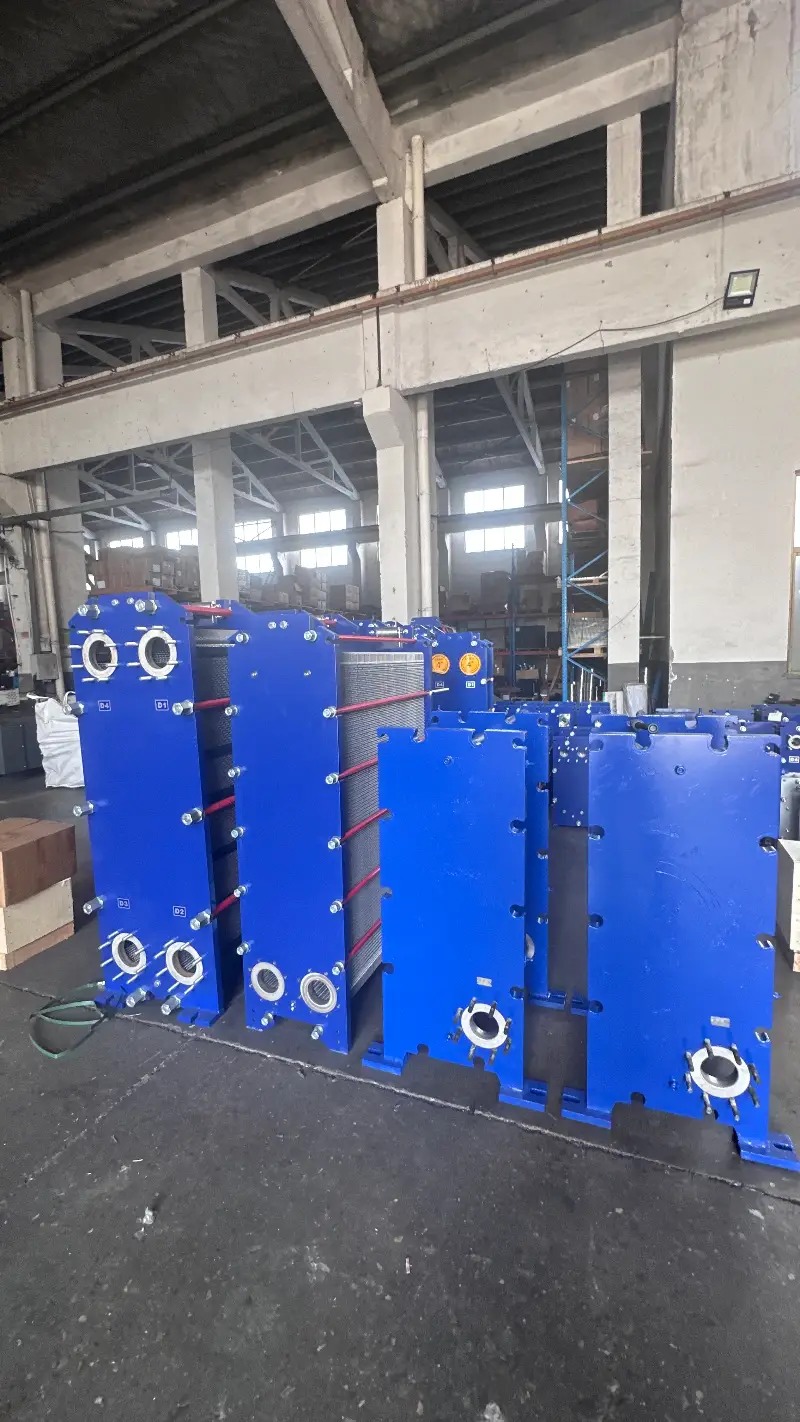

Workshop of Plate Heat Exchanger Factory
