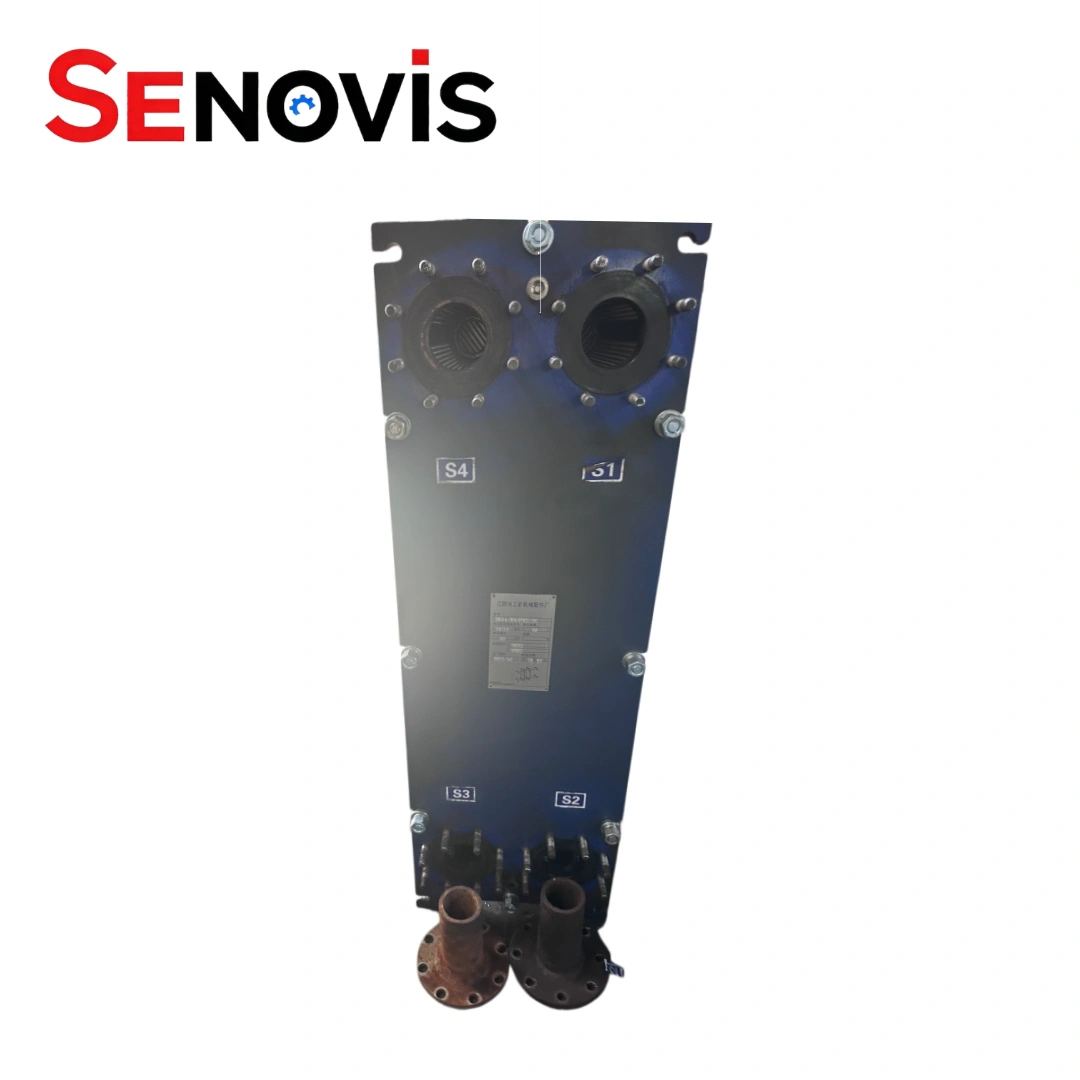

GEA NT100T Heat Exchanger Kelvion Condenser PHE Cooling System
The GEA NT100T is a Kelvion Plate Heat Exchanger widely used in district energy, industrial cooling, HVAC, and refrigeration systems. At Senovis PHE, we manufacture replacement plates and gaskets for the full NT100T range including NT100T CDL-10, NT100M, NT100X, and BYF-300 configurations as well as related GEA ECOFLEX and Kelvion NT150L / NT150S / NT250L models.
GEA NT100T details
PHE Model
GEA NT100T PHE
Keyword
GEA Heat Exchanger
Certificates
CE/ISO9001
Compatible Brands
gea nt100t cdl 10/gea nt100t
working temperature range
MAX. 200℃
Airflow requirements
Customized
Material Type
SS304, SS316, Titanium, Hastelloy, Nickle, Ti-pd
Thickness
0.7-1.0mm
Gasket material
NBR EPDM FKM
DESCRIPTION
The GEA NT100T Heat Exchanger is a Plate Heat Exchanger Kelvion widely used in cooling, heating, refrigeration, district energy. At Senovis PHE, we manufacture and supply replacement plates and gaskets for gea nt100t cdl 10, Gea Nt100t/Nt100m/Nt100X Gasket Plate Heat Exchanger, and various GEA-ECOFLEX plate heat exchanger gaskets . Our production range also supports models commonly referenced as Gea Kelvion Nt100t Nt100X Nt150L Nt150s Nt250L …, including replacement solutions for Gea Kelvion NT100T Heat Exchanger Plate and nt100t byf-300 configurations. As one of the experienced China GEA NT100T Plate Suppliers, Manufacturers, Senovis PHE provides engineered replacement components for industrial heat transfer systems requiring reliable thermal performance and service support.
GEA NT100T Plate heat exchanger specification
| PHE Plate Heat Exchanger Replacemnet | GEA NT100T GEA Coolers |
| Keyword | GEA Flat Plate Heat Exchanger |
| Corrugation Depth(mm) | 3 |
| Port Diameter(mm) | φ110 |
| Chevron Angle | 128° (Horizontal & Vertical) |
| Corrugation Pitch(mm) | 11.4 |
| Equivalent Diameter | 6 |
| Flow Area(m²) | 0.00122 |
| One Plate (m²) | 0.25 |
| Port Distance (mm) | 707*262 |
| Dimensions (mm) | 897*445 |
Plate heat exchanger models Compatible Brands
| Compatible Brands | Plate heat exchanger models |
| Alfa Laval | M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, P22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600 |
| Sondex | S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123 |
| APV | T4, SR1, SR2, SR3, SR9, R5, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134 |
| GEA | VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184 |
| API | SIGMA13, SIGMA19, SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156 |
| FUNKE | FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405 |
| Tranter | GC8, GX26, GC51, GX64, GX145, GL13, GX42, GX51, GX85, GL16, GCD044, GC60, GX91, GC26, GCD054, GX60, GX100 |
| Vicarb | V2, V4,V8, V13, V20, V28, V45, V60, V85, , V100, V110, V130 |
| Thermowave | TL90SS, TL90PP, TL150SS, TL150PP, TL250SS, TL250PP, TL400SS, TL400PP, TL500SS, TL500PP, TL650SS, TL650PP |
| SWEP | C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180 |

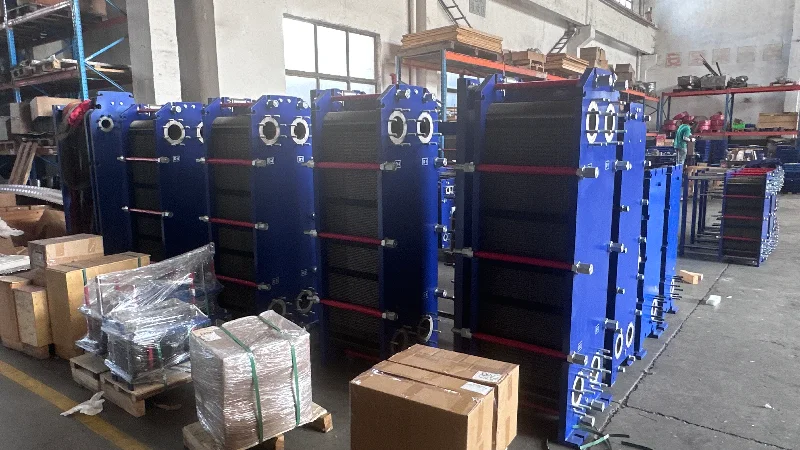

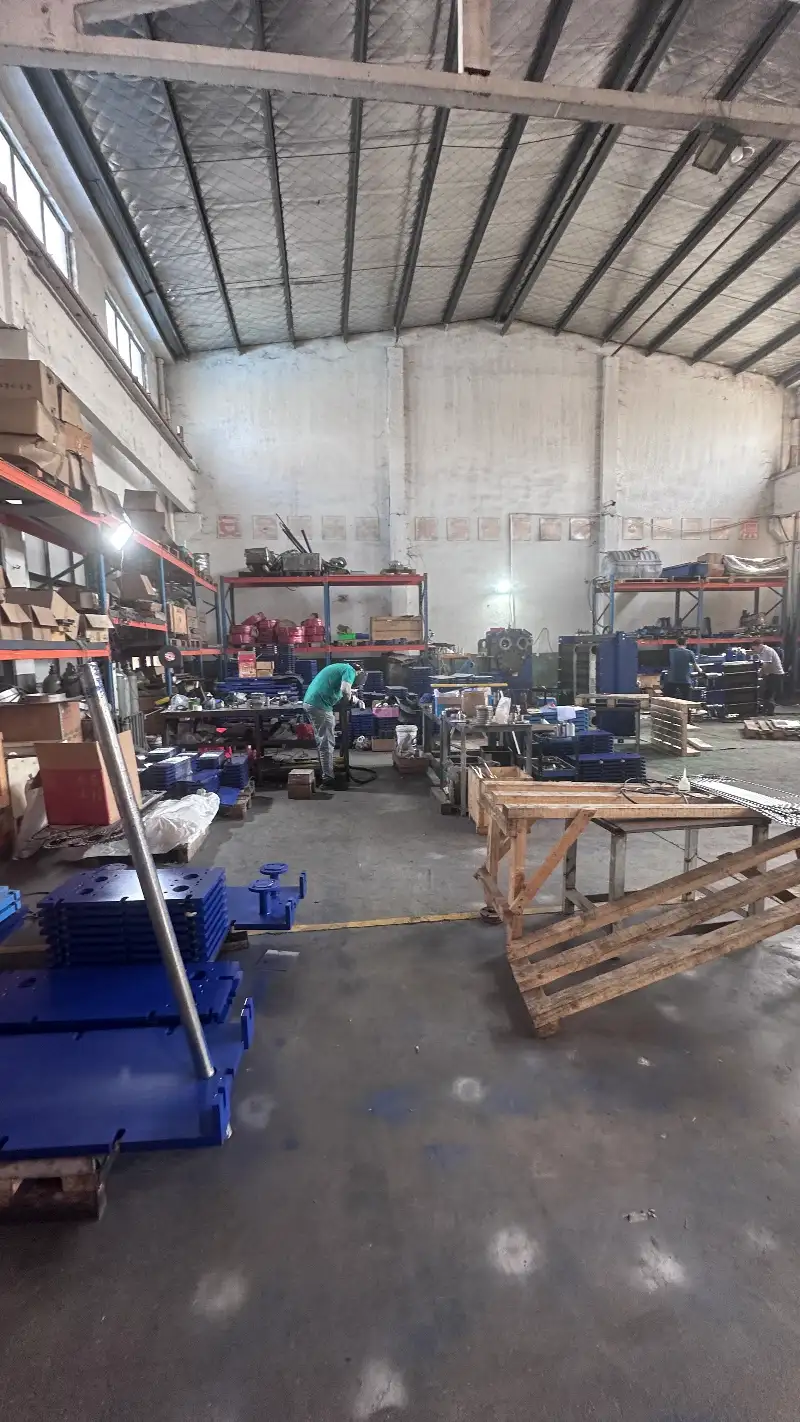

Workshop of Plate Heat Exchanger Factory
