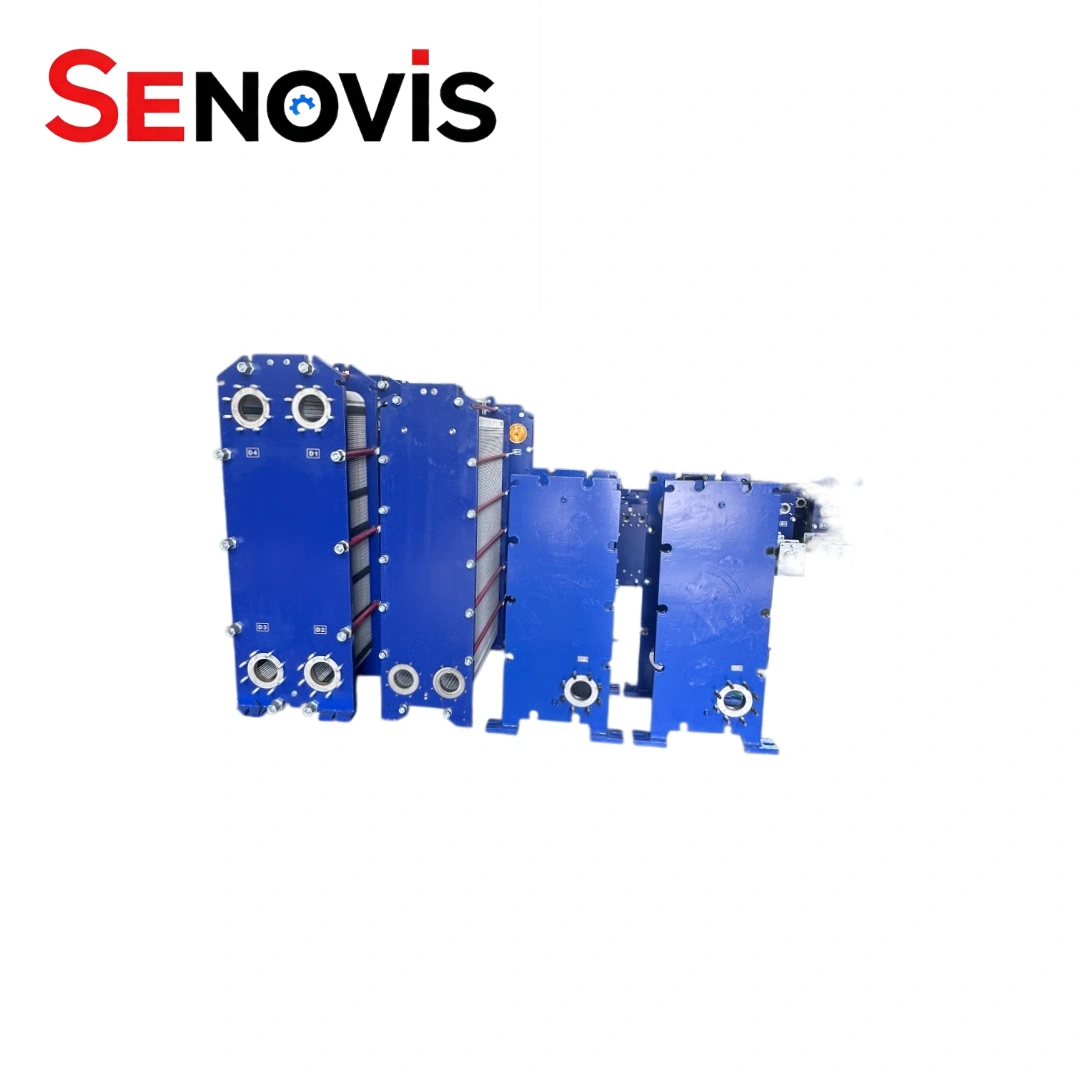

GEA NT100M PHE Plate Heat Exchanger In Milk Processing
The GEA NT100M is a standard frame size in the ECOFLEX NT series, commonly specified for heat recovery, process cooling, and fluid-to-fluid duties across HVAC, food processing, marine, and chemical applications.
Senovis PHE supplies replacement plates and gaskets for the GEA NT100T / NT100X / NT100M range, including configured models such as the NT100M-BYF-150. Plate options cover 316L stainless steel, titanium, and 254 SMO for corrosive or high-purity service. Gasket compounds — NBR, EPDM, HNBR, and Viton (FKM) — are selected to match your operating fluid and temperature range.
GEA NT100M details
PHE Model
GEA NT100M PHE
Keyword
GEA Heat Exchangers Kelvion
End Plate
0 Hole
Compatible Brands
Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
working temperature range
<150℃ (302℉)
Flow Capacity
50gpm
Material Type
Carbon Steel, SS304, SS316, SS316 Cladding
Thickness
0.5mm, 0.6mm, 0.8mm, 1mm
Gasket material
NBR, EPDM, HNBR, HEPDM, Viton A, Viton G
DESCRIPTION
The GEA NT100M Plate Heat Exchanger is a widely used frame size within the GEA ECOFLEX NT series, designed for efficient thermal transfer in HVAC, food processing, marine, chemical, and industrial cooling applications. As a professional manufacturer of plate heat exchangers and spare parts, Senovis PHE supplies replacement plates and gaskets for Gea Nt100t/nt100x/nt100m Heat Exchangers, including models such as GEA NT100M-BYF-150. Available with stainless steel, titanium, and specialty alloy plate options, our solutions also support demanding Titanium Plate Heat Exchanger applications. We provide reliable replacement components for GEA / Kelvion Heat Exchangers Plates and are recognized among experienced China GEA Heat Exchanger Gaskets Manufacturers, supporting maintenance teams and industrial buyers with consistent product quality and technical assistance.
GEA NT100M Plate heat exchanger specification
| PHE Plate Heat Exchanger Replacemnet | GEA NT100M GEA Ecoflex Heat Exchanger |
| Keyword | GEA Ecoflex Plate Heat Exchanger |
| Corrugation Depth(mm) | 3 |
| Port Diameter(mm) | φ110 |
| Chevron Angle | 128° (Horizontal & Vertical) |
| Corrugation Pitch(mm) | 11.4 |
| Equivalent Diameter | 6 |
| Flow Area(m²) | 0.00122 |
| One Plate (m²) | 0.44 |
| Port Distance (mm) | 1113*262 |
| Dimensions (mm) | 1303*445 |
Plate heat exchanger models Compatible Brands
| Compatible Brands | Plate heat exchanger models |
| Alfa Laval | M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, P22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600 |
| Sondex | S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123 |
| APV | T4, SR1, SR2, SR3, SR9, R5, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134 |
| GEA | VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184 |
| API | SIGMA13, SIGMA19, SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156 |
| FUNKE | FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405 |
| Tranter | GC8, GX26, GC51, GX64, GX145, GL13, GX42, GX51, GX85, GL16, GCD044, GC60, GX91, GC26, GCD054, GX60, GX100 |
| Vicarb | V2, V4,V8, V13, V20, V28, V45, V60, V85, , V100, V110, V130 |
| Thermowave | TL90SS, TL90PP, TL150SS, TL150PP, TL250SS, TL250PP, TL400SS, TL400PP, TL500SS, TL500PP, TL650SS, TL650PP |
| SWEP | C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180 |

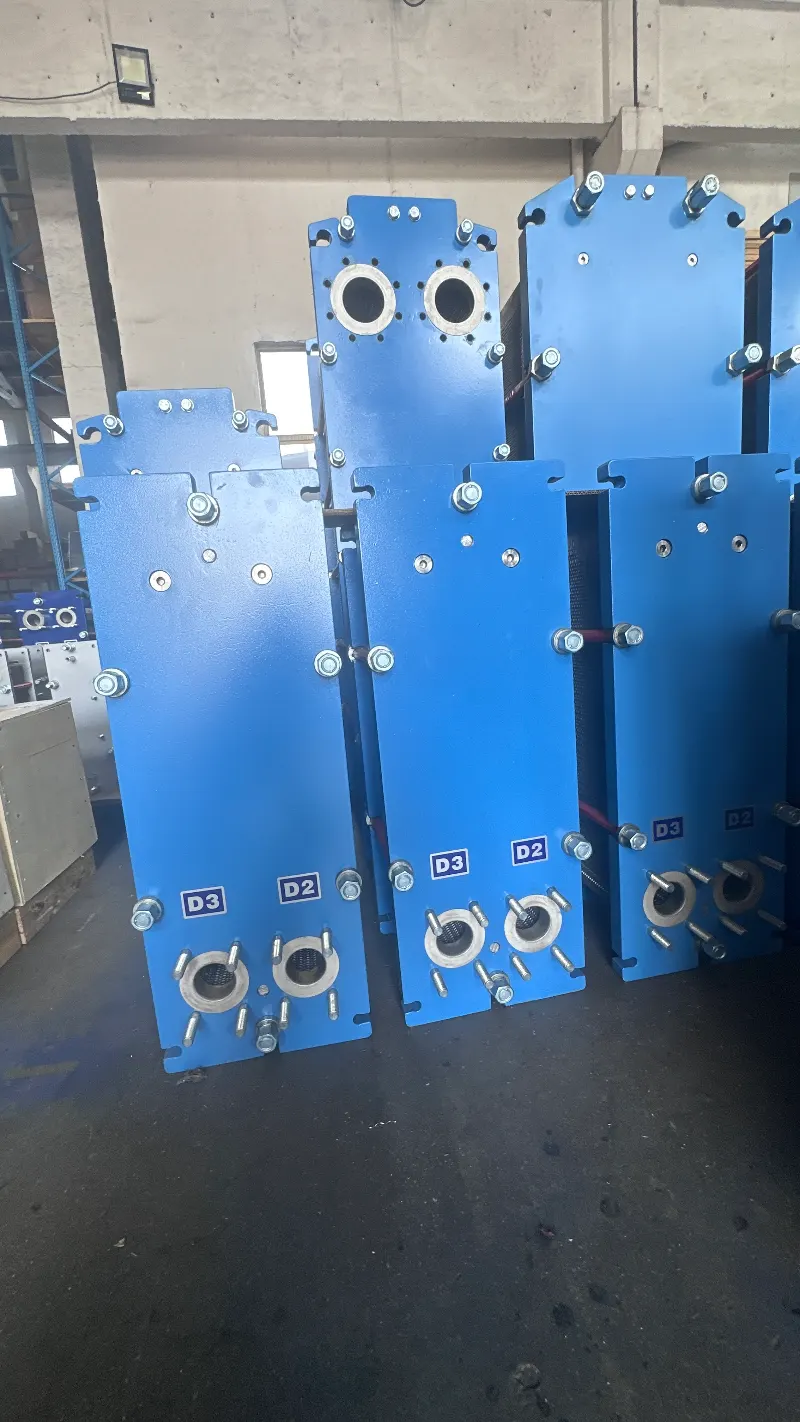

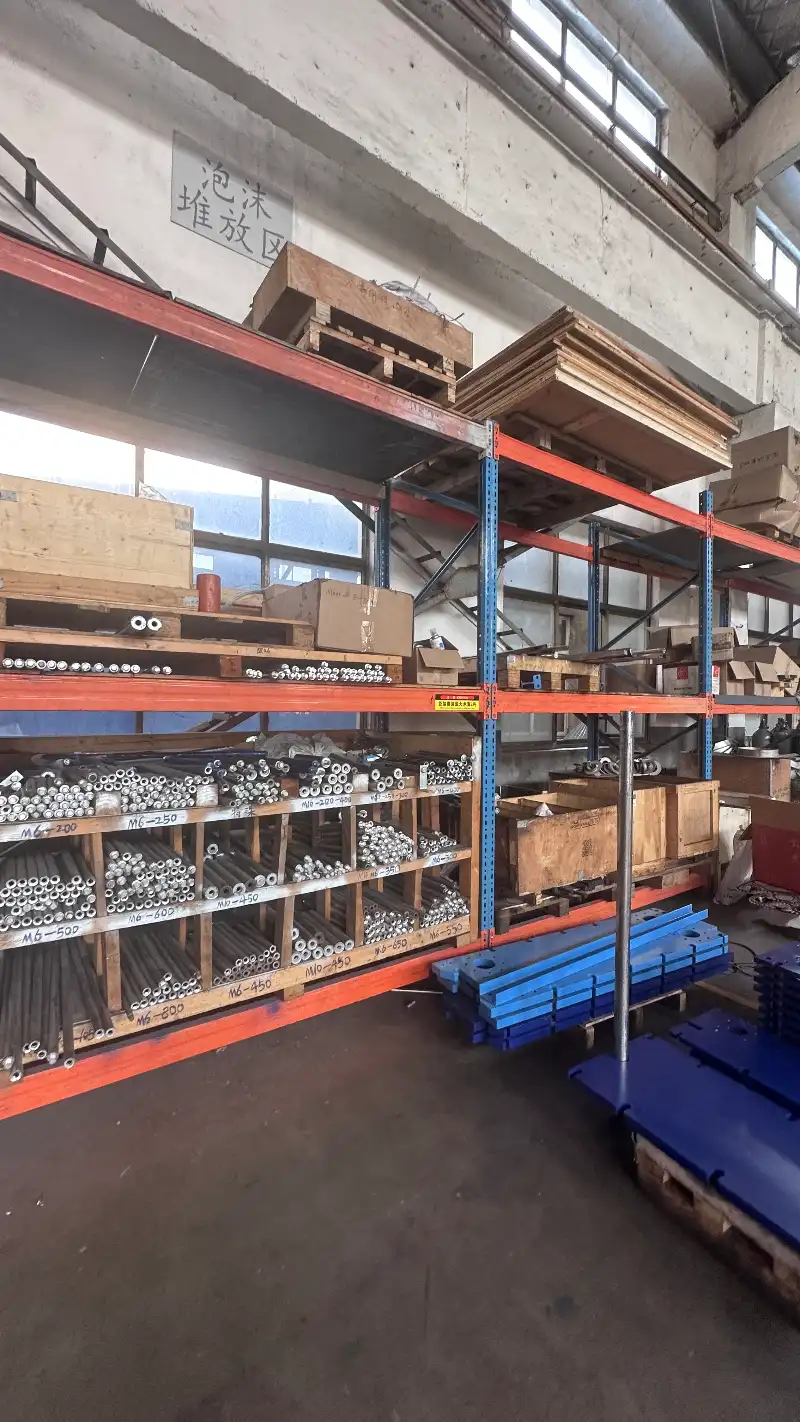

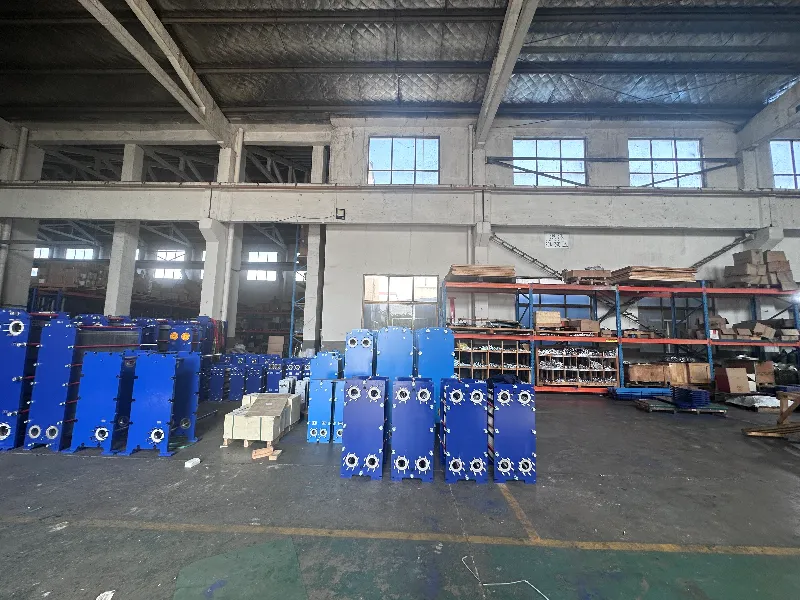

Workshop of Plate Heat Exchanger Factory
