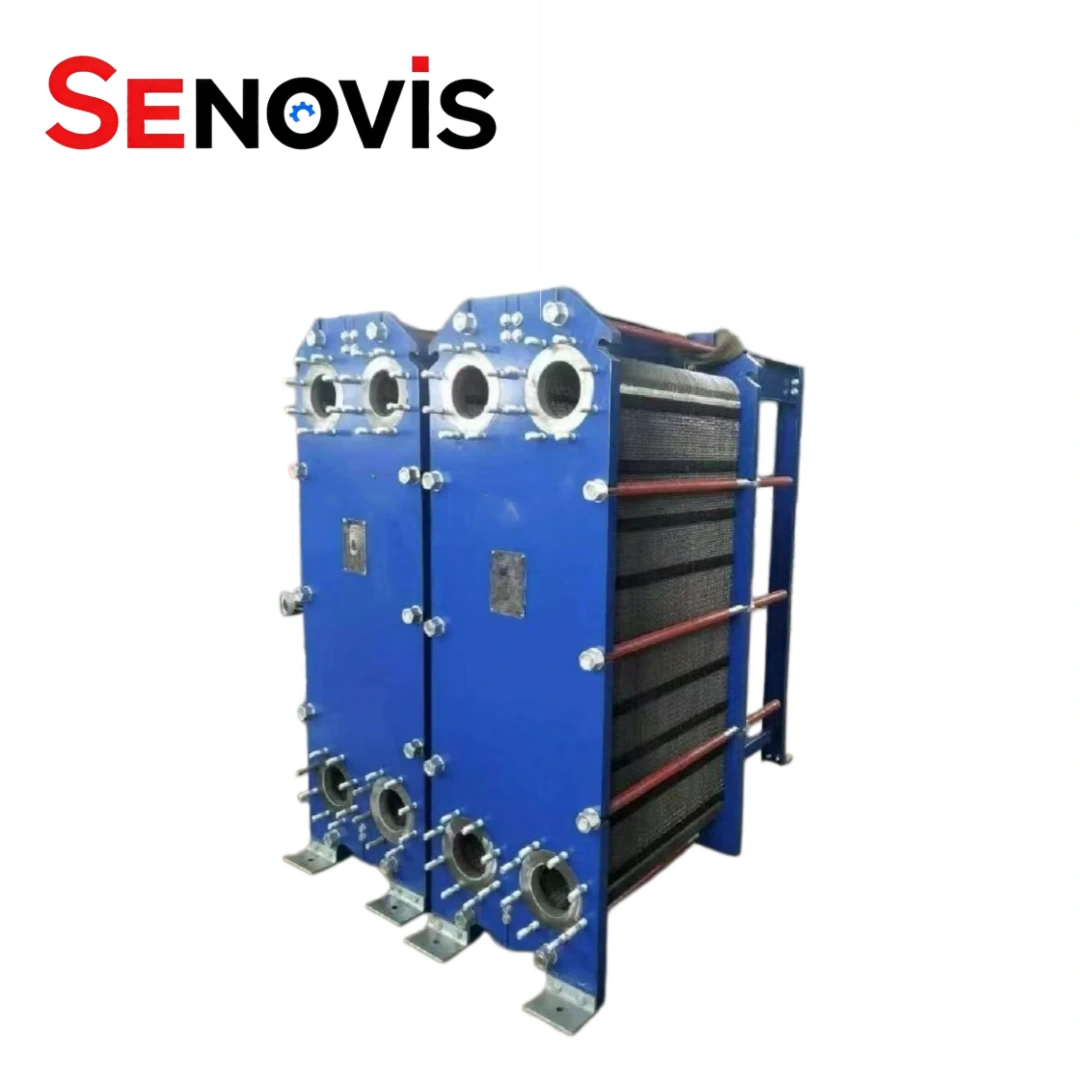

APV J060 APV Plate Heat Exchanger Milk Pasteurization Replacement
We manufacture plates for apv J060 gasketed plate heat exchanger (gphe) systems, designed for efficient heat transfer. Our range also includes apv J092, apv J107, and apv J185, supporting various industrial applications. Produced with precise forming and strict quality control, our GPHE plates ensure stable performance in demanding operating conditions.
APV J060 details
PHE Model
APV J060 Plate Heat Exchanger
Keyword
APV Plate Heat Exchanger
Liquid Flow Rate
500L/H
Maximum Pressure Rating
2.5 MPa
Material
stainless steel 304,SS316
Connection type
Weld, Tri-Clamp, Union
Connection size
DN25-DN350
Application
Beverage Heating/Food Industry/Sterilization
Plate thickness
0.5mm/0.6mm/0.7mm/0.8mm/0.9mm/1.0mm
DESCRIPTION
As a professional manufacturer of heat exchanger components, we produce plates for apv J060 gasketed plate heat exchanger (gphe) systems, designed to deliver efficient heat transfer and stable flow performance. Our product range also includes apv J092, apv J107, and apv J185, covering a wide variety of industrial applications. Each plate is engineered with precise geometry to support consistent thermal exchange in demanding environments such as food processing, HVAC, and chemical industries. Through advanced forming processes and strict quality control, we ensure reliable plate structure and performance. Our GPHE plate solutions are developed to meet global industry requirements and support efficient system operation across different working conditions.
APV J060 Plate heat exchanger specification
| PHE Plate Heat Exchanger Replacemnet | APV J060 PHE Plate Heat Exchanger |
| Keyword | APV Plates |
| Corrugation Depth(mm) | 3 |
| Port Diameter(mm) | φ229 |
| Chevron Angle | 60°120° |
| Corrugation Pitch(mm) | 10.4 |
| Equivalent Diameter | 6 |
| Flow Area(m²) | 0.00209 |
| One Plate (m²) | 0.6 |
| Port Distance (mm) | 915*465 |
| Dimensions (mm) | 1192*746 |
Plate heat exchanger models Compatible Brands
| Compatible Brands | Plate heat exchanger models |
| Alfa Laval | M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, P22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600 |
| Sondex | S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123 |
| APV | T4, SR1, SR2, SR3, SR9, R5, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134 |
| GEA | VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184 |
| API | SIGMA13, SIGMA19, SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156 |
| FUNKE | FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405 |
| Tranter | GC8, GX26, GC51, GX64, GX145, GL13, GX42, GX51, GX85, GL16, GCD044, GC60, GX91, GC26, GCD054, GX60, GX100 |
| Vicarb | V2, V4,V8, V13, V20, V28, V45, V60, V85, , V100, V110, V130 |
| Thermowave | TL90SS, TL90PP, TL150SS, TL150PP, TL250SS, TL250PP, TL400SS, TL400PP, TL500SS, TL500PP, TL650SS, TL650PP |
| SWEP | C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180 |

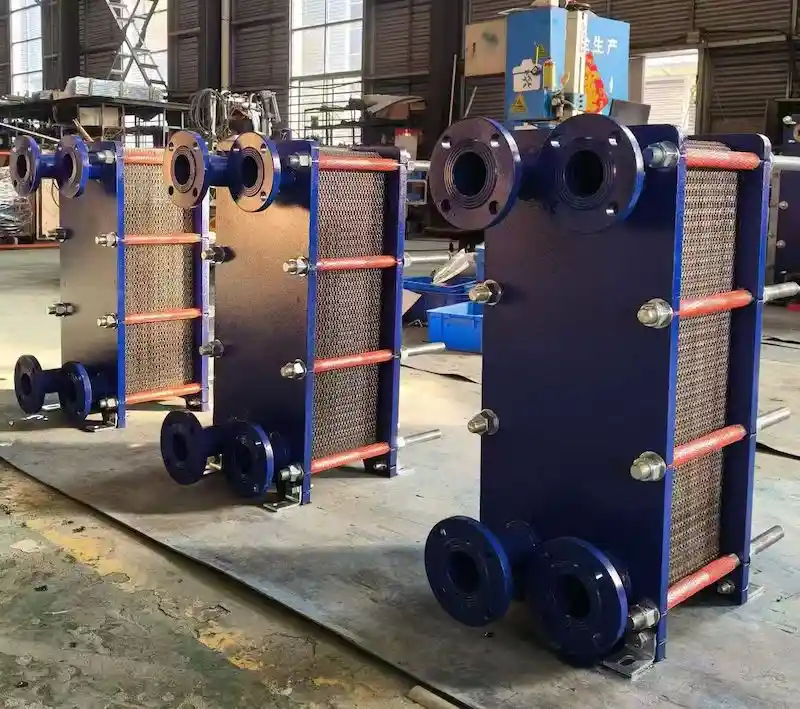

Workshop of Plate Heat Exchanger Factory
