Funke Fp50 Funke Phe Plate Heat Exchanger For Domestic Hot Water

DESCRIPTION

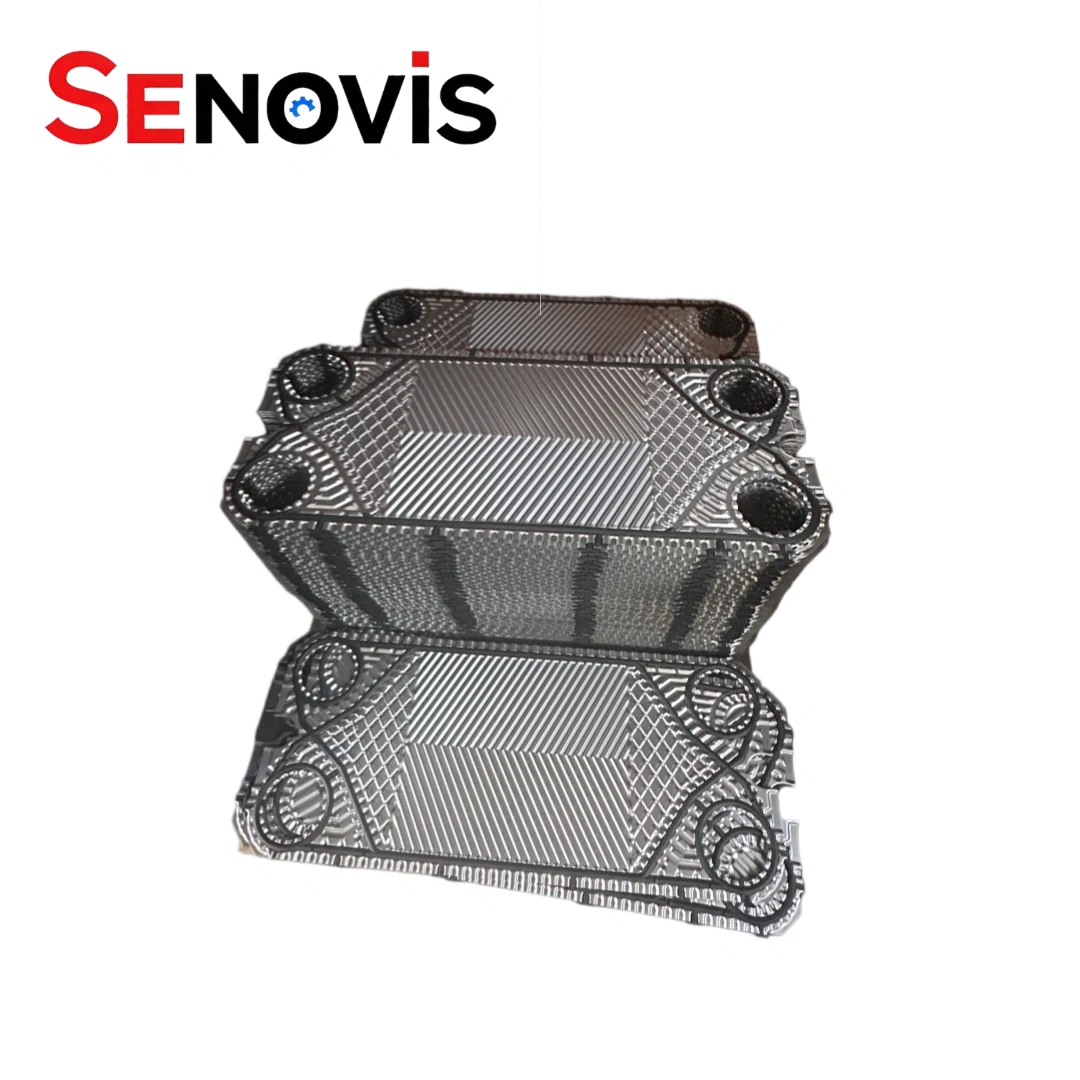

Funke FP50 Plates are high capacity heat transfer plates designed for gasketed plate heat exchangers, offering a flexible solution for industrial cooling, heating, energy recovery, and process applications requiring large heat transfer areas and DN100 connections. As a professional plate heat exchanger component manufacturer, Senovis PHE supplies replacement Funke Fp50 Plate for Gasket Plate Heat Exchanger applications, including plate and gasket solutions used in oil coolers, HVAC systems, marine equipment, food processing plants, and chemical industries. Our production range covers Funke FP50 Gaskets and Plates, related Funke Heat Exchangers Gaskets, and plate configurations commonly referenced in models such as Funke FP50-127-1-NH-0 plate heat exchanger units. We also support maintenance requirements across the broader Funke product family, including Funke Fp41 Fp50 Fp60 Fp80 Fp205 NBR EPDM Cr FKM gasket options. With multiple plate materials, corrugation patterns, and elastomer selections available, Funke fp 50 components can be specified for demanding thermal duties, including Funke Fp50 Heat Transfer Plate for Oil Cooler systems where efficient heat exchange and reliable operation are critical.

Funke FP50 Plate heat exchanger specification

Vicarb PHE Plate Heat Exchanger Replacemnet	Funke FP50
Corrugation Depth(mm)	2.6
Port Diameter(mm)	φ100
Chevron Angle	126°53
Corrugation Pitch(mm)	11
Equivalent Diameter	5.2
Flow Area(m²)	0.00086
One Plate (m²)	0.5
Port Distance (mm)	1388*225
Dimensions (mm)	1548*381

Actual Product Details

faq

What materials are available for Funke FP50 plates?

Depending on the application, u003cstrongu003eFunke FP50 platesu003c/strongu003e can be manufactured in SS304, SS316L, Titanium, 254 SMO, and Hastelloy alloys. Material selection is typically based on operating temperature, pressure, and the corrosion characteristics of the process fluid.u003cbru003e

Do you offer gasket solutions for other Funke FP series models?

Yes. In addition to FP50, we support a wide range of Funke FP series models, including u003cstrongu003eFP41, FP50, FP60, FP80, and FP205u003c/strongu003e. Compatible gasket materials include u003cstrongu003eNBR, EPDM, CR, and FKMu003c/strongu003e to suit different industrial operating conditions.u003cbru003e

Has the Funke FP50 been replaced by a newer model?

Yes. According to available industry information, the traditional u003cstrongu003eFunke FP50 DN100u003c/strongu003e series has been succeeded by the u003cstrongu003eFP4050u003c/strongu003e model in the newer FP4000 series. The updated design offers improved thermal and hydraulic performance, with reported heat transfer efficiency improvements of approximately 20% under comparable operating conditions.u003cbru003e

Can you support maintenance of Funke FP50-127-1-NH-0 plate heat exchangers?

Yes. Senovis PHE supplies replacement u003cstrongu003eFunke FP50-127-1-NH-0 plate heat exchangeru003c/strongu003e plates and gasket solutions for plant maintenance, refurbishment projects, emergency repairs, and scheduled spare parts inventory programs.

What flow capacity can a Funke FP50 heat exchanger support?

A properly configured u003cstrongu003eFunke FP50u003c/strongu003e unit can handle flow rates of up to approximately u003cstrongu003e50 m³/hu003c/strongu003e. Actual performance depends on the number of plates, plate pattern selection, allowable pressure drop, fluid properties, and operating temperatures.u003cbru003e

Do you supply gaskets for other Funke FP series models?

Yes. Besides FP50, Senovis PHE also supplies gasket solutions for u003cstrongu003eFunke FP41, FP50, FP60, FP80, and FP205u003c/strongu003e. Compatible gasket materials include u003cstrongu003eNBR, EPDM, CR, and FKMu003c/strongu003e, helping maintenance teams source replacement sealing components for multiple Funke plate heat exchanger models from a single supplier.
