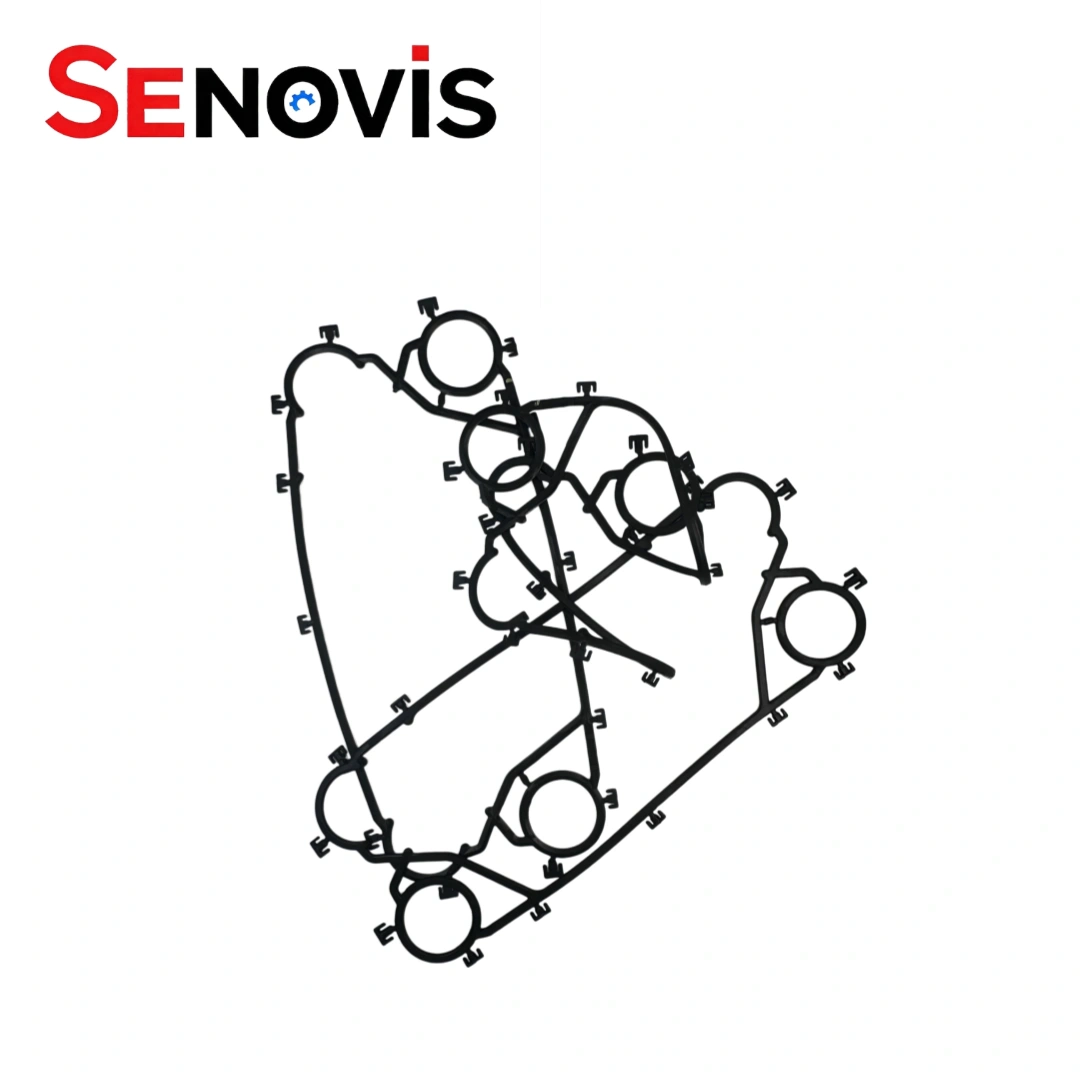

FUNKE FP22 gasket manufactured with epdm gasket material for plate heat exchanger sealing applications. — Compatible FUNKE FP22 sealing gasket designed as epdm gasket plate heat exchanger solution.

Funke FP22 Gasket Detachable Plate Heat Exchanger Manufacturer Industrial Refrigeration

The Funke FP22 Gasket is a direct replacement for Funke gasketed PHEs, including large-capacity funke fp22 plate for funke heat exchanger replacement for 2000 m³/h heat exchanger applications.

Covers the funke fp22/fp14/fp20/fp205/fp80/fp42/fp62/fp82 series across plate heat exchangers series fp, fpdw, fpg, fpsf in NBR, EPDM and FKM.

FUNKE FP22 Gasket details

PHE Model

FUNKE FP22 Gasket

Keyword

Plate Heat Exchanger Spare Parts Enterprise

Applicable Industries

Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper,Oil and Gas, Food Industry

Compatible Brands

FUNKE Plate Heat Exchanger Spare Parts Manufacturer

Connection Type

Clip-on/ Glue/ Glueless

Gasket material

EPDM, NBR, EPDM HT, NBR HT, HNBR, VitonA, VitonG

Processing Service

Moulding

Product Features

Wall pad

DESCRIPTION

The Funke FP22 Gasket is a direct replacement sealing component for Funke gasketed plate heat exchangers, covering industrial cooling and process heat transfer applications — including large-capacity systems where the funke fp22 plate for funke heat exchanger replacement for 2000 m³/h heat exchanger specification comes up in high-volume process cooling duties.
The funke fp22/fp14/fp20/fp205/fp80/fp42/fp62/fp82 series covers the range of Funke gasket and plate configurations most commonly encountered in industrial maintenance. Across the plate heat exchangers series fp, fpdw, fpg, fpsf, material options are selected according to operating media and temperature — NBR and EPDM handle most standard duties, with FKM available for more demanding chemical or temperature conditions.
funke fp22 high performance phe spare parts including gaskets and replacement plates are available for the funke fp22 fp80 fp10 fp41 fp130 plate type coolers range, covering different plate cooler configurations and frame sizes.
The high performance funke fp09/fp19/fp22/fp31 plate heat exchanger series is also supported with replacement gaskets and plates for global aftermarket requirements.

FUNKE FP22 Gasket Replacement Specification

PHE Model	FUNKE FP22 Evaporator Gasket
Applicable Industries	Chemical, HVAC, Power, Sugar, Beverage, Refinery, Marine, Paper
Compatible Brands	Alfa Laval, GEA, Sondex, Tranter, APV, Kelvion, etc.
Connection Type	Clip on/ Glueless/ Glued
Gasket material	NBR,FKM, HNBR, ACM,Silicone,EPDM
Color	Black/White
Temperature Range(°C)	-15~180℃
Keyword	NBR Gasket Supplier
Certificate	ISO / CE
Service	Professional technical support for model selection and installation
Design Pressure	0.6MPa~5MPa

FUNKE FP22 Plate heat exchanger specification

PHE Plate Heat Exchanger Replacemnet	FUNKE FP22
Corrugation Depth(mm)	2.34
Port Diameter(mm)	φ57
Chevron Angle	126.5°54°
Corrugation Pitch(mm)	8.93
Equivalent Diameter	4.68
Flow Area(m²)	0.00045
One Plate (m²)	0.22
Port Distance (mm)	*894126**
Dimensions (mm)	*998230**

Actual Product Details

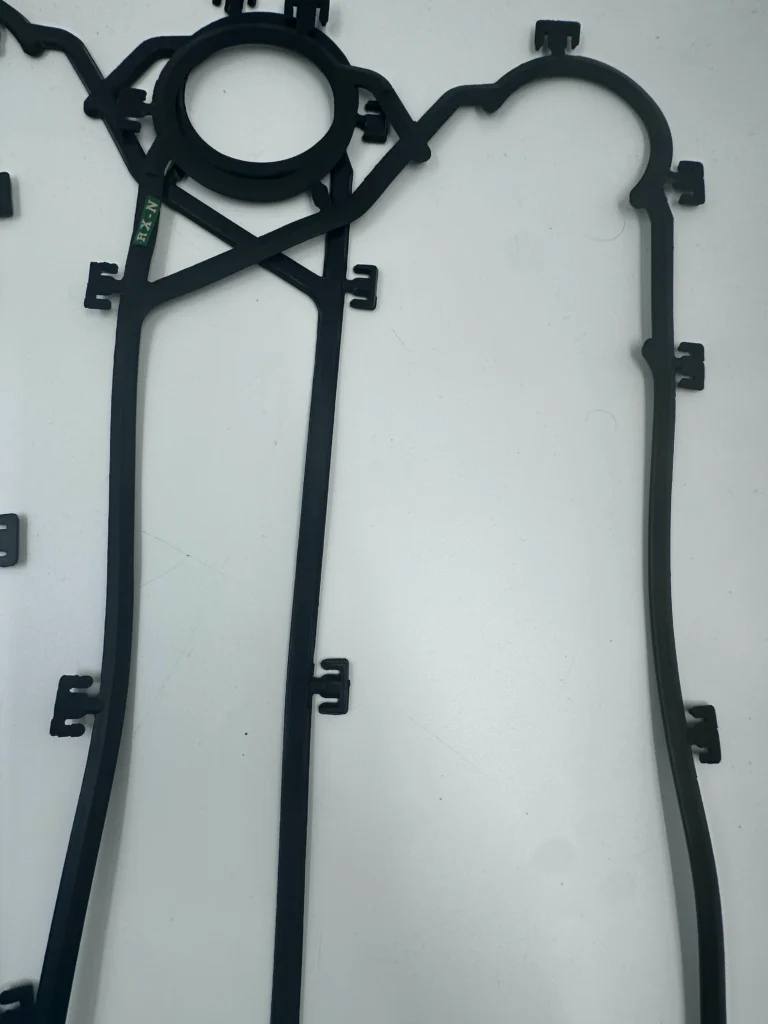

FUNKE FP22 heat exchanger gasket produced for fkmg gasket applications. — Precision FUNKE FP22 sealing component suitable for fkmg gasket for aggressive media conditions.

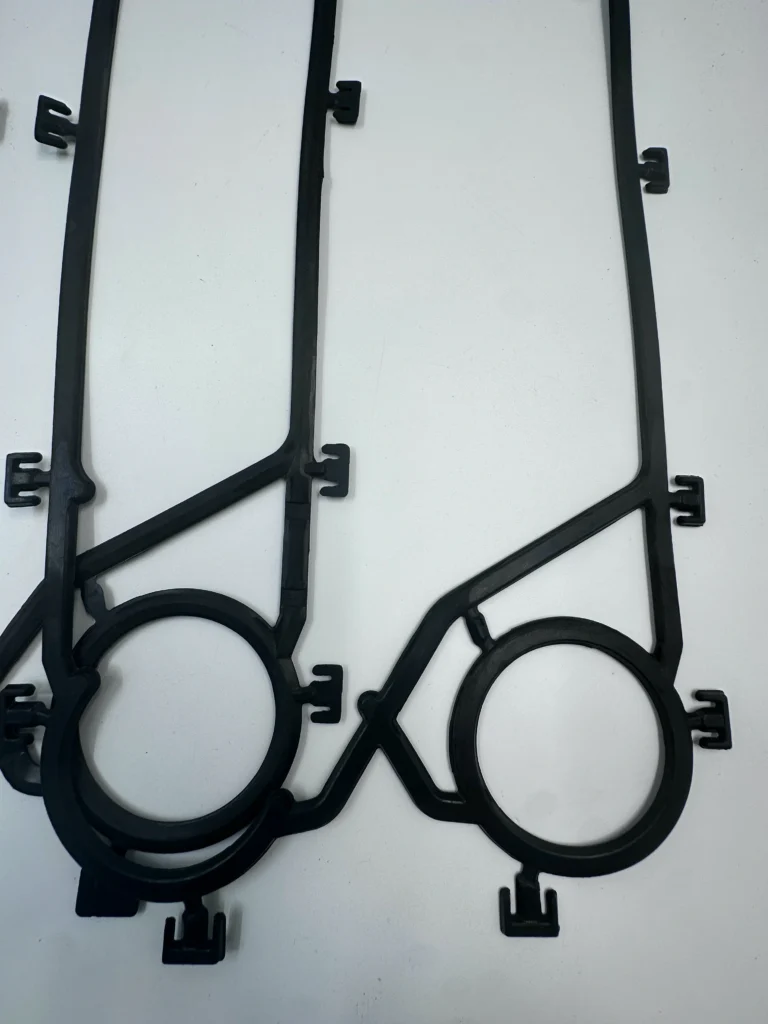

FUNKE FP22 replacement sealing gasket supplied with fkmg gasket oem production capability. — Compatible FUNKE FP22 gasket supplied as fkmg gasket replacement parts for maintenance projects.

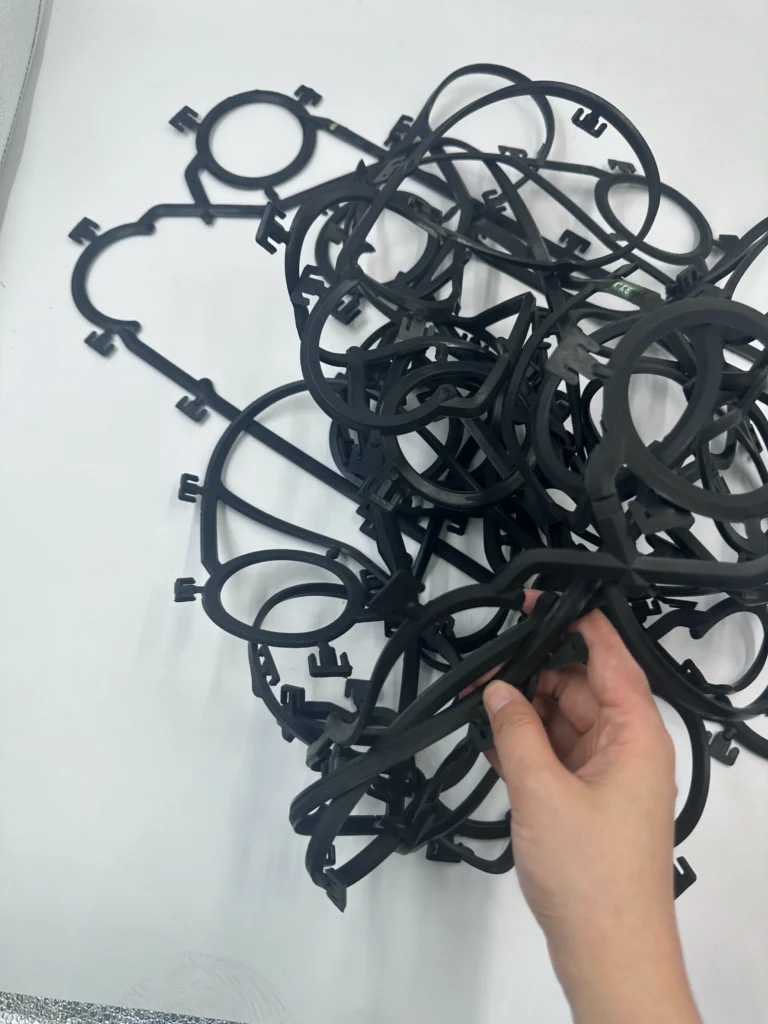

FUNKE FP22 gasket designed as a flat rubber gasket seal for heat exchanger applications. — Precision FUNKE FP22 sealing component manufactured using gasket epdm rubber materials.

faq

What fixing method is used for FUNKE FP22 gaskets?

FUNKE FP22 gaskets are generally installed using clip/groove fixing or adhesive bonding methods, depending on the gasket design and plate configuration.
The gasket is positioned into the plate groove and secured through:
Sealing groove structure
Pressed locating ears / positioning sections
Adhesive fixing for specific versions
Correct installation is important to ensure the gasket remains properly positioned during plate assembly and provides reliable sealing performance.

Is FUNKE FP22 suitable for large flow heat exchanger systems?

Yes. FUNKE FP22 belongs to the medium-size FP series and can be applied in larger industrial plate heat exchanger systems.
Typical reference applications include:
Large circulation flow systems
Industrial cooling applications
Process temperature control
Equipment refurbishment projects
Some FP22-related systems are used in heat exchangers designed for high flow rates, depending on the complete plate arrangement, operating conditions, and system requirements.

When should EPDM gasket be selected for FUNKE FP22?

EPDM gaskets are often selected for:
Hot water applications
Steam-related systems
Certain chemical processes
Temperature-sensitive applications
EPDM performs well with water, steam, and many water-based fluids, but it should be carefully evaluated before use with oil-containing fluids, fuels, or hydrocarbon-based media.

Do you supply FUNKE FP22 Gaskets to the United Arab Emirates?

Yes. Senovis PHE supplies compatible FUNKE FP22 Gaskets and plate heat exchanger spare parts to customers throughout the United Arab Emirates.
We support:
Industrial cooling projects
HVAC contractors
Energy companies
Process industries
Equipment maintenance providers
Shipments can be arranged to Dubai, Abu Dhabi, Sharjah, and other industrial areas in the UAE.
Senovis PHE provides suitable FUNKE FP22 gasket replacement solutions with technical support, material selection assistance, and international logistics services for industrial maintenance projects.

How quickly can FUNKE FP22 Gaskets be delivered to the UAE?

For standard FUNKE FP22 gasket requirements, Senovis PHE can usually arrange shipment after confirming the gasket specification, material type, and required quantity.
Common NBR and EPDM versions are often available for quick supply, while special materials such as FKM or high-temperature elastomer compounds may require additional confirmation.
UAE customers can choose suitable transportation options according to project requirements, including:
Express courier for urgent repairs
Air freight for faster delivery
Sea freight for planned industrial maintenance projects
Senovis PHE recommends the most suitable shipping solution by balancing delivery time and cost efficiency.
